APW Wyott M952L-W Installation And Operating Instructions Manual

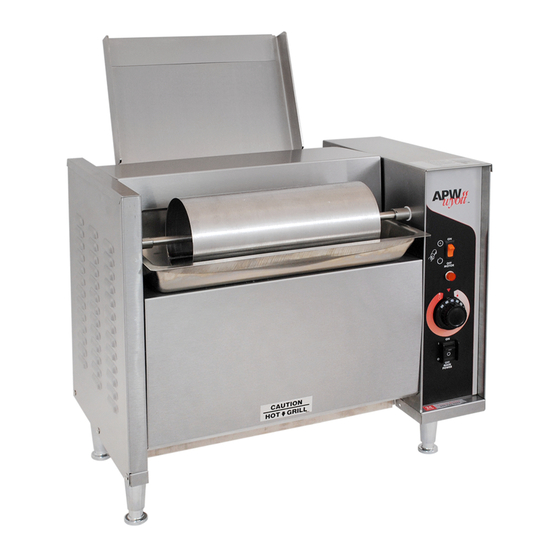

Contact bun toaster
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION
AND
OPERATING INSTRUCTIONS
APPLIANCE MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and
!
liquids in the vicinity of this or any other appliance.
WARNING: Improper installation, adjustment, alteration, service or maintenance can
!
cause property damage, injury or death. Read the Installation, Operating and
Maintenance Instructions thoroughly before installing or servicing this equipment.
Initial heating of appliance may generate smoke or fumes and must be done in a well ventilated area.
Overexposure to smoke or fumes may cause nausea or dizziness.
This equipment has been engineered to provide you with year-round dependable service when used
according to the instructions in this manual and standard commercial kitchen practices.
Phone:
+1
(214) 421-7366
Fax:
+1 (214) 565-0976
Toll Free: +1 (800) 527-2100
Website: www.apwwyott.com
E-mail:
info@apwwyott.com
R
CONTACT BUN TOASTER
INTENDED FOR OTHER
THAN HOUSEHOLD USE
Model:
RETAIN THIS MANUAL FOR FUTURE REFERENCE
24 Hour Service Hotline
M952L-W
(800) 733-2203
1
ANSI/NSF4
P/N 84235
APW WYOTT
729 Third Avenue
Dallas, TX 75226
!
!
9/05

Advertisement

Table of Contents
loading

Related Manuals for APW Wyott M952L-W

Summary of Contents for APW Wyott M952L-W

  • Page 1 OPERATING INSTRUCTIONS CONTACT BUN TOASTER INTENDED FOR OTHER THAN HOUSEHOLD USE M952L-W Model: RETAIN THIS MANUAL FOR FUTURE REFERENCE APPLIANCE MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
  • Page 2 Installation and start-up should be performed by a qualified installer who thoroughly read, understands and follows these instruction. If you have questions concerning the installation, operation, maintenance or service of this product, contact APW Wyott Foodservice Equipment Company’s “ Technical Service Department”.

  • Page 3: Table Of Contents

    IMPORTANT : Read the following important safety instructions to avoid personal injury or death, and to avoid damage to the equipment or property. APW Wyott toasters are designed, built, and sold for commercial use. If positioned WARNING: where the general public can use them, make sure that all cautions, warnings, and operating instructions are clearly posted near each unit to insure proper operation, reducing the chance of personal injury and/or equipment damage.
  • Page 4 Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in APW Wyott equipment. It is essential to use APW Wyott Replacement Parts when repairing APW Wyott equipment. Failure to use APW Wyott Replacement Parts may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn.

  • Page 5: General Information

    3. GENERAL INFORMATION Check the rating label for your model designation and electrical rating. The Rating Label is located on the bottom front of the control panel. Overall dimensions with feeder: 25 15/16” x 23 1/2” x 17 1/2” Electrical ratings: M952: 208VAC, 2780W, 13.4Amps, 60Hz or 240VAC, 2780W, 11.6Amps, 60Hz Cordset Configuration: 208/250V: NEMA 6-20P Plug, 4 foot, 3 wire grounded cord.

  • Page 6: Location

    FIGURE 1 FIGURE 2 M952CL-W ASSEMBLY Jam Nut Control Feeder Panel Conveyor Conveyor Assembly Hanger Butter Roller Butter Pan Screw Bottom JAM NUT & SCREW Control TO ADJUST Panel CONVEYOR HEIGHT Main Power Switch To adjust the conveyor up into the drive gear, turn the conveyor adjustment screw clockwise.

  • Page 7: Cleaning Instructions

    7. CLEANING WARNING: Make sure the toaster is in the off position and has been off at least 15 -30 minutes. attempt this cleaning procedure if the toaster components are too hot to touch. Never spray water on the toaster or controls. Damage to the toaster as well as injury could occur. Severe injury and burns may occur if you do not follow this instruction sheet.

  • Page 8: Troubleshooting

    Is power switch “ON” and pilot light glowing? Check the rating label. Is the unit connected to the correct power source? If the above checks out, and you still have problems, call an APW Wyott authorized service agent. APW SERVICE HOT LINE: 1-800-733-2203.

  • Page 9: Wiring Diagram

    PROBLEM CAUSE SOLUTION Wrong temperature setting Buns will not toast Increase temperature setting and allow two cycles to warm up. Excessive cupping of bun surface Verify bun cut to bun specification Check conveyor adjustment Buns are stale, use fresher buns. Buns toast unevenly Excessive cupping of bun surface Buns are stale, use fresher buns.
  • Page 11 PARTS LIST ITEM PART NUMBER DESCRIPTION QUANTITY 84229 ASSY WELD BASE WTB M-952 84217 ASSY WELD PANEL, LEFT SIDE 84118 ASSY WELD RIGHT SIDE HOUSING 84121 ASSY, BACK COVER 83065 ASSY, CHAIN HANGER LEFT SIDE 84138 ASSY, PILOT LIGHT 83061 ASSY, WELD HANGER ARM RIGHT SIDE 84211 ASSY, WELD PLATE ATTACHMENT LEFT SIDE...

  • Page 12: Warranty

    APW Wyott's option or its Authorized Service Agency, it will be serviced on site or replaced. From day two through the conclusion of this warranty period, portable units must be taken to or sent prepaid to the APW Wyott Authorized Service Agency for in-warranty repairs.
