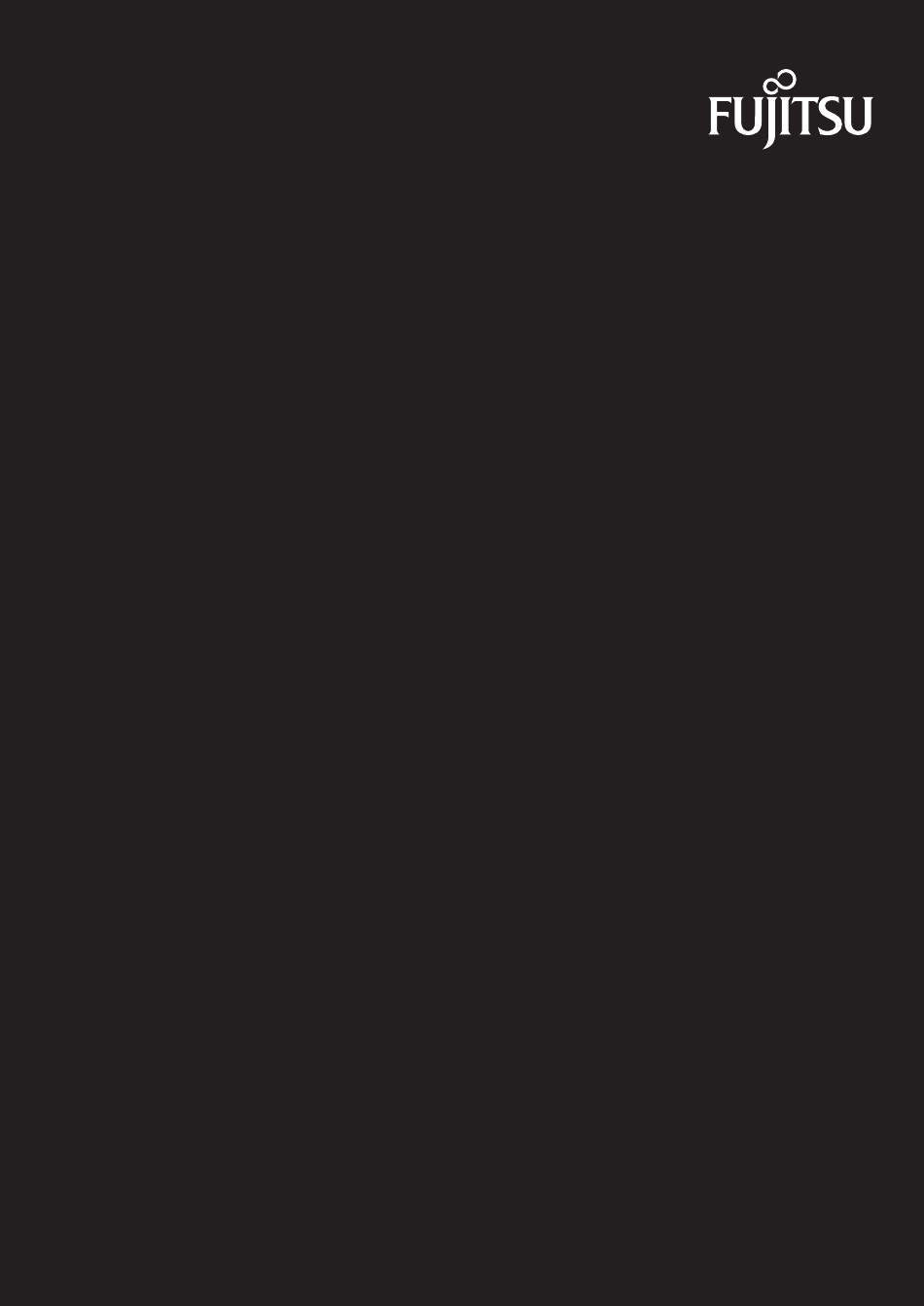

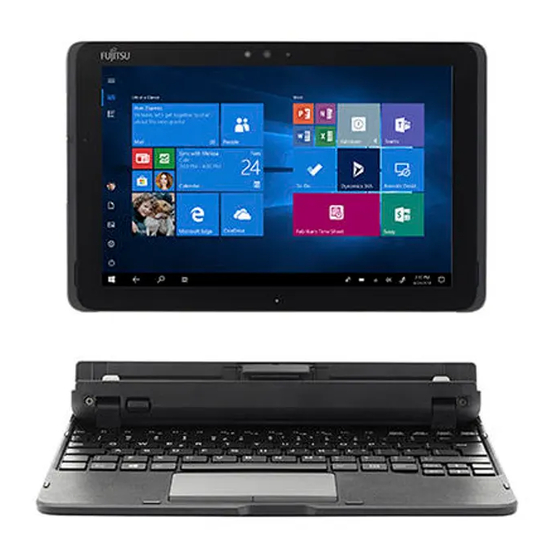

- Page 1 S T Y L I S T I C User Manual STYLISTIC Q509...
- Page 2 Copyright Copyright Fujitsu Limited has made every effort to Other product names are trademarks or ensure the accuracy and completeness of this registered trademarks of their respective document. However, as ongoing development companies. efforts are continually improving the capabilities of our products, we cannot guarantee the Copyright©...
- Page 3 IMPORTANT SAFETY If an extension cord is used with this product, make sure that the total ampere rating of the INSTRUCTIONS equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also make sure that the total rating of Read these instructions carefully.
- Page 4 Copyright C A U T I O N : W h e n r e p l a c i n g t h e battery, be sure to install it with the polarities in the correct position. There is a danger of explosion if the battery is replaced with an incorrect t y p e o r i s m i s t r e a t e d .
- Page 5 Changes or modifications not expressly 1. The telephone number to which the approved by Fujitsu could void this user’s authority to operate the equipment. Tablet PC is connected. 2. The Ringer Equivalence Number(REN) for this equipment.
- Page 6 Any repairs of alterations not expressly • Workstations for the hearing impaired. approved by Fujitsu or any equipment failures • Hotel, motel or apartment lobbies. may give the telecommunication company cause to request the user to disconnect the •...
- Page 7 Television ( T h e f o l l o w i n g i s p e n d i n g certification a time of publication). Your Fujitsu system is an ENERGY STAR ® qualified mobile PC. By choosing a computer with the latest energy saving technology, you’re...
- Page 8 Copyright For Authorized Repair Technicians Only For safety, users should ensure that the electrical ground of the power utility, the telephone lines and the metallic water For continued protection against risk of fire, pipes are connected together. replace only with the same type and rating Users should NOT attempt to make such fuse.
- Page 9 (and update regularly). for general use, household use and ordinary industrial use. If you send this product to Fujitsu, or any of This product is not designed for or intended for its affiliates, suppliers, service providers or use under dangerous (fatal) conditions, unless resellers for repair, Fujitsu does not guarantee extreme safety precautions are impemented.
-
Page 10: Table Of Contents
A copy of STYLISTIC User Manual is Cradle.............. located in your Microsoft Windows OS or Slim Keyboard..........you can find it in Fujitsu website at http:hk.fujitsu.com/pc. Running the Tablet PC on its Battery You can use this STYLISTIC User ’s Recharging the Battery........ -
Page 11: Getting To Know Your Stylistic
Locating the Controls and Connectors The following is a brief description of the top and side features of the Fujitsu STYLISTIC Q509. (This picture is for illustration purpose only and may look different from the actual unit) Top and Side Panel Components... -
Page 12: Bottom And Side Panel Components
5 6 7 8 (This picture is for illustration purpose only and may look different from the actual unit) Bottom and Side Panel Components Rear Webcam Flash Rear Webcam Rear Webcam Status LED Built-in Microphone Shortcut Button Volume Button Power Button Pen/ Pen Garage Fingerprint Sensor... -
Page 13: Right Side Panel Components
Getting to Know Your STYLISTIC (This picture is for illustration purpose only and may look different from the actual unit) Right Side Panel Components Pen Tether Hole... -
Page 14: Left Side Panel Components
(This picture is for illustration purpose only and may look different from the actual unit) Left Side Panel Components Pen Tether Hole USB 3.1 (Gen 1) Type-C Connector Audio Combo Jack Battery Charging Indicator Micro SD and Slot DC-in USB 3.1 (Gen 1) Connector... -
Page 15: Cradle
Getting to Know Your STYLISTIC STYLISTIC Q509 with Optional Accessories Cradle* (This picture is for illustration purpose only and may look different from the actual unit) Front and Back Side Panel Components Release Button USB 3.1 (Gen 1) Connector To release the Tablet PC from the cradle. -
Page 16: Slim Keyboard
Slim Keyboard* (This picture is for illustration purpose only and may look different from the actual unit) Front and Back Side Panel Components Release Button Touchpad To release the Tablet PC from the keyboard. Used as a substitute for a mouse sensor. Keyboard *Optional Accessory... -
Page 17: Running The Tablet Pc On Its Battery
Getting to Know Your STYLISTIC Running the Tablet PC on its Battery • When the battery is 90% or more charged, it cannot be recharged even if Recharging the battery the AC adapter is connected. The battery Connect the AC adapter to your Tablet PC. The can be recharged when its power level(i.e. -
Page 18: Running The Tablet On Its Battery
Running the Tablet PC on its Battery This section describes the steps to run the Tablet PC on its internal standard battery. • Disconnect the AC adapter from your Tablet PC and press the power button. Power Button • T h e p o w e r l e v e l o f t h e b a t t e r y decreases faster when it is used in cold place. -
Page 19: Low Battery Condition
Getting to Know Your STYLISTIC Low Battery Condition When the battery is discharged to a very low level, connect the AC adapter to your Tablet PC immediately to recharge the battery. • The use of a weak battery may result in lost of data you are currently working on. -
Page 20: Using The Stylus Pen
The screen responds to entries made with the tip of the finger or the pen is in direct contact Fujitsu STYLISTIC Q509 Pen Pen Tip with the screen. You can use the pen to perform all the functions for which you would otherwise use a mouse. -
Page 21: Setting The Pen
Getting to Know Your STYLISTIC Setting the Pen Handling Mouse Selecting menu Click with the left mouse button. Touch the menu entry with the entries pen tip. Double click with the left mouse Briefly touch the program icon Starting programs button. -
Page 22: Using The Integtraed Digitizer
Using the Integrated Digitizer Clicking To left-click, touch the object you wish to select The integrated Digitizer allows you to use and then lift the pen tip immediately. the included pen as pointing device. You can use the pen to click, double-click, drag items and icons, or to draw like a pen or pencil in applications that support this behavior, such as drawing or painting programs. -
Page 23: Using Your Stylistic
Using Your STYLISTIC Power Sources Your Fujitsu STYLISTIC Q509 has two possible power sources: a primary Lithium ion battery and an AC adapter. DC Power Plug AC Adapter DC Output Cable AC Cable Connecting the AC Adapter Connecting the AC Adapter The AC adapter provides power for operating your Tablet PC and Charging the batteries. -
Page 24: Starting Your Tablet Pc
The Power/Suspend/Resume button is used The procedure for starting-up your Tablet PC is termed the Bootup sequence and involves to turn on your Fujitsu STYLISTIC Q509 from your Tablet PC’s BIOS. When your Tablet PC its off state. Once you have connected your... -
Page 25: Power Management
Using Your STYLISTIC Power Management Your Fujitsu STYLISTIC has many options and Suspend Mode features for conserving battery power. Some Suspend or S tandby mode i n Wi ndow s of these features are automatic and need no saves the contents of your STYLISTICs... -
Page 26: Hibernation (Save-To-Disk) Feature
Hibernation (Save-To-Disk) Feature The Hibernation feature saves the contents of • If you are running your STYLISTIC your STYLISTIC’s system memory to the hard on battery power, be aware that the drive as a part of the Suspend/Resume mode. battery continues to discharge while You can enable or disable this feature. -
Page 27: Windows Power Management
Using Your STYLISTIC Windows Power Management Power Off The Power Options icon located in the Windows Before turning off power, check that the hard Control Panel allows you to configure some of drive/optical drive access indicator is off. If you the power managment settings. -
Page 28: Troubleshooting
Troubleshooting Your Fujitsu STYLISTIC Q509 is sturdy and Before you place the call, you should have subject to few problems in the field. However, the following information ready so that the you may encounter simple setup or operating customer support representative can provide...
