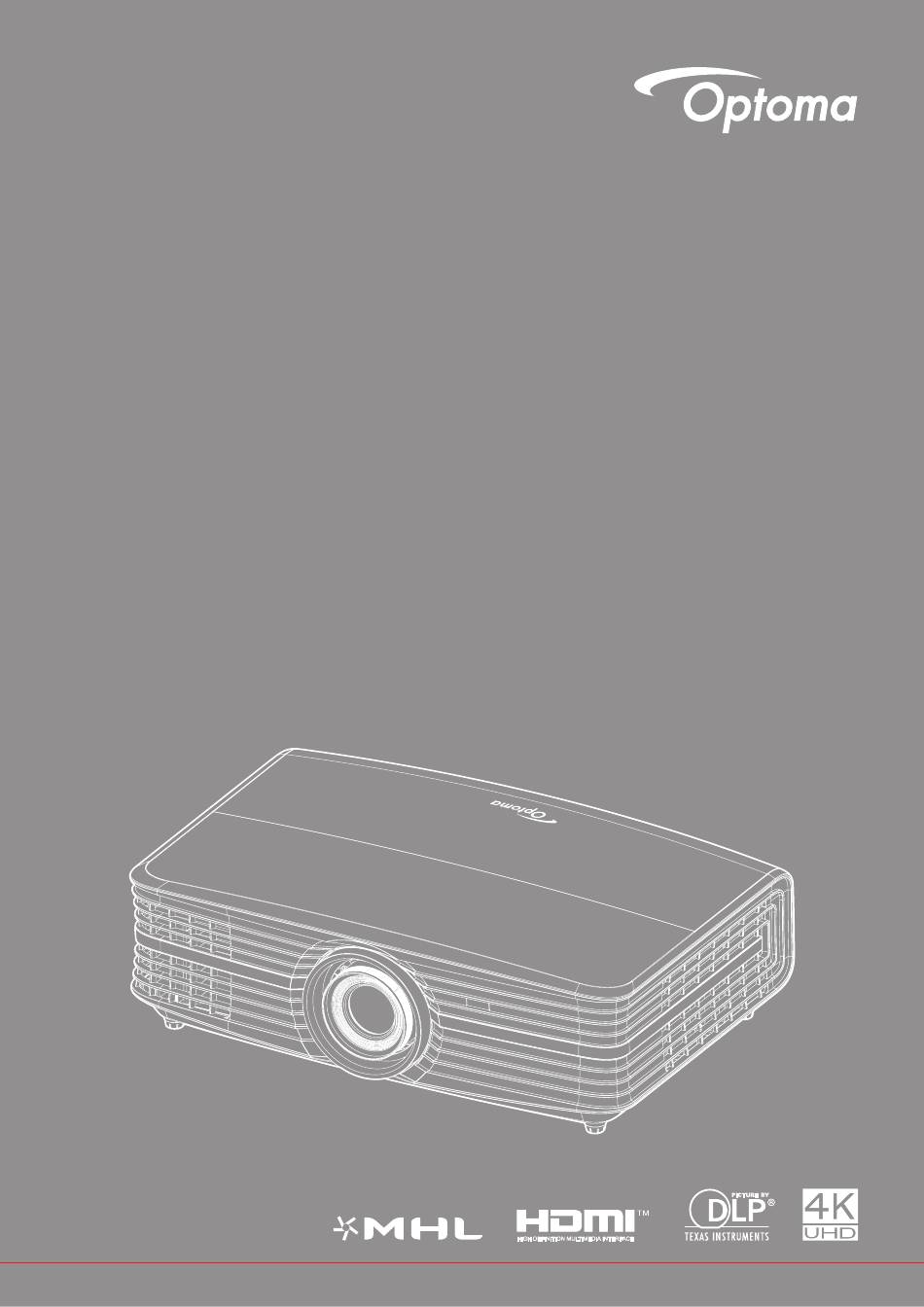

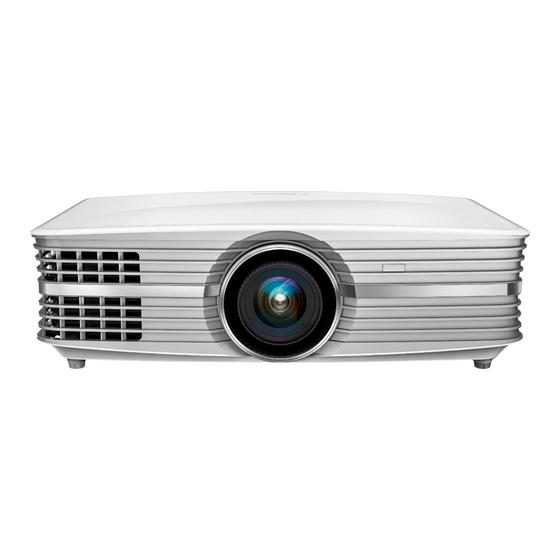

  • Page 1 Projector ® User manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 Copyright ........................... 6 Disclaimer ..........................6 Trademark Recognition ......................6 FCC ............................6 Declaration of Conformity for EU countries ................7 WEEE ............................7 INTRODUCTION .................. 8 Package Overview........................8 Standard accessories ........................
  • Page 3 Compatible resolutions ......................48 Image size and projection distance ..................50 Projector dimensions and ceiling mount installation ..............52 IR remote codes ........................53 Troubleshooting ........................55 Warning indicators ........................57 Specifications ........................... 59 Optoma global offices ....................... 60 English...

  • Page 4: Safety

    SAFETY The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
  • Page 5 ‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings.

  • Page 6: Copyright

    Copyright This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without written consent of the author. © Copyright 2017 Disclaimer The information in this document is subject to change without notice.

  • Page 7: Declaration Of Conformity For Eu Countries

    Caution Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this projector. Operation Conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.

  • Page 8: Introduction

    Power lead Documentation Notee: ‡ The remote control is shipped with the battery. ‡ * For European warranty Information, please visit www.optoma.com. Optional accessories HDMI cable Lens cap CD user manual Notee: Optional accessories vary depending on model, specification and region.

  • Page 9: Product Overview

    INTRODUCTION Product Overview Minimum 100mm Minimum Minimum 100mm 100mm Minimum Minimum 300mm 300mm Minimum 100mm Notee: ‡ Do not block projector intake and exhaust vents. ‡ When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents.

  • Page 10: Connections

    INTRODUCTION Connections Item Item Kensington Lock Port AUDIO IN Connector Power Socket 12V OUT Connector RJ-45 Connector 10. USB Type A / Service Connector RS232 Connector 11. S/PDIF Connector HDMI 1 Connector 12. USB Power Out (5V 1.5A) HDMI 2 (HDCP2.2) / MHL 13.

  • Page 11: Keypad

    INTRODUCTION Keypad Item Item Menu Lamp LED Enter Source Re-Sync Power and On/Standby LED Temp LED Four Directional Select Keys English...

  • Page 12: Remote Control

    INTRODUCTION Remote control User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Item Item Power On 15. User 3 User 2 16. Contrast User 1 17. Display Mode Brightness 18.

  • Page 13: Setup And Installation

    Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard installation advise please contact Optoma. English...

  • Page 14: Connecting Sources To The Projector

    SETUP AND INSTALLATION Connecting sources to the projector Item Item HDMI Cable S/PDIF Out Cable HDMI / MHL Cable USB Power Cable RCA Component Cable 10. Audio Out Cable VGA In Cable 11. HDMI Dongle Audio In Cable 12. RS232 Cable 12V DC Jack 13.

  • Page 15: Adjusting The Projector Image

    SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Zoom, lens shift, and focus...

  • Page 16: Remote Setup

    SETUP AND INSTALLATION ‡ To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible. Focus Ring Notee: The projector will focus at a distance of 1.3m to 9.3m. Remote setup Installing / replacing the batteries Two AAA size batteries are supplied for the remote control.
  • Page 17 SETUP AND INSTALLATION Effective range Infra-Red (IR) remote control sensor is located on the front side and rear side of the projector. Ensure to hold the remote control at an angle within 30 degrees perpendicular to the projector’s IR remote control sensor to function correctly.

  • Page 18: Using The Projector

    USING THE PROJECTOR Powering on / off the projector User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone User2 User1 User3 Mute Contrast Sleep Timer Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Volume Source Re-sync Menu Source Volume Re-sync HDMI1 HDMI2...

  • Page 19: Selecting An Input Source

    User2 User1 User3 USING THE PROJECTOR Contrast Brightness Mode Aspect ratio Keystone Selecting an input source Mute Sleep Timer Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, push the source button on the projector keypad or the remote control to select the desired input.

  • Page 20: Using The Projector

    USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. To open the OSD menu, press on the remote control or the projector keyboard.

  • Page 21: Osd Menu Tree

    USING THE PROJECTOR OSD Menu tree Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Cinema HDR SIM. Game Display Mode Reference Bright User ISF Day ISF Night Off [Default] Blackboard Light Yellow Wall Color Light Green Light Blue Pink...
  • Page 22 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Color Temperature Native Native HDTV Presentation Color Gamut Cinema Game R [Default] Color x offset -50 ~ 50 [Default:0] y offset -50 ~ 50 [Default:0] Display Image Settings Color Settings...
  • Page 23 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Automatic On [Default] -50 ~ 50 (depends on signal) Frequency [Default:0] Signal [RGB/ 0~31 (depends on signal) Phase Component [Default:0] Input] -50 ~ 50 (depends on signal) H.
  • Page 24 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Auto [Default] Internal Speaker Audio Off [Default] Mute Volume 0 ~ 10 [Default: 5] Front [Default] Rear Projection Ceiling-top Rear-top Lamp Reminder On [Default] Lamp Settings Cancel [Default] Lamp Reset...
  • Page 25 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Green Grid Magenta Grid Test Pattern White Grid White Front IR Function Rear Test Pattern Color Temp Gamma Auto Source User1 Projection Lamp Settings Zoom Dynamic Range [Default] Dynamic Black...
  • Page 26 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Remote Settings Dynamic Range User3 Dynamic Black [Default] [depends on remote] PureEngine Projector ID 00 ~ 99 12V Trigger 12V Trigger English [Default] Deutsch Français Italiano...
  • Page 27 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu None [Default] Blue Background Color Options Green Gray Setup HDMI 1 EQ 1 ~ 7 [Default: 4] HDMI 2 EQ 1 ~ 7 [Default: 4] Cancel [Default] Reset OSD Reset...
  • Page 28 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Regulatory Serial Number Source Resolution 00x00 Refresh Rate 0.00Hz Display Mode Power Mode (Standby) Bright 0 hr Eco. 0 hr Lamp Hours Dynamic 0 hr Information Total...

  • Page 29: Display Image Settings Menu

    USING THE PROJECTOR Display menu Display image settings menu Display Mode There are many factory presets optimized for various types of images. ‡ Cinema: Provides the best colours for watching movies. ‡ HDR: Displays High Dynamic Range (HDR) content as the director intended. ‡...
  • Page 30 USING THE PROJECTOR Tint Adjust the color balance of red and green. Gamma Set up gamma curve type. After the initial setup and fine tuning is completed, utilize the Gamma Adjustment steps to optimize your image output. ‡ Film: For home theater. ‡...

  • Page 31: Display Aspect Ratio Menu

    USING THE PROJECTOR V. Position: Adjust the vertical positioning of the image. ‡ ‡ Exit: Exit the “Signal” menu. Notee: This menu is only available if the input source is RGB/Component. UltraDetail Adjust the edges of the projected image in order to provide more perceived details. Dynamic Black Use to automatically adjust the picture brightness to give optimum contrast performance.
  • Page 32 USING THE PROJECTOR ± If you use an external anamorphic lens, this LBX mode also allows you to watch a 2.35:1 content (include Anamorphic DVD and HDTV film source) that supports anamorphic wide is enhanced for 16x9 Display in a wide 2.35:1 image. In this case, there are no black bars. Lamp power and vertical resolution are fully utilized.

  • Page 33: Display Edge Mask Menu

    USING THE PROJECTOR Display edge mask menu Edge Mask Use this function to remove the video encoding noise on the edge of video source. Display digital zoom menu Digital Zoom Use to reduce or magnify an image on the projection screen. Display image shift menu Image Shift Adjust the projected image position horizontally (H) or vertically (V).

  • Page 34: Setup Projection Menu

    USING THE PROJECTOR Setup menu Setup projection menu Projection Select the preferred projection between front, rear, ceiling-top, and rear-top. Setup lamp settings menu Lamp Reminder Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp.

  • Page 35: Setup Security Menu

    USING THE PROJECTOR Power Mode (Standby) Set the power mode setting. ‡ Activee: Choose “Active” to return to normal standby. ‡ Ecoe: Choose “Eco.” to save power dissipation further < 0.5W. Setup security menu Security Enable this function to prompt for a password before using the projector. ‡...

  • Page 36: Setup 12V Trigger Menu

    USING THE PROJECTOR Setup 12V trigger menu 12V Trigger Use this function to enable or disable the trigger. Reserved IR_IN & detect ‡ Off: Choose “Off” to disable the trigger. ‡ On: Choose “On” to enable the trigger. Setup options menu Language Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Korean, and Russian.

  • Page 37: Setup Reset Osd Menu

    USING THE PROJECTOR Background Color Use this function to display a blue, red, green, gray color, or none when no signal is available. HDMI 1 EQ Set the HDMI port EQ value for HDMI1. HDMI 2 EQ Set the HDMI port EQ value for HDMI2/MHL. Notee: ‡...

  • Page 38: Network Control Menu

    USING THE PROJECTOR How to use web browser to control your projector Turn “On” the DHCP option on projector to allow a DHCP server to automatically assign an IP address. Open the web browser in your PC and type in the projector’s IP address (“Network > LAN > IP Address”).

  • Page 39: Setup Network Control Settings Menu

    USING THE PROJECTOR Telnet Use this function to select the network function (port: 23). HTTP Use this function to select the network function (port: 80). Setup network control settings menu LAN_RJ45 function For simplicity and ease of operation, the projector provides diverse networking and remote management features. The LAN / RJ45 function of the projector through a network, such as remotely manage: Power On / Off, brightness, and contrast settings.
  • Page 40 USING THE PROJECTOR LAN RJ45 Connect an RJ45 cable to RJ45 ports on the projector and the PC (laptop). On the PC (Laptop), select Start > Control Panel > Network Connections. Right-click on the Local Area Connection, and select Property. In the Properties window, select the General tab, and select Internet Protocol (TCP / IP).
  • Page 41 USING THE PROJECTOR Click “Properties”. Type in the IP address and Subnet mask, then press “OK”. Press the “Menu” button on the projector. Open on projector Network > LAN. Enter the following connection parameters: ± DHCP: Off ± IP Address: 192.168.0.100 ±...
  • Page 42 USING THE PROJECTOR The projector is setup for remote management. The LAN / RJ45 function displays as follows: Information page Main page Tool page Contact IT helpdesk English...
  • Page 43 USING THE PROJECTOR RS232 by Telnet Function There is alternative RS232 command control way, in projector so called “RS232 by TELNET” for LAN / RJ45 interface. Quick Start-Guide for “RS232 by Telnet” ‡ Check and get the IP address on OSD of the projector. ‡...

  • Page 44: Info Menu

    USING THE PROJECTOR Info menu Info menu View the projector information as listed below: ‡ Regulatory ‡ Serial Number ‡ Source ‡ Resolution ‡ Refresh Rate ‡ Display Mode ‡ Power Mode (Standby) ‡ Lamp Hours ‡ Network Status ‡ IP Address ‡...

  • Page 45: Maintenance

    MAINTENANCE Replacing the lamp The projector automatically detects the lamp life. When the lamp life is nearing the end of use, a warning message will appear on the screen. Warning Lamp Warning Lamp life exceeded. When you see this message, please contact your local reseller or service center to change the lamp as soon as possible.
  • Page 46 MAINTENANCE Replacing the lamp (continued) Procedure: Switch off the power to the projector by pressing the “ ” button on the projector keypad or the “ ” button on the remote control. Allow the projector to cool down for at least 30 minutes. Disconnect the power cord.

  • Page 47: Installing And Cleaning The Dust Filter

    MAINTENANCE Notee: ‡ The projector cannot be turned on if the lamp cover has not been placed back on the projector. ‡ Do not touch the glass area of the lamp. Hand oil can cause the lamp shatter. Use a dry cloth to clean the lamp module if it was accidentally touched.

  • Page 48: Additional Information

    ADDITIONAL INFORMATION Compatible resolutions Digital (HDMI 1.4) Native resolution: 1920 x 1080 @ 60Hz Established Timing Standard Timing Descriptor Timing Supported Video Mode Detail Timing 720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920 x 1080 @ 60Hz 720 x 480i @ 60Hz 16:9 1920 x 1080p @ 60Hz (default)
  • Page 49 ADDITIONAL INFORMATION B0 / Established Timing B0 / Standard Timing B1 / Video Mode B1 / Detail Timing 4096 x 2160 @ 30Hz 4096 x 2160 @ 50Hz 4096 x 2160 @ 60Hz Notee: Support 1920 x 1080 @ 50Hz. Analog Native resolution: 1920 x 1080 @ 60Hz B0 / Established Timing...

  • Page 50: Image Size And Projection Distance

    ADDITIONAL INFORMATION Image size and projection distance (image size and distance in meters and feet) Diagonal Screen Size W x H Projection Distance (D) Min Offset (Hd) Max Offset (Hd) length (feet) (feet) (inch) size of Width Height Width Height Wide Tele Wide...
  • Page 51 ADDITIONAL INFORMATION Top View Screen Screen (W) Projection Distance (D) Width Screen (H) Screen Side View Offset (Hd) Projection Distance (D) English...

  • Page 52: Projector Dimensions And Ceiling Mount Installation

    ADDITIONAL INFORMATION Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: ‡...

  • Page 53: Ir Remote Codes

    ADDITIONAL INFORMATION IR remote codes User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Data Custom code Printing-key code Description definition Byte 1 Byte 2 Byte 3 Power on Press to turn on the projector.
  • Page 54 ADDITIONAL INFORMATION Data Custom code Printing-key code Description definition Byte 1 Byte 2 Byte 3 Automatically adjusts the picture brightness to (Dynamic Black) give optimum contrast performance. Sleep timer Sleep Timer Sets the countdown timer interval. Volume + Volume + Adjust to increase volume.

  • Page 55: Troubleshooting

    ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"...
  • Page 56 ADDITIONAL INFORMATION Other problems The projector stops responding to all controls ‡ If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power. Lamp burns out or makes a popping sound ‡...

  • Page 57: Warning Indicators

    ADDITIONAL INFORMATION Warning indicators When the warning indicators (see below) light up or flash, the projector will automatically shutdown: ‡ "LAMP" LED indicator is lit red and if "On/Standby" indicator flashes red. ‡ "TEMP" LED indicator is lit red and if "On/Standby" indicator flashes red. This indicates the projector has overheated.
  • Page 58 ADDITIONAL INFORMATION ‡ Temperature warning: Warning TEMPERATURE TOO HIGH Please: 1. Make sure air in and outlets are not blocked. 2. Make sure the environment temperature is under 45 degree C. If the problem persists in spite of the above. Please contact a service center for repair.

  • Page 59: Specifications

    ADDITIONAL INFORMATION Specifications Optical Description - Graphic up to 2160p@60Hz Maximum resolution - Maximum Resolution: HDMI1 : 1920*1200@60Hz(RB) HDMI2 : 2160p@60Hz Native resolution (w/o actuator) 2716 x 1528 Lens Manual zoom and manual focus Image size (diagonal) 26.45”~302.2” focus range optimized to the image size 60” Projection distance 1.3m ~ 9.3m focus range optimized to the image size 60”...

  • Page 60: Optoma Global Offices

    ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Japan 3178 Laurelview Ct. 888-289-6786 東京都足立区綾瀬3-25-18 Fremont, CA 94538, USA 510-897-8601 info@os-worldwide.com 株式会社オーエス www.optomausa.com services@optoma.com 0120-380-495 www.os-worldwide.com コンタクトセンター: Canada Taiwan 3178 Laurelview Ct. 888-289-6786 12F., No.213, Sec. 3, Beixin Rd.,...
  • Page 61 *36.78V03G001-A* P/N:36.78V03G001-A www.optoma.com...
