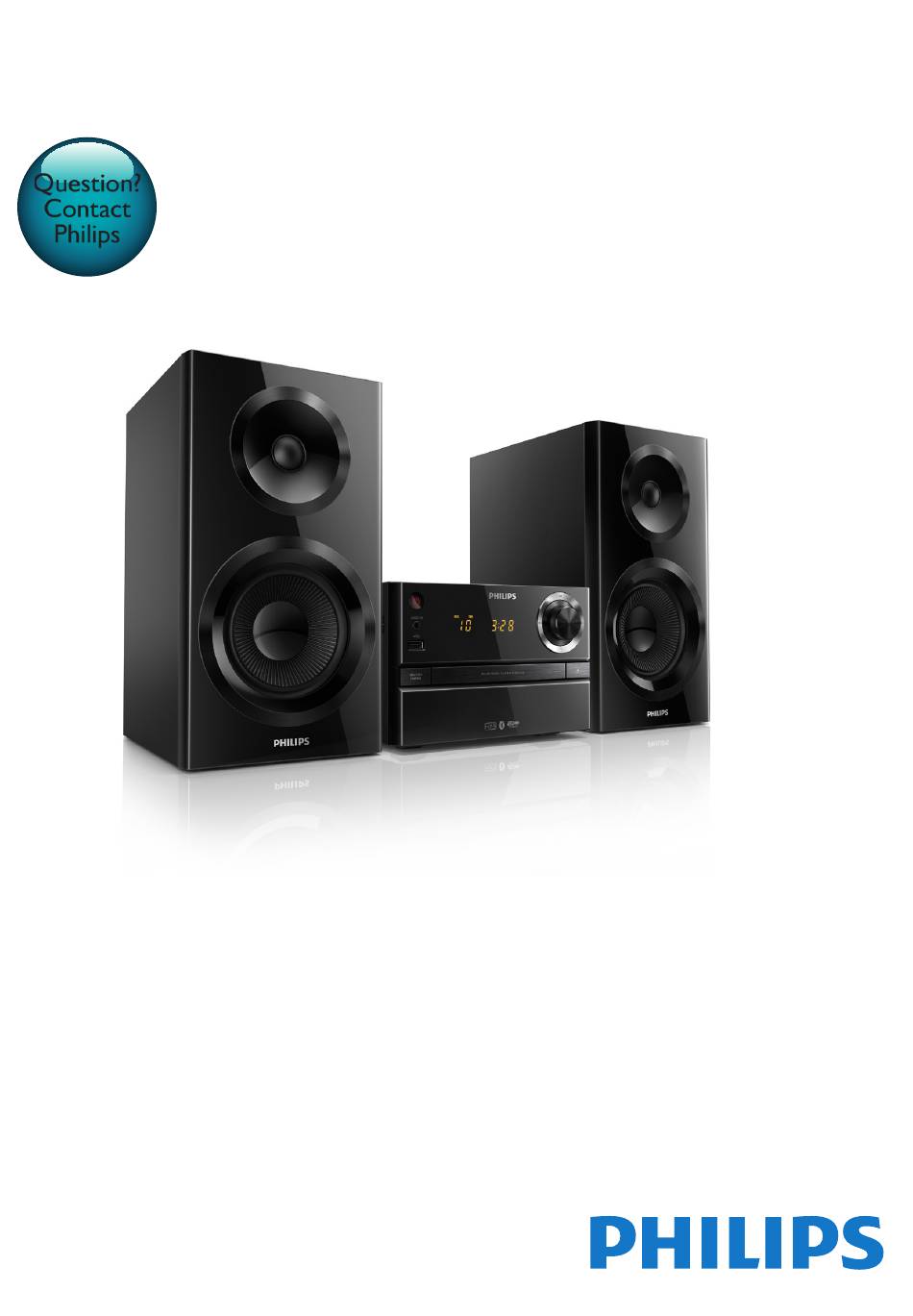

- Page 1 Always there to help you Register your product and get support at www.philips.com/support BTM2360 Question? Contact Philips User manual...
-
Page 3: Table Of Contents
Contents 1 Important 7 Other features Safety Set the alarm timer Notice Set the sleep timer Listen to an external device Charge your devices 2 Your Micro Music System Introduction 8 Product information What's in the box Overview of the main unit Specifications Overview of the remote control USB playability information... -
Page 4: Important
1 Important • The device shall not exposed to dripping or splashing. • Do no place any source of danger on the device (e.g. liquid filled objects. lit candles). Safety • Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily Read and understand all instructions before operable. - Page 5 recycling. By doing this, you help to preserve the All unnecessary packaging has been omitted. environment. We have tried to make the packaging easy to This apparatus includes this label: separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and reused if disassembled by...
-
Page 6: Your Micro Music System
2 Your Micro Music System Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With this unit, you can: • enjoy audio from discs, USB devices, Bluetooth devices, and other external devices; •... -
Page 7: Overview Of The Main Unit
Overview of the main unit j AUDIO IN • Turn on the product. • Connect external audio devices. • Switch to standby mode or ECO k SOURCE/PAIRING power standby mode. • Press to select a source: DISC, USB, b Bluetooth indicator TUNER, AUDIO IN, BT. -
Page 8: Overview Of The Remote Control
Overview of the remote • Skip to the previous/next track. control • Search within a track/disc/USB. • Tune to a radio station. • Adjust time. • Play tracks randomly. f ALBUM/PRESET • Select a preset radio station. • Skip to previous/next album. g DISPLAY •... - Page 9 q FM/AUDIO IN • Select FM source. • Select AUDIO IN source. • Select Bluetooth source.
-
Page 10: Get Started
3 Get started Connect power Caution Caution • Risk of product damage! Ensure that the power supply • voltage corresponds to the voltage printed on the back Use of controls or adjustments or performance of or the underside of the unit. procedures other than herein may result in hazardous •... -
Page 11: Demonstrate The Features
Demonstrate the features Note • The product switches to ECO power standby mode In standby mode, press to demonstrate after 15 minutes in standby mode. features of this device. » The features are displayed one by one Switch between standby mode and ECO across the display panel. -
Page 12: Select A Source
Select a source On the main music system Press SOURCE repeatedly to select a source. [DISC]: the disc in the disc compartment • • [USB]: .mp3 files stored on the connected USB storage device [TUNER]: the FM tuner • [AUDIO IN]: the audio input through the •... -
Page 13: Play
4 Play Play from disc Press CD to select CD source. Press to open the disc compartment. Insert a disc with the label side up. Press to close the disc compartment. » Play starts automatically. If not, press Control play Start, pause, or resume play. -
Page 14: Skip Tracks
Play audio on the connected device. Play from Bluetooth-enabled » Audio streams from your Bluetooth enabled device to this product. devices • If you fail to search for "Philips BTM2360'' or cannot pair with Note this product, press and hold • SOURCE/PAIRING (or... - Page 15 • The product can memorize up to 8 previously connected Bluetooth devices. To disconnect the Bluetooth-enabled device: • Deactivate Bluetooth on your device; or • Move the device beyond the communication range. Enter Bluetooth pairing mode Press and hold SOURCE/PAIRING for three seconds until your hear a beep sound to disconnect the currently connected device and enter Bluetooth pairing mode.
-
Page 16: Listen To The Radio
5 Listen to the Program radio stations radio manually Tune to a radio station. Tune to a radio station Press PROG to activate program mode. » [PROG] (program) displays on the screen. Press to allocate a number from • Position the antenna as far as possible from TV, VCR, or 1–20 to this radio station, and then press other radiation source. -
Page 17: Adjust Sound
6 Adjust sound The following operations are applicable to all supported media. Select a preset sound effect Press SOUND repeatedly to select a • preset sound effect. DSC1, DSC2, DSC3, DSC4, and DSC5 • Adjust volume level On the remote control, press VOL +/- •... -
Page 18: Other Features
7 Other features • Alarm timer is not available in AUDIO IN mode. Note Set the alarm timer • If CD/USB source is selected, but no disc is placed or no USB device is connected, the TUNER source is selected automatically. This product can be used as an alarm clock. -
Page 19: Charge Your Devices
Note • Philips does not guarantee the compatibility of this product with all devices. AUDIO IN Charge your devices With this micro music system, you can charge your external devices, such as your cell phone, MP3 player or other mobile devices. -
Page 20: Product Information
8 Product information USB Direct Version 2.0 Full Speed Charging support 5V, 500mA Note Disc • Product information is subject to change without prior Laser Type Semiconductor notice. Disc Diameter 12 cm/8 cm Support Disc CD-DA, CD-R, CD- RW, MP3-CD Audio DAC 24 Bits/44.1 KHz Specifications... -
Page 21: Usb Playability Information
USB playability information Compatible USB devices: • USB flash memory (USB2.0 or USB1.1) • USB flash players (USB2.0 or USB1.1) • memory cards (requires an additional card reader to work with this unit) Supported USB formats: • USB or memory file format: FAT12, FAT16, FAT32 (sector size: 512 bytes) • MP3 bit rate (data rate): 32-320 Kbps and variable bit rate •... -
Page 22: Troubleshooting
• The number of folders or files in the USB requesting service. If the problem remains device has exceeded a certain limit. This unsolved, go to the Philips Web page (www. phenomenon is not a malfunction. philips.com/support). When you contact Philips, • The formats of these files are not make sure that the device is nearby and the supported. - Page 23 The paired mobile device connects and disconnects constantly. • The Bluetooth reception is poor. Move the device closer to this unit or remove any obstacle between them. • Some mobile phones may connect and disconnect constantly when you make or end calls. This does not indicate any malfunction of this unit.
- Page 24 Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. BTM2360_85_UM_V1.0...
