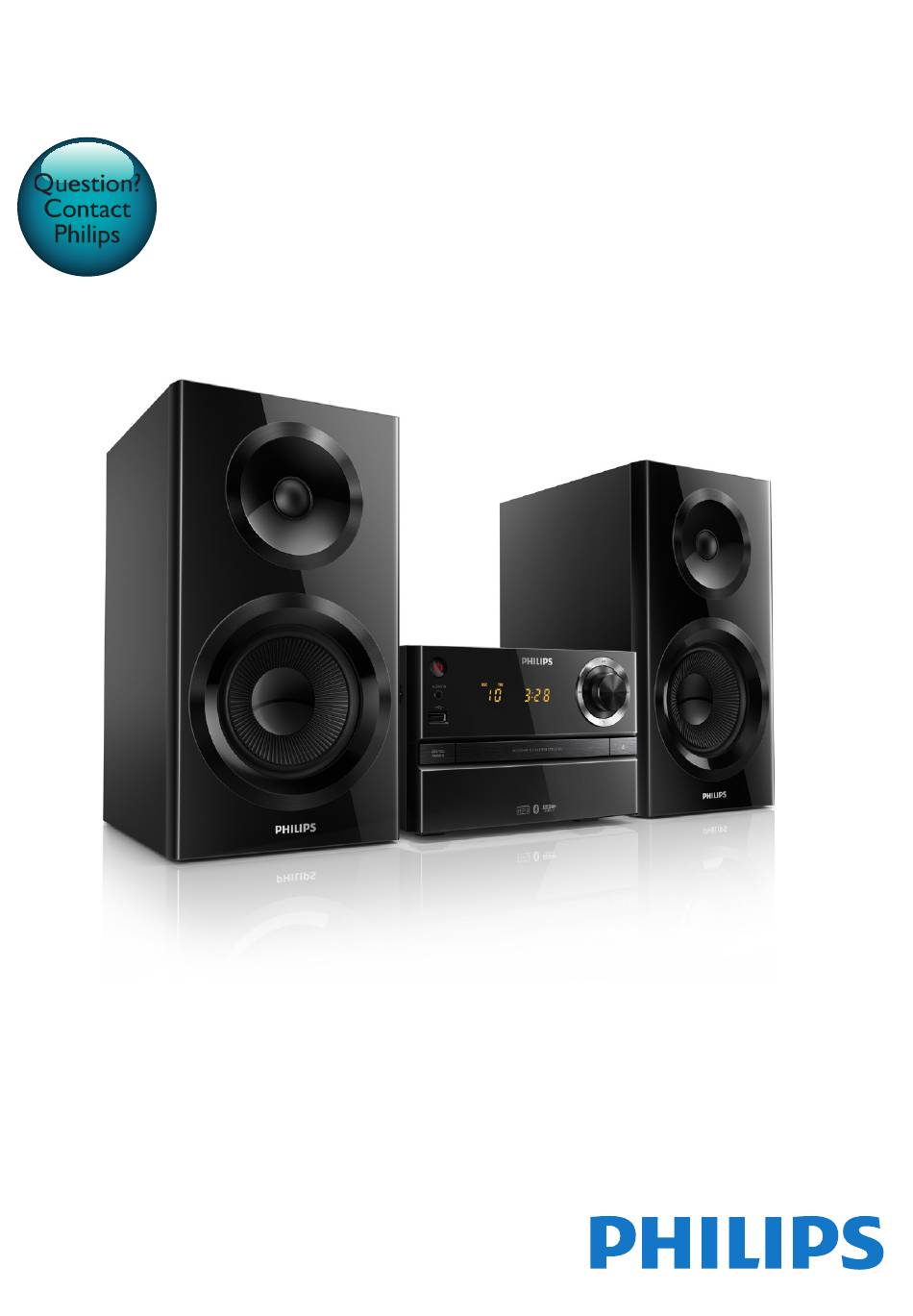

- Page 1 Always there to help you Register your product and get support at www.philips.com/support BTM2360 Question? Contact Philips User manual...
-
Page 3: Table Of Contents
Contents 1 Important 7 Other features Safety Set the alarm timer Notice Set the sleep timer Listen to an external device Charge your devices 2 Your Micro Music System Introduction 8 Product information What's in the box Overview of the main unit Specifications Overview of the remote control USB playability information... -
Page 4: Important
1 Important Warning • Never remove the casing of this apparatus. • Never lubricate any part of this apparatus. • Never look into the laser beam inside this apparatus. • Never place this apparatus on other electrical equipment. Safety • Keep this apparatus away from direct sunlight, naked flames or heat. -
Page 5: Notice
Notice The Bluetooth® word mark and logos are Any changes or modifications made to this registered trademarks owned by Bluetooth device that are not expressly approved by SIG, Inc. and any use of such marks by Gibson Gibson Innovations may void the user’s Innovations is under license. authority to operate the equipment. -
Page 6: Your Micro Music System
Remote control (with one AAA battery) Congratulations on your purchase, and • Speaker boxes (×2) welcome to Philips! To fully benefit from the • AC power cable support that Philips offers, register your product • Round to flat pin adaptor at www.philips.com/welcome. • Short user manual Introduction With this unit, you can: •... -
Page 7: Overview Of The Main Unit
Overview of the main unit i Disc compartment j AUDIO IN • Turn on the product. • Connect external audio devices. • Switch to standby mode or ECO k SOURCE/PAIRING power standby mode. • Press to select a source: DISC, USB, b Bluetooth indicator TUNER, AUDIO IN, BT. -
Page 8: Overview Of The Remote Control
• Tune to a radio station. Overview of the remote • Adjust time. control • Play tracks randomly. f ALBUM/PRESET • Select a preset radio station. • Skip to previous/next album. g DISPLAY • Adjust display brightness. • During playback, display the play information. -
Page 9: Get Started
3 Get started Connect power Caution Caution • Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back • Use of controls or adjustments or performance of or the underside of the unit. procedures other than herein may result in hazardous •... -
Page 10: Demonstrate The Features
Demonstrate the features Note • The product switches to ECO power standby mode In standby mode, press to demonstrate after 15 minutes in standby mode. features of this device. » The features are displayed one by one Switch between standby mode and ECO across the display panel. -
Page 11: Select A Source
Select a source On the main music system Press SOURCE repeatedly to select a source. [DISC]: the disc in the disc compartment • [USB]: .mp3 files stored on the connected • USB storage device [TUNER]: the FM tuner • • [AUDIO IN]: the audio input through the AUDIO IN socket [BT]: audio on the Bluetooth device •... -
Page 12: Play
4 Play Play from disc Press CD to select CD source. Press to open the disc compartment. Insert a disc with the label side up. Press to close the disc compartment. » Play starts automatically. If not, press Control play Start, pause, or resume play. -
Page 13: Skip Tracks
Bluetooth and search for Bluetooth devices that can be paired (refer to the user manual of the device). Select 'Philips BTM2360' on your Bluetooth enabled device and if necessary input '0000' as the paring password. » After successful pairing and connection, the Bluetooth indicator turns solid blue, and the unit beeps twice. - Page 14 Play audio on the connected device. » Audio streams from your Bluetooth enabled device to this product. • If you fail to search for "Philips BTM2360'' or cannot pair with this product, press and hold SOURCE/PAIRING (or on the remote control) for three seconds until you hear a beep sound to enter pairing mode.
-
Page 15: Listen To The Radio
5 Listen to the Program radio stations radio manually Tune to a radio station. Press PROG to activate program mode. Tune to a radio station » [PROG] (program) displays on the screen. • Press to allocate a number from Position the antenna as far as possible from TV, VCR, or other radiation source. -
Page 16: Adjust Sound
6 Adjust sound The following operations are applicable to all supported media. Select a preset sound effect Press SOUND repeatedly to select a • preset sound effect. DSC1, DSC2, DSC3, DSC4, and DSC5 • Adjust volume level On the remote control, press VOL +/- •... -
Page 17: Other Features
7 Other features • Alarm timer is not available in AUDIO IN mode. Note Set the alarm timer • If CD/USB source is selected, but no disc is placed or no USB device is connected, the TUNER source is selected automatically. This product can be used as an alarm clock. -
Page 18: Charge Your Devices
Note • Philips does not guarantee the compatibility of this product with all devices. AUDIO IN Charge your devices With this micro music system, you can charge your external devices, such as your cell phone, MP3 player or other mobile devices. -
Page 19: Product Information
8 Product Signal to Noise Ratio >45 dB information USB Direct Version 2.0 Full Speed Note Charging support 5V, 500mA • Product information is subject to change without prior notice. Disc Laser Type Semiconductor Disc Diameter 12 cm/8 cm Specifications Support Disc CD-DA, CD-R, CD- RW, MP3-CD... -
Page 20: Usb Playability Information
USB playability information Compatible USB devices: • USB flash memory (USB2.0 or USB1.1) • USB flash players (USB2.0 or USB1.1) • memory cards (requires an additional card reader to work with this unit) Supported USB formats: • USB or memory file format: FAT12, FAT16, FAT32 (sector size: 512 bytes) • MP3 bit rate (data rate): 32-320 Kbps and variable bit rate •... -
Page 21: Troubleshooting
• Wait until the moisture condensation at requesting service. If the problem remains the lens has cleared. unsolved, go to the Philips Web page (www. • Replace or clean the disc. philips.com/support). When you contact Philips, •... - Page 22 Bluetooth cannot be connected with this unit. • The device does not support the profiles required for this unit. • The Bluetooth function of the device is not enabled. Refer to the user manual of the device to find out how to enable the function. • This unit is not in pairing mode. • This unit is already connected with another Bluetooth-enabled device.
- Page 24 Gibson Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. BTM2360_55_UM_V2.0...
