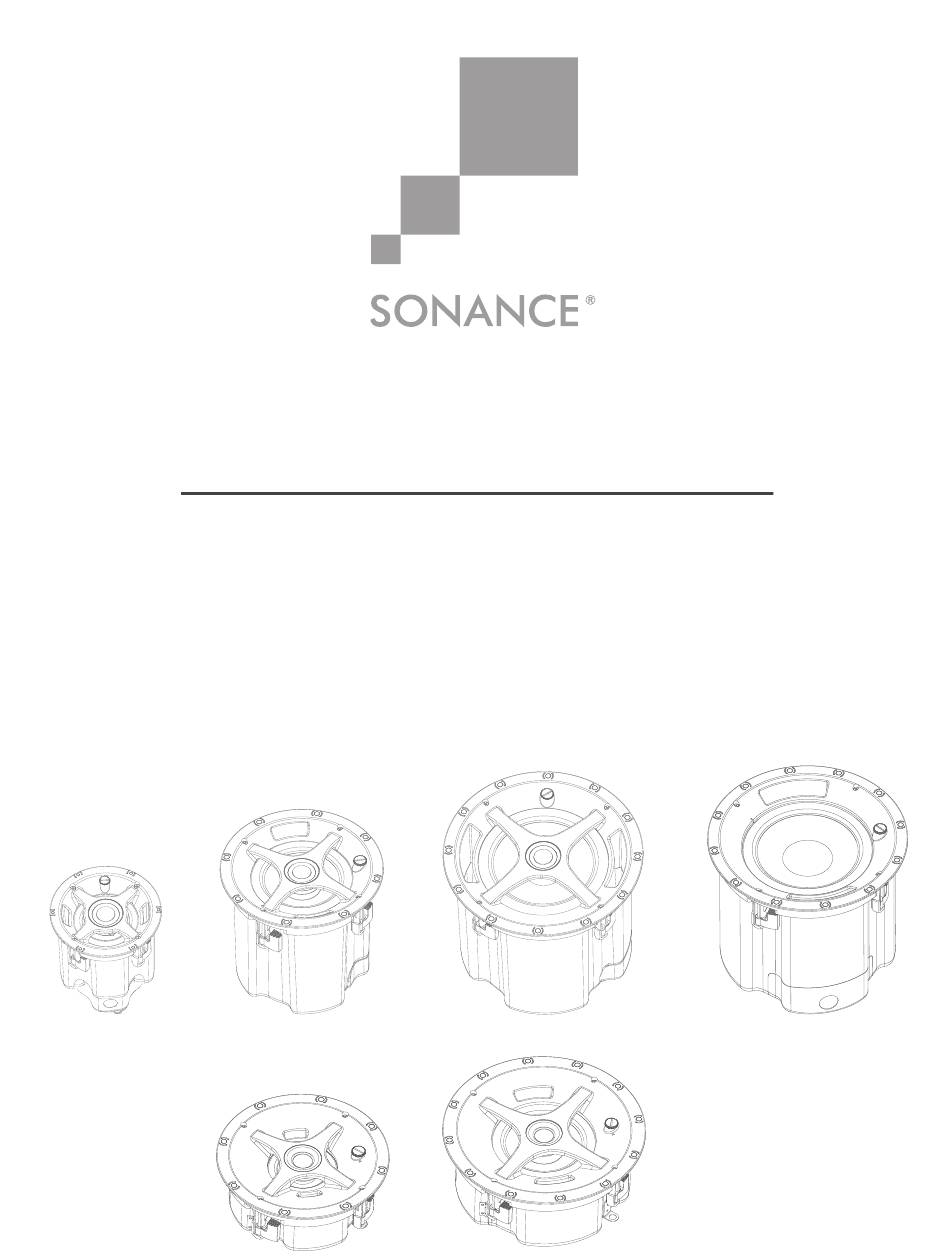

- Page 1 INSTALLATION MANUAL PROFESSIONAL SERIES IN-CEILING PS-C43RT PS-C63RT PS-C83RT PS-C83RWT PS-C43RTLP PS-C63RTLP...
-
Page 2: Table Of Contents
8 ohm System Speaker Placement Grille Painting INSTALLATION Standard Installation Wiring Drop Ceiling Installation TECHNICAL SPECIFICATIONS PS-C43RT PS-C63RT PS-C83RT PS-C83RWT PS-C43RTLP (Low Profile) PS-C63RTLP (Low Profile) CERTIFICATIONS & SAFETY AGENCY TECHNICAL ASSISTANCE & SERVICE WARRANTY SONANCE PROFESSIONAL SERIES IN-CEILING INSTALLATION MANUAL... -
Page 3: Product Description
(2) Speaker Grille in White (Black Optional) Introducing Sonance Professional Series (4) Tile Support Rails Sonance Professional Series includes a range of In-Ceiling, Pendant (2) C-Ring and Surface Mount speakers that deliver true full range fidelity, (1) Cutout Template extremely low distortion, wide dispersion and a smooth power response. -
Page 4: Product Features
Pivoting Chambered Tweeter (excluding PS-C83RWT) One Piece Paintable Grille with Magnetic Retention Integrated Back Can Seismic Attachment Cable and Conduit Clamp Connector Cover with Slotted Opening Euroblock Connector with Loop Through Reversible Roto-Lock™ Clamps SONANCE PROFESSIONAL SERIES IN-CEILING INSTALLATION MANUAL... -
Page 5: Amplifier Selection
21.5’ (6.6m) Apart 14-Foot Ceiling WIRE GAUGE – 8 OHM SYSTEM When using Sonance Professional Series loudspeakers in an 8 ohm FIGURE 2: SPEAKER SPACING system the total wire resistance should be less than 10% of the speaker impedance. The speakers are nominally 8 ohms impedance, so your total wire resistance should be no more than 0.8 ohms. -
Page 6: Grille Painting
1. Prime the grille with a metal primer/bonder in a spray can. Before You Begin Carefully follow the manufacturer’s directions on the can. Sonance Professional Series In-Ceiling speaker grilles completely 2. We recommend using water-based latex paint on the grilles. cover the exposed speaker frame, so only the grilles (not the Thin the paint with a proper thinning agent to a ratio of 1:1 speakers themselves) require painting. -
Page 7: Installation
(see figure 7 & 8). Parallel Connection FIGURE 10: ROUTE WIRES & TIGHTEN SCREWS From Power Amplifier To Next Speaker From Power Amplifier Parallel Connection To Next Speaker FIGURE 7: PARALLEL CONNECTION SONANCE PROFESSIONAL SERIES IN-CEILING INSTALLATION MANUAL... -
Page 8: Drop Ceiling Installation
THE FOOT OF THE ROTO-LOCK CLAMPS. on the speaker frame. Place the grille against the speaker and NOTE : FOR DETAILS ON FLEX BRACKET GO TO WWW.SONANCE.COM the magnets will hold it firmly in place. When properly installed, the grille should make contact with the wall all the way around the speaker (see figure 15). -
Page 9: Ps-C43Rt
• Square Adaptor w/ Grille Black (1 pair) | 45161 • Flex Bracket (5 pair) | 92471 • Metal Pre-construction Bracket (6 pack) | 40177 • Tile Support Rails w/ C-Ring (1 pair) | 40172 • Replacement RotoLock Feet (Bag) | 40175 SONANCE PROFESSIONAL SERIES IN-CEILING INSTALLATION MANUAL... -
Page 10: Ps-C63Rt
• Square Adaptor w/ Grille Black (1 pair) | 45162 • Flex Bracket (5 pair) | 92337 • Metal Pre-construction Bracket (6 pack) | 40126 • Tile Support Rails w/ C-Ring (1 pair) | 40173 • Replacement RotoLock Feet (Bag) | 40175 SONANCE PROFESSIONAL SERIES IN-CEILING INSTALLATION MANUAL... -
Page 11: Ps-C83Rt
• Square Adaptor w/ Grille Black (1 pair) | 45163 • Flex Bracket (5 pair) | 92247 • Metal Pre-construction Bracket (6 pack) | 40125 • Tile Support Rails w/ C-Ring (1 pair) | 40174 • Replacement RotoLock Feet (Bag) | 40175 SONANCE PROFESSIONAL SERIES IN-CEILING INSTALLATION MANUAL... -
Page 12: Ps-C83Rwt
• Square Adaptor w/ Grille Black (1 pair) | 45163 • Flex Bracket (5 pair) | 92247 • Metal Pre-construction Bracket (6 pack) | 40125 • Tile Support Rails w/ C-Ring (1 pair) | 40174 • Replacement RotoLock Feet (Bag) | 40175 SONANCE PROFESSIONAL SERIES IN-CEILING INSTALLATION MANUAL... -
Page 13: Ps-C43Rtlp (Low Profile)
• Flex Bracket (5 pair) | 92337 • Metal Pre-construction Bracket (6 pack) | 40126 • Tile Support Rails w/ C-Ring (1 pair) | 40173 • Replacement RotoLock Feet (Bag) | 40175 • Retro Ring (5 pair) | 40180 SONANCE PROFESSIONAL SERIES IN-CEILING INSTALLATION MANUAL... -
Page 14: Ps-C63Rtlp (Low Profile)
• Square Adaptor w/ Grille Black (1 pair) | 45163 • Flex Bracket (5 pair) | 92247 • Metal Pre-construction Bracket (6 pack) | 40125 • Tile Support Rails w/ C-Ring (1 pair) | 40174 • Replacement RotoLock Feet (Bag) | 40175 SONANCE PROFESSIONAL SERIES IN-CEILING INSTALLATION MANUAL... -
Page 15: Certifications & Safety Agency
2. Contact Sonance directly at (949) 492-7777 or at www.sonance.com YOU MUST HAVE PRIOR AUTHORIZATION TO RETURN YOUR UNIT. 3. If you are returning the product directly to Sonance, call us to obtain a return authorization number before shipping. 4. Ship the product via United Parcel Service, Federal Express, or other package delivery service. -
Page 16: Warranty
Exclusive Remedy: Sonance agrees, at its option during the five (5) year warranty period, to repair any defect in material or workmanship or to furnish an equal product in exchange without charge to the purchaser, subject to verification of the defect and proof of the date of purchase.
