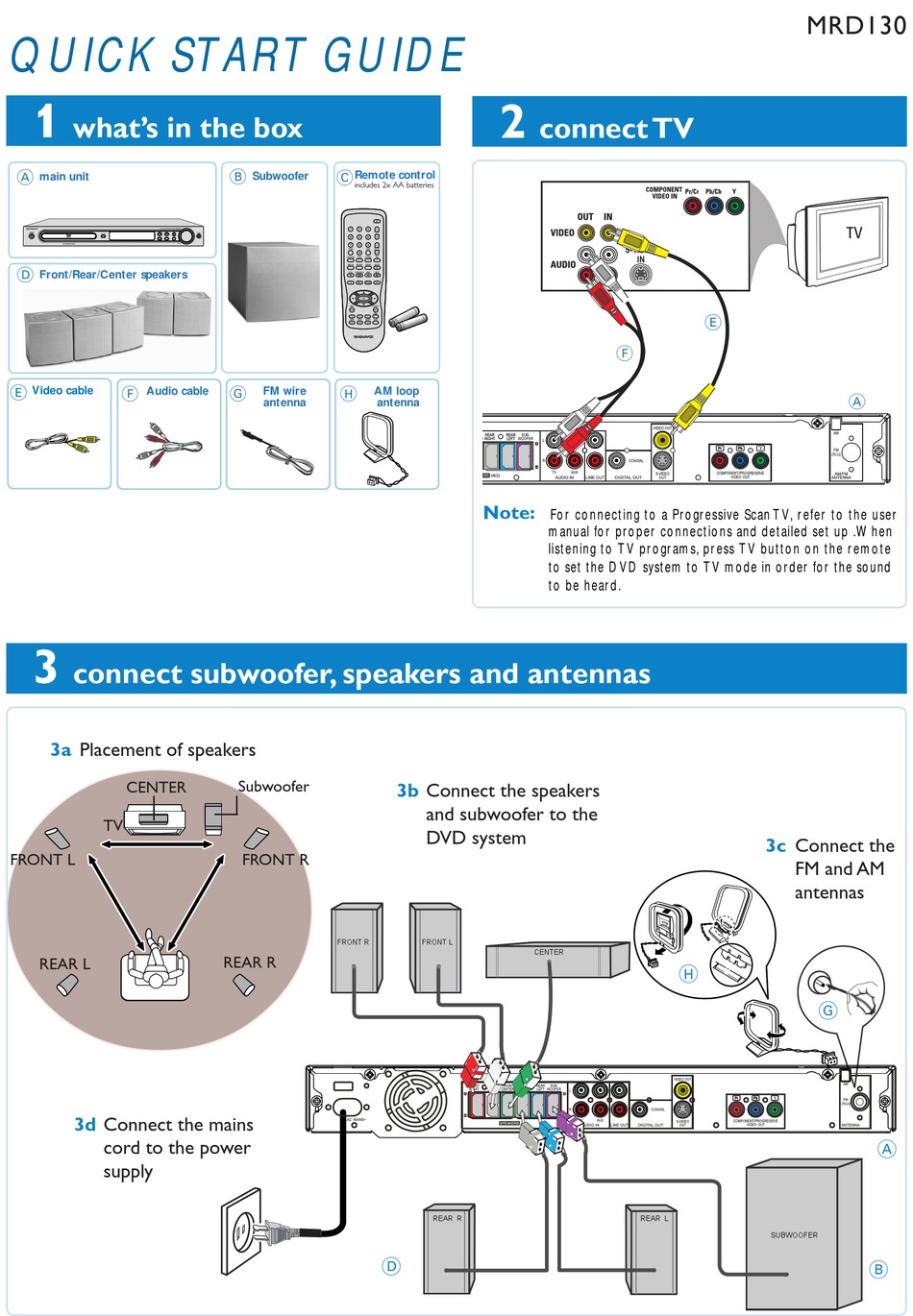

QUICK START GUIDE
1
what's in the box
A
main unit
D
Front/Rear/Center speakers
E
F
Video cable
Audio cable
3
connect subwoofer, speakers and antennas
3a
Placement of speakers
CENTER
TV
FRONT L
REAR L
Connect the mains
3d
cord to the power
supply
B
C
Remote control
Subwoofer
includes 2x AA batteries
G
H
FM wire
AM loop
antenna
antenna
Subwoofer
FRONT R
FRONT R
REAR R
D
2
connect TV
Note:
For connecting to a Progressive Scan TV , refer to the user
manual for proper connections and detailed set up .When
listening to TV programs, press TV button on the remote
to set the DVD system to TV mode in order for the sound
to be heard.
3b
Connect the speakers
and subwoofer to the
DVD system
FRONT L
CENTER
REAR R
E
F
3c
H
REAR L
SUBWOOFER
MRD130
A
Connect the
FM and AM
antennas
G
A
B
