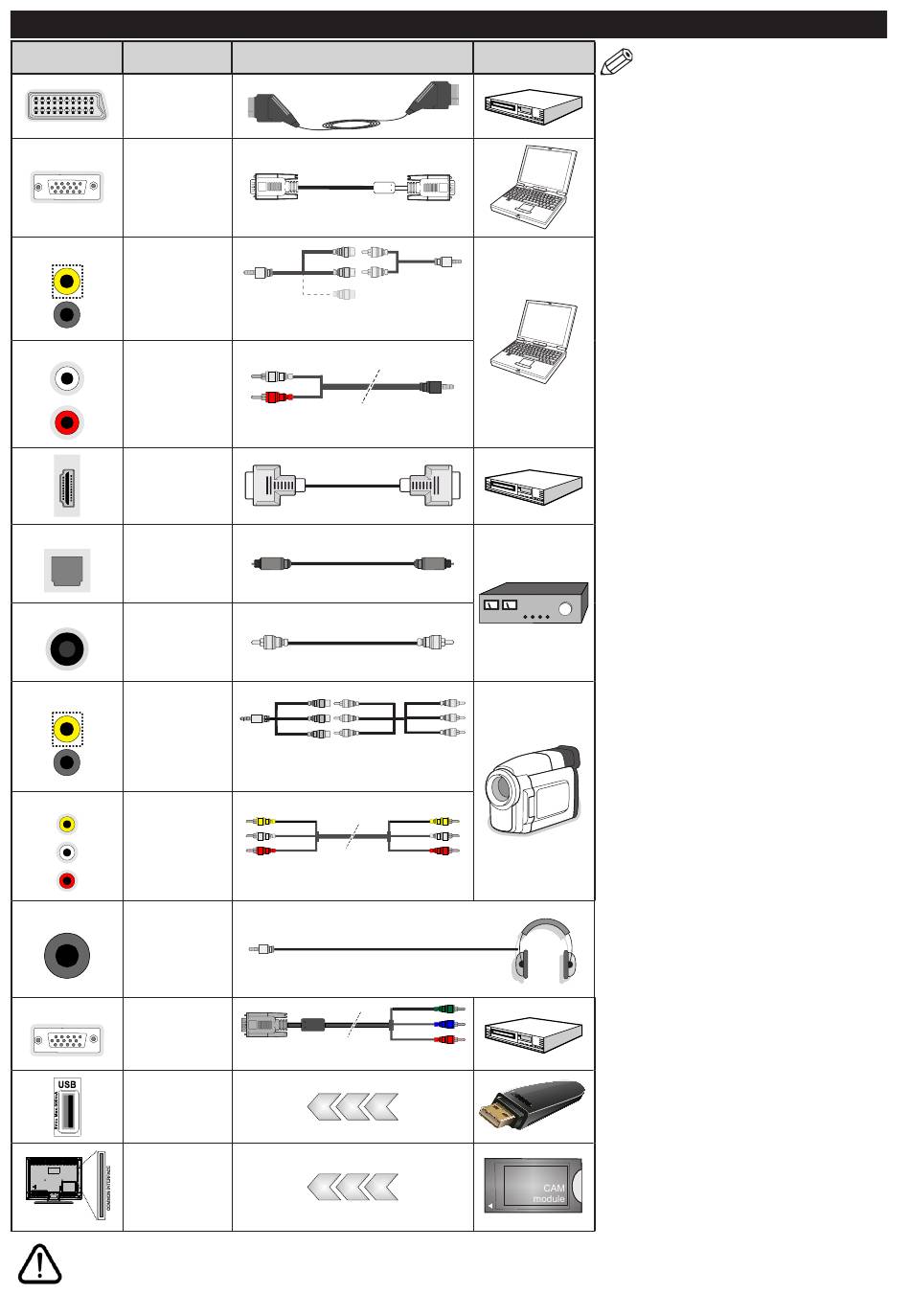

Connections

Connector Type
Scart
Connection
(back)
VGA
Connection
(back)
SIDE AV(**)
PC/YPbPr
Audio
Connection
(side)
SIDE AV(**)
PC/YPbPr
Audio
Connection
(side)
HDMI
Connection
(back)
SPDIF
SPDIF(**)
(Optical Out)
Connection
(back)
SPDIF
SPDIF(**)
(Coaxial Out)
Connection
(back)
SIDE AV(**)
Side AV
(Audio/Video)
Connection
(side)
SIDE AV(**)
Side AV
(Audio/Video)
Connection
(side)
HEADPHONE
Headphone
Connection
(side)
YPBPR YPbPr Video
Connection
(back)
USB
Connection
(side)
CI
Connection
(side)
If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making
any connection. After the connection is done, you can turn on the units and use them.
Cables
Side Audio/Video YPbPr/PC Audio
Connection Cable Cable
YPbPr/PC Audio Cable
Side Audio/Video Audio/Video
Connection Cable Cable
AV Cable
PC to YPbPr Connection Cable
English - 10 -
Device
NOTE: When connecting a device
via the YPbPr or the Side AV input,
you must use a connection adapter
cable. See the illustrations on the left
side. You can use YPbPr to VGA cable
to enable YPbPr signal via VGA input.
You cannot use VGA and YPbPr at the
same time. To enable PC/YPbPr audio,
you will need to use the Side AV input
with a YPbPr/PC audio cable for
audio connection, using the Side AV
connection cable's RED and WHITE
inputs (To enable PC/YPbPr audio, you
will need to use the side audio inputs
with a YPbPr/PC audio cable for audio
connection [Depending on the model]).
If an external device is connected via the
SCART socket, the TV may automatically
switch to AV mode. When receiving
DTV channels (Mpeg4 H.264) or while
in Media Browser mode, output will not
be available via the scart socket. When
using the wall mounting kit (available
from third party in the market, if not
supplied), we recommend that you plug
all your cables into the back of the TV
before mounting on the wall. Insert or
remove the CI module only when the TV
is SWITCHED OFF. You should refer to
the module instruction manual for details
of the settings. The/Each USB input of
your TV supports devices up to 500mA.
Connecting devices that have current
value above 500mA may damage your
TV. By connecting an HDMI cable to your
TV, you have to use only a shielded HDMI
cable to guarantee a sufficient immunity
against parasitic frequency radiation.
(**) Depending on the model
