CEILING DUCT TYPE AIR CONDITIONERS
INSTALLATION INSTRUCTIONS
• Please read this instruction sheet completely before installing the product.
• When the power cord is wanted to replace, replacement work shall be performed by authorized
personnel only.
• Installation work must be performed in accordance with national wiring standards by authorized
personnel only.

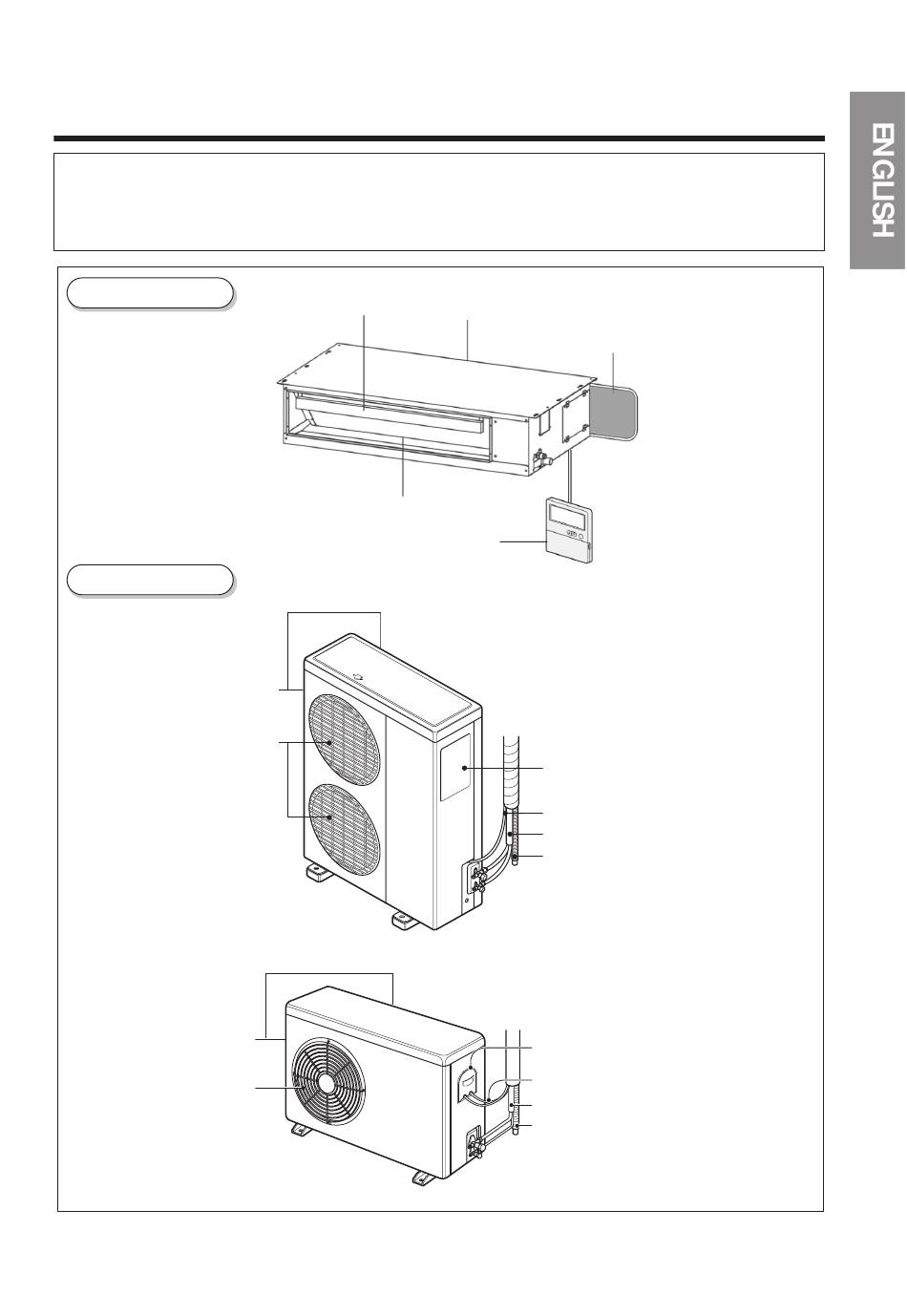

Indoor Unit
Outdoor Unit
(Side)
Air intake vents
Air outlet vents
(Side)
Air intake
vents
Air outlet
vents
Electic Heater
(Heat pump model only)
Air outlet vents
Remote Controller
(Rear)
(Rear)
Air intake vents
Air filters
Control cover
Connecting wire
Piping
Drain hose
Control Cover
Connecting Wire
Connection Pipe
Drain Hose
P/No.: 3828A90195C
Advertisement
Table of Contents
Related Manuals for LG TBNC126TSG2
Summary of Contents for LG TBNC126TSG2
-
Page 1: Pipes: Gas Side
CEILING DUCT TYPE AIR CONDITIONERS INSTALLATION INSTRUCTIONS • Please read this instruction sheet completely before installing the product. • When the power cord is wanted to replace, replacement work shall be performed by authorized personnel only. • Installation work must be performed in accordance with national wiring standards by authorized personnel only. -
Page 2: Table Of Contents
OUT-LINE OF INSTALLATION 1.The following should be always observed for safety .......3 Installation works Installation Parts Required tools 2. Installation of Indoor, Outdoor unit 1) Selection of the best • • Four Type “A” screws Level location......4 • • Connecting cable Screw driver 2) Indoor unit installation..5 •... -
Page 3: The Following Should Be Always Observed For Safety
1. The following should be always observed for safety • Please report to or take consent by the supply authority before connecting to the system. • Be sure to read "THE FOLLOWING SHOULD BE ALWAYS OBSERVED FOR SAFETY" before installing the air conditioner. •... -
Page 4: Installation Of Indoor, Outdoor Unit
2. Installation of Indoor, Outdoor Unit 1. Selection of the best location Inspection hole Top view (600X600) 1) Indoor unit Control box (unit: mm) Select location Install the air conditioner in the location that satisfies the following conditions. • The place shall easily bear a load exceeding four times the indoor unit’s weight. -
Page 5: Indoor Unit Installation
2. Indoor unit installation ■ Installation of Unit Install the unit above the ceiling correctly. CASE 1 POSITION OF SUSPENSION BOLT • Apply a joint-canvas between the unit and duct to absorb unnecessary vibration. • Apply a filter Accessory at air return hole. Front (Unit:mm) Capacity... - Page 6 • Select and mark the position for fixing bolts. • Drill the hole for set anchor on the face of ceiling. • Insert the set anchor and washer onto the suspension bolts for locking the Old building New building suspension bolts on the ceiling. •...
- Page 7 CAUTION 1. Install declination of the indoor unit is very important for the drain of the duct type air conditioner. 2. Minimum thickness of the insulation for the connecting pipe shall be 5mm. Front of view • The unit must be horizontal or declined to the drain hose connected when finished installation.
- Page 8 • Drill the piping hole with 70mm dia, hole WALL Indoor Outdoor core drill. • Piping hole should be slightly slant to the outdoor side. 5~7mm INSULATION, OTHERS Insulate the joint and tubes completely. THERMAL INSULATION All thermal insulation must comply with local requirement. INDOOR UNIT Union for liquid pipe Refrigerant pipe and thermal...
- Page 9 Install the remote control box INSTALLATION OF REMOTE CONTROL BOX and cord correctly. POINT OF REMOTE CONTROLLER INSTALLATION • Although the room temperature sensor is in the indoor unit, the remote control box should be installed in such places away from direct sunlight and high humidity. INSTALLATION OF THE REMOTE CONTROL BOX ROUTING OF THE REMOTE CONTROL CORD •...
- Page 10 Perform the work according to the Service REFRIGERANT PIPING Manual or Installation Guide. • Use two spanners when connect the refrigerant pipe to the unit. Flared connection (Union) • Make a bend with a radius as large as possible. • Perform air purge with R-22 or vacuum Use a seemliness tube drying.
- Page 11 Perform the electrical wiring work according to ELECTRICAL WIRING the electrical wiring connection. • All wiring must comply with local requirements. • Select a power source that is capable of supplying the current required by the air conditioner. Circuit Breaker •...
-
Page 12: Connecting Pipes To The Indoor Unit
3. Connecting Pipes to the Indoor Unit 3-1. Preparation of Piping Copper Main cause of gas leakage is defect in Slanted Uneven Rough 90° tube flaring work. Carry out correct flaring work in the following procedure. 1) Cut the pipes and the cable. ■... - Page 13 6) Pipe bending Annealed copper pipe with small diameter (ø6.35 or ø9.52) can be easily bent manually. In this case, secure large R(radius) for the bend section and gradually bend pipe. If annealed copper pipe is large in diameter (ø15.88 or ø19.05), bend pipe with bender. Use bender appropriate for the pipe diameter.
-
Page 14: Connecting Pipes To The Outdoor Unit
4. Connecting Pipes to the Outdoor Unit 1) Connecting the pipes to the Outdoor unit 1. Align the center of the pipings and sufficiently tighten the flare nut with fingers. 2. Finally, tighten the flare nut with torque wrench until the wrench clicks. •... -
Page 15: Connecting Cables Between Indoor Unit And Outdoor Unit
6. Connecting Cables between Indoor Unit and Outdoor Unit 1) Connecting cables to the Indoor Unit ■ Connect the wires to the terminals on the control board individually according to the outdoor unit connection. • Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of indoor unit respectively ■... -
Page 16: Outdoor Unit
3) Connecting the cable to the Outdoor Unit 1. Remove the Cover control from the unit Outdoor unit by loosening a screw. Connect the wires to the terminals on Terminal block the control board individually as Cord Clamper following. Power supply 2. -
Page 17: Form The Pipings
4) Form the pipings 1. Wrap the connecting portion of indoor unit with the Insulation material and secure it with two Plastic Bands. (for the Seal a small opening right pipings) around the pipings • If you want to connect an additional drain with gum type sealer. -
Page 18: Air Purging Of The Connecting Pipes And The Indoor Unit
7. Air Purging of the Connecting Pipes and the Indoor Unit The air which contains moisture remaining in the refrigeration cycle may cause a malfunction on the compressor. 1. Confirm that both the liquid side valve and the gas side valve are set to the closed position. 2. -
Page 19: Group Control
8. Group Control It operates maximum 16 Units by only one Wired Remote Controller, and each Unit starts sequentially to prevent overcurrent. Main PCB Indoor Unit 1 Indoor Unit 2 Indoor Unit 16 Terminal(Local Supply) Terminal(Local Supply) Terminal(Local Supply) Block Block Block Connector... -
Page 20: External Static Pressure) Setting
10. E.S.P.(External Static Pressure) Setting (1) Open the rear cover of the wired remote-controller to set the mode. (2) Select one of three selectable modes as follows. Without Zone System 1. Position V-H, F-H: • This position sets the maximum E.S.P as a default set. 2. -
Page 21: How To Set E.s.p
11.How to Set E.S.P? Procedure of RPM change: Ex) External Static pressure is 1mmAq for "9k" • To protect the unit, compressor is designed to be off during E.S.P. setting. Push the "On/Off" button. The unit will start. AUTO SWING OPERATION SET TEMP FAN SPEED SUB FUNCTION... - Page 22 [Table. 1] Static Pressure(mmAq) Cap(Btu/h) Step(Hi/Med/Lo) Setting Value [Table. 2] Static Pressure(mmAq) Cap(Btu/h) Step(Hi/Med/Lo) Setting Value TB-C096TSG2 TB-C126TSG2 : 1. Be sure to set the value refering table 1. Unexpected set value will cause NOTICE mal-function. 2. Table 1 is based at 220V. Acco rding to the fluctuation of volt age, air fl ow rate varies.
