Installation Instructions

Installation Instructions

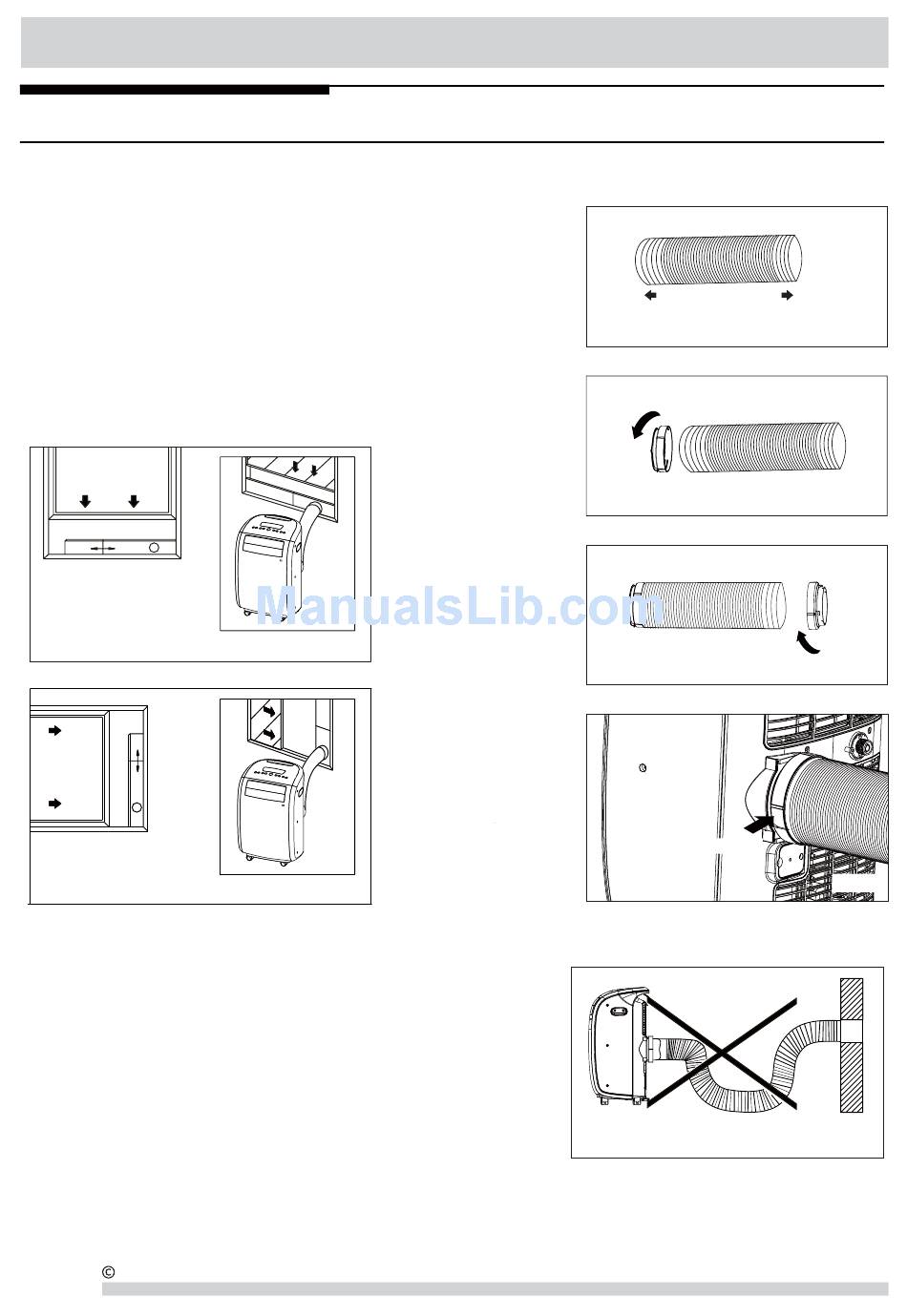

EXHAUSTING HOT AIR
In the COOLING Mode the appliance must be placed close to a window or
opening so that the warm exhaust air can be ducted outside.
First position unit on a flat floor and make sure there's a minimum of 12"
clearance around the unit, and is within the vicinity of a single circuit outlet
power source.
1. Extend either side of the hose (Fig. 3) and screw the hose to
adaptor A (Fig. 4) .
2. Extend the other side of the hose and screw it to adaptor B (Fig. 5).
3. Slide the assembly onto unit (Fig. 6).
4. Affix the adaptor B into the window slider kit and seal. (Fig. 7&8)
Vertical
window
Window Slider Kit
Minimum:26.6"(67.5cm)
Maxmum:48.5"(123cm)
Horizontal
window
Window Slider Kit
Minimum:26.6"(67.5cm)
Maxmum:48.5"(123cm)
The hose can be extended from its original length of 15" up to 55", but it is
the best to keep the length to minimum required. Also make sure that the
hose does not have any sharp bends or sags. (Fig. 9)
2009 Electrolux Home Products, Inc.
6
Fig. 7
Fig. 8
Extend the side of hose
Slide onto
All rights reserved.
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 9
