Summary of Contents for Philips AZ239

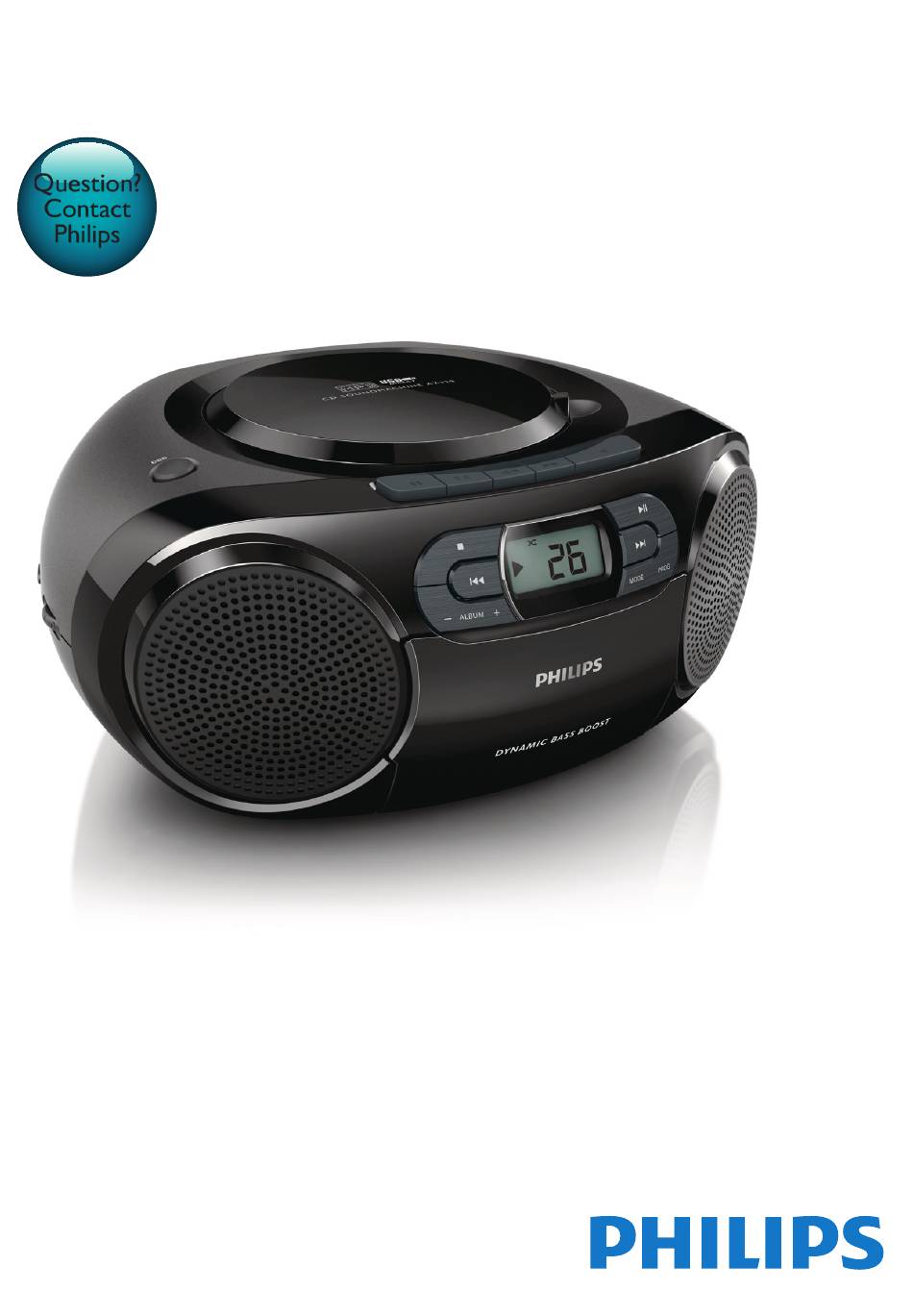

- Page 1 Always there to help you Register your product and get support at www.philips.com/support AZ239 Question? Contact Philips User manual...
-
Page 3: Table Of Contents
Contents 1 Important Safety Notice 2 Your CD Soundmachine Introduction What's in the box Overview of the main unit 3 Get started Connect power Turn on Turn off 4 Play Play a CD Play from an external device Play from USB devices Play from SD card Play tape Tune to FM radio stations... -
Page 4: Important
1 Important • Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. • CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Safety • The unit shall not be exposed to dripping or splashing. - Page 5 The USB-IF Logos are trademarks of Universal Please visit www.recycle.philips.com for Serial Bus Implementers Forum, Inc. additional information on a recycling center in your area. Environmental information Note All unnecessary packaging has been omitted.
-
Page 6: Your Cd Soundmachine
2 Your CD Overview of the main unit Soundmachine Introduction With this CD Soundmachine, you can: • listen to FM radio; • enjoy audio from discs, tapes, USB device, Micro SD card, and other external audio devices; • program the play sequence of tracks. What's in the box AUDIO IN CD USB/SD FM TAPE/OFF... - Page 7 g PROG • Program the play sequence of tracks. h MODE • Select a play mode. i Display panel • Display current status. j FM antenna • Improve FM reception. k + TUNING - • Tune to FM radio stations. • USB socket.
-
Page 8: Get Started
Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the Option 2: Battery power model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. -
Page 9: Turn On
Turn on Switch the source selector on the main unit to AUDIO IN/CD/USB/SD/FM/TAPE. » When the source selector is in the AUDIO IN/CD position, CD is displayed. Switch to standby mode • The unit switches to standby mode automatically when there is no audio detected for over 15 minutes. -
Page 10: Play
4 Play Play from an external device You can also listen to an external audio device through this unit. Connect an audio cable (3.5mm, not Play a CD supplied) to: • the AUDIO-IN socket on the unit. Note • the headphone socket on an external device. -
Page 11: Play From Sd Card
Press down SD/USB source selector to choose USB source. » "USB" shows on the display. » The unit starts to play. If not, press AUDIO IN CD USB/SD FM TAPE/OFF AUDIO IN CD USB/SD FM TAPE/OFF Play tape Slide the source selector to TAPE. Press on main unit to open the tape door. -
Page 12: Tune To Fm Radio Stations
5 Play options Note • In playback mode, cassette will be stopped automatically when playback reaches the end. Control play Tune to FM radio stations In CD mode, you can control play through the following operations. Note • For optimal reception, fully extend and adjust the Skip to the previous/next track position of the FM antenna. -
Page 13: Adjust Sound
Press PROG to activate the program mode. » [PROG] (program) begin to blink. Press to select a track number, then press PROG to confirm. Repeat steps 3 to program more tracks. Press to play the programmed tracks. » During play, [PROG] (program) is displayed. • To erase the program, press twice. -
Page 14: Product Information
6 Product Tape deck information Frequency response 125 - 8000 Hz (8 dB) - Normal tape (type I) Signal-to-noise ratio 35 dBA - Normal tape (type I) Note Wow and flutter ≤ 0.4% • Product information is subject to change without prior notice. General Power supply 220 - 240V~, Specifications 50/60 Hz; - AC Power 9 V, 6 x 1.5 - Battery V type: R14/... - Page 15 Clean the disc lens • After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good play quality, clean the disc lens with Philips CD lens cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.
-
Page 16: Troubleshooting
If you encounter problems when using this device, check the following points before requesting service. If the problem remains unsolved, go to the Philips Web page (www. philips.com/support). When you contact Philips, make sure that the device is nearby and the model number and serial number are available. - Page 18 Specifications are subject to change without notice 2014 © WOOX Innovations Limited. All rights reserved. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V. AZ329_61_UM_V1.0...
