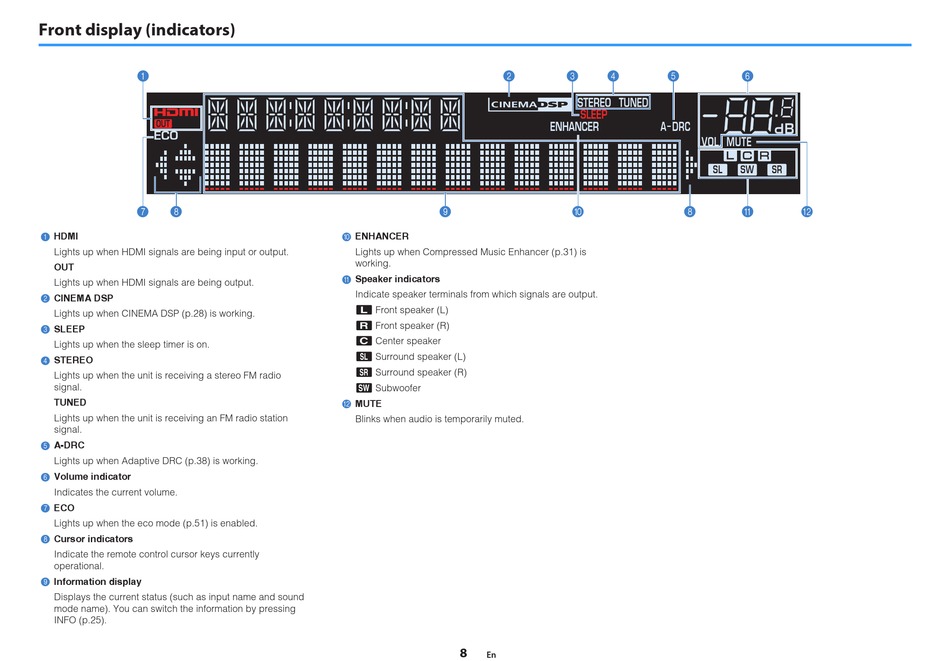

Front display (indicators)

1
LINK MASTER
OUT 2
ECO
7 8
HDMI
1
Lights up when HDMI signals are being input or output.
OUT
Lights up when HDMI signals are being output.
CINEMA DSP
2
Lights up when CINEMA DSP (p.28) is working.
SLEEP
3
Lights up when the sleep timer is on.
STEREO
4
Lights up when the unit is receiving a stereo FM radio
signal.
TUNED
Lights up when the unit is receiving an FM radio station
signal.
A-DRC
5
Lights up when Adaptive DRC (p.38) is working.
Volume indicator
6
Indicates the current volume.
ECO
7
Lights up when the eco mode (p.51) is enabled.
Cursor indicators
8
Indicate the remote control cursor keys currently
operational.
Information display
9
Displays the current status (such as input name and sound
mode name). You can switch the information by pressing
INFO (p.25).
2
Hi
9
ENHANCER
:
Lights up when Compressed Music Enhancer (p.31) is
working.
Speaker indicators
A
Indicate speaker terminals from which signals are output.
A Front speaker (L)
S Front speaker (R)
D Center speaker
F Surround speaker (L)
G Surround speaker (R)
L Subwoofer
MUTE
B
Blinks when audio is temporarily muted.
8
En
3 4 5
STEREO TUNED ZONE
2 A 3 B
SLEEP PARTY
- R A - DRC
es
ENHANCER YPAO VOL.
VOL.
FPL
0 8
6
MUTE VIRTUAL
FPR
SL SW SR
SBL SB SBR
A B
