General Description
The LM10502 is an advanced PMU containing two configurable, high efficiency buck regulators for
supplying variable voltages plus a low drop-out linear regulator. The device is ideal for supporting ASIC
and SOC designs for SSD and Flash drives.
2
Evaluation Kit Overview
The LM10502 evaluation kit is a single-board solution allowing control and measurement from a user
interface software. The board operates either from PC control via the USB port or as a separately
powered stand-alone evaluation platform.
The evaluation kit consists of
•
LM10502 Evaluation board REV 1
•
USB Interface cable
•
Evaluation software
•
A copy of the LM10502 User Guide (this document)
SNVU277 – January 2014
Submit Documentation Feedback

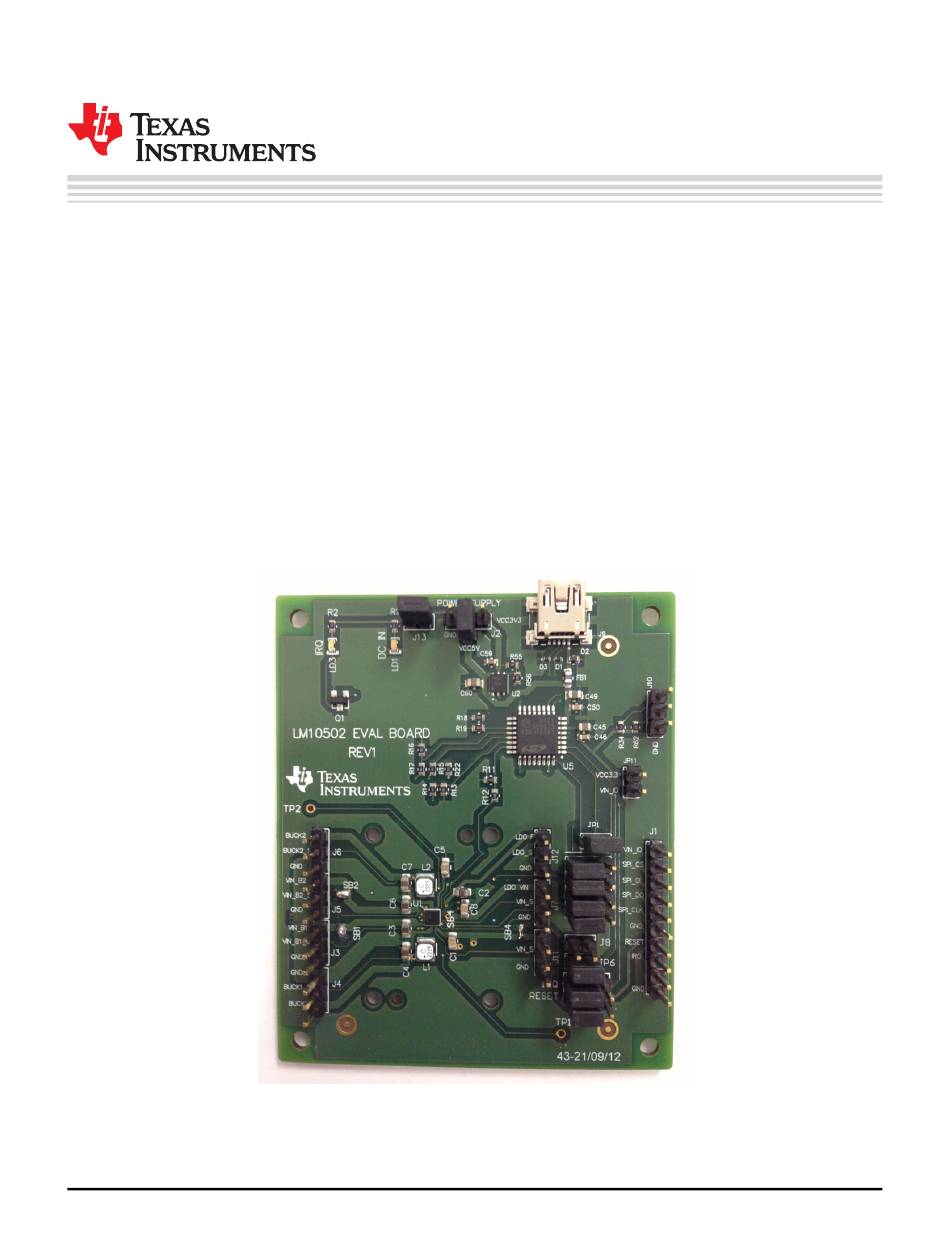

Figure 1. LM10502 Evaluation Board
Copyright © 2014, Texas Instruments Incorporated
User's Guide
SNVU277 – January 2014
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments LM10502
Summary of Contents for Texas Instruments LM10502
- Page 1 SOC designs for SSD and Flash drives. Evaluation Kit Overview The LM10502 evaluation kit is a single-board solution allowing control and measurement from a user interface software. The board operates either from PC control via the USB port or as a separately powered stand-alone evaluation platform.
-
Page 2: Evaluation Software
Once the evaluation board is connected to the PC, device can be controlled via the software interface. The LM10502 should become active as soon as the USB cable is plugged in. When device starts up correctly, a yellow LED LD1 and green LED LD3 is illuminated. All the device functions can be accessed via the control buttons. - Page 3 Register information is given in the format: ‘’R/WXX:YY’’, where first letter indicates operation (read or write), XX is register address and YY is data. Figure 3. Log Tab SNVU277 – January 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
-
Page 4: System Settings Tab
‘Write’ button and read from the device by pressing ‘Read’ button. Next to each bit is a description of that particular bit. SNVU277 – January 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated... -
Page 5: Power Supply
VCC5V Control A green and a yellow LED will be illuminated once the LM10502 has started up. Place a jumper on JP1 to connect VIN_IO to LDO_OUT. Otherwise, to power VIN_IO from the on-board 3.3V supply, place a jumper on JP11; JP1 should be open in this case. - Page 6 BUCK1 BUCK1 sense Table 6. Connector J5 Function VIN_B2 VIN_B2 sense Table 7. Connector J6 Function BUCK2 BUCK2 sense Table 8. Connector J7 Function LDO_VIN LDO_VIN sense SNVU277 – January 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 7 For accessing the signals externally via this connector, jumpers from JP2 to JP5 and JP7 and JP8 should be set to EXT position. Table 12. User Connector Pins Function VIN_IO SPI_CS SPI_DI SPI_DO SPI_CLK RESET SNVU277 – January 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...

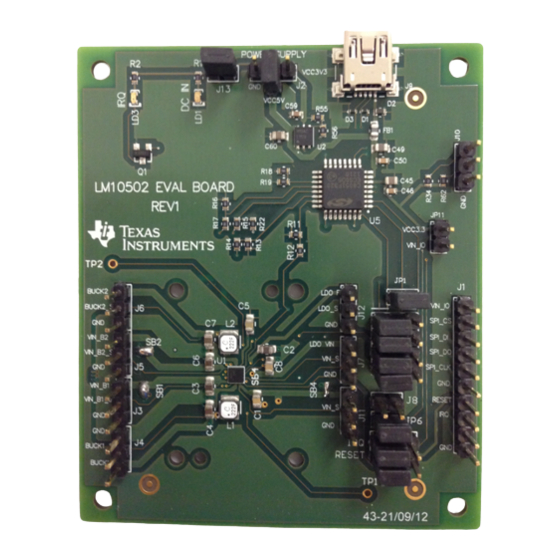

- Page 8 Evaluation Board Layer www.ti.com Evaluation Board Layer Figure 6. LM10502 Board Top Layer SNVU277 – January 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 9 Schematics of the LM10502 Evaluation Board www.ti.com Schematics of the LM10502 Evaluation Board Figure 7. SNVU277 – January 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
- Page 10 Schematics of the LM10502 Evaluation Board www.ti.com Figure 8. SNVU277 – January 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
