EAW CIS961 Specifications

DESCRIPTION

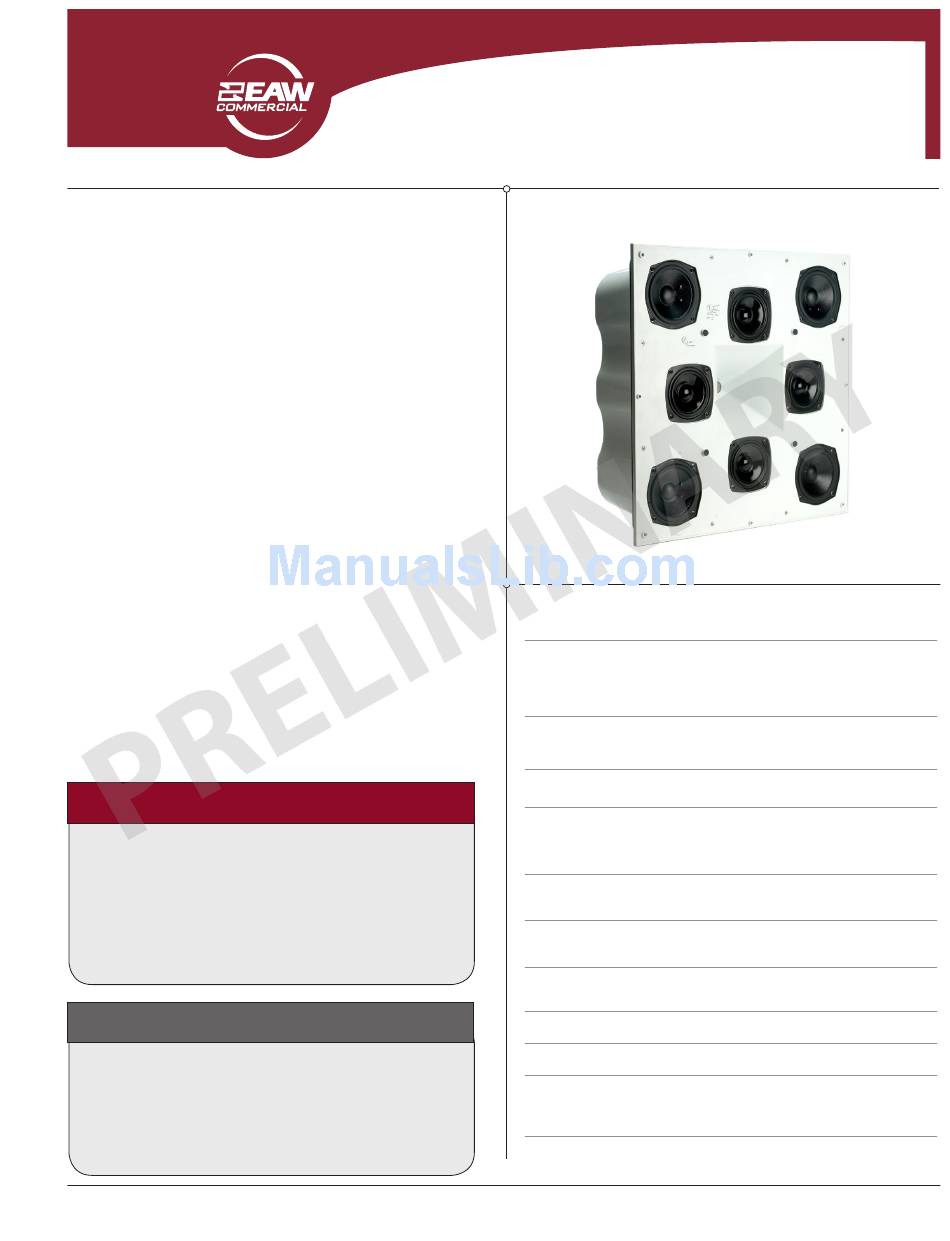

The CIS961 ceiling loudspeaker features a powerful 3-way design
that provides exceptional performance, especially in high ceiling,
large-space applications. The CIS961 (60-degree by 60-degree
dispersion) incorporates four 5.25-inch LF cone woofers, four 4-inch
MF cone woofers and a 1-inch-exit HF compression driver mounted
on a large horn that foster superior pattern control. The application
of proprietary frequency shading techniques facilitates the eight
cone woofers working together to provide LF output and impact
equal to that of a 12-inch LF woofer.
The CIS961 is supplied with an integral 70V/100V line transformer,
rated to a maximum of 128 watts. Tap settings are adjustable by
means of a recessed rotary switch on the front bezel that allows
selection of 128-, 64-, 32-, and 16-watt taps at 70 volts, and 128-,
64-, and 32-watt taps at 100 volts. In addition, the transformer can
be bypassed, presenting an 8-ohm load to low-impedance systems.
A sealed, painted, 18-gauge steel back can is square in shape, and
designed to mount in a 24-inch ceiling grid. The back can includes
a recessed Euroblock input connector, with detachable mating
plug, concealed behind a hinged metal cover plate. A ceramic
screw terminal block is also present. Mounting is accomplished
using the integral eyebolts on the rear to suspend the loudspeaker
with optional, adjustable, wire rope rigging. A cable clamp secures
the incoming loudspeaker cable.
Features
• 3-way design for very high-quality, high-output reproduction
• Frequency-shaded passive crossover
• Unique driver array for wide-bandwidth pattern control
• Integral 70.7/100V transformer with power-tap selector
• Fully appointed one-piece back can
Applications
• Meeting Rooms
• Houses of Worship
• Courtrooms
• Multizone Paging/Music Systems
Eastern Acoustic Works | One Main Street | Whitinsville, MA 01588 USA | TEL toll free within US/Canada 800.992.5013
• Hotels
• Boardrooms
• Multi-Purpose Facilities
TEL outside US 508.234.6158 | FAX 508.234.8251 | Page 1 of 4
3-Way High-Output Ceiling Loudspeaker

SPECIfICaTIONS

CONfIguRaTION
Subsystem: Transducer
LF 4x 5.25 in cone
MF 4x 4.5 in cone
HF 1x 1 in exit
Operating Mode: Amplifier Channels
Single-amp LF/MF/HF HPF
PERfORMaNCE
Operating Range: 82 Hz to 20 kHz
Nominal Beamwidth: Horz 60°
Vert 60°
Axial Sensitivity (whole space SPL):
LF/MF/HF 93 dB 82 Hz to 20 kHz
Input Impedance (ohms): Nominal
LF/MF/HF 8
Input Taps (LF/MF/HF): 70 V: 128 W / 64 W / 32 W / 16 W
100 V: 128 W / 64 W / 32 W
High Pass Filter: High Pass=>60 Hz, 12 dB/octave Butterworth
Accelerated Life Test: LF/MF/HF 40 V 200 W @ 8 ohm
Calculated Axial Output Limit (whole space SPL):
Average
LF/MF/HF 115 dB
CIS961
Loading
Sealed
Sealed
Horn
External Signal Processing
Minimum
7.2 @ 1000 Hz
Peak
121 dB
Part No. 0026852 2/08
