Chamberlain RWA300R User Manual

Overview
The Alert uses a Passive Infra-Red sensor to detect
movement of people and vehicles, while allowing
small animals to pass through undetected.

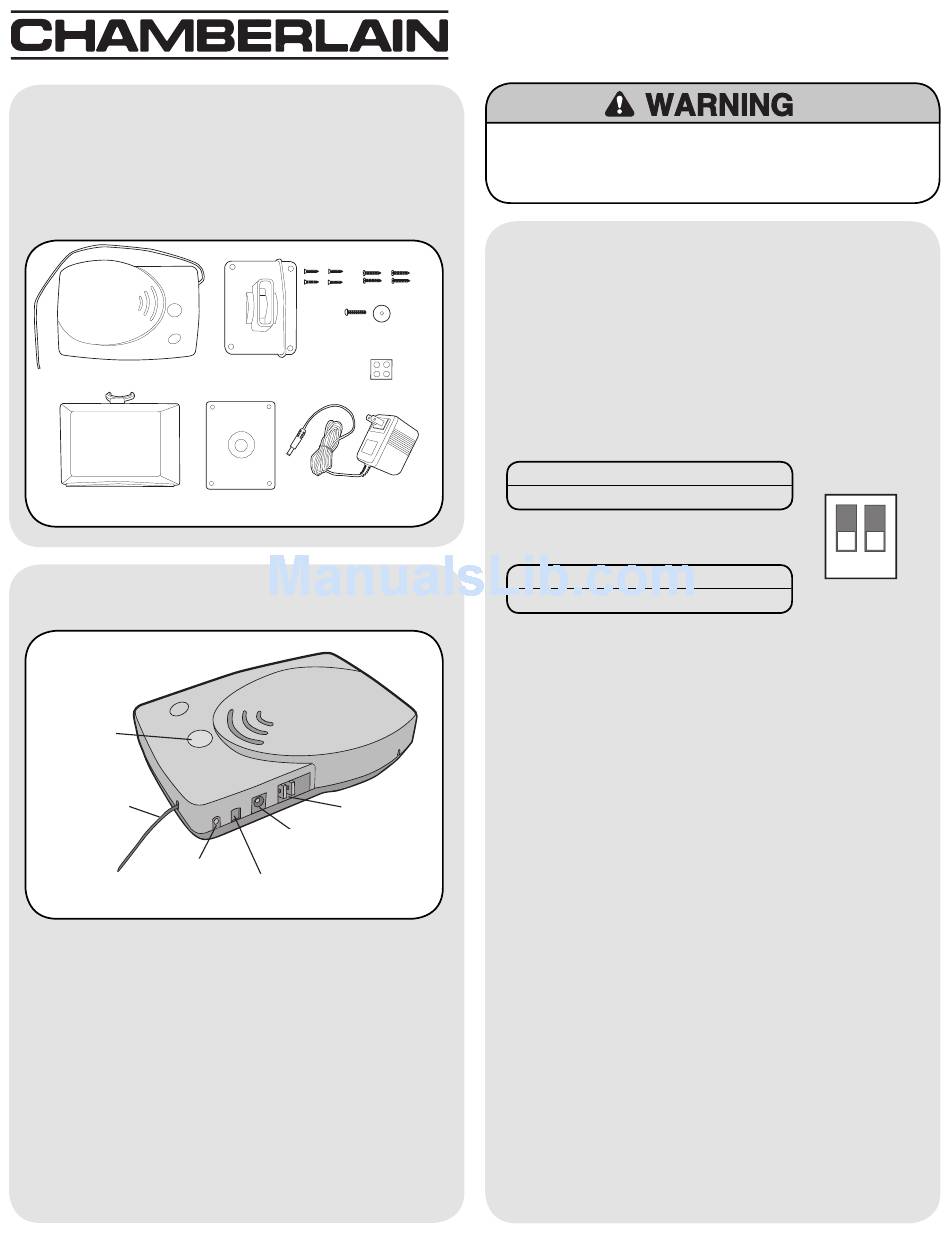

Carton Inventory
Passive Infra-Red (PIR)
Base Station
Sun/Rain Shield
Mounting Plate
Operation & Features
Base Station
Mute/Off
Button
Antenna
Learn Button
On/Off: To turn Base Station off hold down the Mute
Button until it powers down. The Base Station can be
turned on by pressing the Mute Button.
Mute: Press and release the Mute Button to put the
Base Station into Sleep Mode for one hour. After an
hour it will activate automatically.
Swivel Bushing
Motion Sensor
Rubber Pads
AC Adapter
Relay Output
Contacts
AC Adapter
Base Station Switch #1
Base Station Switch #2
®
Wireless Pedestrian & Vehicle Alert
To prevent possible SERIOUS INJURY or DEATH from
electrocution, outputs are suitable ONLY for controlling low
voltage devices, 24V max, ac or dc.
Battery: The AA batteries (not provided) in the PIR
Motion Sensor will last up to 2 years depending on
use (Lithium batteries recommended for colder
environments). If Base Station battery (optional) is
low, it will beep every few minutes. Replace with
9-Volt battery (not provided). For peak performance
inspect batteries annually and replace as needed.
Base Station Switches:
Switch #1:
OFF Buzzer Off
ON Buzzer On (Default)
Switch #2:
OFF Long Buzz
ON Short Buzz (Default)
Programming Additional PIR Motion Sensors: The
Base Station can learn the code of up to 3 additional
PIR Motion Sensors, responding with unique buzzes.
To program additional PIR Motion Sensors see
Step 6.
To order additional PIR Motion Sensors call
1-800-528-9131.
Clear Memory: Press and hold the Learn Button on
the Base Station until 3 beeps are heard.
1
Model RWA300R
1 2
OFF
ON
