Chamberlain Reporter RWA-300R User Manual

Troubleshooting and Frequently Asked Questions
Nothing Happens. The units Do Not Function
Check battery in PIR. Moving in front of it should cause the window to dimly blink.
Make sure you have followed the steps to TEACH the units to each other. Otherwise the
will ignore each other.
Make sure the base unit has the power LED ON or blinking (Blinking if battery powered).
The system is not getting the expected transmission range
To assure best range; keep base unit antenna VERTICAL. Keep the PIR Unit at least a
foot away from trees and metal objects. It can also help to locate the Base unit near a
window with the clearest possible sight of the PIR Unit. The less number of objects
between the devices, the longer the range.
I cannot hear the Base Unit when it signals
The VOLUME button can be used to increase the volume of speaker, though the motion
alert buzzer is not made to be overly loud. If you need to have a louder alarm, the
receiver has a relay that can activate other electrical devices, such as bells, buzzers, or
lights. The relay is a switch that has no power of its own, but can handle up to 120 volts
at 10 amps.
The PIR Unit is picking up people, but not cars
The PIR sensor is not seeing the car's hot motor or exhaust. To detect cars, it is best to
set the transmitter at an angle to the road, between ten and twenty feet from the road,
and it also helps to have the sensor mounted at the height of the car's motor.
The unit is signaling constantly, when there is nothing there
Check for tree branches or other objects that might be moving in a breeze or insects in
the sensor window. The sensor can also be fooled by light shining directly into the window,
such as reflected sunlight, or motion in front of a light source.
There is a short beep every ten minutes
The Base unit is indicating that the Battery is LOW. If PIR's batteries are low, the Base
unit will emit three high-pitch beeps, every ten minutes. If the Base Unit's batteries are
low, it will have two high-pitch beeps.
How do I clear the Base Unit's memory
Press and hold the Learn button, on the Base unit, for ten seconds. It will give a triple-
beep when it has cleared its memory and you can re-teach PIR Units to it. If a PIR Unit
signals, while the Learn button is depressed, the procedure will have to be repeated.
I hear Static and Feedback through the Base Unit
The PIR is probably to close to the Base unit. Once the PIR is installed in the desired
location, it will operate normally.
If you have installation or operation questions, please see above, or check out the expanded FAQ at
the manufacturer's web page at www.internationalelect.com. You can receive free technical assistance
or warranty service, by email at techsupp@nwlink.com or call 888.679.7994 Tuesday-Friday 8-5 pst
Warranty:
This product is warranted to be free of defects for the period of One Year from the date of purchase. The warranty covers
parts, labor, and return shipping to you, but not all accessories. IEI will repair or replace any defective product at our discretion. Warranty
does not cover misuse or damage other then due to normal operating conditions. If you need to send the system to IEI for repair, contact IEI for
a Return Authorization number via email: techsupp@nwlink.com. Packages without a Return Authorization number will be rejected.
Uses Include...
• Monitoring Gates
• Front Door / Back Door
• Driveways
• Deck & Patio
• Storefronts
• Barn or Shop
• RVs, while at home
• Pools or Area Security
• Home / Office Security
• Detecting Large Animals
Made With Pride In the USA. This product is covered by a
manufacturer's full One Year Warranty.
FCC STATEMENT
This device complies with FCC part 15 rules. It may not cause harmful interference with other devices, and must accept interference from other devices.
FCC ID: JLFPIR2 and JLFTRX
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE
RWV 8_25_04 © 2004
Thank you for purchasing
the Reporter
Alert. This product has
been designed
manufactured in the USA,
utilizing the highest quality
standards available.

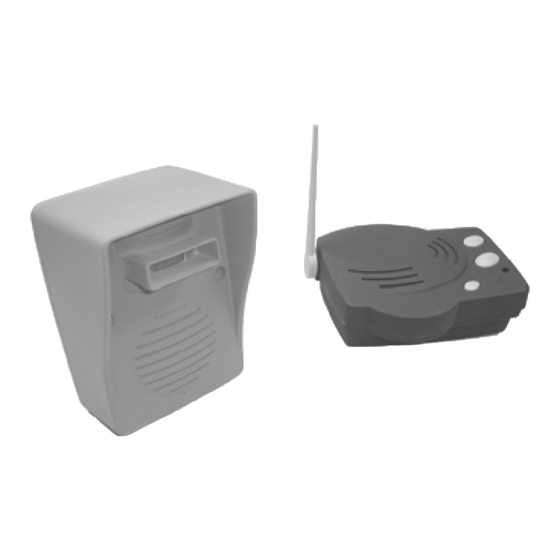

THE REPORTER with Voice
additional PIR Sensor can
be used to expand your
REPORTER with Voice, to
monitor motion in up to
EIGHT locations up to 1000
feet from the base, while
still allowing small animals
to pass undetected.
The wireless transmitter has
a built-in microphone that
lets you hear what is going
on outside and speak with a
person on the other end.
You can also
Control an electrical device
near the transmitter, like
Gate Openers, Lights, or
Cameras.
Please read the instructions
carefully.
EQUIPMENT
Wireless
and
Remotely
