Product Overview

Thank you for choosing a Cisco Valet wireless hotspot. This
Quick Reference Guide covers both the Valet (M10) and
Valet Plus (M20) models. Valet will be used as a general
reference to both models and all details in this Quick
Reference Guide apply to both models unless a specific
model number is noted.
The Valet lets you and others in your home access the
Internet wirelessly with a wireless equipped device such
as a laptop or desktop computer, gaming device, or
phone. The Valet wireless hotspot also has Fast Ethernet
ports that allow you to connect up to four wired devices.
The Valet Plus features Gigabit Ethernet ports for even
faster wired speeds. You can also use your Valet wireless
hotspot to share resources, such as computers. A variety
of security features help to protect your data and your
privacy while online.
The Valet includes the Cisco Connect software that helps
to manage your Valet settings, local and guest access, and
parental control settings.
Top

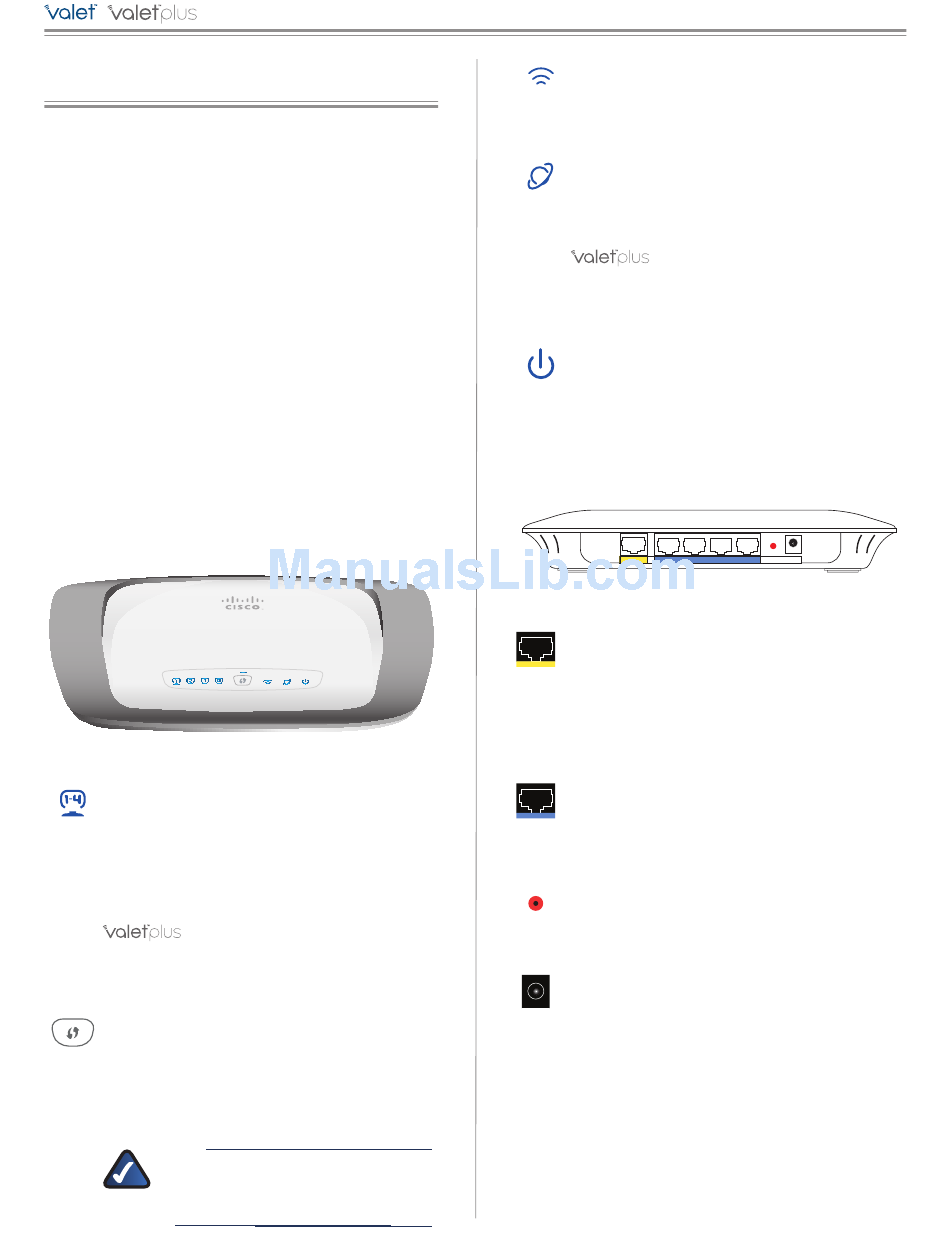

Top of Valet Plus
1, 2, 3, 4
(Blue) These numbered LEDs,
corresponding with the numbered ports on the
back of the Valet, serve two purposes. The LED
is continuously lit when the Valet is connected
to a device through that port. It flashes to
indicate network activity over that port.
(M20 Only)
lights up green when the port is connected to a
gigabit port or blue when the port is connected
to a 10/100 port.
Wi-Fi Protected Setup Button
client devices, such as wireless adapters, that
support Wi-Fi Protected Setup™, then you
can use the Wi-Fi Protected Setup button to
automatically configure wireless security for
your wireless network(s).
NOTE: You don't need to use this option
if you are using the Easy Setup Key to
connect devices to your network..
(Green/Blue) The LED
If you have
Wireless
(Blue) The Wireless LED lights up
when the wireless feature is enabled. It flashes
when the Valet sends or receives data over the
wireless network.
Internet
(Blue) The Internet LED lights up
when there is a connection made through the
Internet port. It flashes to indicate network
activity over the Internet port.
(M20 Only)
lights up green when the port is connected to a
gigabit port or blue when the port is connected
to a 10/100 port.
Power (Blue) The Power LED lights up when
the Valet is powered on. When the Valet goes
through its self-diagnostic mode during every
boot-up, the LED flashes. When the diagnostic
is complete, the LED is continuously lit.
Back
Internet 4
Internet
The Internet port is where you
connect the network (Ethernet) cable from your
Internet connection. In most cases you will be
connecting one end of the network cable to the
Ethernet port on your cable or DSL modem and
the other end to the Internet port on your Valet
wireless hotspot.
4, 3, 2, 1
Using network cables, these Ethernet
ports (4, 3, 2, 1) connect the Valet to computers
or other devices on your wired network that
have Ethernet ports such as gaming consoles,
HDTVs, Blu-ray disc players, or printers.
Reset Press and hold the Reset Button for
approximately five seconds to reset the Valet to
its factory default settings.
Power
The Power port is where you connect
the power adapter.
Product Overview
(Green/Blue) The LED
3 Ethernet 2 1 Reset 12VDC
Power
Back
