iLive ISB150 User Manual

15" Portable Wireless Speaker Sound Bar
User's Guide for Model ISB150 v2487-01
Features
• 15" length
• Bluetooth wireless 5.0: range 33 ft.
• Party Plus Mode
• Full range speakers
• Built-in microphone
• Voice prompts
• Digital volume control
• Built-in rechargeable battery: approximately 10 hrs
playtime at 50% volume
• Micro-USB port for battery recharge
Includes
• 3.5mm audio cable
• Micro-USB to USB charging cable

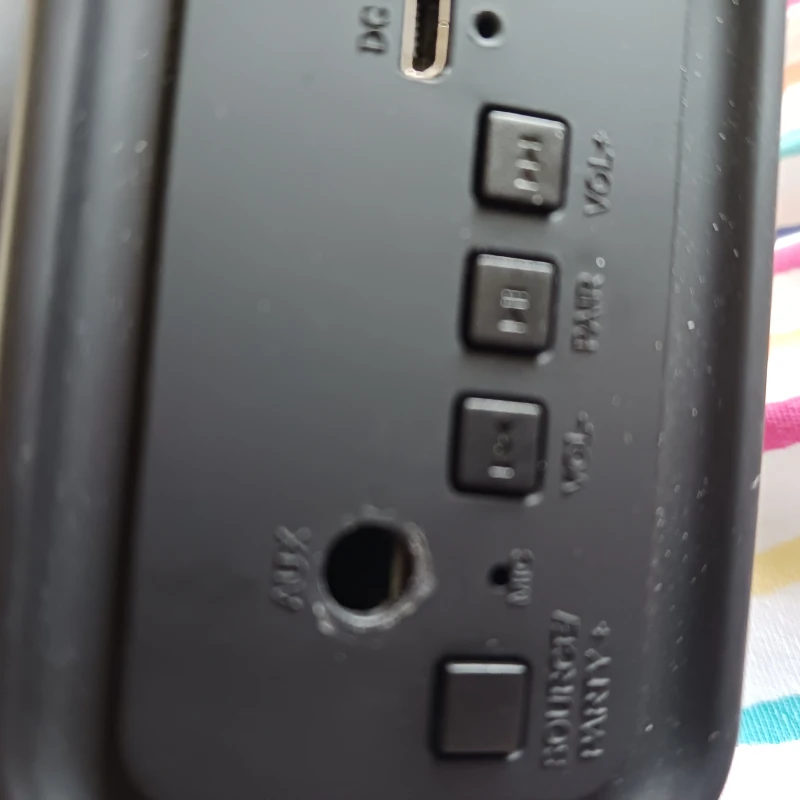

Controls
1
2
4
6
8
1. Power: Press and hold to power ON or OFF.
2. DC Power Input: Use to charge the internal battery
and power the speaker.
3. Indicator LED: Light will turn solid red when charging.
Will turn solid blue when in Bluetooth mode. Light will
slowly flash when in Aux in mode.
4. Volume/Skip: Press to adjust the volume level. Press
and hold to skip audio tracks.
5. /Pair: Press to play or pause tracks. Press and hold
to enter to Pairing Mode.
6. Aux In (3.5mm Audio Input)
7. Microphone
8. Source/Party+: Press to change source modes to
Bluetooth or Aux. Press and hold to enter Party Plus
Mode.
Battery Charging
To charge the internal battery, plug the USB charging cable
into the DC Power Input on the speaker and a powered on
computer or USB power adapter (not included) and standard
power outlet. Charging time is approximately 3-4 hours. Battery
life is approximately 10 hours at 50% volume.
When the battery is low a voice will announce "Low Battery, "
then the unit will automatically power OFF.
While the unit is charging it will display a solid red light. When
the battery is fully charged the light will turn off.
Aux In
3
Requires a 3.5mm audio cable (included).
5
7
1. Connect a 3.5mm audio cable to the Aux In on the unit
and the audio output on an audio device.
2. Press Source to switch to Aux Mode.
3. Use the controls on the connected device to select and
play audio. Be sure the volume on your connected device
is audible when you begin playing.
Note: Newer phone models may require an adapter (lighting-
to-3.5mm headphone adapter for iPhone,) or (USB-C to 3.5mm
audio adapter,) for android.
