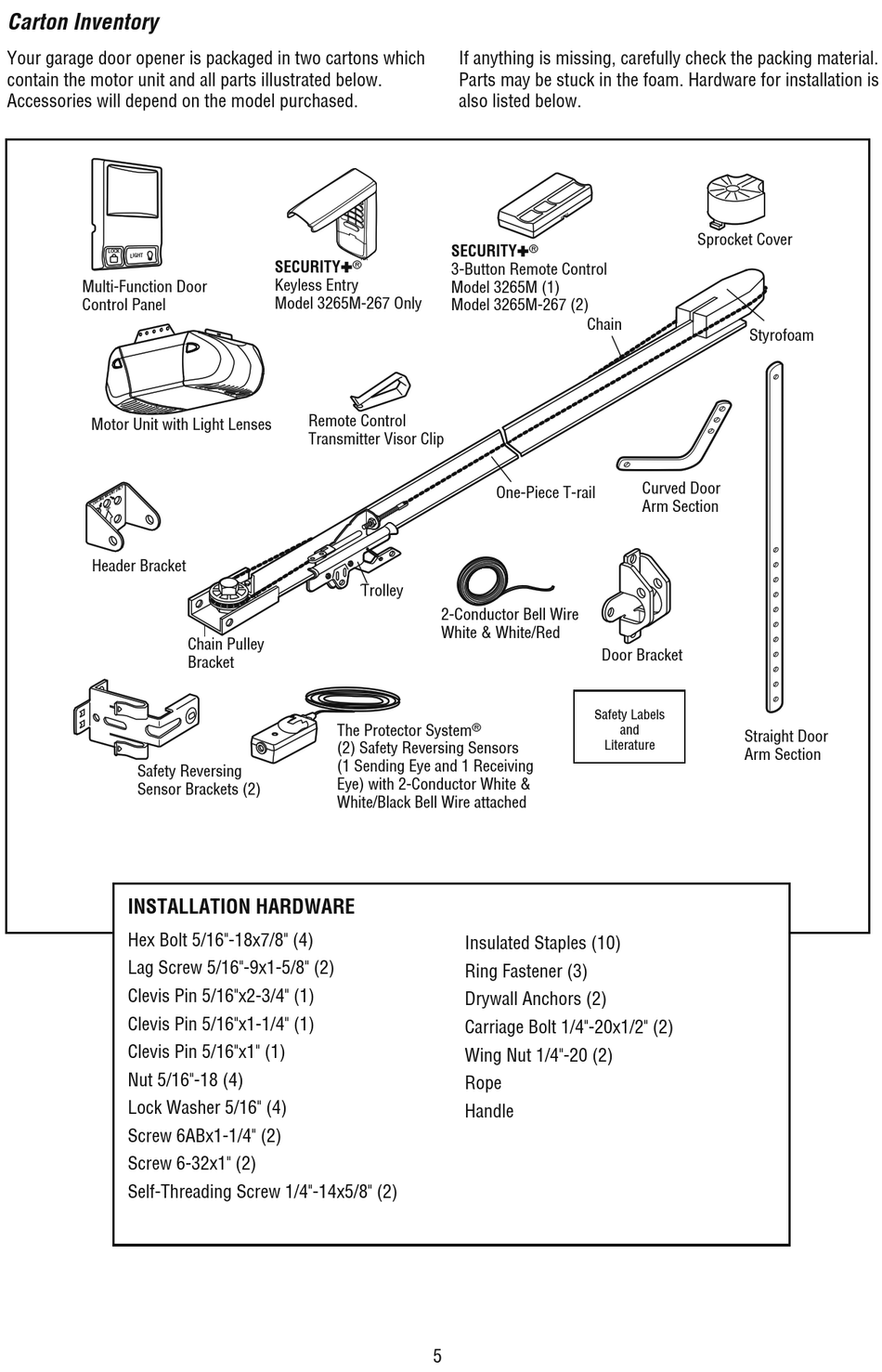

Carton Inventory

Your garage door opener is packaged in two cartons which
contain the motor unit and all parts illustrated below.
Accessories will depend on the model purchased.
Multi-Function Door
Multi-Function
Control Panel
Door Control Panel
Motor Unit with Light Lenses
Motor Unit with Light Lenses
Header Bracket
Header Bracket
Safety Reversing Sensor
Safety Reversing
Bracket (2)
Sensor Brackets (2)

INSTALLATION HARDWARE

Hex Bolt 5/16"-18x7/8" (4)
Lag Screw 5/16"-9x1-5/8" (2)
Clevis Pin 5/16"x2-3/4" (1)
Clevis Pin 5/16"x1-1/4" (1)
Clevis Pin 5/16"x1" (1)
Nut 5/16"-18 (4)
Lock Washer 5/16" (4)
Screw 6ABx1-1/4" (2)
Screw 6-32x1" (2)
Self-Threading Screw 1/4"-14x5/8" (2)
®
SECURITY✚
SECURITY✚
Keyless Entry
Keyless Entry
Model 3265M-267 Only
Model 3265M-267 Only
Remote Control
Remote Control
Transmitter Visor Clip
Transmitter Visor Clip
Chain Pulley
Chain
Pulley Bracket
Bracket
The Protector System
The Protector System
(2) Safety Reversing Sensors
(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
(1 Sending Eye and 1 Receiving
with 2-Conductor White & White/Black
Eye) with 2-Conductor White &
Bell Wire attached
White/Black Bell Wire attached
If anything is missing, carefully check the packing material.
Parts may be stuck in the foam. Hardware for installation is
also listed below.
SECURITY✚
®
SECURITY✚
®
3-Button Remote Control
3-Button Remote Control
Model 3265M (1)
Model 3265M (1)
Model 3265M-267 (2)
Model 3265M-267 (2)
One-Piece T-rail
One-Piece
T-rail
Trolley Trolley
2-Conductor Bell Wire
2 Conductor Bell Wire
White & White/Red White & White/Red
®
®
Insulated Staples (10)
Ring Fastener (3)
Drywall Anchors (2)
Carriage Bolt 1/4"-20x1/2" (2)
Wing Nut 1/4"-20 (2)
Rope
Handle
5
®
Chain Chain
Curved Door
Curved Door
Arm Section
Arm Section
Door Bracket
Door Bracket
Safety Labels
and
Literature
Sprocket Cover
Sprocket Cover
Styrofoam
Styrofoam
Straight Door
Straight Door
Arm Section
Arm Section
