ENGLISH

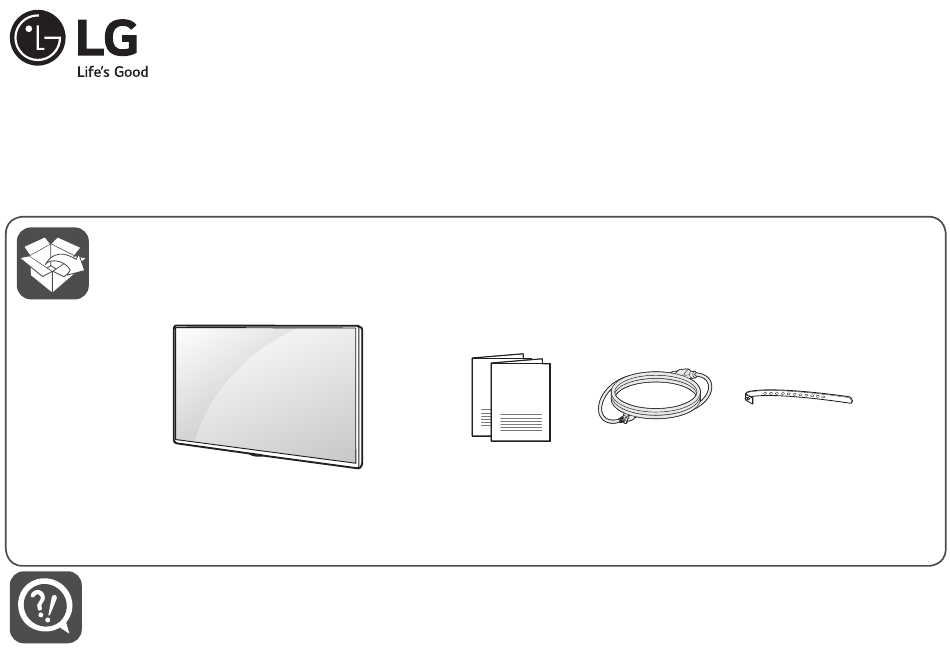

Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS
Guide de configuration rapide
Avant d'utiliser l'appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter
ultérieurement.
www.lg.com
LED TV
43UT672M0UC
49UT672M0UB
50UT672M0UB
55UT672M0UC
Printed in Korea
Advertisement
Table of Contents
Related Manuals for LG 50UT672M0UB
Summary of Contents for LG 50UT672M0UB
- Page 1 Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas. 49UT672M0UB FRANÇAIS Guide de configuration rapide Avant d’utiliser l’appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter 50UT672M0UB ultérieurement. 55UT672M0UC www.lg.com Printed in Korea...
- Page 2 ENGLISH Read Safety and Reference. WARNING : To prevent injury, this apparatus must be securely attached to the desk/wall in accordance with the Safety and Reference. ESPAÑOL Leer Seguridad y Consultas. ADVERTENCIA : Para prevenir daños, este aparato debe ser instalado a la mesa/pared de acuerdo a la guía de Seguridad y Consultas. FRANÇAIS Lisez Sécurité...
- Page 3 GAME CONTROL / M.P.I.
- Page 5 11,1 49UT672M0UB 125 W (43.7) (43,7) (25.5) (25,5) (3.1) (3,1) (24.4) (24,4) 1,130 1 130 86.3 86,3 11.3 11,3 50UT672M0UB 140 W (44.4) (44,4) (26.1) (26,1) (3.3) (3,3) (24.9) (24,9) 1,244 1 244 87.1 87,1 14.3 14,3 55UT672M0UC 165 W (48.9)
- Page 9 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. 43UT672M0UC 49UT672M0UB 50UT672M0UB 55UT672M0UC www.lg.com *MFL71402072* Copyright © 2021 LG Electronics Inc. All Rights Reserved.
-
Page 10: Important Safety Instruction
Important Safety Instruction • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •... - Page 11 Warning! Safety instructions - Near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning. - Do not install in excessively dusty places. Otherwise, this may result in fire, electric shock, CAUTION combustion/ explosion, malfunction or product deformation.
- Page 12 • Use only an authorized attachments / accessories - TV with a three-prong grounded AC plug must be approved by LG Electronics. Otherwise, this may connected to a three-prong grounded AC outlet. result in fire, electric shock, malfunction, or product Ensure that you connect the earth ground wire to damage.
- Page 13 • Moving • The device must be easily accessed to a location - When moving, make sure the product is turned outlet near the access. Some devices are not made off, unplugged, and all cables have been removed. by turning on / off button, turning off the device It may take 2 or more people to carry larger TVs.
-
Page 14: Optional Extras
• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grille area. 43UT672M0UC 49UT672M0UB Model 50UT672M0UB 55UT672M0UC VESA (A x B) 200 x 200 300 x 300 Standard screw... -
Page 15: Using The Kensington Security System (Optional)
Using the Kensington Security • When transporting the TV by hand, hold the TV as shown in the following illustration. System (optional) (Depending upon model) The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com. -
Page 16: Mounting On A Wall
We recommend that you use an LG brand Securing TV to the Wall wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall mount bracket, use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. - Page 17 Connections • For more information of screws and wall mount bracket, refer to the Separate purchase. You can connect various external devices to the TV. • If you intend to mount the product to a wall, For more information on external device’s connection, attach VESA standard mounting interface refer to the manual provided with each device.
-
Page 18: Other Connections
Other connections External Devices Supported external devices are: Blu-ray player, HD (Depending upon model) receivers, DVD players, VCRs, audio systems, USB * Remote control is not provided. storage devices, PC, gaming devices, and other external devices. Connect your TV to external devices. For the best •... -
Page 19: Pillow Speaker
Network setup Pillow Speaker Connect the pillow speaker (see example below) (Depending upon model) to the PILLOW SPEAKER interface on the rear jack panel of the TV. Wired network connection This TV can be connected to a Pro:Centric server via the port. -
Page 20: Using The Button
The software may be updated for improvement in button. performance. The customer is responsible to ensure the compatibility of their equipment with any LG Electronics software. If needed, please consult with LG Electronics and update new software versions according to the guidance provided by LG Electronics. - Page 21 • Abnormal Display • When cleaning the product, be careful not - If the TV feels cold to the touch, there may be a to allow any liquid or foreign objects to small flicker when it is turned on. This is normal; enter the gap between the upper, left or there is nothing wrong with TV.
- Page 22 Settings To set additional picture options ) [Picture] [Picture (Depending upon model) Mode Settings] [Picture Options] * Remote control is not provided. Adjusts detailed setting for images. • [Noise Reduction] Eliminates noise in the picture. To select Picture Mode • [MPEG Noise Reduction] Eliminates noise generated while creating digital picture signals.
-
Page 23: Specifications
Specifications Product specifications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only). The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.). Broadcasting Specifications Television system ATSC, NTSC-M, 64 &... - Page 24 HDMI (PC) supported mode HDMI (DTV) supported mode • Use HDMI IN 1 for PC mode. Horizontal Vertical (Depending upon model) Resolution Frequency (kHz) Frequency (Hz) Horizontal Vertical 31.46 59.94 Resolution 640 x 480p Frequency (kHz) Frequency (Hz) 31.50 60.00 640 x 350 31.46 70.09 31.47...
-
Page 25: Supported Photo Formats
Supported Photo Formats Supported Audio Formats File File Format Info Format Resolution Format (Bit rate) 32 Kbps - 320 Kbps Minimum : 64 (W) x 64 (H) (Sample freq.) 16 kHz - 48 kHz .mp3 (Support) MPEG1, MPEG2 Maximum : .jpeg (channels) mono, stereo - Normal Type :... -
Page 26: Supported Video Formats
• ULTRA HD Video : 3840 x 2160, 4096 x 2160 File • Some HEVC encoded ULTRA HD videos other than Codec Format the content officially provided by LG Electronics may not be played. VC-1 Advanced Profile • Some codecs can be supported after a software Video (except for WMVA), VC-1 .asf... -
Page 27: External Control Device Setup
(TV) (PC) (TV) (PC) • LG TV supports PL2303 chip-based (Vendor ID : 0 x 0557, Product ID : 0 x 2008) USB to serial converter which is RS-232C IN (CONTROL & SERVICE) not made nor provided by LG. (PC) (TV) •... - Page 28 (TV) (PC) RS-232C with RS-232C Cable (TV) (PC) (TV) (PC) RS-232C DE9 (D-Sub 9pin) Type (CONTROL & SE (PC) RS-232C IN (CONTROL & SERVICE) (PC) RS-232C IN (TV) (CONTROL & SERVICE) (PC) (TV) RS-232C IN (CONTROL & SERVICE) (PC) (TV) (TV) (PC) (PC)
- Page 29 RS-232C configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 RS-232C configurations 7-Wire or 3-Wire Configuration IR-OUT D-Sub 9 Phone-Jack Set ID (Depending upon model) * Remote control is not provided. For Set ID number, see “Real data mapping (Hexadecimal : Decimal)”.
-
Page 30: Communication Parameters
Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list * (Depending upon model) COMMAND1 COMMAND2... -
Page 31: Transmission / Receiving Protocol
TRANSMISSION / RECEIVING PROTOCOL * (Depending upon Model) Transmission (Command1)(Command2)( )([Set ID])( )(Data)(Cr) (Command 1) : First command to control the TV. (j, k, m or x) (Command 2) : Second command to control the TV. ([Set ID]) : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to 99. - Page 32 1 Power (Command: k a) 3 Screen Mute (Command: k d) ► To control power on or off of the set. ► To select screen mute on/off. Transmission Transmission (k)(a)( )([Set ID])( )(Data)(Cr) (k)(d)( )([Set ID])( )(Data)(Cr) Data 00 : [Off] Data 00 : Screen mute off (Picture on) / Video mute off Data 01 : [On] Data 01 : Screen mute on (Picture off)
- Page 33 7 [Brightness] (Command: k h) 11 OSD Select (Command: k l) ► To adjust screen brightness. You can also adjust ► To select OSD (On Screen Display) on/off when brightness in the picture settings. controlling remotely. Transmission Transmission (k)(h)( )([Set ID])( )(Data)(Cr) (k)(l)( )([Set ID])( )(Data)(Cr) Data Min : 00 to Max : 64 Data 00 : [Off]...
- Page 34 13 [Balance] (Command: k t) 16 Tune Command (Command: m a) ► To adjust balance. You can also adjust balance in * This command may work differently Depending upon model and signal. the audio settings. * For Europe, Mid-East, Colombia, Asia except South Transmission Korea and Japan Model (k)(t)( )([Set ID])( )(Data)(Cr)
- Page 35 • Tune Command Examples: • Analog Antenna/Cable 1 Tune to the Analog antenna (PAL) Channel 10. Data 00 : Physical Channel Number [Set ID] = All = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 00 & 01 = Channel Data is 10 = 00 0a - Cable (CATV) : 01~87 (Decimal : 1~135) Data 02 = Analog Antenna TV = 00 (Data 01 ~ 04): Major/Minor Channel Number...
- Page 36 • Digital Antenna/Satellite • Tune Command Examples: 1 Tune to the Analog cable (NTSC) channel 35. Data 00 : xx (Don’t care) (Data 01)(Data 02) : Major Channel Number [Set ID] = All = 00 Data 01 : High byte Channel Data Data 00 = Channel Data is 35 = 23 Data 02 : Low byte Channel Data Data 01 &...
- Page 37 17 [Channel] Skip/Add (Command: m b) 20 Input select (Command: x b) (Main Picture Input) ► To skip current channel for next time. ► To select input source for main picture. Transmission Transmission (m)(b)( )([Set ID])( )(Data)(Cr) (x)(b)( )([Set ID])( )(Data)(Cr) Data 00 : Del(ATSC,ISDB)/Skip(DVB) Data 00 : DTV Data 01 : Add...
- Page 38 If not use the remote-controller with data formats recommended, IR output signals will be suppressed automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this matter, here are two methods as below.
-
Page 39: Open Source Software Notice Information
Dolby Atmos, and the double-D symbol are available for download. trademarks of Dolby Laboratories. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 40: Fcc Notice
Regulatory FCC Radio Frequency Interference Requirements (for UNII devices) (For USA) FCC Notice High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. (For USA) These radar stations can cause interference with and/ This equipment has been tested and found to or damage this device. -
Page 41: Industry Canada Statement
Industry Canada Statement RSS-247 Requirement (For Canada) (For Canada) [For having wireless function (WLAN, Bluetooth,...)] [For product having the wireless function using 5 GHz frequency bands] This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and (1) The device for operation in the band 5150–5250 Economic Development Canada’s licence-exempt MHz is only for indoor use to reduce the potential for RSS(s). -
Page 42: Note To Cable/Tv Installer
NOTE TO CABLE/TV INSTALLER Symbols (For USA and Canada) Refers to alternating current (AC). This reminder is provided to call the CATV system Refers to direct current (DC). installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines Refers to class II equipment. -
Page 43: Child Safety
CHILD SAFETY: PROPER TELEVISION PLACEMENT MATTERS THE CONSUMER TECHNOLOGY INDUSTRY CARES Manufacturers, retailers and the rest of the consumer technology industry are committed to making products safe and enjoyable. As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. - Page 44 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 111 Sylvan Avenue, North Building, Englewood Cliffs, NJ 07632 E-mail lg.environmental@lge.com LG Customer Information Center The model and serial number of the product are located on the back and on one side of the product.
