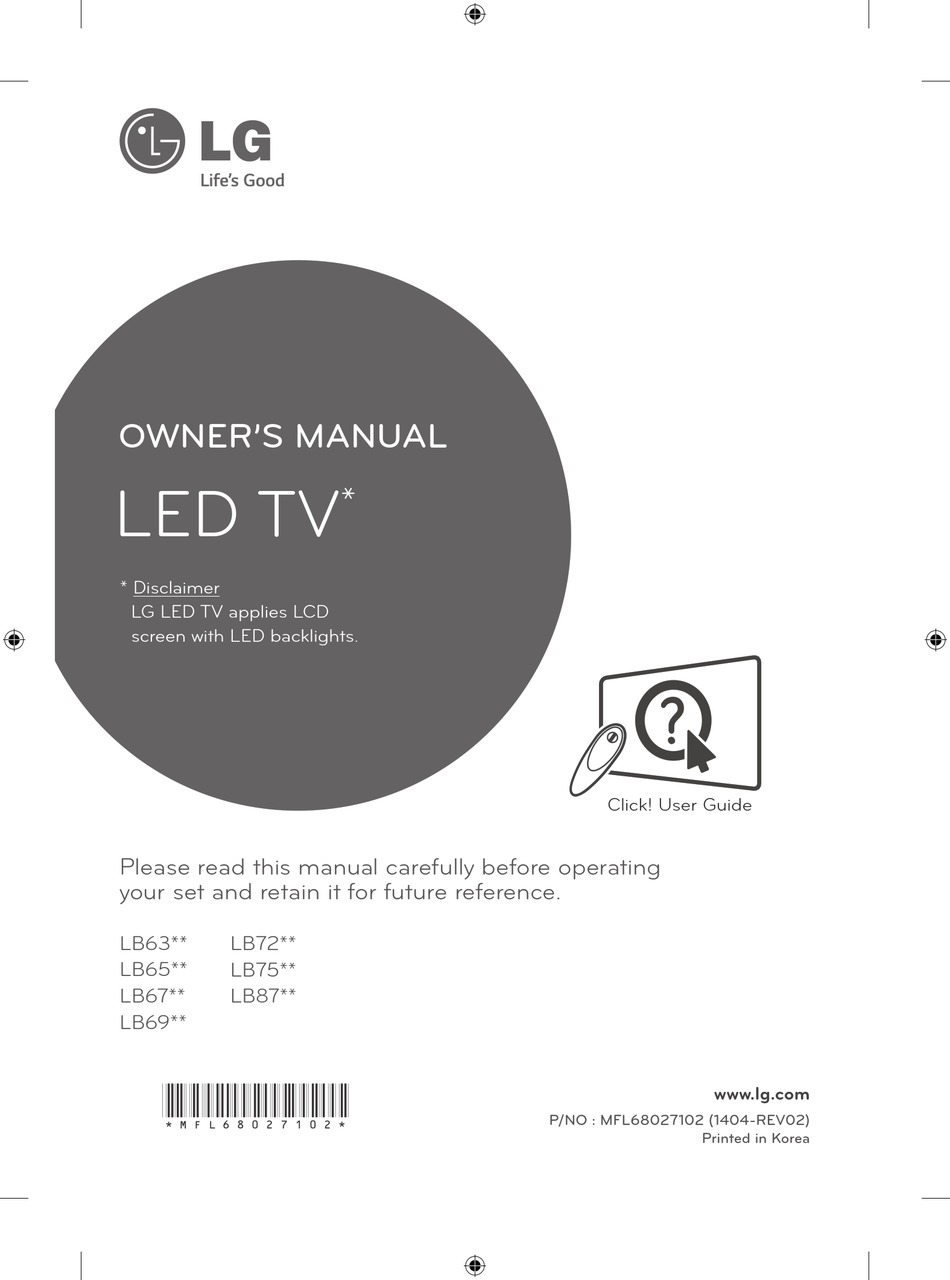

OWNER'S MANUAL
LED TV
* LG LED TV applies LCD screen
with LED backlights.
Please read this manual carefully before operating
your set and retain it for future reference.
LB63**
LB72**
LB65**
LB75**
LB67**
LB87**
LB69**
*MFL68027103*
*
Click! User Guide
www.lg.com
P/NO : MFL68027103 (1404-REV02)
Printed in Korea
Advertisement
Table of Contents
Related Manuals for LG 50LB670T.ATI
Summary of Contents for LG 50LB670T.ATI
- Page 1 OWNER’S MANUAL LED TV * LG LED TV applies LCD screen with LED backlights. Click! User Guide Please read this manual carefully before operating your set and retain it for future reference. LB63** LB72** LB65** LB75** LB67** LB87** LB69** www.lg.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS REMOTE CONTROL LICENSES OPEN SOURCE SOFTWARE MAGIC REMOTE FUNCTIONS NOTICE Registering Magic Remote How to use Magic Remote EXTERNAL CONTROL DEVICE Precautions to Take when Using the SETUP Magic Remote USING THE USER GUIDE SAFETy INSTRUCTIONS Viewing 3D Imaging (Only 3D models) MAINTENANCE... -
Page 3: Licenses
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS SAFETy INSTRUCTIONS Please read these safety precautions carefully before using the product. WARNING y Do not place the TV and/or remote control y Make sure to connect Mains cable to in the following environments: compliant AC mains socket with Grounded - A location exposed to direct sunlight earth pin. - Page 5 SAFETY INSTRUCTIONS y When mounting TV onto wall make sure to y Dispose of used batteries carefully to ensure neatly install and isolate cabling from rear that a small child does not consume them. of TV as to not create possibility of electric Please seek Doctor- Medical Attention shock /fire hazard.
- Page 6 SAFETY INSTRUCTIONS y Do not allow any impact, shock or any y Unplug the TV from AC mains wall socket objects to fall into the unit, and do not drop if you do not intend to use the TV for a long anything onto the screen.
- Page 7 SAFETY INSTRUCTIONS y If you install the TV on a stand, you need y Do not place non-rechargeable batteries in to take actions to prevent the product from charging device. overturning. Otherwise, the product may fall over, which may cause injury. y Make sure there are no objects between the remote control and its sensor.
- Page 8 SAFETY INSTRUCTIONS y Take care not to touch the ventilation y When cleaning the product and its openings when watching the TV for long components, unplug the power first and wipe periods as the ventilation openings may it with a soft cloth. Applying excessive force become hot.
- Page 9 SAFETY INSTRUCTIONS y Contact the service centre once a year to y You may find different brightness and colour clean the internal parts of the product. of the panel depending on your viewing Accumulated dust can cause mechanical position(left/right/top/down). failure. This phenomenon occurs due to the characteristic of the panel.
-
Page 10: Viewing 3D Imaging (Only 3D Models)
Symptoms which require discontinuation or Cautions when using the 3D glasses refraining from watching 3D contents y Make sure to use LG 3D glasses. Otherwise, y Do not watch 3D contents when you feel you may not be able to view 3D videos fatigue from lack of sleep, overwork or properly. -
Page 11: Installation Procedure
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING NOTE y Image shown may differ from your TV. y Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. y The available menus and options may differ from the input source or product model that you are using. - Page 12 ASSEMBLING AND PREPARING AV MODE INPUT ENERGY ENERGY AV MODE INPUT SAVING SAVING FLASHBK FLASHBK LIST MARK LIST MARK MUTE MUTE MENU INFO Q.MENU MENU INFO Q.MENU ENTER ENTER BACK EXIT BACK EXIT L/R SELECT L/R SELECT FREEZE FREEZE RATIO RATIO Remote Control, Batteries Magic Remote, Batteries...
- Page 13 ASSEMBLING AND PREPARING Cable Holder Cable Managements Cable Managements (Depending on model) (See p.29, 30) (Only LB63**, LB65**, (Only LB75**) LB67**, LB69**, LB72**) (See p.29) (See p.29) Stand Screws Stand Screws Stand Screws 4EA, M4 x L20 4EA, M4 x L14 4EA, M4 x L10 (Only 32LB65**) (Only LB63**,...
- Page 14 ASSEMBLING AND PREPARING Stand Front Stand Supporters Sound Bar (Only LB75**) (Only LB75**) (Only LB87**) (See p.21) (See p.21) (See p.22, 24) Stand Assys Sound Bar Supporters Screw Covers (Only LB87**) (Only LB87**) (Only LB87**) (See p.22) (See p.24) (See p.23, 24)
-
Page 15: Separate Purchase
Contact your dealer to buy these items. These devices only work with certain models. AG-F***DP AG-F*** AN-MR500 Dual Play Glasses Cinema 3D Glasses Magic Remote Tag on AN-VC5** LG Audio Device Video Call Camera LB65**, LB67**, Compatibility LB63** LB69**, LB72**, LB87** LB75** AG-F***DP •... -
Page 16: Parts And Buttons
ASSEMBLING AND PREPARING Parts and buttons A type : LB63**, LB65**-TA/TB B type : LB65**-TH Screen Screen Speakers Speakers Remote control and Remote control and Intelligent sensors Intelligent sensors Power Indicator Power Indicator Joystick Button Joystick Button C type : LB67**, LB69**, LB72** Screen Speakers Remote control and... - Page 17 1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment. 2 Joystick Button - This button is located below the TV screen. NOTE y You can set the LG Logo light or Power indicator Light to on or off by selecting General in the main menus. (Depending on model)
-
Page 18: Using The Joystick Button
ASSEMBLING AND PREPARING Using the Joystick button You can simply operate the TV functions by pressing to turn On/Off or sliding your finger over joystick button moving up, down, left or right. Basic Functions When the TV is turned off, place your finger on the joystick Power On button and press it once and release it. -
Page 19: Lifting And Moving The Tv
ASSEMBLING AND PREPARING Lifting and moving the TV y When transporting a large TV, there should be at least 2 people. y When transporting the TV by hand, hold the Please note the following advice to prevent the TV as shown in the following illustration. TV from being scratched or damaged and for safe transportation regardless of its type and size. -
Page 20: Setting Up The Tv
ASSEMBLING AND PREPARING Setting up the TV 70LB65**-TA, LB67**, LB69**, LB72** Image shown may differ from your TV. Stand Body Attaching the stand LB63**, 32/39/42/47/50/55/60LB65**-TA/TB A stand base Stand Base A stand base B stand base B stand base 1 Attach the stand to the TV using the upper mounting hole on the back of the TV. - Page 21 ASSEMBLING AND PREPARING LB75** LB65**-TH A stand base B stand base Stand Front B Stand A Stand Supporter Supporter 1 Attach the stand to the TV using the upper mounting hole on the back of the TV. 2 Attach the stand to the TV using the lower connection on the back of the TV.
- Page 22 ASSEMBLING AND PREPARING LB87** Sound Bar Stand Assy Right Stand Assy Left 1 Attach the stand to the TV using the upper mounting hole on the back of the TV. M4 x L14 2 Attach the stand to the TV using the lower connection on the back of the TV.
- Page 23 ASSEMBLING AND PREPARING CAUTION y When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches. y Make sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over...
-
Page 24: Attaching The Sound Bar Supporter
ASSEMBLING AND PREPARING Attaching the Sound Bar Supporter (In case of mounting on a wall) LB87** Sound Bar Sound Bar Supporter Right Sound Bar Supporter Left M4 x L14 M4 x L14 Screw Cover... -
Page 25: Mounting On A Table
ASSEMBLING AND PREPARING Using the Kensington security system CAUTION (This feature is not available for all models.) y When attaching the Sound Bar Supporter y Image shown may differ from your TV. to the TV set, place the screen facing The Kensington security system connector down on a cushioned table or flat surface is located at the rear of the TV. - Page 26 ASSEMBLING AND PREPARING Securing the TV to a wall WARNING (This feature is not available for all models.) y If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as: »...
-
Page 27: Mounting On A Wall
VESA (A x B) 200 x 200 400 x 400 bracket. Standard screw M6 When you do not use LG’s wall mount bracket, Number of please use a wall mount bracket where the screws device is adequately secured to the wall with... - Page 28 The wall mount bracket is not provided. Use an authorised LG wall mount and You can obtain additional accessories contact the local dealer or qualified from your local dealer.
-
Page 29: Tidying Cables
ASSEMBLING AND PREPARING Tidying cables (Only 32LB65**-TH) Image shown may differ from your TV. 1 Gather and bind the cables with the cable holder. (Depending on model) 2 Fix the Cable Management firmly to the TV. (Only LB63**, 39/42/47/50/55/60LB65**-TA/TB, LB67**, LB69**, LB72**) Cable Holder Cable Management (Only 39/42/47/50/55LB65**-TH) -
Page 30: Using Built-In Camera
ASSEMBLING AND PREPARING Using Built-in Camera (Only LB87**) Cable Holder (Only LB87**) You can make a Skype video call or use the motion recognition function using the built-in camera of the TV. This TV does not support the use of an external camera. -
Page 31: Preparing Built-In Camera
ASSEMBLING AND PREPARING Preparing Built-in Camera 3 Push down the built-in camera when you are not using it. 1 Pull up the slide at the back of the TV. Angle Adjustment Lever Slide Name of Parts of Built-in Camera Camera Lens Protective film NOTE y Remove the protective film before using... -
Page 32: Making Connections
MAKING CONNECTIONS MAKING CONNECTIONS Antenna connection Connect the TV to a wall antenna socket with an RF cable (75 Ω). This section on MAKING CONNECTIONS mainly uses diagrams for the 42LB67** models. Connect various external devices to the TV and switch input modes to select an external device. -
Page 33: Satellite Dish Connection
MAKING CONNECTIONS Satellite dish connection Headphone connection (Only satellite models) Transmits the headphone signal from the TV to an external device. Connect the external device Connect the TV to a satellite dish to a satellite and the TV with the headphone as shown. socket with a satellite RF cable (75 Ω). -
Page 34: Hdmi Connection
MAKING CONNECTIONS (Only LB87**) HDMI connection Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. Choose any HDMI input port to connect. It does not matter which port you use. -
Page 35: Dvi To Hdmi Connection
MAKING CONNECTIONS (Only LB87**) DVI to HDMI connection Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the DVI-HDMI cable as shown. To transmit an audio signal, connect an audio cable. -
Page 36: Component Connection
MAKING CONNECTIONS Component connection (Only LB87**) Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown. (Only LB63**, LB65**, LB67**, LB69**, LB72**, LB75**) COMPONENT VIDEO AUDIO YELLOW... -
Page 37: Composite Connection
MAKING CONNECTIONS Composite connection (Only LB87**) Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown. (Only LB63**, LB65**, LB67**, LB69**, LB72**, LB75**) COMPONENT COMPONENT VIDEO AUDIO... -
Page 38: Audio Connection
MAKING CONNECTIONS Audio connection USB connection You may use an optional external audio system Connect a USB storage device such as a USB instead of the built-in speaker. flash memory, external hard drive, or a USB memory card reader to the TV and access the Digital optical audio connection SmartShare menu to use various multimedia files. -
Page 39: Euro Scart Connection
MAKING CONNECTIONS Euro Scart connection NOTE (Only satellite models) y Any Euro scart cable used must be signal shielded. Transmits the video and audio signals from an y When watching digital TV in 3D imaging external device to the TV set. Connect the ex- mode, only 2D out signals can be output ternal device and the TV set with the euro scart through the SCART cable. -
Page 40: Mhl Connection
MAKING CONNECTIONS MHL connection Mobile High-definition Link (MHL) is an interface for transmitting digital audiovisual signals from mobile phones to television sets. MHL passive cable (*Not Provided) Mobile phone NOTE y Connect the mobile phone to the HDMI IN 3 (MHL) or HDMI/DVI IN 4 (MHL) port to view the phone screen on the TV. -
Page 41: Remote Control
REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover. -
Page 42: Magic Remote Functions
MAGIC REMOTE FUNCTIONS MaGIc REMotE FuNctIoNS When the message “Magic Remote battery is low. Change the battery.” is displayed, replace the battery. To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching ends to the label inside the compartment, and close the battery cover. -
Page 43: Registering Magic Remote
MAGIC REMOTE FUNCTIONS How to use Magic Remote Voice recognition (Depending on model) Network connection is required to use the y Shake the Magic Remote voice recognition function. slightly to the right and left 1 Press the Voice recognition button. or press (Home), 2 Speak when the voice display window... -
Page 44: Precautions To Take When Using The Magic Remote
MAGIC REMOTE FUNCTIONS / USING THE USER GUIDE USING THE USER GUIdE Precautions to Take when Using the Magic Remote User Guide allows you to more easily access the y Use the remote control within the detailed TV information. specified range (within 10 m). You may experience communication failures when using the device outside the coverage 1 Press the... -
Page 45: Maintenance
MAINTENANCE / TROUBLESHOOTING MAINTENANCE Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan. CAUTION y Make sure to turn the power off and disconnect the power cord and all other cables first. y When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. -
Page 46: Environmental Information
SPECIFICATIONS SPECIFICATIONS Wireless module(LGSBW41) Specifications Wireless LAN Bluetooth Standard IEEE 802.11a/b/g/n Standard Bluetooth Version 3.0 2400 to 2483.5 MHz Frequency Frequency 5150 to 5250 MHz 2400 to 2483.5 MHz ragne ragne 5725 to 5850 MHz (for Non EU) 802.11a: 13 dBm 802.11b: 15 dBm Output power Output power... -
Page 47: Specifications
SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions. For the power supply and power consumption, refer to the label attached to the product. 42LB63** 47LB63** 55LB63** 42LB6310-TC 47LB6310-TC 55LB6310-TC 42LB631T-TC 47LB631T-TC 55LB631T-TC MODELS 42LB6330-TD 47LB6330-TD 55LB6330-TD... - Page 48 SPECIFICATIONS 42LB65** 42LB6500-TA 42LB650T-TA 42LB650V-TA MODELS 42LB6500-TH 42LB6520-TB 42LB650T-TH 42LB652T-TB 42LB652Y-TB 42LB659Y-TB 960 x 610 x 218 960 x 612 x 193 Dimensions With stand (mm) (W x H x D) Without stand (mm) 960 x 567 x 54.5 960 x 567 x 54.5 Weight With stand (kg) Without stand (kg)
- Page 49 SPECIFICATIONS 55LB65** 55LB6500-TA 55LB650T-TA 55LB650V-TA 55LB6500-TH MODELS 55LB6520-TB 55LB650T-TH 55LB652T-TB 55LB652Y-TB 55LB659Y-TB 1241 x 772 x 247 1241 x 769 x 224 Dimensions With stand (mm) (W x H x D) Without stand (mm) 1241 x 725 x 55.5 1241 x 725 x 55.5 18.7 18.6 Weight...
- Page 50 SPECIFICATIONS 55LB67** 42LB69** 47LB69** 55LB6700-TA 42LB6900-TA 47LB6900-TA MODELS 55LB670T-TA 42LB690T-TA 47LB690T-TA 55LB670Y-TA 42LB690Y-TA 47LB690Y-TA 55LB679Y-TA 42LB692V-TB 47LB692V-TB 1229.8 x 767.5 x 247.5 949 x 608 x 211 1061 x 670 x 247 Dimensions With stand (mm) (W x H x D) Without stand (mm) 1229.8 x 716.6 x 55.1 949 x 560 x 55.1 1061 x 623 x 55.1...
- Page 51 SPECIFICATIONS 42LB75** 47LB75** 55LB75** MoDELS 42LB7500-TE 47LB7500-TE 55LB7500-TE 42LB750T-TE 47LB750T-TE 55LB750T-TE 949 x 608 x 213 1061 x 666 x 227 1231 x 766 x 237 Dimensions With stand (mm) (W x H x D) Without stand (mm) 949 x 560 x 55.1 1061 x 623 x 55.1 1231 x 718 x 55.1 10.7...
- Page 52 SPECIFICATIONS CI Module Size (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % 1 Only Satellite models.
- Page 53 (Only Jordan) WEEE disposal of your appliance The symbol indicating separate collection for electrical and electronic equipment consists of the crossed-out wheeled bin.
- Page 54 19960 in Egypt 021 36 54 54 in Algeria Other countries, Please contact our local dealer or log into http://www.lg.com Record the model number and serial (Only DTV) number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service.
- Page 55 OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
- Page 56 KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
- Page 57 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
- Page 58 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
- Page 59 EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
- Page 60 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
- Page 61 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 62 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
- Page 63 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
- Page 64 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
- Page 65 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
- Page 66 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : To set Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
