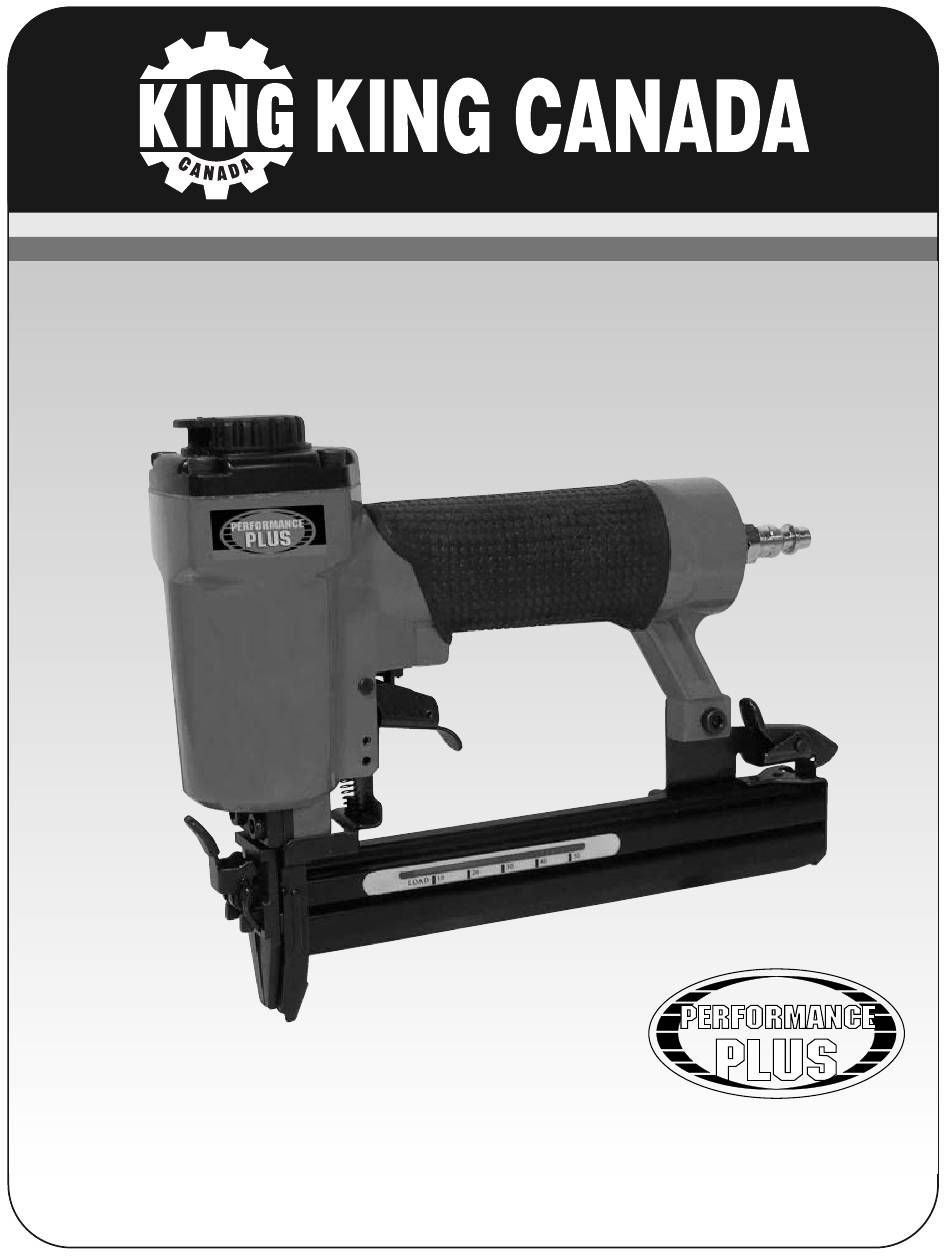

- Page 1 18GA. X 1/4” NARROW CROWN STAPLER MODEL: 8101S INSTRUCTION MANUAL COPYRIGHT © 2005 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
- Page 2 REPLACEMENT PARTS Replacement parts for this tool are available at our authorized KING CANADA service centers across Canada. For servicing, contact or return to the retailer where you purchased your product along with your proof of purchase. Please use the 10 digit part numbers listed in this manual for all part orders where applicable.
-
Page 3: Specifications
Staple view finder Staple loading area Safety release Staple discharge area SPECIFICATIONS Model ......................................8101S Air inlet ......................................1/4” NPT Compressed air: Maximum permissible operating pressure ........................120 PSIG (8.3 bar) Recommended operating pressure range ..........................60-100 PSI Staple range ........................3/8” to 1” 18ga. x 1/4” narrow crown staples Width ......................................1.25mm... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS • Read and understand this manual and all the safety instructions before operating this stapler. If you have any questions, please contact our authorized service centres or retailers for help. • Never allow the use of flammable gases as a power source for the stapler. Use filtered, lubricated and regulated compressed air only. -
Page 5: Lubrication And Maintenance
LUBRICATION AIR SUPPLY AND CONNECTIONS LUBRICATION AND MAINTENANCE • Your stapler needs to be lubicated before and after the first time you use it. • Disconnect the air supply from the stapler before lubricating. • Turn the stapler so that the inlet is facing up and put ONE DROP of high speed spindle oil or oil without detergent into the air inlet. - Page 6 CONTACT SAFETY TRIP MECHANISM OPERATING A CONTACT SAFETY TRIP TOOL: • The operator is required to have the finger off the trigger and the nose of the stapler to be placed on the workpiece. • The contact safety trip mechanism is then depressed against the workpiece and the trigger is pulled to drive the staple.
-
Page 7: Clearing Jams
LOADING STAPLER & CLEARING JAMS LOADING STAPLER MAGAZINE • Disconnect the air hose from the stapler air inlet. • Depress the magazine latch, pull back on the magazine cover. • Place a stick of staples over the hanging rail of the magazine so that the legs of the staples straddle. •... - Page 8 OPERATING YOUR STAPLER OPERATING YOUR STAPLER WARNING! protect your eyes and ears. Wear Z87 safety glasses with side shields. Wear hearing protection. Employers are responsible for ensuring the user or anyone near the stapler wears the above mentioned safety protection. WARNING! Check and replace any damaged or worn components.
-
Page 9: Maintenance And Troubleshooting
Accessory Kit is available for your Stapler (model: KW-078). Contact your local King Canada distributor for more information. PARTS DIAGRAM & PARTS LISTS Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list. KW-078...
