Page 1: Instruction Manual

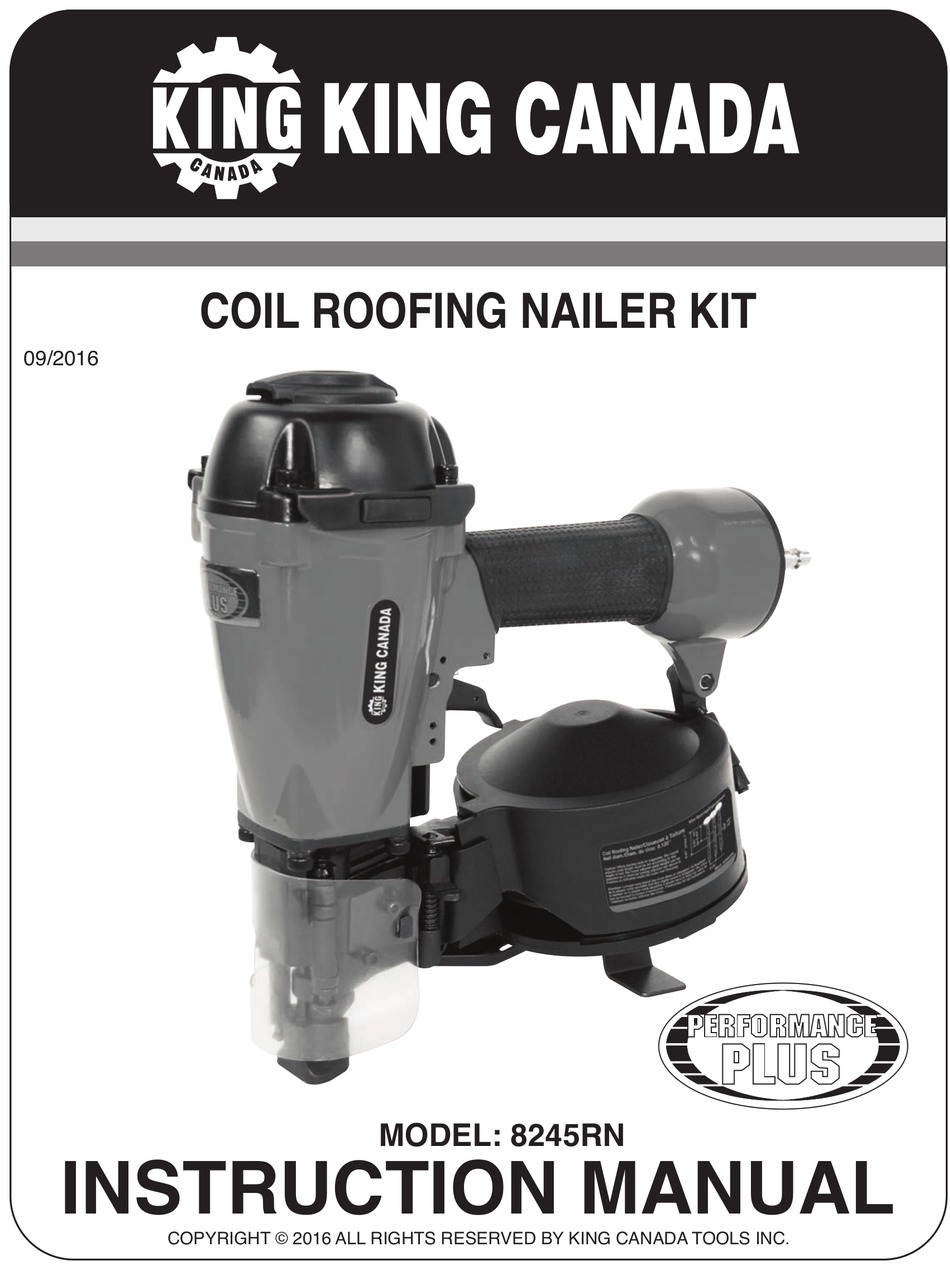

COIL ROOFING NAILER KIT 09/2016 INSTRUCTION MANUAL MODEL: 8245RN COPYRIGHT © 2016 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC. - Page 2 King Canada service center. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized service centers. In cooperation with our authorized serviced center, King Canada will either repair or replace the product if any part or parts covered under this warranty which examination proves to be defective in workmanship or material during the warranty period.
-
Page 3: Specifications
Magazine latch Safety release Debris protector Nail discharge area SPECIFICATIONS Model ......................................8245RN Air inlet ......................................1/4” NPT Compressed air: Maximum permissible operating pressure ........................120 PSIG (8.3 bar) Recommended operating pressure range ..........................70-120 PSI Nail range ............................7/8” to 1-3/4” 11ga. coil roofing nails Diameter ......................................0.120”... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS • Read and understand this manual and all the safety instructions before operating this coil roofing nailer. If you have any questions, please contact our authorized service centres or retailers for help. • Never allow the use of flammable gases as a power source for the coil roofing nailer. Use filtered, lubricated and regulated compressed air only. -
Page 5: Lubrication And Maintenance
LUBRICATION AIR SUPPLY AND CONNECTIONS LUBRICATION AND MAINTENANCE • Your coil roofing nailer needs to be lubicated before and after the first time you use it. • Disconnect the air supply from the coil roofing nailer before lubricating. • Turn the coil roofing nailer so that the inlet is facing up and put ONE DROP of high speed spindle oil or oil without detergent into the air inlet. - Page 6 CONTACT SAFETY TRIP MECHANISM OPERATING A CONTACT SAFETY TRIP TOOL: • The operator is required to have the finger off the trigger and the nose of the coil roofing nailer to be placed on the workpiece. • The contact safety trip mechanism is then depressed against the workpiece and the trigger is pulled to drive the nail.
-
Page 7: Clearing Jams
LOADING NAILER & CLEARING JAMS LOADING NAILER MAGAZINE • Disconnect the air hose from the coil roofing nailer air inlet. • Pull down latch and swing open the magazine cover. • The tool must be set for the length of the nail to be used. Nails will not feed smoothly if the magazine is not correctly adjusted. - Page 8 OPERATING YOUR NAILER OPERATING YOUR COIL ROOFING NAILER WARNING! protect your eyes and ears. Wear Z87 safety glasses with side shields. Wear hearing protection. Employers are responsible for ensuring the user or anyone near the nailer wears the above mentioned safety protection. WARNING! Check and replace any damaged or worn components.
-
Page 9: Maintenance And Troubleshooting
After prolonged use of your Nailer, the internal O-rings, Bumper & Driver may have to be replaced caused by wear & tear. To repair, a complete Driver, Bumper & O-ring Replacement Accessory Kit is available for your Nailer (model: KW-151). Contact your local King Canada distributor for more information.
