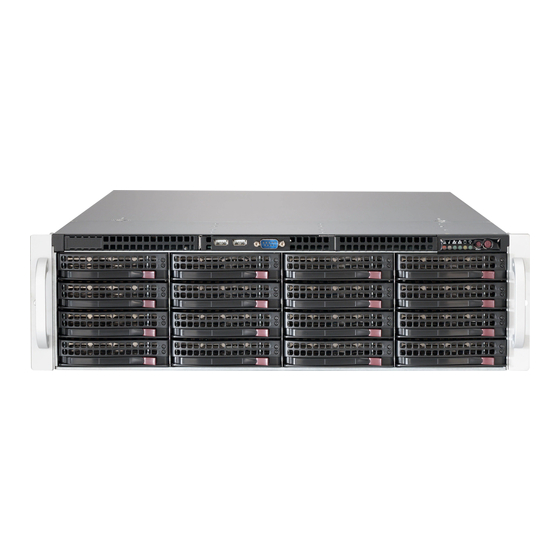

SC836B JBOD
Storage Enclosure Series
CSE-836BE1C-R609JBOD CSE-836BE2C-R609JBOD
USER'S MANUAL
Revision 1.0a

Advertisement

Table of Contents
loading

Related Manuals for Supermicro SC836B JBOD Series

Summary of Contents for Supermicro SC836B JBOD Series

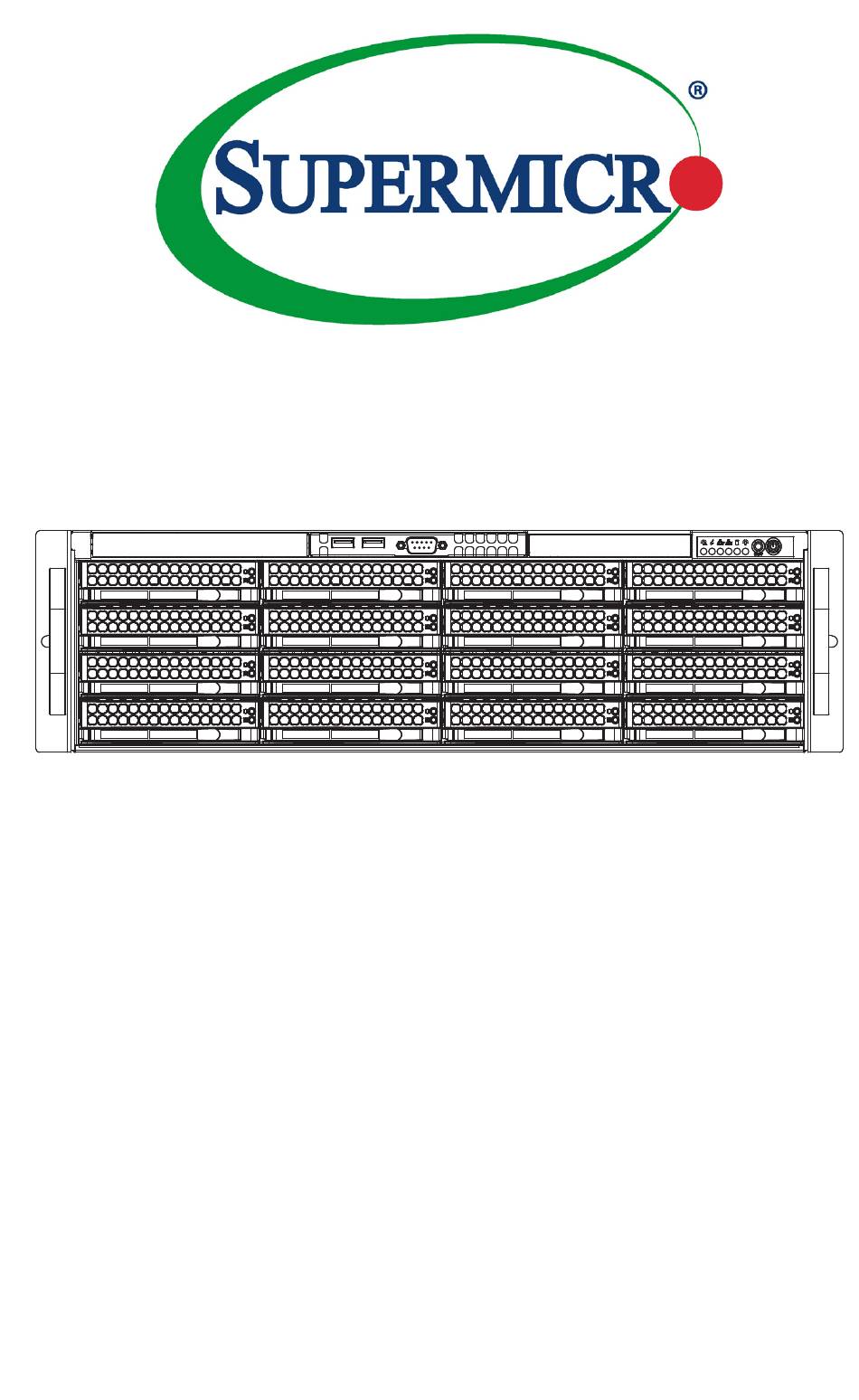

  • Page 1 SC836B JBOD Storage Enclosure Series CSE-836BE1C-R609JBOD CSE-836BE2C-R609JBOD USER’S MANUAL Revision 1.0a...
  • Page 2 This product, including software and documentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.
  • Page 3 This document lists compatible parts available when this document was published. Refer to the Supermicro web site for updates on supported parts and configurations This manual may be periodically updated without notice. Please check the Supermicro Web site for possible updates.

  • Page 4: Table Of Contents

    Mounting Rails ....................1-2 Where to get Replacement Components ............1-2 Returning Merchandise for Service..............1-3 Contacting Supermicro .................. 1-4 Chapter 2 Standardized Warning Statements for AC Systems .... 2-1 About Standardized Warning Statements ............2-1 Warning Definition ................... 2-1 Installation Instructions ..................
  • Page 5 Contents Information LED ....................3-3 Power Fail ....................... 3-3 Overheating ..................... 3-4 Drive Carrier LEDs ..................3-4 Power Supply LEDs ..................3-5 Chapter 4 Chassis Setup and Maintenance ........... 4-1 Overview ......................4-1 Power Up/Power Down Sequences ..............4-2 Power Up ......................4-2 First Use or Power Cord Plug-In ..............
  • Page 6 SC836B JBOD Chassis Manual Installing the System into a Rack ..............5-4 Identifying the Sections of the Rack Rails ............5-4 Releasing the Inner Rail ................. 5-5 Installing the Inner Rails on the Chassis ............5-6 Installing the Outer Rails onto the Rack ............5-7 Sliding the Chassis onto the Rack Rails ............

  • Page 7: Chapter 1 Introduction

    The chassis is equipped with a redundant, efficient power supply for outstanding power savings, with specially designed optimized cooling. Quick release, tool-less slide rails are available for quick installation. Note: A complete list of safety warnings is provided on the Supermicro web site at www.supermicro.com. SC836B JBOD Chassis Models...

  • Page 8: Components

    If you need replacement parts for your system, to ensure the highest level of professional service and technical support, purchase exclusively from our Supermicro Authorized Distributors/System Integrators/Resellers. A list can be found at: http://www.supermicro.com. Click the "Where to Buy" link.

  • Page 9: Returning Merchandise For Service

    For faster service, RMA authorizations may be requested online (http://www. supermicro.com/support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

  • Page 10: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 11: Chapter 2 Standardized Warning Statements For Ac Systems

    Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our web site at http://www.supermicro.com/ about/policies/safety_information.cfm. Warning Definition Warning! This warning symbol means danger.
  • Page 12 SC836B JBOD Chassis Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 13 Chapter 2: Warning Statements for AC Systems !‫تحذٌز‬ ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬...

  • Page 14: Installation Instructions

    SC836B JBOD Chassis Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 15: Circuit Breaker

    Chapter 2: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 16: Power Disconnection Warning

    SC836B JBOD Chassis Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 17 Chapter 2: Warning Statements for AC Systems auf den Chassisinnenraum zurückgreift, um Systemsbestandteile anzubringen oder zu entfernen. ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema.

  • Page 18: Equipment Installation

    SC836B JBOD Chassis Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 19: Restricted Area

    Chapter 2: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 20: Battery Handling

    SC836B JBOD Chassis Manual ‫א א ז ז ו ו ר ר ע ע ם ם ג ג י י ש ש ה ה מ מ ו ו ג ג ב ב ל ל ת ת‬ ! ! ‫א א ז ז ה ה ר ר ה ה‬ ‫יש...
  • Page 21 Chapter 2: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 22: Redundant Power Supplies

    SC836B JBOD Chassis Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 23: Backplane Voltage

    Chapter 2: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 24: Comply With Local And National Electrical Codes

    SC836B JBOD Chassis Manual ‫מ מ ת ת ח ח ב ב פ פ נ נ ל ל ה ה א א ח ח ו ו ר ר י י‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬...

  • Page 25: Product Disposal

    Chapter 2: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫ת ת י י א א ו ו ם ם ח ח ו ו ק ק י י ה ה ח ח ש ש מ מ ל ל ה ה א א ר ר צ צ י י‬ !‫אזהרה‬...

  • Page 26: Hot Swap Fan Warning

    SC836B JBOD Chassis Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 27 Chapter 2: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 28: Power Cable And Ac Adapter

    Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター 製品を設置する場合、 提供または指定された接続ケーブル、 電源コードとACアダプター...
  • Page 29 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 30 SC836B JBOD Chassis Manual Notes 2-20...

  • Page 31: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview The chassis includes a control panel on the front that houses power buttons and status monitoring lights. The externally accessible hard drives display status lights. The power supply displays status lights visible from the back of the chassis. Figure 3-1.

  • Page 32: Control Panel Buttons

    SC836B JBOD Chassis Manual Control Panel Buttons The chassis includes two push-buttons that control the system. Power The main power switch applies or removes primary power from the power supply to the server but maintains standby power. To perform most maintenance tasks, unplug the system to remove all power.

  • Page 33: Hdd And Nic2

    Chapter 3: System Interface HDD and NIC2 These indicators are not used in the JBOD system. NIC1 Indicates network activity when flashing. Information LED Alerts operator to several states, as noted in the table below. Information LED Status Description An overheat condition has occurred. Continuously on and red (This may be caused by cable congestion.) Blinking red (1Hz)

  • Page 34: Overheating

    SC836B JBOD Chassis Manual Overheating A sensor on the backplane will issue a warning at 45°C. Overheating is critical at 49°C. There are several possible responses if the system overheats. If the server overheats: 1. Use the LEDs to determine the nature of the overheating condition. 2.

  • Page 35: Power Supply Leds

    Chapter 3: System Interface Power Supply LEDs On the rear of the power supply module, an LED displays the status. • Solid Green: When illuminated, indicates that the power supply is on. • Solid Amber: When illuminated, indicates the power supply is plugged in and turned off, or the system is off but in an abnormal state.
  • Page 36 SC836B JBOD Chassis Manual Notes...

  • Page 37: Chapter 4 Chassis Setup And Maintenance

    Chapter 4: Chassis Setup and Maintenance Chapter 4 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform maintenance on the chassis. The only tool required is a Phillips screwdriver. Review the warnings and precautions listed in the manual before setting up or servicing this chassis.

  • Page 38: Power Up/Power Down Sequences

    SC836B JBOD Chassis Manual Power Up/Power Down Sequences There are several procedures to turn on or off the system with the CB3 JBOD control board. Power Up First Use or Power Cord Plug-In 1. Plug the power cords into the rear of the power supplies. 2.

  • Page 39: Removing Power From The System

    Chapter 4: Chassis Setup and Maintenance Removing Power from the System Before performing most setup or maintenance tasks, use the following procedure to ensure that power has been removed from the system. 1. After the system has completely shut-down, carefully grasp the head of the power cord and gently pull it out of the back of the power supply.

  • Page 40: Sas Cables

    SC836B JBOD Chassis Manual SAS Cables This drawing shows connectors for SAS cabling. For primary and secondary, the top two connectors are marked In, and the bottom two connectors are marked In/Out. Connect two mini-SAS HD cables (SFF-8644) from the head server node host bus adapter (HBA) card to the top two Primary receptacles marked In.

  • Page 41: Cascading Storage

    Chapter 4: Chassis Setup and Maintenance Cascading Storage The following diagram shows a server with a single host bus adapter (HBA) and requires only the primary expander on the backplane. The SC836B JBOD storage enclosure model E1C can accommodate this configuration. Server with Single Host Bus Adapter (HBA) External Mini-SAS HD Cable...
  • Page 42 SC836B JBOD Chassis Manual The following diagram shows a server with dual HBAs and requires the primary and secondary expanders on the backplane. The SC836B JBOD storage enclosure model E2C accommodates this configuration. Server with Dual Host Bus Adapters (HBAs) External Mini-SAS HD Cable SC836B JBOD SC836B JBOD...

  • Page 43: Removing The Chassis Cover

    Chapter 4: Chassis Setup and Maintenance Removing the Chassis Cover Release Tab Remove this screw (if necessary) Figure 4-6. Removing the Chassis Cover Removing the Chassis Cover 1. If necessary, unplug the chassis from any power source 2. If necessary, remove the two screws securing the cover to the side of the chassis. 3.

  • Page 44: Installing Hard Drives

    SC836B JBOD Chassis Manual Installing Hard Drives The SC836B JBOD chassis supports sixteen hot-swap 3.5" hard drives, which may be removed without powering-down the system. The drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the drive bays.
  • Page 45 Chapter 4: Chassis Setup and Maintenance Installing Hard Drives Caution: Except for short periods of time (swapping hard drives), do not operate the server with the hard drive bays empty. Note: Your operating system must have RAID support to enable the hot-swap capability of the drives.
  • Page 46 SC836B JBOD Chassis Manual SAS/SATA Hard Drive Hard Drive Carrier Use a hard, stable surface when installing the hard drive Figure 4-10. Installing a Drive into the Carrier Installing a Hard Disk Drive 1. Remove the two screws connecting the dummy drive to the carrier. 2.

  • Page 47: System Fans

    Chapter 4: Chassis Setup and Maintenance System Fans Three hot-swap, heavy-duty fans provide cooling from the middle of the chassis, augmented by two rear exhaust fans. They are usually pre-installed. Procedures to replace them follow. Release Tab Airflow Direction Indicator Figure 4-11.
  • Page 48 SC836B JBOD Chassis Manual Figure 4-12. Placing the System Fan in the Chassis 4-12...

  • Page 49: Control Board

    Chapter 4: Chassis Setup and Maintenance Control Board The JBOD control board (CSE-PTJBOD-CB3) allows the user to remotely control and monitor the chassis resources using the BMC, such as powering on or off, controlling fan speeds and reading temperature data from the backplane. The location is shown in the figure below.

  • Page 50: Power Supply

    The chassis has a redundant power supply. Redundant power supplies are hot- swappable, and can be changed without powering down the system. New units can be ordered directly from Supermicro. This power supply is auto-switching capable. This enables it to automatically sense and operate at a 100v to 240v input voltage.
  • Page 51 Chapter 4: Chassis Setup and Maintenance Changing the Power Supply: 1. Unplug the AC cord from the module to be replaced. 2. Push the release tab on the back of the power supply as illustrated. Release Tab Figure 4-15. Power Supply Release Tab 3.

  • Page 52: Power Distributor

    SC836B JBOD Chassis Manual Figure 4-16. Replacing the Power Distributor Power Distributor Chassis with multiple modules require a power distributor. The power distributor provides failover and power supply redundancy. Changing the Power Distributor 1. Power down the server as described in section 4-2, lay the chassis on a flat, stable surface and remove the chassis cover.

  • Page 53: Chapter 5 Chassis Installation

    Chapter 5: Chassis Installation Chapter 5 Chassis Installation This chapter provides instructions for preparing and mounting your chassis in a rack. Unpacking the System You should inspect the box the chassis was shipped in and note if it was damaged in any way.

  • Page 54: Warnings And Precautions

    SC836B JBOD Chassis Manual Warnings and Precautions Rack Precautions • Ensure that the leveling jacks on the bottom of the rack are fully extended to the floor with the full weight of the rack resting on them. • In single rack installation, stabilizers should be attached to the rack. In multiple rack installations, the racks should be coupled together.

  • Page 55: Rack Mounting Considerations

    Chapter 5: Chassis Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

  • Page 56: Installing The System Into A Rack

    SC836B JBOD Chassis Manual Installing the System into a Rack This section provides information on installing the server into a rack unit with the rack rails provided. There are a variety of rack units on the market, so the assembly procedure may differ slightly.

  • Page 57: Releasing The Inner Rail

    Chapter 5: Chassis Installation Releasing the Inner Rail Each inner rail has a locking latch. This latch prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing. To mount the rail onto the chassis, first release the inner rail from the outer rails. Releasing Inner Rail from the Outer Rails 1.

  • Page 58: Installing The Inner Rails On The Chassis

    SC836B JBOD Chassis Manual Installing the Inner Rails on the Chassis Installing the Inner Rails 1. Identify the left and right inner rails. They are labeled. 2. Place the inner rail firmly against the side of the chassis, aligning the hooks on the side of the chassis with the holes in the inner rail.

  • Page 59: Installing The Outer Rails Onto The Rack

    Chapter 5: Chassis Installation Installing the Outer Rails onto the Rack Installing the Outer Rails 1. Press upward on the locking tab at the rear end of the middle rail. 2. Push the middle rail back into the outer rail. 3.

  • Page 60: Sliding The Chassis Onto The Rack Rails

    SC836B JBOD Chassis Manual Sliding the Chassis onto the Rack Rails Warning: Mounting the system into the rack requires at least two people to support the chassis during installation. Please follow safety recommendations printed on the rails. Installing the Chassis into a Rack 1.

  • Page 61: Chapter 6 Cse-Ptjbod-Cb3 Control Board

    This manual reflects the revision 1.02 JBOD control board, the most current release available at the time of publication. Refer to the Supermicro web site at www.supermicro.com for the latest updates, compatible parts and supported configurations.

  • Page 62: General Safety Guidelines

    SC836B JBOD Chassis Manual General Safety Guidelines • Always disconnect power cables before installing or removing any components from the computer, including the control board. • Disconnect the power cable before installing or removing any cables from the control board. •...

  • Page 63: Component And Connector Definitions

    3 and 4. Manufacturing Test Connectors Connectors J3 and FB1 are for Supermicro manufacturing use only. 5. BMC LAN LED Header This connector is designated JP6 and is...

  • Page 64: Jumpers And Led Indicators

    SC836B JBOD Chassis Manual 9. PMBus Connector This connector is designated JPI2C1 and connects the power distributor to the Power Management Bus (PMBus). 10. Fan Connectors The fan connectors supply power to the fans and are designated FAN1-FAN10. 11. ATX Power Connector The ATX power connector is designated JPW1.
  • Page 65 Chapter 6: CB3 JBOD Control Board FAN2 FAN4 FAN5 FAN6 FAN3 FAN10 FAN9 JPW1 1-2:SAS3 2-3:SAS2_847D NMI X PWR LED X NIC1 X OH/FF X RST ON PWR ON Figure 6-3. LED Indicators LED Indicators Description Heartbeat LED: A blinking LED indicates BMC activity Power LED: DC power indicator...

  • Page 66: I 2 C Cabling To The Backplane

    SC836B JBOD Chassis Manual C Cabling to the Backplane This JBOD storage enclosure is pre-configured with the internal cables connected. Use this section for reference if a cable becomes disconnected during maintenance. Ensure that the JP5 jumper on the JBOD control board is set according to the table in the section, Jumpers and LED Indicators.

  • Page 67: Jbod Power Up/Power Down Sequences

    Chapter 6: CB3 JBOD Control Board JBOD Power Up/Power Down Sequences There are several procedures to turn on or off the system with the CB3 JBOD control board. Power Up First Use or Power Cord Plug-In 1. Plug the power cords into the rear of the power supplies. 2.

  • Page 68: Bmc

    There are several BIOS settings that are related to BMC. For general documentation and information on BMC, visit our website at: www.supermicro.com/en/solutions/management-software/bmc-resources BMC ADMIN User Password For security, each system is assigned a unique default BMC password for the ADMIN user.
  • Page 69 Chapter 6: CB3 JBOD Control Board Finding BMC IP Address Using SAS In-band (Linux) An alternate method of finding the IP address: 1. Identify the JBOD enclosure name, for example /dev/sg4. 2. Use the vpd command to view the IP address. [root@hdmaster user]# sg_vpd -p 0x85 /dev/sg4 Management network addresses VPD page: Target device that contains addressed lu, Service type: unspecified...
  • Page 70 SC836B JBOD Chassis Manual Notes 6-10...

  • Page 71: Appendix A Sc836 Jbod Power Supply Specifications

    Appendix A: Power Supply Specifications Appendix A SC836 JBOD Power Supply Specifications This appendix lists power supply specifications for your chassis system. 650W Model Supermicro Part # PWS-609P-1R2 with PDB AC Input 100-240 V, 4.5-11 Amp, 50-60 Hz 600W (100p127Vac) 50A DC Output +12V...
  • Page 72 SC836 JBOD Chassis Manual Notes...

  • Page 73: Appendix B Backplane Specifications

    Appendix B Backplane Specifications Appendix B Backplane Specifications B-1 Overview This appendix provides details about the backplanes used in the SC836B JBOD chassis. Chassis Model Backplane Feature SC836BE1C-R1K03JBOD BPN-SAS3-836EL1 Single SAS expander SC836BE2C-R1K03JBOD BPN-SAS3-836EL2 Dual SAS expanders B-2 Safety Guidelines ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents.
  • Page 74 This manual reflects BPN-SAS3-836EL revision 1.02, the most current release available at the time of publication. Refer to the Supermicro Web site at www.supermicro.com for the latest updates, compatible parts and supported...
  • Page 75 Appendix B Backplane Specifications B-4 BPN-SAS3-836EL Backplane Components Rear Connectors MH13 S_ICE_HDR P_SDB 1 2 3 ACTLED1 P_UART P_HB_LED EC16 5V_LED1 12V_LED1 SEC_J3 BPN-SAS3-836EL2 EC10 EC19 EC20 REV 1.01 DESIGNED IN USA SEC_J2 PRI_J3 P_MDIO SECONDARY EXPANDER EC15 EC17 P_ICE_HDR PRI_I2C1 BAR CODE PRI_J2...
  • Page 76 SC836B JBOD Chassis Manual Rear Connector and Pin Definitions 1. Backplane Main Power Connectors Backplane Main Power The 4-pin connectors, designated PWR1, 4-Pin Connector PWR2, PWR3 and PWR4, provide power Pin# Definition to the backplane. See the table on the right +12V for pin definitions.
  • Page 77 Jumper Settings Note Open: Disabled (Default) Activity LED testing ACTLED1 Closed: Enabled (Supermicro internal use only) Explanation of Jumpers To modify the operation of the backplane, Connector Pins jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector.
  • Page 78 SC836B JBOD Chassis Manual Rear LED Indicators S_HB_LED Overheat_Fail1 P_HB_LED 5V_LED1 12V_LED1 MH13 S_ICE_HDR P_SDB 1 2 3 ACTLED1 P_UART P_HB_LED EC16 5V_LED1 12V_LED1 SEC_J3 BPN-SAS3-836EL2 EC19 EC10 EC20 REV 1.01 DESIGNED IN USA SEC_J2 PRI_J3 P_MDIO EC15 SECONDARY EXPANDER EC17 PRI_I2C1 P_ICE_HDR...
  • Page 79 Appendix B Backplane Specifications Front Connectors and LED Indicators SAS #3 SAS #11 SAS #7 SAS #15 SAS #10 SAS #14 SAS #2 SAS #6 SAS #1 SAS #9 SAS #5 SAS #13 ACT#8 ACT8 FAIL8 SAS #0 SAS #8 FAIL#8 SAS #4 SAS #12...
  • Page 80 SC836B JBOD Chassis Manual B-5 Single and Dual Port Configurations Single and Dual Port Expanders SAS connectors PRI-J1 to J4 and SEC-J1 to J4 are bidirectional and can be treated as input or output. Single Ports BPN-SAS3-836EL1 backplanes have a single port expander that accesses all of the drives and supports cascading.
  • Page 81 Appendix B Backplane Specifications Connecting an Internal HBA to the Backplane This section shows connections and cables that connect an internal HBA to the backplane. Note: Not applicable for the SC836B JBOD chassis. MH13 S_ICE_HDR P_SDB 1 2 3 ACTLED1 P_UART P_HB_LED EC16...
  • Page 82 SC836B JBOD Chassis Manual Supported Internal HBA Cables Use the following cables to create connections between the internal HBA and BPN-SAS3-836EL backplane. The cables required depend upon the HBA connector. Cable Name: Internal iPass (Mini-SAS) to HD (Mini-SAS) Part #: CBL-SAST-0508-01 Length: 50 cm (19 inches) Part #: CBL-SAST-0507-01 Length: 80 cm (31 inches)
  • Page 83 Appendix B Backplane Specifications Failover The BPN-SAS3-836EL2 model backplane has two expanders which enable effective failover and recovery. Single Host Bus Adapter SAS HBA In a single host bus configuration, the backplane connects to one host bus adapter. MH13 S_ICE_HDR P_SDB 1 2 3 EC16...
  • Page 84 SC836B JBOD Chassis Manual Failover with RAID Cards and Multiple HBAs The BPN-SAS3-836EL backplane may be configured for failover with multiple HBAs using either RAID controllers or HBAs to acheive failover protection. RAID Controllers: If RAID controllers are used, then the failover is accomplished through port failover on the same RAID card.
  • Page 85 JBOD control board. This board controls power and provides some mangement over the chassis components. For more information, see Appendix C in this manual, or the Supermicro web site at www.supermicro.com. The SC836B JBOD chassis includes the JBOD control board.
  • Page 86 SC836B JBOD Chassis Manual B-7 Connecting External HBAs to the Backplane This backplane supports external host bus adapters. In this configuration, the HBA and the backplane are in different physical chassis. This allows adding a JBOD storage enclosure to an existing system. Single External Host Bus Adapter MH13 S_ICE_HDR...
  • Page 87 Appendix B Backplane Specifications Cable and Adapter Figure B-17 External Mini-SAS HD to External Mini-SAS HD Cable Cable Name: 1 Meter External Mini-SAS HD to External Mini-SAS HD Cable Part #: CBL-SAST-0573 Ports: Single Placement: External Cable Description: External cascading cable, connects ports between servers and JBODs. Figure B-18.
  • Page 88 SC836B JBOD Chassis Manual Connecting Multiple Backplanes in a Single Channel Environment This section describes the cables used when cascading from a single HBA. These connections use CBL-SAST-0531 internal cables and CBL-SAST-0573 external cables. CBL-SAST-0531 (Internal Cable) MH13 S_ICE_HDR P_SDB 1 2 3 ACTLED1 P_UART...
  • Page 89 Appendix B Backplane Specifications Connecting Multiple Backplanes in a Dual Channel Environment This section describes the cables used when cascading from dual HBAs. These connections use CBL-SAST-0531 internal cables and CBL-SAST-0573 external cables. Port A Expander 1 Port B Expander 2 MH13 S_ICE_HDR P_SDB...
  • Page 90 SC836B JBOD Chassis Manual Notes B-18...

  • Page 91: Appendix C Compliance

    Appendix C Compliance Appendix C Compliance Regulatory Compliance FCC, ICES, CE, UKCA, VCCI, RCM, NRTL, CB Applied Directives, Standards EMC/EMI: 2014/30/EU (EMC Directive) Electromagnetic Compatibility Regulations 2016 FCC Part 15 Subpart B ICES-003 VCCI-CISPR 32 AS/NZS CISPR 32 BS/EN55032 BS/EN55035 CISPR 32 CISPR 24/CISPR 35 BS/EN 61000-3-2...
  • Page 92 SC836B JBOD Chassis Manual Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
