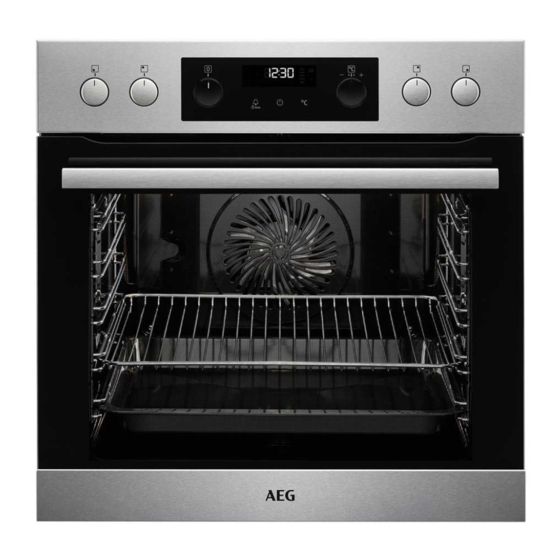

AEG EPB355020M User Manual

Hide thumbs Also See for EPB355020M:
Table of Contents

Advertisement

Quick Links

Download this manual
EPB355020M
USER
MANUAL
EN
User Manual
Oven

Advertisement

Table of Contents
loading

Related Manuals for AEG EPB355020M

Summary of Contents for AEG EPB355020M

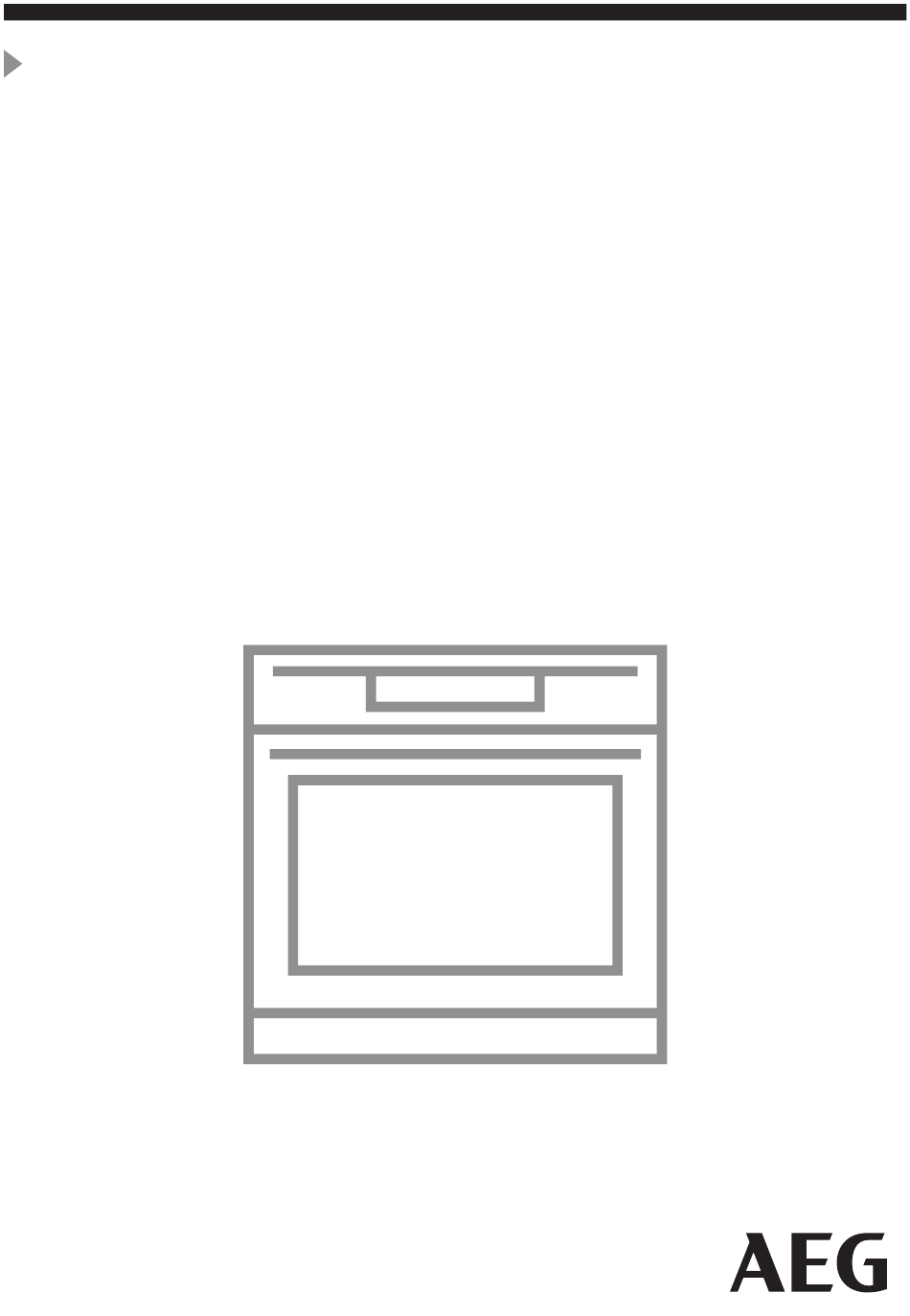

  • Page 1 EPB355020M User Manual Oven USER MANUAL...

  • Page 2: Table Of Contents

    13. ENERGY EFFICIENCY..................39 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
  • Page 3 ENGLISH responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety This appliance can be used by children aged from 8 •...

  • Page 4: Safety Instructions

    Before carrying out any maintenance, disconnect the • appliance from the power supply. WARNING: Ensure that the appliance is switched off • before replacing the lamp to avoid the possibility of electric shock. Do not use the appliance before installing it in the •...
  • Page 5 ENGLISH • The built-in unit must meet the cable. Should the mains cable need to stability requirements of DIN 68930. be replaced, this must be carried out by our Authorised Service Centre. • Do not let mains cables touch or Cabinet minimum 578 (600) mm come near the appliance door or the...
  • Page 6 • Do not operate the appliance with wet • Before maintenance, deactivate the hands or when it has contact with appliance and disconnect the mains water. plug from the mains socket. • Do not apply pressure on the open •...
  • Page 7 ENGLISH – provide good ventilation during • Concerning the lamp(s) inside this and after the first use at maximum product and spare part lamps sold temperature operation. separately: These lamps are intended • Unlike all humans, some birds and to withstand extreme physical reptiles can be extremely sensitive to conditions in household appliances, potential fumes emitted during the...

  • Page 8: Product Description

    3. PRODUCT DESCRIPTION 3.1 General overview Control panel Knob for the heating functions Power lamp / symbol Display Control knob (for the temperature) Temperature indicator / symbol Knobs for the cooking zones Heating element Lamp Shelf support, removable Cavity embossment Shelf positions 3.2 Accessories...
  • Page 9 ENGLISH 4.3 Automatic heat-up 1. Turn the knob clockwise to position Only applicable for hobs with 2. Turn the knob slowly until you can the automatic heat-up hear a click. The two cooking zones function. are on. 3. To set the necessary heat setting The automatic heat-up function heats the refer to "Heat settings".

  • Page 10: Before First Use

    5. BEFORE FIRST USE Set the time before you use the oven. WARNING! Refer to Safety chapters. 5.1 Initial Cleaning Step 1 Step 2 Step 3 Clean the oven and the ac‐ Remove all accessories and Place the accessories and...
  • Page 11 ENGLISH 6.2 Setting the function: True Fan Cooking PLUS WARNING! Risk of burns and damage to the appliance. Step 1 Make sure that the oven is cold. Step 2 Fill the cavity embossment with tap water. The maximum capacity of the cavity embossment is 250 ml.
  • Page 12 Heating func‐ Application Heating func‐ Application tion tion To bake pizza. To make To grill thin pieces of food intensive browning and a and to toast bread. crispy bottom. Pizza Function Grill To bake and roast food To roast large meat joints on one shelf position.

  • Page 13: Clock Functions

    ENGLISH 7. CLOCK FUNCTIONS 7.1 Clock functions table Clock function Application To show or change the time of day. You can change the time of day only when the oven is off. Time of Day To set the length of cooking. Use only when a heating function is set.
  • Page 14 Step 4 Turn the knob for the temperature to set the hour. - press to confirm. When the set time ends the signal sounds for 2 min. Time setting flashes in the display. The oven turns off automatically. Step 5 Press any button to stop the signal.

  • Page 15: Using The Accessories

    ENGLISH The display shows: the set temperature, Oven turns on automatically later on, works for the set Duration time and stops at the set End Time. At the set End Time the signal sounds for 2 min. The time setting flashes in the display. The oven turns off.

  • Page 16: Additional Functions

    Wire shelf: Push the shelf between the guide bars of the shelf support. Deep pan: Push the tray between the guide bars of the shelf support. Wire shelf, Deep pan: Push the tray between the guide bars of the shelf support and the wire shelf on the guide bars above.

  • Page 17: Hints And Tips

    ENGLISH works and you do not change any settings. Step 2 - press and hold at the same time for 2 sec. The signal sounds. Loc ap‐ (°C) pears on the display for 5 sec. 30 - 115 12.5 To turn off the Function Lock, repeat step 120 - 195 Loc appears on the display when you 200 - 245...
  • Page 18 Heat set‐ Application Time Hints ting (min) 2 - 3 To simmer rice and milk-based 25 - 50 Add a minimum of two times as dishes, and to heat up ready- much liquid as rice. Stir milk cooked meals.
  • Page 19 ENGLISH CAKES / PASTRIES / BREADS (°C) (min) Cookies / Scones / Croissants 150 - 180 10 - 20 Focaccia 200 - 210 10 - 20 Pizza 10 - 20 Bread rolls 20 - 25 Bread 35 - 40 Plum cake / Apple pie / Cinna‐ 160 - 180 30 - 60 mon rolls, baked in a cake...
  • Page 20 ROASTING (°C) (min) Roast beef 50 - 60 Chicken 60 - 80 Roast pork 65 - 80 10.5 Baking need to change the temperature setting if an unequal browning occurs. The For the first baking, use the lower differences equalize during baking.
  • Page 21 ENGLISH 10.7 Baking on one shelf level BAKING IN (°C) (min) TINS Flan base - True Fan Cooking 170 - 180 10 - 25 short pastry, preheat the empty oven Flan base - True Fan Cooking 150 - 170 20 - 25 sponge cake mixture Ring cake /...
  • Page 22 CAKES / PASTRIES / (°C) (min) BREADS Buttered almond 190 - 210 20 - 30 cake / Sugar cakes Cream puffs / Eclairs 190 - 210 20 - 35 Plaited bread / Bread 170 - 190 30 - 40...
  • Page 23 ENGLISH (°C) (min) Baguettes topped with True Fan Cooking 160 - 170 15 - 30 melted cheese Vegetables au gratin, Turbo Grilling 160 - 170 15 - 30 preheat the empty oven Lasagne Conventional Cooking 180 - 200 25 - 40 Fish bakes Conventional Cooking 180 - 200...
  • Page 24 BIS‐ CUITS / SMALL (°C) (min) 2 positions 3 positions CAKES / PAS‐ TRIES / ROLLS Puff pastries, 170 - 180 30 - 50 1 / 4 preheat the empty oven Biscuits made of 160 - 170 30 - 60...
  • Page 25 ENGLISH PORK Use the function: Turbo Grilling. (kg) (°C) (min) Shoulder / Neck / Ham 1 - 1.5 160 - 180 90 - 120 joint Chops / Spare rib 1 - 1.5 170 - 180 60 - 90 Meatloaf 0.75 - 1 160 - 170 50 - 60 Pork knuckle, precooked 0.75 - 1...
  • Page 26 GAME Use the function: Conventional Cooking. (kg) (°C) (min) Saddle / Hare leg, up to 1 30 - 40 preheat the empty oven Venison saddle 1.5 - 2 210 - 220 35 - 40 Haunch of venison 1.5 - 2...
  • Page 27 ENGLISH 10.12 Crispy baking with: Pizza Function PIZZA PIZZA Preheat the empty oven before cooking. Use the first shelf position. Use the second shelf position. (°C) (min) Tarts 180 - 200 40 - 55 (°C) (min) Spinach flan 160 - 180 45 - 60 Pizza, thick 180 - 200...
  • Page 28 GRILL Use the function: Grill (°C) (min) (min) 1st side 2nd side Roast beef 210 - 230 30 - 40 30 - 40 Beef fillet 20 - 30 20 - 30 Pork loin 210 - 230 30 - 40...
  • Page 29 ENGLISH DEFROSTING Use the function: True Fan Cooking. (°C) (min) Lasagne / Cannelloni, fro‐ 160 - 180 40 - 60 Baked cheese 170 - 190 20 - 30 Chicken wings 190 - 210 20 - 30 10.15 Preserving Use the function Bottom Heat. SOFT FRUIT Use only preserve jars of the same (min)
  • Page 30 VEGETA‐ VEGETA‐ (min) (min) BLES (°C) BLES Cooking Continue to Peppers 60 - 70 5 - 6 time until cook at simmering 100 °C Vegetables for soup 60 - 70 5 - 6 Kohlrabi / 50 - 60 15 - 20...
  • Page 31 ENGLISH Use the third shelf position. (°C) (min) Pasta gratin 200 - 220 45 - 55 Potato gratin 180 - 200 70 - 85 Moussaka 170 - 190 70 - 95 Lasagne 180 - 200 75 - 90 Cannelloni 180 - 200 70 - 85 Bread pudding 190 - 200...
  • Page 32 BAKING ON ONE LEVEL. Biscuits Use the third shelf position. (°C) (min) Short bread / Pastry strips True Fan Cooking 25 - 40 Short bread / Pastry strips, Conventional Cooking 20 - 30 preheat the empty oven Small cakes, 20 per tray,...

  • Page 33: Care And Cleaning

    ENGLISH GRILL Preheat the empty oven for 5 minutes. Grill with the maximum temperature setting. (min) Beef steak, turn halfway Grill 24 - 30 through 11. CARE AND CLEANING WARNING! Refer to Safety chapters. 11.1 Notes on cleaning Clean the front of the oven with a soft cloth with warm water and a mild detergent.
  • Page 34 Step 1 Step 2 Step 3 Pour: 250 ml of white vine‐ Let the vinegar dissolve the Clean the cavity with warm gar into the cavity emboss‐ limestone residue at the am‐ water and a soft cloth. ment. Use maximum 6% vin‐...
  • Page 35 ENGLISH Step 1 Set the function: - flashes. Step 2 Turn the control knob (for the temperature) to set the cleaning mode. Option Cleaning mode Duration Light cleaning 1 h 30 min Normal cleaning Step 3 - press to start the cleaning. Step 4 After cleaning, turn the knob for the heating functions to the off position.
  • Page 36 Step 3 Close the oven door to the first opening position (ap‐ proximately 45° angle). Hold the door with one hand on each side and pull it away from the oven at an upwards angle. Put the door with the outer side down on a soft cloth on a stable sur‐...

  • Page 37: Troubleshooting

    ENGLISH Top lamp Step 1 Turn the glass cover to remove Step 2 Clean the glass cover. Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp. Step 4 Install the glass cover. 12. TROUBLESHOOTING WARNING! Refer to Safety chapters. Components 12.1 What to do if...
  • Page 38 12.2 Service data If you cannot find a solution to the Cleaning problem yourself, contact your dealer or Problem Check if... an Authorised Service Centre. The necessary data for the service The water leaks out There is too much centre is on the rating plate.

  • Page 39: Energy Efficiency

    ENGLISH 13. ENERGY EFFICIENCY 13.1 Product Information and Product Information Sheet* Supplier's name Model identification EPB355020M 940321350 Energy Efficiency Index 81.2 Energy efficiency class Energy consumption with a standard load, conven‐ 1.09 kWh/cycle tional mode Energy consumption with a standard load, fan-forced 0.69 kWh/cycle...
  • Page 40 The residual heat inside the Moist Fan Baking oven will continue to cook. Function designed to save energy during cooking. Use the residual heat to warm up other dishes. When you use this function the lamp automatically turns off after 30 sec. You...
  • Page 44 www.aeg.com/shop...
