configuration.
Network Camera will automatically detect and operate in the available network
interface with the priority of Ethernet than WLAN. Operating in either network mode,
the LED will flash every second as heartbeat to indicate alive.

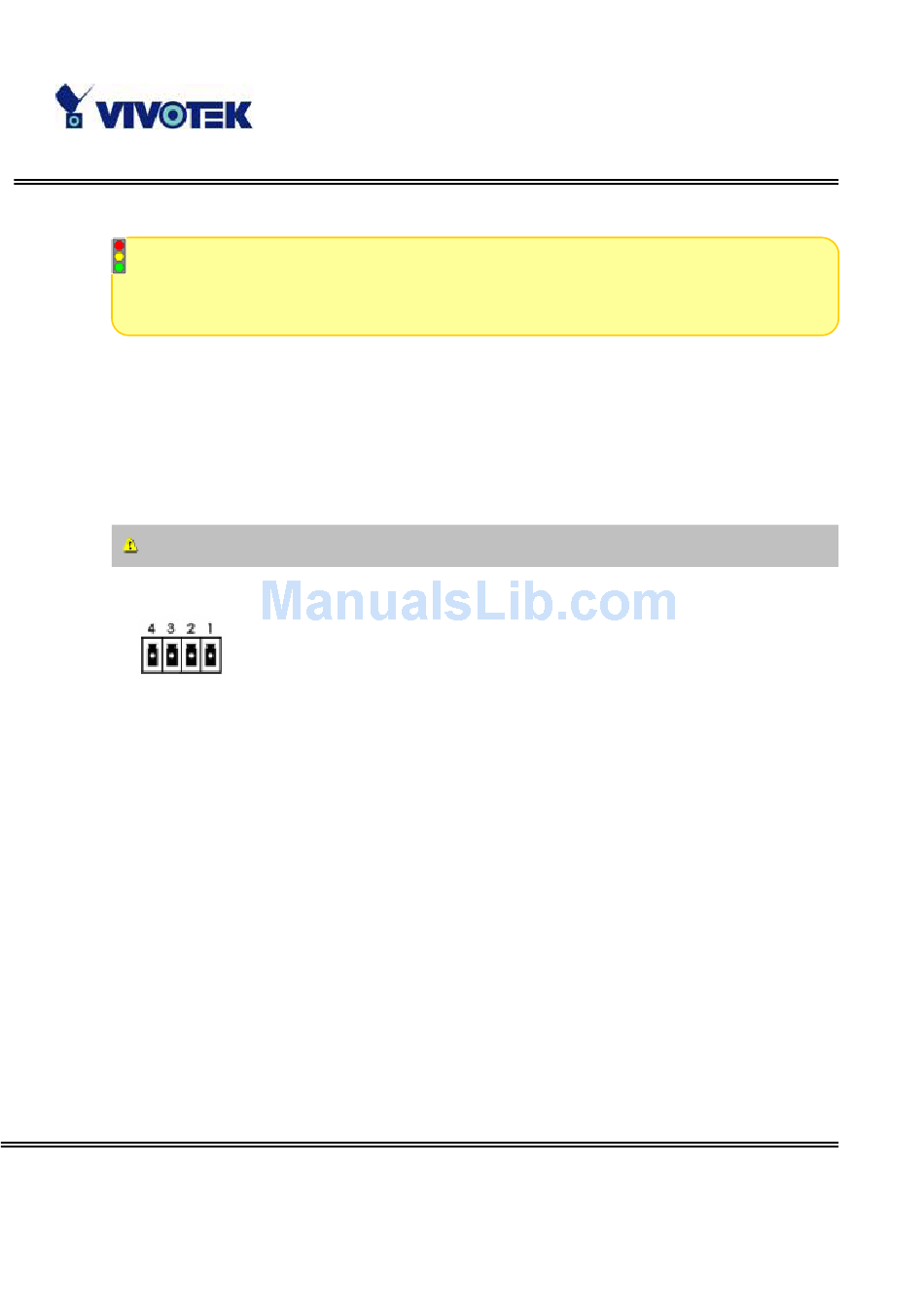

Network Camera provides a general I/O terminal block with one digital input and one
relay switch for device control. Pin 1 and pin 2 can be connected to an external sensor
and the state of voltage will be monitored from the initial state 'LOW'. The relay switch
of pin 3 and pin 4 can be used to turn on or off the external device.
C onsult with the dealer of the peripherals for correct installation.
1
DI-
2
DI+
3
SW_COMMON
4
SW_NOPEN
INPUT (Initial state of DI is low)
INPUT (Max. 50mA, 12VDC)
OUTPUT (open from SW_OPEN at initial state)
(close with SW_OPEN when set DO to ON)
OUTPUT (Max. 1A, 24VDC or 0.5A, 125VAC)
- 7 -
www.vivotek.com
T: 886-2-22404099
F: 886-2-22404097
