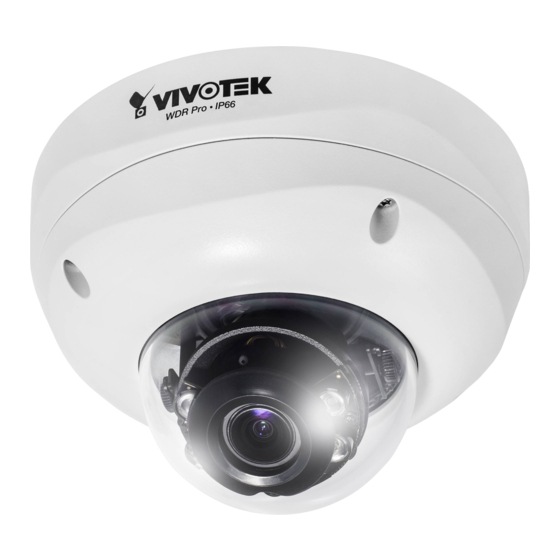

FD8365(E)HV / 8355(E)HV
User's Manual
2/1.3MP • WDR Pro II • 30/20M IR • Smart IR
3DNR • Smart Focus • SNV • IP66 • IK10
Fixed Dome
Network Camera
Rev. 1.2
Rev. 1.0

Advertisement

Table of Contents
loading

Related Manuals for Vivotek FD8365HV

Summary of Contents for Vivotek FD8365HV

  • Page 1 Fixed Dome Network Camera FD8365(E)HV / 8355(E)HV User’s Manual 2/1.3MP • WDR Pro II • 30/20M IR • Smart IR 3DNR • Smart Focus • SNV • IP66 • IK10 Rev. 1.2 Rev. 1.0...

  • Page 2: Table Of Contents

    Applications > DI and DO ........................116 Applications > Tampering detection ....................116 Applications > Audio detection ......................117 Applications > VADP (VIVOTEK Application Development Platform) ..........119 Recording > Recording settings ......................121 Local storage > SD card management ....................126 Local storage >...
  • Page 3 VIVOTEK URL Commands for the Network Camera ....................130 Technical Specifications ........................... 209 Technology License Notice ........................210 Electromagnetic Compatibility (EMC) ....................... 211 User's Manual - 3...

  • Page 4: Overview

    Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Thus, the camera is also designed with VIVOTEK’s Smart Focus System to make installation and adjustment easier by using remote focus and zoom adjustment.

  • Page 5: Read Before Use

    Commands of the Network Camera section serves as a helpful reference to customizing existing homepages or integrating with the current web server. Package Contents ■ FD8365HV, FD8365EHV, FD8355HV, or FD8355EHV ■ Mounting Plate ■ Alignment sticker/Ceiling Hole Template Sticker ■ L-type Hex key wrench / Dessicant Bag / Screws / Hex Nut / DC connector / Double-side tape / AV cable ■...

  • Page 6: Physical Description

    VIVOTEK Physical Description Inner View Vari-focal Lens IR LEDs (4 units, effective up to 30m) 8355: 30M 8365: 20M Tilt Adjustment Screw Focus & Zoom Buttons Micro SD/SDHC/ SDXC Card Slot Reset Jumpers Button Video Output NTSC 60Hz 50Hz Audio/Video Out...
  • Page 7 VIVOTEK IMPORTANT: Record the MAC address under the camera base before installing the camera. NOTE: Replace the side opening cover with the included side outlet bushing if you want to route cables from the side of camera. The 1/2" protection conduits and tubing are separately purchased.
  • Page 8 VIVOTEK General I/O Terminal Block This Network Camera provides a general I/O terminal block which is used to connect external input / output devices. The pin definitions are described below. The 24V AC can be used as an alternate power source.
  • Page 9 VIVOTEK Switch Source BJT transistor Relay External device Hardware Reset Recessed Reset Button The reset button is used to reset the system or restore the factory default settings. Sometimes resetting the system can return the camera to normal operation. If the system problems remain after reset, restore the factory settings and install again.

  • Page 10: Installation

    VIVOTEK Installation Removing Dome Cover First, use the included T20 hex key wrench to loose the four screws and detach the dome cover from the camera base. Follow the steps below to install the camera either to a ceiling or a wall.
  • Page 11 VIVOTEK Connect power lines and if you have external devices such as sensors and alarms, make the connection from the general I/O terminal block. 1 DC 12V- Pin Definitions 2 DC 12V+ 3 AC24V_2 4 AC24V_1 5 DI- (GND) 6 DI+...
  • Page 12 VIVOTEK Connecting RJ45 Ethernet Cable RJ45 Cable Dimension Recommended cable diameter: 5 to 8mm Assembling Steps Rubber Seal 1. Drill a hole on the rubber seal plug Plug and insert an Ethernet cable through the opening. 2. Strip part of the sheath from the Eth- ernet cable.
  • Page 13 VIVOTEK Mounting the Camera 1. Attach the supplied alignment sticker to the wall. 2. Using the circle marks on the sticker, drill at least 2 pilot holes symmetrically on each side into the wall. Then hammer the four supplied plastic anchors into the holes.

  • Page 14: Network Deployment

    VIVOTEK Network Deployment General Connection (without PoE) DC 12V Pin 1 Pin 2 Non-PoE Switch Pin 3 Pin 4 AC 24V±10% Ethernet 1. Connect RJ45 Ethernet cable to a switch. 2. Connect the AC cables from the terminal block as an alternate power source. The IO cables are user-supplied.
  • Page 15 VIVOTEK When using a non-PoE switch Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch. PoE Power Injector (optional) Non-PoE Switch User's Manual - 15...
  • Page 16 VIVOTEK Internet connection via a router Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below. 1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
  • Page 17 For more information with network configuration options (such as that of streaming ports), please refer to Configuration > Network Settings. VIVOTEK also provides the automatic port forwarding feature as an NAT traversal function with the precondition that your router must support the UPnP port forwarding feature.

  • Page 18: Software Installation

    After your network environment is analyzed, please click Next to continue the program. 3. The program will search for all VIVOTEK network devices on the same LAN. 4. After a brief search, the installer window will prompt. Click on the MAC and model name that matches the one printed on the product label.

  • Page 19: Ready To Use

    VIVOTEK Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. You should be able to see live video from your camera. You may also install the 32-channel recording software from the software CD in a deployment consisting of multiple cameras. For its installation details, please refer to its related documents.
  • Page 20 VIVOTEK To adjust the zoom factor and focus range 1. The camera comes with a motorized vari- focal lens module. With a web console, you can enter the Configuration > Media > Image > Focus page to tune the image zoom and focus.

  • Page 21: Completion

    VIVOTEK Completion 1. Attach the dome cover to the camera by combining it to the retainer and aligning with the mounting holes. 2. Secure the four dome screws with the supplied hex key wrench. Make sure all parts of the camera are securely installed.

  • Page 22: Accessing The Network Camera

    3. The live video will be displayed in your web browser. 4. If it is the first time installing the VIVOTEK network camera, an information bar will pop up as shown below. Follow the instructions to install the required plug-in on your computer.
  • Page 23 VIVOTEK ► By default, the Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to set a password for the Network Camera. For more information about how to enable password protection, please refer to Security on page 82.
  • Page 24 VIVOTEK IMPORTANT: 1. Currently the Network Camera utilizes 32-bit ActiveX plugin. You CAN NOT open a management/view session with the camera using a 64-bit IE browser. 2. If you encounter this problem, try execute the Iexplore.exe program from C:\Windows\ SysWOW64. A 32-bit version of IE browser will be installed.

  • Page 25: Using Rtsp Players

    VIVOTEK Using RTSP Players To view the MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming. Quick Time Player VLC Player VLC media player 1. Launch the RTSP player. mpegable Player 2.

  • Page 26: Using 3Gpp-Compatible Mobile Devices

    VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page To utilize this feature, please check the following settings on your Network Camera: 1.

  • Page 27: Using Vivotek Recording Software

    Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com. User's Manual - 27...

  • Page 28: Main Page

    VIVOTEK Main Page This chapter explains the layout of the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window. Resize Buttons VIVOTEK INC. Host Name...
  • Page 29 VIVOTEK Global View: Click on this item to display the Global View window. The Global View window contains a full view image (the largest frame size of the captured video) and a floating frame (the viewing region of the current video stream). The floating frame allows users to control the e-PTZ function (Electronic Pan/ Tilt/Zoom).
  • Page 30 VIVOTEK H.264 / MPEG-4 Protocol and Media Options Video Title Time 2013/10/25 17:08:56 Video (TPC-AV) Title and Time Video 17:08:56 2013/10/25 Zoom Indicator x4.0 Video and Audio Control Buttons Video Title: The video title can be configured. For more information, please refer to Video Settings on page 50.
  • Page 31 VIVOTEK Video and Audio Control Buttons: Depending on the Network Camera model and Network Camera configuration, some buttons may not be available. Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format.
  • Page 32 VIVOTEK ■ The following window is displayed when the video mode is set to MJPEG: Video Title Time 2013/10/25 17:08:56 Video (HTTP-V) Title and Time Video 17:08:56 2013/10/25 Video Control Buttons Video Title: The video title can be configured. For more information, please refer to Media > Image on page 50.

  • Page 33: Client Settings

    VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings. H.264 Media Options H.264 Media Options...
  • Page 34 VIVOTEK Two way audio Half duplex: Audio is transmitted from one direction at a time, e.g., from a PC holding a web console with the camera. Full duplex: Audio is transmitted in both directions simultaneously. MP4 Saving Options Users can record live video as they are watching it by clicking Start MP4 Recording on the main page.
  • Page 35 VIVOTEK Joystick Settings Enable Joystick Connect to the USB plug of the joystick to a USB port on your management computer. Supported by the plug-in in the main page (Microsoft’s DirectX), once the plug-in in the main page is loaded, it will automatically detect if there is any joystick on the computer.
  • Page 36 VIVOTEK Buttons Configuration Click the Configure Buttons button, a window will prompt as shown below. Please follow the steps below to configure your joystick buttons: 1. Select a button number from the Button # pull-down menu. Tips If you are not sure of the locations of each button, use the Properties window in the Game Controllers utility.

  • Page 37: Configuration

    Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort. In order to simplify the user interface, the detailed information will be hidden unless you click on the function item.

  • Page 38: System > General Settings

    VIVOTEK System > General settings This section explains how to configure the basic settings for the Network Camera, such as the host name and system time. It is composed of the following two columns: System, and System Time. When finished with the settings on this page, click Save at the bottom of the page to enable the settings.
  • Page 39 VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off.

  • Page 40: System > Homepage Layout

    Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage. Logo graph Here you can change the logo at the top of your homepage.
  • Page 41 VIVOTEK Theme Options Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.
  • Page 42 VIVOTEK ■ Follow the steps below to set up the customed homepage: 1. Click Custom on the left column. 2. Click the field where you want to change the color on the right column. Color Selector Custom Pattern 3. The palette window will pop up as shown below.

  • Page 43: System > Logs

    VIVOTEK System > Logs This section explains how to configure the Network Camera to send the system log to a remote server as backup. Log server settings Follow the steps below to set up the remote log: 1. Select Enable remote log.
  • Page 44 You can install the included ST7501 recording software, which provides an Event Management function group for delivering event messages via emails, GSM short messages, onscreen event panel, or to trigger an alarm, etc. For more information, refer to the ST7501 User Manual. VIVOTEK Network Cameras Internet 3G Cell phone HTTP...

  • Page 45: System > Parameters

    VIVOTEK Access log Access log displays the access time and IP address of all viewers (including operators and administrators) in a chronological order. The access log is stored in the Network Camera’s buffer area and will be overwritten when reaching a certain limit.

  • Page 46: System > Maintenance

    Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2. Click Browse… and specify the firmware file.
  • Page 47 VIVOTEK General settings > Restore This feature allows you to restore the Network Camera to factory default settings. Network: Select this option to retain the Network Type settings (please refer to Network Type on page 64). Daylight Saving Time: Select this option to retain the Daylight Saving Time settings (please refer to Import/Export files below on this page).
  • Page 48 VIVOTEK ® 3. Open the file with Microsoft Notepad and locate your time zone; set the start and end time of DST. When completed, save the file. In the example below, DST begins each year at 2:00 a.m. on the second Sunday in March and ends at 2:00 a.m.
  • Page 49 VIVOTEK The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 . Update custom language file: Click Browse… and specify your own custom language file to upload.

  • Page 50: Media > Image

    VIVOTEK Media > Image This section explains how to configure the image settings of the Network Camera. It is composed of the following five columns: General settings, Image settings, Exposure, Focus, and Privacy mask. General settings Video title Show_timestamp_and video_title_in_video_and_snapshots: Enter a name that will be displayed on the title bar of the live video as the picture shown below.
  • Page 51 VIVOTEK Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image flickering associated with fluorescent lights. Note that after the power line frequency is changed, you must disconnect and reconnect the power cord of the Network Camera in order for the new setting to take effect.
  • Page 52 VIVOTEK Image settings On this page, you can tune the White balance and Image adjustment. Sensor Setting 1: For normal situations Sensor Setting 2: For special situations White balance: Adjust the value for the best color temperature. ■ You may follow the steps below to adjust the white balance to the best color temperature.
  • Page 53 VIVOTEK Noise reduction ■ Enable noise reduction: Check to enable noise reduction in order to reduce noises and flickers in image. This applies to the onboard 3D Noise Reduction feature. Use the pull-down menu to adjust the reduction strength. Note that applying this function to the video channel will consume system computing power.
  • Page 54 VIVOTEK ■ Custom: This option allows you to manually add a specific window as a measuring area. The measuring window refers to “weighted window“ where the lighting condition within the particular area is taken into account. Camera firmware then adopts the weighted averages method to calculate the value.
  • Page 55 VIVOTEK ■ Exposure Time: The configurable max. exposure time is tunable according to lighting conditions with values ranging from 1/10000 to 1/5 of a second. ■ Gain Control: Tune the slider bar to set the Gain Control to the best image quality. Higher gain control value will generate a certain amount of noises.
  • Page 56 VIVOTEK Focus Focus, also known as Remote Focus, is applicable to Network Cameras that are equipped with stepping motor lens. The automated focus adjustment function eliminates the needs to physically adjust camera focus. In an outdoor deployment consisting of a large number of cameras, the auto focus function can be very helpful when these cameras become out of focus after days or weeks of operation.
  • Page 57 VIVOTEK Auto Focus: Click the Perform auto focus button for the camera to automatically find the best focus. The process takes about 1 or 2 minutes to complete. The Focus pointer will stay at the optimal location on the slide bar.
  • Page 58 VIVOTEK Privacy mask Click Privacy Mask to open the settings page. On this page, you can block out sensitive zones to address privacy concerns. 2012/11/09 17:08:56 ■ To set the privacy mask windows, follow the steps below: 1. Click New to add a new window.

  • Page 59: Media > Video

    VIVOTEK Media > Video Stream settings This Network Camera supports multiple streams with frame sizes ranging from 176 x 144 to 1280 x 1024 (FD8355EHV) - or - 176 x 144 to 1920 x1080 (FD8365EHV). The definition of multiple streams: ■...
  • Page 60 VIVOTEK Click the stream item to display the detailed information. The maximum frame size will follow your settings in the above Viewing Window sections. This Network Camera offers real-time H.264 and MJPEG compression standards (Dual Codec) for real-time viewing. If the H.264...
  • Page 61 VIVOTEK ■ Intra frame period Determine how often for firmware to plant an I frame. The shorter the duration, the more likely you will get better video quality, but at the cost of higher network bandwidth consumption. Select the intra frame period from the following durations: 1/4 second, 1/2 second, 1 second, 2 seconds, 3 seconds, and 4 seconds.
  • Page 62 VIVOTEK JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage. Because the media contents are a combination of JPEG images, no audio data is transmitted to the client.

  • Page 63: Media > Audio

    VIVOTEK Media > Audio Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if muted, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.

  • Page 64: Network > General Settings

    Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 18 for details.
  • Page 65 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses. Secondary DNS: Secondary domain name server that backups the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer names and IP addresses.
  • Page 66 VIVOTEK NOTE: ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera. ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
  • Page 67 VIVOTEK 4. In the Networking Services dialog box, select Universal Plug and Play and click OK. 5. Click Next in the following window. 6. Click Finish. UPnP is enabled. ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
  • Page 68 VIVOTEK Enable IPv6 Select the Enable IPv6 checkbox and click Save to enable IPv6 settings. Please note that this only works if your network environment and hardware equipment support ® IPv6. The browser should be Microsoft Internet Explorer 7 or 8, Mozilla Firefox 13.0 or above.
  • Page 69 VIVOTEK Please follow the steps below to link to an IPv6 address: 1. Open your web browser. 2. Enter the link-global or link-local IPv6 address in the address bar of your web browser. 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4.
  • Page 70 VIVOTEK Port HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535. Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number between 1025 and 65535.
  • Page 71 To stop talking, click again. FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21.

  • Page 72: Network > Streaming Protocols

    VIVOTEK Network > Streaming protocols HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 82 for details. Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
  • Page 73 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1~2> For example, when the Access name for stream 2 is set to video2.mjpg: 1. Launch Mozilla Firefox or Netscape. 2. Type the above URL command in the address bar. Press Enter.
  • Page 74 VIVOTEK Authentication: Depending on your network security requirements, the Network Camera provides three types of security settings for streaming via RTSP protocol: disable, basic, and digest. basic authentication is selected, the password is sent in plain text format, but there can be potential risks of it being intercepted.
  • Page 75 VIVOTEK Multicast settings for stream 1 ~ 2: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for stream 1 ~ 2. Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address.
  • Page 76 IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address.
  • Page 77 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the...
  • Page 78 4. Select Enable DDNS and click Save to enable the setting. ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.
  • Page 79 VIVOTEK Network > QoS (Quality of Service) Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications. Quality can be defined as, for instance, a maintained level of bit rate, low latency, no packet dropping, etc.
  • Page 80 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs.

  • Page 81: Network > Snmp (Simple Network Management Protocol)

    VIVOTEK Network > SNMP (Simple Network Management Protocol) This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.

  • Page 82: Security > User Account

    VIVOTEK Security > User Account This section explains how to enable password protection and create multiple accounts. Root Password The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Manage User column, please apply the password for the “root”...

  • Page 83: Security > Https (Hypertext Transfer Protocol Over Ssl)

    VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level. Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
  • Page 84 VIVOTEK 5. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection. 6. If your web session does not automatically change to an encrypted HTTPS session, click Home to return to the main page. Change the URL address from “http://” to “https://“ in the address bar and press Enter on your keyboard.
  • Page 85 VIVOTEK Create certificate request and install 1. Select the option from the Method pull-down menu. 2. Click Create certificate to proceed. 3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request.
  • Page 86 VIVOTEK 5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA’s signing request window. Proceed with the rest of the process as CA’s instructions on their webpage.
  • Page 87 VIVOTEK 7. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line. 8. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
  • Page 88 VIVOTEK 9. Save the edit using the “.crt” extension, using a file name like “CAcert.crt.” 10. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification. 88 - User's Manual...
  • Page 89 VIVOTEK Note that 11. When the certifice file is successfully loaded, its status will be stated as Active. a certificate must have been created and installed before you can click on the “Save" button for the configuration to take effect.

  • Page 90: Security > Access List

    VIVOTEK Security > Access List This section explains how to control access permission by verifying the client PC’s IP address. General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 and stream 2). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick Time Player).
  • Page 91 VIVOTEK ■ Refresh: Click this button to refresh all current connections. ■ Add to deny list: You can select entries from the Connection Status list and add them to the Deny List to deny access. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explore or Quick Time Player).
  • Page 92 VIVOTEK There are three types of rules: Single: This rule allows the user to add an IP address to the Allowed/Denied list. For example: 192.168.2.1 Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List.
  • Page 93 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request. ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP- PEAP and EAP-TLS. Please follow the steps below to enable 802.1x settings: 1.
  • Page 94 VIVOTEK 3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically. NOTE: ► The authentication process for 802.1x: 1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).

  • Page 95: Ptz > Ptz Settings

    VIVOTEK PTZ > PTZ settings This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation. The e-PTZ fucntion allows users to quickly move the focus to a target area for close-up viewing without physically moving the camera. Please refer to below for detailed instruction.
  • Page 96 VIVOTEK Auto pan/patrol speed: Select the speed from 1~5 (slow/fast) to set up the Auto pan/patrol speed control. When completed with the e-PTZ settings, click Save to enable the settings on this page. Home page in E-PTZ Mode x3.3 ■ The e-Preset Positions will also be displayed on the home page. Select one from the drop-down list, and the Network Camera will move to the selected e-preset position.
  • Page 97 VIVOTEK Patrol settings You can select some preset positions for the Network Camera to patrol. Please follow the steps below to set up a patrol schedule: 1. Select the preset locations on the list, and click 2. The selected preset locations will be displayed on the Patrol locations list.
  • Page 98 VIVOTEK Home page in the e-PTZ Mode The Preset positions will also be displayed on the home page. Select one from the Go to drop-down list, and the Network Camera will move to the selected preset position. Patrol button: Click this button, then the Network Camera will patrol among the selected preset positions continuously.

  • Page 99: Event > Event Settings

    VIVOTEK Event > Event settings This section explains how to configure the Network Camera to responds to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices.
  • Page 100 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this option to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
  • Page 101 VIVOTEK ■ Audio detection A preset threshold can be configured with an external microphone as the trigger to system event. The triggering condition can be an input exceeding or falling below a threshold. Audio detection can take place as a complement to motion detection or as a method to detect activities not covered by the camera's view.
  • Page 102 VIVOTEK 3. Action Define the actions to be performed by the Network Camera when a trigger is activated. ■ Trigger digital output for seconds Select this option to turn on the external digital output device when a trigger is activated. Specify the length of the trigger interval in the text box.
  • Page 103 VIVOTEK Add server To set an event with recorded video or snapshots, it is necessary to configure the server and media settings so that the Network Camera will know what action to take (such as which server to send the Add server media files to) when a trigger is activated.
  • Page 104 VIVOTEK To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result. Click Save server to enable the settings. Note that after you set up the first event server, the new event server will automatically display on the Server list.
  • Page 105 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. The firmware default has the Passive mode checkbox selected.
  • Page 106 VIVOTEK Network storage: Select to send the media files to a network storage location when a trigger is activated. Please refer to NAS server on page 123 for details. Click Save server to enable the settings. ■ SD Test: Click to test your SD card. The system will display a message indicating success or failure. If you want to use your SD card for local storage, please format it before use.
  • Page 107 VIVOTEK Click 20130220 to open the directory: The format is: HH (24r) Click to open the file list for that hour 2013/02/20 2013/02/20 Click to go back to the previous Click to delete level of the directory selected items Click to delete all...
  • Page 108 VIVOTEK Add media Add media Click to open the media setting window. You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
  • Page 109 VIVOTEK ■ Add date and time suffix to the file name Select this option to add a date/time suffix to the file name. For example: Snapshot_20130713_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings.
  • Page 110 VIVOTEK ■ Maximum file size Specify the maximum file size allowed. ■ File name prefix Enter the text that will be appended to the front of the file name. For example: Video_20130813_100341 File name prefix Date and time suffix The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings.
  • Page 111 VIVOTEK In the Event settings column, the Servers and Medias you configured will be listed; please make sure the Event -> Status is indicated as ON, in order to enable the event triggering action. When completed, click Save event to enable the settings and click Close to exit Event Settings page.
  • Page 112 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK technical support. Click to upload a file...

  • Page 113: Applications > Motion Detection

    VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of three motion detection windows can be configured. 2010/12/10 17:08:56 2013/11/5 14:39:12 Motion Detection Setting 1: For normal situations Motion Detection Setting 2:...
  • Page 114 VIVOTEK A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% If you want to configure other motion detection settings for day/night/schedule mode, please click Profile to open the Motion Detection Profile Settings page as shown below.
  • Page 115 VIVOTEK NOTE NOTE: ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity is a value that expresses the sensitivity to moving objects.

  • Page 116: Applications > Di And Do

    VIVOTEK Applications > DI and DO Connect DI or DO devices to the camera's terminal block, the camera will automatically detect the current connection state as pulled-high or pulled-low. You may then define the triggering condition. Digital input: Select High or Low to define the "active state" for the digital input. The Network Camera will report the current status.

  • Page 117: Applications > Audio Detection

    VIVOTEK Applications > Audio detection Audio detection, along with video motion detection, is applicable in the following scenarios: 1. Detection of activities not covered by camera view, e.g., a loud input by gun shots or breaking a door/window. 2. A usually noisy environment, such as a factory, suddenly becomes quiet due to a breakdown of machines.
  • Page 118 VIVOTEK You can use the Profile window to configure a different Audio detection setting. For example, a place can be noisy in the day time and become very quiet in the night. 1. Click on the Enable this profile checkbox. Once the Audio detection window is opened, the current sound input will be interactively indicated by a fluctuating yellow wave diagram.

  • Page 119: Applications > Vadp (Vivotek Application Development Platform)

    Applications > VADP (VIVOTEK Application Development Platform) Users can store and execute VIVOTEK's or 3rd-party software modules onto the camera's flash memory or SD card. These software modules can apply in video analysis for intelligent video applications such as license plate recognition, object counting, or as an agent for edge recording, etc.
  • Page 120 VIVOTEK To start a module, select the checkcircle in front, and click the Start button. If you should need to remove a module, select the checkcircle in front and then click the Stop button. By then the module status will become OFF, and the X button will appear at the end of the row.

  • Page 121: Recording > Recording Settings

    VIVOTEK Recording > Recording settings This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: NOTE ► Please remember to format your SD card when using it for the first time. Please refer to page 126 for detailed information.
  • Page 122 VIVOTEK If you enable adaptive recording and enable time-shift cache stream on Camera A, only when an event is triggered on Camera A will the server record the full frame rate streaming data; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidths and storage space.
  • Page 123 VIVOTEK 2. Destination You can select the SD card or network storage (NAS) for the recorded video files. NAS server Click Add NAS server to open the server setting window and follow the steps below to set up: 1. Fill in the information for your server.
  • Page 124 VIVOTEK If successful, you will receive a test.txt file on the network storage server. 3. Enter a server name. 4. Click Save to complete the settings and click Close to exit the page. ■ Capacity: You can choose either the entire free space available or limit the reserved space. The recording size limit must be larger than the reserved amount for cyclic recording.
  • Page 125 VIVOTEK To remove a recording setting from the list, select a recording name from the drop-down list and click Delete. ■ Click Video (Name): Opens the Recording Settings page to modify. ■ Click (Status): The Status will become and stop recording.

  • Page 126: Local Storage > Sd Card Management

    VIVOTEK Local storage > SD card management This section explains how to manage the local storage on the Network Camera. Here you can view SD card status, and implement SD card control. SD card staus This column shows the status and reserved space of your SD card. Please remember to format the SD card when using for the first time.

  • Page 127: Local Storage > Content Management

    VIVOTEK Local storage > Content management This section explains how to manage the content of recorded videos on the Network Camera. Here you can search and view the records and view the searched results. Searching and Viewing the Records This column allows the user to set up search criteria for recorded data. If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results column.
  • Page 128 VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click to sort the search results in either direction. Enter a key word to filter the Numbers of entries displayed...
  • Page 129 VIVOTEK ■ Lock/Unlock: Select the desired search results, then click this button. The selected items will become Locked, which will not be deleted during cyclic recording. You can click again to unlock the selections. For example: Click to switch pages ■...

  • Page 130: Appendix

    VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface.
  • Page 131 VIVOTEK 3. General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server.
  • Page 132 VIVOTEK 5. Get Server Parameter Values Note: The access right depends on the URL directory. Method: GET/POST Syntax: http://<servername>/cgi-bin/anonymous/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/viewer/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned.
  • Page 133 (Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter User's Manual - 133...
  • Page 134 VIVOTEK must be placed at the end of the parameter list Return: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: <length>\r\n \r\n <parameter pair> where <parameter pair> is <parameter>=<value>\r\n [<parameter pair>] Only the parameters that you set and are readable will be returned.
  • Page 135 VIVOTEK ip address A string limited to an IP address (eg. 192.168.1.1). mac address A string limited to contain a MAC address without hyphens or colons. boolean A boolean value of 1 or 0 represents [Yes or No], [True or False], [Enable or Disable].
  • Page 136 VIVOTEK 7.1 system Group: system NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) hostname string[64] Mega-Pixel Host name of server Network (Network Camera, Camera Wireless Network Camera, Video Server, Wireless Video Server). ledoff <boolean> Turn on (0) or turn off (1) all led indicators.
  • Page 137 VIVOTEK Time, Denver -281: GMT-07:00 Arizona -240: GMT-06:00 Central America, Central Time, Mexico City, Saskatchewan -200: GMT-05:00 Eastern Time, New York, Toronto -201: GMT-05:00 Bogota, Lima, Quito, Indiana -180: GMT-04:30 Caracas -160: GMT-04:00 Atlantic Time, Canada, La Paz, Santiago -140: GMT-03:30...
  • Page 138 VIVOTEK 140: GMT 03:30 Tehran 160: GMT 04:00 Abu Dhabi, Muscat, Baku, Tbilisi, Yerevan 180: GMT 04:30 Kabul 200: GMT 05:00 Ekaterinburg, Islamabad, Karachi, Tashkent 220: GMT 05:30 Calcutta, Chennai, Mumbai, New Delhi 230: GMT 05:45 Kathmandu 240: GMT 06:00 Almaty,...
  • Page 139 VIVOTEK saving start time. daylight_auto_endtime string[19] NONE Display the current daylight saving end time. daylight_timezones string ,-360,-320, List time zone index which -280,-240, support daylight saving time. -241,-200, -201,-160, -140,-120, -80,-40,0, 40,41,80, 81,82,83, 120,140, 380,400,48 updateinterval 0 to Disable automatic time...
  • Page 140 VIVOTEK except all daylight saving time settings. This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with others, the system parameters will be restored to default values except for a union of combined results. restoreexceptlang <Any Restore the system Value>...
  • Page 141 VIVOTEK address> firmwareversion string[40] <product Firmware version, including dependent> model, company, and version number in the format: <MODEL-BRAND-VERSION> language_count <integer> Number of webpage languages available on the server. language_i<0~(count-1)> string[16] <product Available language lists. dependent> customlanguage_maxcoun <integer> Maximum number of custom languages supported on the server.
  • Page 142 VIVOTEK 1 => Active (capability.nvi > 0) 7.3 digital input behavior define Group: di_i<0~(ndi-1)> (capability.ndi > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) normalstate high, high Indicates open circuit or closed circuit (inactive status) 7.4 digital output behavior define Group: do_i<0~(ndo-1)>...
  • Page 143 VIVOTEK admin user_i<1~20>_ privilege view, <blank> User privilege operator, admin 7.6 network Group: network NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) preproces <positive <blank> An 32-bit integer, each bit can be set separately as integer> follows: Bit 0 => HTTP service;...
  • Page 144 VIVOTEK ipaddress <ip <product IP address of server. address> dependent> subnet <ip <blank> Subnet mask. address> router <ip <blank> Default gateway. address> dns1 <ip <blank> Primary DNS server. address> dns2 <ip <blank> Secondary DNS server. address> wins1 <ip <blank> Primary WINS server.
  • Page 145 VIVOTEK Represented in EPOCH privatekey_size <integer> Private key file size (in bytes) 7.6.2 QOS Subgroup of network: qos_cos (capability.protocol.qos.cos > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable/disable CoS (IEEE 802.1p) vlanid 1~4095 VLAN ID video Video channel for CoS...
  • Page 146 VIVOTEK allowoptional <boolean> Allow manually setup of IP address setting. 7.6.4 FTP Subgroup of network: ftp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 21, 1025~65535 Local ftp server port. 7.6.5 HTTP Subgroup of network: http NAME VALUE DEFAULT SECURITY DESCRIPTION...
  • Page 147 VIVOTEK 7.6.6 HTTPS port Subgroup of network: https_port (capability.protocol.https > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 443, 1025 ~ HTTPS port. 65535 7.6.7 RTSP Subgroup of network: rtsp (capability.protocol.rtsp > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) port 554, 1025 ~ RTSP port.
  • Page 148 VIVOTEK 7.6.7.1 RTSP multicast Subgroup of network_rtsp_s<0~(n-1)>: multicast, n is stream count (capability.protocol.rtp.multicast > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) alwaysmulticast <boolean> Enable always multicast. ipaddress <ip address> For n=0, Multicast IP address. 239.128.1.99 For n=1, 239.128.1.100, and so on.
  • Page 149 VIVOTEK 7.6.10 PPPoE Subgroup of network: pppoe (capability.protocol.pppoe > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) user string[128] <blank> PPPoE account user name. pass password[64] <blank> PPPoE account password. 7.7 IP Filter Group: ipfilter NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean>...
  • Page 150 VIVOTEK 7.8 Video input Group: videoin NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) cmosfreq 50, 60 CMOS frequency. (capability.videoin.type=2) whitebalance auto, manual, auto “auto” indicates auto white rbgain <product balance. dependent> “manual” indicates keep current value. “rbgain” indicates using rgain and gbain.
  • Page 151 VIVOTEK operation; 0(not support), 1(support) text string[64] <blank> Enclose caption. imprinttimestamp <boolean> Overlay time stamp on video. maxexposure 1~10000 Maximum exposure time. <product dependent> enablepreview <boolean> Usage for UI of exposure settings. Preview settings of video profile. 7.8.1 Video input setting per channel Group: videoin_c<0~(n-1)>...
  • Page 152 VIVOTEK piris_position 1~100 Position of piris enableblc Enable backlight compensation maxgain 0~100 Manual set maximum gain value. mingain 0~100 Manual set minimum gain value. color 0, 1 0 =>monochrome 1 => color flip <boolean> Flip the image. mirror <boolean> Mirror the image.
  • Page 153 VIVOTEK manual input setting. 1 = worst quality, 5 = best quality. 100 is percentage mode. s<0~(m-1)>_h264_qvalue 10~51 Manual video quality level input. (s<0~(m-1)>_h264_qua nt = 99) s<0~(m-1)>_h264_qpercen 1~100 Manual video quality level input. (s<0~(m-1)>_h264_qua nt = 100) s<0~(m-1)>_h264_bitrate 4000~400000...
  • Page 154 VIVOTEK 100 is percentage mode. s<0~(m-1)>_mjpeg_qvalue 2~97 Manual video quality level input. (s<0~(m-1)>_mjpeg_qu ant = 99) s<0~(m-1)>_mjpeg_qperce 1~100 Manual video quality level input. (s<0~(m-1)>_mjpeg_qu ant = 100) s<0~(m-1)>_mjpeg_bitrate 4000~400000 FD8365: Set bit rate in bps when s0:14000000 choosing cbr in s1: 512000 “ratecontrolmode”.
  • Page 155 VIVOTEK 7.8.1.1 Alternative video input profiles per channel In addition to the primary setting of video input, there can be alternative profile video input setting for each channel which might be for different scene of light (daytime or nighttime). Group: videoin_c0_profile_i<0~(m-1)>...
  • Page 156 VIVOTEK 7.9 Video input preview The temporary settings for video preview Group: videoinpreview NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) exposuremode auto,fixed auto Exposure Mode maxexposure 1~10000 Maximum exposure time. minexposure 480~10000 10000 Minimum exposure time. exposurelevel 0~12 Exposure level enableblc <boolean>...
  • Page 157 VIVOTEK 7.10 IR cut control Group: ircutcontrol (capability.nvideoinprofile > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) mode auto, auto Set IR cut control mode day, night, schedule <product dependent> daymodebegintime 00:00~23:59 07:00 Day mode begin time daymodeendtime 00:00~23:59 18:00 Day mod end time disableirled <boolean>...
  • Page 158 VIVOTEK saturationpercent 0~100 Adjust saturation value of percentage when saturation=100 contrastpercent 0~100 Adjust contrastpercent of image sharpnesspercent 0~100 Adjust sharpness value of percentage when sharpness=100 gammacurve 0~100 Gamma curve. lowlightmode <boolean> Enable/disable low light mode. dnr_mode 0:disable 1:enable dnr_strength 1~100...
  • Page 159 VIVOTEK 1:enable profile_i0_dnr_strength 1~100 Strength of DNR profile_i0_eis Electronic image stabilizer 0:disable 1:enable User's Manual - 159...
  • Page 160 VIVOTEK 7.12 Image setting for preview Group: imagepreview_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) brightness -5~5,100 Adjust brightness of image according to mode settings. saturation -5~5,100 Adjust saturation of image according to mode settings. 100 for saturation percentage mode.
  • Page 161 VIVOTEK manual, image according to mode settings rbgain videoin_restoreatwb Restore of adjusting white balance of image according to mode settings videoin_rgain 0~100 Manual set rgain value of gain control setting. videoin_bgain 0~100 Manual set bgain value of gain control setting.
  • Page 162 VIVOTEK 7.13 Exposure window setting per channel Group: exposurewin_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) mode auto, custom, blc auto The mode indicates how to decide the exposure. auto: Use full view as the only one exposure window.
  • Page 163 VIVOTEK 7.14 Audio input per channel Group: audioin_c<0~(n-1)> for n channel products (capability.audioin>0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) source linein linein micin => use built-in microphone input. linein => use external microphone input. mute 0, 1 Disable audio mute.
  • Page 164 VIVOTEK night, applied to. schedule profile_i0_begintime hh:mm 18:00 Begin time of schedule mode. profile_i0_endtime hh:mm 06:00 End time of schedule mode. profile_i0_alarm_level 1~100 Audio detection alarm level 7.15 Motion detection settings Group: motion_c<0~(n-1)> for n channel product NAME VALUE DEFAULT...
  • Page 165 VIVOTEK schedule mode. i<0~(m-1)>_win_i<0~2>_enable <boolean> Enable motion window. i<0~(m-1)>_win_i<0~2>_name string[40] <blank> Name of motion window. i<0~(m-1)>_win_i<0~2>_left 0 ~ 320 Left coordinate of window position. i<0~(m-1)>_win_i<0~2>_top 0 ~ 240 Top coordinate of window position. i<0~(m-1)>_win_i<0~2>_width 0 ~ 320 Width of motion detection window.
  • Page 166 VIVOTEK 7.17 DDNS Group: ddns (capability.ddns > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the dynamic DNS. provider CustomSafe100, DyndnsDyn Safe100 => safe100.net DyndnsDynamic, amic DyndnsDynamic => dyndns.org DyndnsCustom, (dynamic) Safe100 DyndnsCustom => dyndns.org CustomSafe100 =>...
  • Page 167 VIVOTEK 7.19 UPnP presentation Group: upnppresentation NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP presentation service. 7.20 UPnP port forwarding Group: upnpportforwarding NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP port forwarding service.
  • Page 168 VIVOTEK 7: LOG_DEBUG setparamlevel Show log of parameter setting. 0: disable 1: Show log of parameter setting set from external. 2. Show log of parameter setting set from external and internal. 7.22 SNMP Group: snmp (capability.snmp > 0) NAME VALUE...
  • Page 169 Hyperlink of the logo w.vivotek.c logo_powerbyvvtk_hidden <boolean> 0 => display the power by vivotek logo 1 => hide the power by vivotek logo custombutton_manualtrigger_s <boolean> Show or hide manual trigger (VI) button in homepage <product dependent> 0 -> Hidden 1 ->...
  • Page 170 VIVOTEK 7.24 Privacy mask Group: privacymask_c<0~(n-1)> for n channel product NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable privacy mask. win_i<0~4>_enable <boolean> Enable privacy mask window. win_i<0~4>_name string[14] <blank> Name of the privacy mask window. win_i<0~4>_left 0 ~ 320 Left coordinate of window position.
  • Page 171 VIVOTEK 7.25 Capability Group: capability NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) api_httpversion <string> 0300a The HTTP API version. bootuptime <positive integer> Server bootup time. Number of IR interfaces. <positive integer> npir Number of PIRs. <positive integer> Number of digital inputs.
  • Page 172 VIVOTEK 0(external), 1(built-in) Bit 2 => Support pan operation, 0(not support), 1(support) Bit 3 => Support tilt operation; 0(not support), 1(support) Bit 4 => Support zoom operation; 0(not support), 1(support) Bit 5 => Support focus operation; 0(not support), 1(support) Bit 6 => Support iris operation;...
  • Page 173 VIVOTEK protocol_sip <boolean> Indicate whether to support SIP. protocol_maxconnection <positive integer> The maximum allowed simultaneous connections. protocol_maxgenconnectio <positive integer> The maximum general streaming connections . protocol_maxmegaconnect <positive integer> The maximum megapixel streaming connections. protocol_rtp_multicast_ <boolean> Indicate whether to support scalable scalable multicast.
  • Page 174 VIVOTEK FD8355: videoin_c0_resolution <a list of available FD8365: Available resolutions list. resolution separated 176x144, by commas> 384x216, <product 640x360, dependent> 1280x720 1360x768 ,1600x90 1920x108 FD8355: 176x144, 320x240, 640x480, 720x480, 800x600, 960x768, 1280x720 ,1280x10 Videoin_c0_maxsize <WxH> FD8365: The maximum resolution of 1920x108 this channel, the unit is pixel.
  • Page 175 VIVOTEK 1360x768 ,1600x90 1920x108 FD8355: 176x144, 320x240, 640x480, 720x480, 800x600, 960x768, 1280x720 ,1280x10 videoin_c0_mode0_maxfps <Integer> FD8365: Maximum fps that the device _mjpeg 30,30,30, can encode 30,30,30, FD8355: 30,30,30, 30,30,30, videoin_c0_mode0_maxfps <Integer> FD8365: Maximum fps that the device _h264 30,30,30, can encode...
  • Page 176 VIVOTEK audio_extmic <boolean> Indicate whether to support external microphone input. audio_linein <boolean> Indicate whether to support external line input. (It will be replaced by audio_mic and audio_extmic.) audio_lineout <boolean> Indicate whether to support line output. audio_headphoneout <boolean> Indicate whether to support headphone output.
  • Page 177 VIVOTEK wireless_s802dot11n <boolean> Indicate whether to support wireless 802.11n. wireless_beginchannel 1 ~ 14 Indicate the begin channel of wireless network wireless_endchannel 1 ~ 14 Indicate the end channel of wireless network wireless_encrypt_wep <boolean> Indicate whether to support wireless WEP. wireless_encrypt_wpa <boolean>...
  • Page 178 VIVOTEK cond snapshot image. media_snapshot_maxpree <positive integer> Maximum snapshot number vent before event occurred. media_snapshot_maxpost <positive integer> Maximum snapshot number event after event occurred. media_videoclip_maxsize <positive integer> 3072 Maximum size (KB) of a videoclip. media_videoclip_maxlengt <positive integer> Maximum length (second) of a videoclip.
  • Page 179 VIVOTEK 7.26 Customized event script Group: event_customtaskfile_i<0~2> PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) name string[40] <blank> Custom script identification of this entry. date string[4~20] <blank> Date of custom script. time string[4~20] <blank> Time of custom script. 7.27 Event setting Group: event_i<0~2>...
  • Page 180 VIVOTEK exttriggerstatus1 trigger, <blank> The status for event audio detection normal~trigger profile trigger trigger~norma <integer> Indicate the source id of di trigger. This field is required when trigger condition is “di”. One bit represents one digital input. The LSB indicates DI 0.
  • Page 181 VIVOTEK weekday 0~127 Indicate which weekday is scheduled. One bit represents one weekday. bit0 (LSB) = Saturday bit1 = Friday bit2 = Thursday bit3 = Wednesday bit4 = Tuesday bit5 = Monday bit6 = Sunday For example, to detect events on...
  • Page 182 VIVOTEK 7.28 Server setting for event action Group: server_i<0~4> PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry type email, email Indicate the server type: ftp, “email” = email server http, “ftp” = FTP server “http” = HTTP server “ns”...
  • Page 183 VIVOTEK 7.29 Media setting for event action Group: media_i<0~4> (media_freespace is used internally.) PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry type snapshot, snapshot Media type to send to the server or systemlog, store on the server.
  • Page 184 VIVOTEK 7.30 Recording Group: recording_i<0~1> PARAMETER VALUE DEFAULT SECURITY DESCRIPTION (get/set) name string[40] NULL Identification of this entry. trigger schedule, schedule The event trigger type networkfail schedule: The event is triggered by schedule networkfail: The event is triggered by the failure of network connection.
  • Page 185 VIVOTEK notifyserver 0~31 Indicate which notification server is scheduled. One bit represents one application server (server_i0~i4). bit0 (LSB) = server_i0. bit1 = server_i1. bit2 = server_i2. bit3 = server_i3. bit4 = server_i4. For example, enable server_i0, server_i2, and server_i4 as notification servers;...
  • Page 186 VIVOTEK dest The destination to store the recorded data. “cf” means local storage (CF or SD card). “0” means the index of the network storage. cffolder string[128] NULL Folder name. maxsize 100~2000 Unit: Mega bytes. <product dependent> When this condition is reached, recording file is truncated.
  • Page 187 State or province name in the certificate information. localityname string[128] Asia The locality name in the certificate information. organizationname string[64] VIVOTEK Inc. Organization name in the certificate information. unit string[32] VIVOTEK Inc. Organizational unit name in the certificate information. commonname string[64] www.vivotek.
  • Page 188 VIVOTEK 7.33 Region of interest Group: roi_c<0~(n-1)> for n channel product, and m is the number of streams which support ROI. (capability.eptz > 0) PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) s<0~(m-1)>_home <coordinate> <product ROI left-top corner coordinate. dependent> s<0~(m-1)>_size <window size> <product ROI width and height.
  • Page 189 VIVOTEK patrolseq string[120] <blank> The patrol sequence of ePTZ. All the patrol position indexes will be separated by "," patroldwelling string[160] <blank> The dwelling time (unit: second) of each patrol point, separated by “,”. preset_i<0~19>_name string[40] <blank> Name of ePTZ preset.
  • Page 190 VIVOTEK 7.36 Exposure window setting per channel Group: exposurewin_c<0~(n-1)> for n channel products <product dependent> (capability_videoin_supportexpwin = 1) SECURITY NAME VALUE DEFAULT DESCRIPTION (get/set) The mode indicates how to decide the exposure. auto: Use full view as the only mode...
  • Page 191 (Read only) guid<0~2>_id string[127] <blank> The connected seamless streaming (Read only) guid<0~2>_number Number of connected seamless streaming with guid<0~2>_id. (Read only) 7.38 VIVOTEK Application Development Platform setting Group: vadp NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) version <string> <product Indicate the VADP dependent>...
  • Page 192 VIVOTEK dependent> resource number of the system. resource_total_memory <integer> <product Indicate total available dependent> memory size for VADP modules. resource_total_storage <integer> <product Indicate total size of the dependent> internal storage space for storing VADP modules. resource_free_video <integer> <product Indicate free video dependent>...
  • Page 193 VIVOTEK (get/set) enable <boolean> Indicate if the module is enabled or not. If yes, also add the index of this module to the module_order. name string[40] <blank> Module name string[120] <blank> Define the URL string after the IP address if the module provides it own web page.
  • Page 194 VIVOTEK 8. Useful Functions Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
  • Page 195 VIVOTEK Example: Query the status of digital input 1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]...
  • Page 196 VIVOTEK \r\n do1=1\r\n Capture Single Snapshot Note: This request requires Normal User privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>][&streamid=<value>] If the user requests a size larger than all stream settings on the server, this request will fail. PARAMETER VALUE DEFA DESCRIPTION...
  • Page 197 VIVOTEK http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][…][&return=<return page>] PARAMETER VALUE DESCRIPTION method Add an account to the server. When using this method, the “username” field is necessary. It will use the default value of other fields if not specified. Delete Remove an account from the server. When using this method, the “username”...
  • Page 198 VIVOTEK Content-Length: <syslog length>\r\n \r\n <system log information>\r\n Upgrade Firmware Note: This request requires Administrator privileges. Method: POST Syntax: http://<servername>/cgi-bin/admin/upgrade.cgi Post data: fimage=<file name>[&return=<return page>]\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upgrade the firmware and return with <return page> if indicated.
  • Page 199 VIVOTEK http://myserver/cgi-bin/camctrl/eCamCtrl.cgi?channel=0&stream=1&x=100&y=100& videosize=640x480&resolution=640x480&stretch=0 PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of video source. stream <0~(m-1)> Stream. move home Move to home ROI. Move up. down Move down. left Move left. right Move right. auto Auto pan. patrol Auto patrol. stop Stop auto pan/patrol.
  • Page 200 VIVOTEK speedzoom -5 ~ 5 Set the zoom speed. speedapp 1 ~ 5 Set the auto pan/patrol speed. return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path.
  • Page 201 VIVOTEK addpos <Text string less than Add one preset location to the preset list. 40 characters> delpos <Text string less than Delete preset location from the preset list. 40 characters> return <return page> Redirect to the page <return page> after the parameter is assigned.
  • Page 202 VIVOTEK IP Filtering for ONVIF Syntax: <product dependent> http://<servername>/cgi-bin/admin/ipfilter.cgi?type[=<value>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=add<v4/v6>&ip=<ipaddress>[&index=<value>] [&return=<return page>] http://<servername>/cgi-bin/admin/ipfilter.cgi?method=del<v4/v6>&index=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION type NULL Get IP filter type allow, deny Set IP filter type method addv4 Add IPv4 address into access list. addv6 Add IPv6 address into access list.
  • Page 203 VIVOTEK Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
  • Page 204 VIVOTEK Command to be executed, including search, insert, delete, update, and queryStatus. Command: search PARAMETER VALUE DESCRIPTION label <integer primary key> Optional. The integer primary key column will automatically be assigned a unique integer. triggerType <text> Optional. Indicate the event trigger type.
  • Page 205 VIVOTEK to the end of Jan 1 2008. limit <positive integer> Optional. Limit the maximum number of returned search records. offset <positive integer> Optional. Specifies how many rows to skip at the beginning of the matched records. Note that the offset keyword is used after limit keyword.
  • Page 206 VIVOTEK Command: queryStatus PARAMETER VALUE DESCRIPTION retType xml or javascript Optional. Ex. retype=javascript The default return message is in XML format. Ex. Query local storage status and call for javascript format return message. http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=queryStatus&retType=javascript Virtual input (capability.nvi > 0) Note: Change virtual input (manual trigger) status.
  • Page 207 VIVOTEK setvi.cgi?vi3=0 VI index is out of range. setvi.cgi?vi=1 No VI index is specified. The resource is unavailable, ex. Virtual input is waiting for next state. Examples: setvi.cgi?vi0=0(15000)1 setvi.cgi?vi0=1 Request 2 will not be accepted during the execution time(15 seconds).
  • Page 208 VIVOTEK reftime mm:ss The time Reference time for maxsft and minsft. camera receives (This provides more precise time control to eliminate the the request. inaccuracy due to network latency.) Ex: Request the streaming from 12:20 rtsp://10.0.0.1/live.sdp?maxsft=10&reftime=12:30 forcechk Check if the requested stream enables timeshift, feature and if minsft is achievable.

  • Page 209: Technical Specifications

    VIVOTEK codectype mjpeg, mpeg4, h264 Set codec type for Anystream. solution capability_videoin_resolution <product Video resolution in pixels. dependent> mjpeg_quant 99, 1~5 Quality of JPEG video. 0,99 is the customized manual input setting. 1 = worst quality, 5 = best quality.
  • Page 210 VIVOTEK 0,99 is the customized manual input setting. 1 = worst quality, 5 = best quality. h264_qvalue 0~51 Manual video quality level input. (This must be present if h264_quant is equal to 0, 99) h264_bitrate 20~32000000 8000000 Set bit rate in bps when choosing cbr in “h264_ratecontrolmode”.
  • Page 211 VIVOTEK function zoom, Function type focus, zoom – Move zoom motor auto, focus – Move focus motor scan, auto – Perform auto focus stop, scan – Perform focus scan positioning stop – Stop current operation getstatus positioning – Position the motors getstatus –...
  • Page 212 VIVOTEK Export Files Note: This request requires Administrator privileges. Method: GET Syntax: For daylight saving time configuration file: http://<servername>/cgi-bin/admin/exportDst.cgi For language file: http://<servername>/cgi-bin/admin/export_language.cgi?currentlanguage=<value> PARAMETER VALUE DESCRIPTION currentlanguage 0~20 Available language lists. Please refer to: system_info_language_i0 ~ system_info_language_i19 For setting backup file: http://<servername>/cgi-bin/admin/export_backup.cgi?backup...
  • Page 213 VIVOTEK <multipart encoded form data> For setting backup file: http://<servername>/cgi-bin/admin/upload_backup.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upload this one to camera. User's Manual - 213...
  • Page 214 AW-FED-0500 L shape bracket Outdoor Dome Adaptor PoE injector, 802.3af compliant 4-port Unmanaged PoE Switch All speci cations are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved. Distributed by: Ver 1.5 VIVOTEK INC. VIVOTEK USA VIVOTEK Europe 6F, No.192, Lien-Cheng Rd., Chung-Ho,...
  • Page 215 AW-FED-0500 L shape bracket Outdoor Dome Adaptor PoE injector, 802.3af compliant 4-port Unmanaged PoE Switch All speci cations are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved. Distributed by: Ver 1.5 VIVOTEK INC. VIVOTEK USA VIVOTEK Europe 6F, No.192, Lien-Cheng Rd., Chung-Ho,...

  • Page 216: Technology License Notice

    VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.

  • Page 217: Electromagnetic Compatibility (Emc)

    取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.

This manual is also suitable for:

Fd8355hvFd8365ehvFd8355ehv

Table of Contents
