ENGLISH
Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
www.lg.com

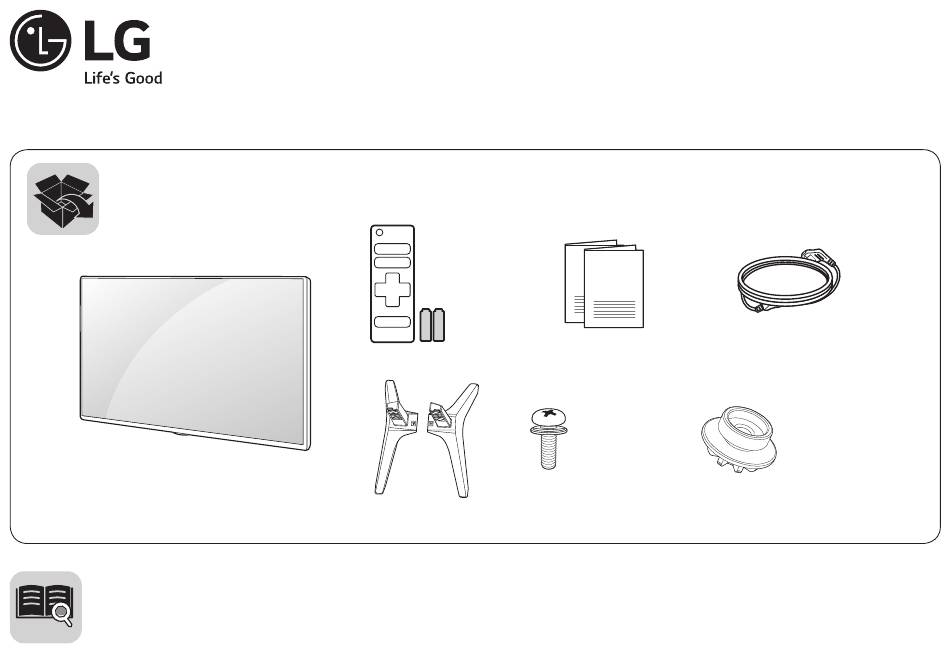

AAA
X 4
(M4 x L14)
49LJ5400
55LJ5400
X 4
49LJ5400
49LJ540T
P/No: MFL70200002 (1706-REV00)
LED TV
49LJ540T
55LJ540T

Advertisement

Table of Contents
loading

Related Manuals for LG 49LJ5400

Summary of Contents for LG 49LJ5400

  • Page 1 LED TV ENGLISH Easy Setup Guide 49LJ5400 Please read this manual carefully before operating your set and retain it for future reference. 49LJ540T ESPAÑOL Guía Rápida de Configuración 55LJ5400 Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
  • Page 2 ENGLISH Read Safety & Reference. ESPAÑOL Leer Seguridad y Consultas.
  • Page 7 : mm : kg 49LJ5400-SA 1,104 1 104 251.1 251,1 91.4 91,4 11.3 11,3 1.5 A / 120 W 1,5 A / 120 W 49LJ540T-DA 55LJ5400-SA 1,243 1 243 251.1 251,1 91.1 91,1 13.7 13,7 1.8 A / 150 W...

  • Page 9: Safety And Reference

    OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your TV and retain it for future reference. 49LJ5400 55LJ5400 49LJ540T 55LJ540T www.lg.com *MFL70240202* P/NO : MFL70240202 (1706-REV00)
  • Page 10 Warning! Important Safety • Protect the power cord from being walked on or pinched particularly at plugs, convenience instructions receptacles, and the point where they exit from the apparatus. • Only use attachments/accessories specified by Read these instructions. Keep these instructions. the manufacturer.
  • Page 11 • Do not attempt to modify this product in any current requirements. Do not connect too many devices to the same AC power outlet as way without written authorization from LG this could result in fire or electric shock. Do not Electronics. Unauthorized modification could overload wall outlets.
  • Page 12 • When the TV is turned on for the first time after • Use only an authorized AC adapter and power being shipped from the factory, initialization of cord approved by LG Electronics. Otherwise, this the TV may take approximately one minute. may result in fire, electric shock, malfunction, or •...

  • Page 13: Lifting And Moving The Tv

    • Some models appear to have a thin film on the • Hold the top and bottom of the TV frame firmly. screen. It is actually part of the screen; do not Make sure not to hold the transparent part, remove it.

  • Page 14: Using The Button

    Using the Button Mounting on a Table You can operate the TV functions, using the 1 Lift and tilt the TV into its upright position on a button. table. - Leave a 10 cm (minimum) space from the wall for proper ventilation. 10 cm 1 0 c 1 0 c m...

  • Page 15: Mounting On A Wall

    TV be included with the wall mount. We recommend accessory. (For 49LJ5400) that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. Provided Item When you do not use LG’s wall mount bracket,...

  • Page 16: Connecting To An Antenna Or Cable

    Remote Control • If you connect a gaming device to the TV, use the cable supplied with the gaming device. • Refer to the external equipment’s manual for operating instructions. (Some buttons and services may not be provided • In PC mode, there may be noise associated depending upon the model or region.) with the resolution, vertical pattern, contrast The descriptions in this manual are based on...

  • Page 17: Open Source Software Notice Information

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.

  • Page 18: Troubleshooting

    For more information about licenses, screen, appearing as tiny red, green, or blue visit www.lg.com. spots. However, they have no adverse effect on the TV’s performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time.

  • Page 19: Environment Condition

    Regulatory Television System For LJ5400-S* series NTSC, PAL-M/N, SBTVD NTSC, PAL-M/N, DVB-T, For LJ540T-D* series WARNING! DVB-T2 Never place a television set in an unstable Program Coverage location. A television set may fall, causing serious personal injury or death. Many injuries, particularly VHF 2-13, UHF 14-69, to children, can be avoided by taking simple For LJ5400-S* series...
  • Page 20 The model and serial numbers of the TV are located on the back and on one side of the TV. Record them below should you ever need service. MODEL SERIAL...

  • Page 21: External Control Device Setup

    OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...

  • Page 22: Key Codes

    KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
  • Page 23 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.

  • Page 24: Customer Computer

    EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...

  • Page 25: Communication Parameters

    EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...

  • Page 26: Transmission / Receiving Protocol

    EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
  • Page 27 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
  • Page 28 EXTERNAL CONTROL DEVICE SETUP 08. Color/Colour (Command: k i) 13. Treble (Command: k r) ► To adjust the screen Color(Colour). ► To adjust treble. You can also adjust colour in the PICTURE menu. You can also adjust in the AUDIO menu. Transmission [k][i][ ][Set ID][ ][Data][Cr] Transmission [k][r][ ][Set ID][ ][Data][Cr] Data Min : 00 to Max : 64...
  • Page 29 EXTERNAL CONTROL DEVICE SETUP 18. Equalizer (Command : j v) * Analog Antenna/Cable ► Adjust EQ of the set. [Data 00][Data 01] Channel Data Transmission [j][v][ ][Set ID][ ][Data][Cr] Data 00 : High byte channel data Data 01 : Low byte channel data - 00 00 ~ 00 C7 (Decimal : 0 ~ 199) Data 02 : Input Source (Analog) - 00 : Antenna TV (ATV)
  • Page 30 EXTERNAL CONTROL DEVICE SETUP * Analog Antenna/Cable 2. Tune to the digital antenna (ATSC) channel 30-3. Set ID = All = 00 Data 00 : Physical Channel Number Data 00 = Don’t know Physical = 00 - Antenna (ATV) : 02~45 (Decimal: 2 ~ 69) Data 01 &...
  • Page 31 11 11 EXTERNAL CONTROL DEVICE SETUP 2. Tune to the BS (ISDB-BS) channel 30. 24. Input select (Command: x b) Set ID = All = 00 (Main Picture Input) Data 00 = Don’t know Physical = 00 ► To select input source for main picture. Data 01 &...
  • Page 32 EXTERNAL CONTROL DEVICE SETUP * [Data 02], [Data 03] functions depend on model 3) When [Data 00] is 06, 07 and signal. 00 : Off 01 : On * If [Data 00] is 00 (3D On), [Data 03] has no meaning.

  • Page 34: Network Settings

    Wheel (OK). Accessibility 5 If the connection is completed, Connected to Internet is displayed. NETWORK Picture TV Name Sound [LG] webOS TV WEBOS3.5 Wired Connection (Ethernet) Channels 3 Select the Network Wired Connection Not Connected (Ethernet) or Wi-Fi Connection. Wi-Fi Connection...

  • Page 35: Troubleshooting Network Problems

    Fi Settings. NETWORK Picture TV Name When X appears next to Gateway: Sound [LG] webOS TV WEBOS3.5 1 Unplug the power cord of the AP (Router) or cable Wired Connection (Ethernet) Channels modem, wait 5 seconds. Reapply power. Not Connected 2 Initialize (Reset) the AP (Router) or cable modem.

  • Page 36: Updating The Tv Firmware

    SmartShare PC SW Installation & Setting Install the SmartShare PC SW program on your PC. 1 Go to www.lg.com . Then, select your region. 2 Select Support. 3 Select Software & Drivers. Then, select SmartShare. 4 Download the SmartShare PC SW and install it on your PC. You can run the program when installation is complete.
  • Page 37 (Screen Share) 1 On the TV Intel® WiDi is set to On. Your laptop runs the Intel® WiDi program. * LG TVs do not need to register. * For more information on Intel® WiDi, visit http://intel.com/go/widi . 2 It detects LG Smart TVs available, which supports WiDi.
  • Page 38 Troubleshooting Wi-Fi Network Problems Checkpoints • Make sure that you have the latest version of the software. - If you are using a Wi-Fi router, check whether you have the latest firmware installed. - If there are any available updates, update the firmware according to the manufacturer's instructions. - Check the current software version and if there is an available update, install it.
  • Page 39 • Interference Factors If there is any interference from surrounding equipment, the network connection may be weak or unstable. - Wireless telephones that operate in the 2.4 GHz or 5 GHz bandwidth - Wireless speakers that operate in the 2.4 GHz or 5 GHz bandwidth - Video transmitters that operate in the 2.4 GHz or 5 GHz bandwidth - Other wireless devices (Microwaves, cameras, baby monitors, neighboring wireless devices, etc.) that operate in the 2.4 GHz or 5 GHz bandwidth.
