Quick Installation

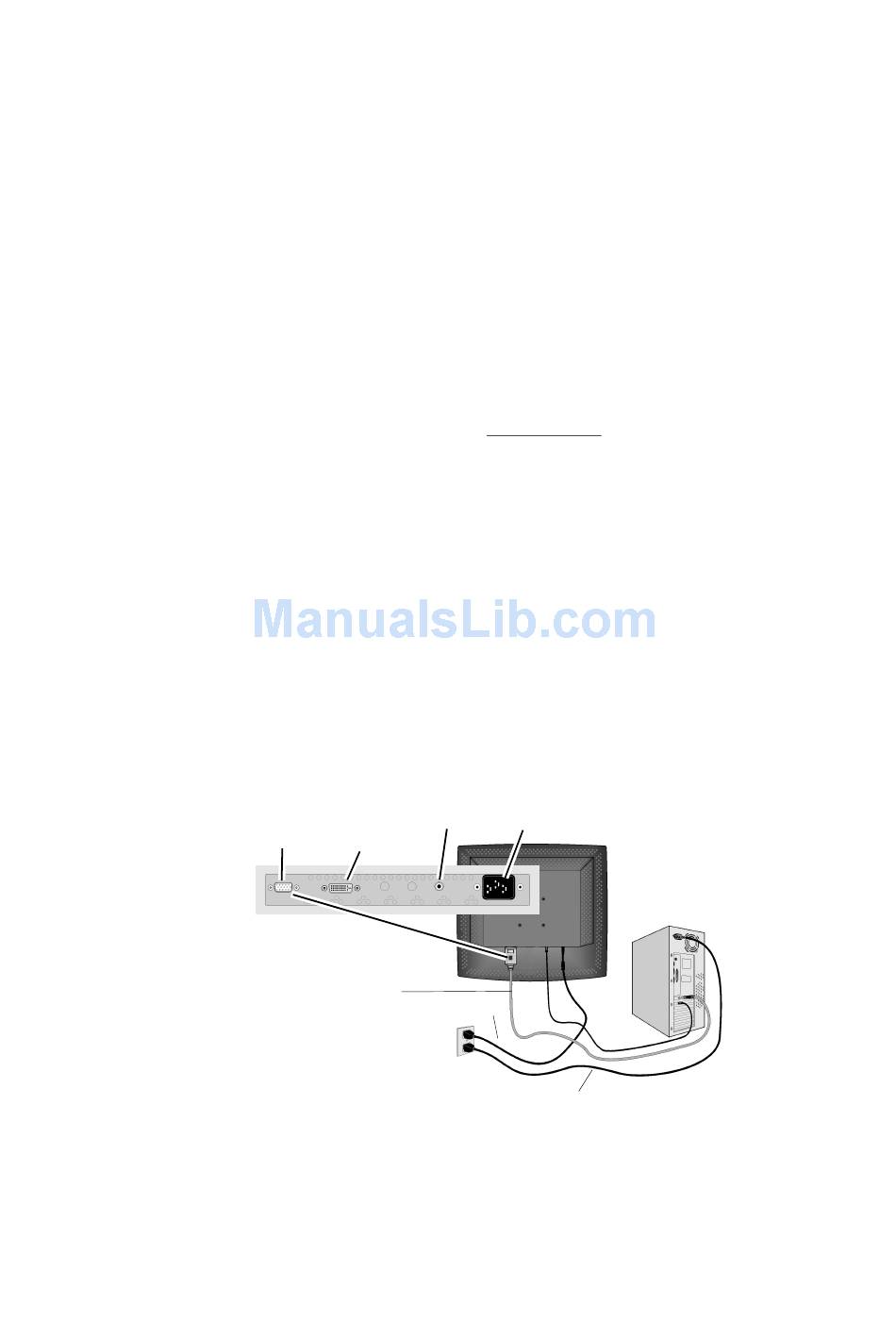

1 Connect video cable
Make sure both the ViewPanel
computer are powered OFF.
Connect the VGA analog video cable to the
computer then to the ViewPanel. Both
analog and digital (DVI) ports are available
on the back of the ViewPanel for your
convenience. The DVI cable requires a DVI
video card in your computer.
Macintosh users: Models older than G3
require a Macintosh adapter. Attach the
adapter to the computer and plug the video
cable into the adapter.
®
To order a ViewSonic Macintosh adapter,
contact ViewSonic Customer Support.
2 Connect power cord
Connect the power cord from the ViewPanel
to a properly grounded AC outlet.
3 Power-ON ViewPanel and
computer
Power-ON the ViewPanel, then power-ON
the computer. This sequence (ViewPanel
before computer) is very important.
NOTE: Windows 95, 98 or 2000 users may
receive a message asking them to install the
VP230mb INF file.
4 Install display optimization files
(INF and ICM files)
(1) Insert the ViewSonic Wizard CD-ROM
into your computer's CD-ROM drive.
VGA analog
DVI
video cable
(optional)
VGA video cable
NOTE: If your computer does not have a
CD-ROM drive, see Customer Support in
®
and
this user guide.
(2) Wait for the CD-ROM to auto-start.
NOTE: If the CD-ROM does not auto-start:
double-click on the CD-ROM icon in the
Windows Explorer, then double-click on
install.exe.
(3) Follow the on-screen instructions.
5 Windows users: Set the timing
mode (resolution and refresh
rate)
Example: 1600 X 1200 @ 60 Hz.
For instructions on changing the resolution
and refresh rate, see the user guide for your
computer's graphics card.
Installation is complete. Enjoy your new
VP230mb ViewPanel.
To be best prepared for any future customer
service needs: print this user guide and write
the serial number in "For Your Records" on
page 2. (See back of ViewPanel.)
To register your product go online to
www.viewsonic.com.
The ViewSonic Wizard CD-ROM also
provides an opportunity for you to print the
registration form which you may mail or fax
to ViewSonic.
