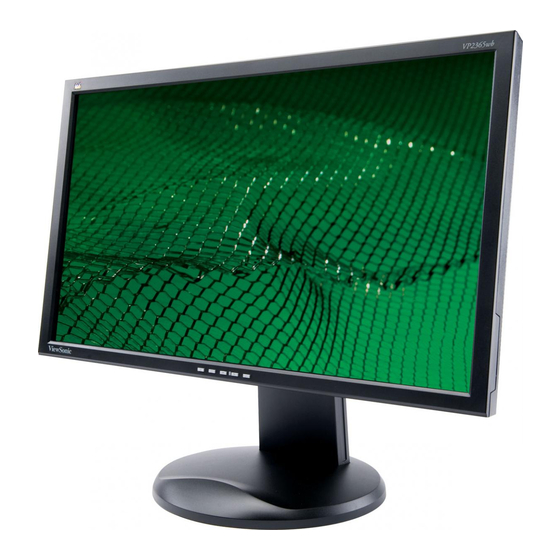

ViewSonic VP2365WB User Manual
23” lcd display
Hide thumbs
Also See for VP2365WB:
- User manual (25 pages) ,
- Specifications (2 pages) ,
- Comparison chart (5 pages)
Table of Contents
Advertisement
®
ViewSonic
VP2365wb
LCD Display

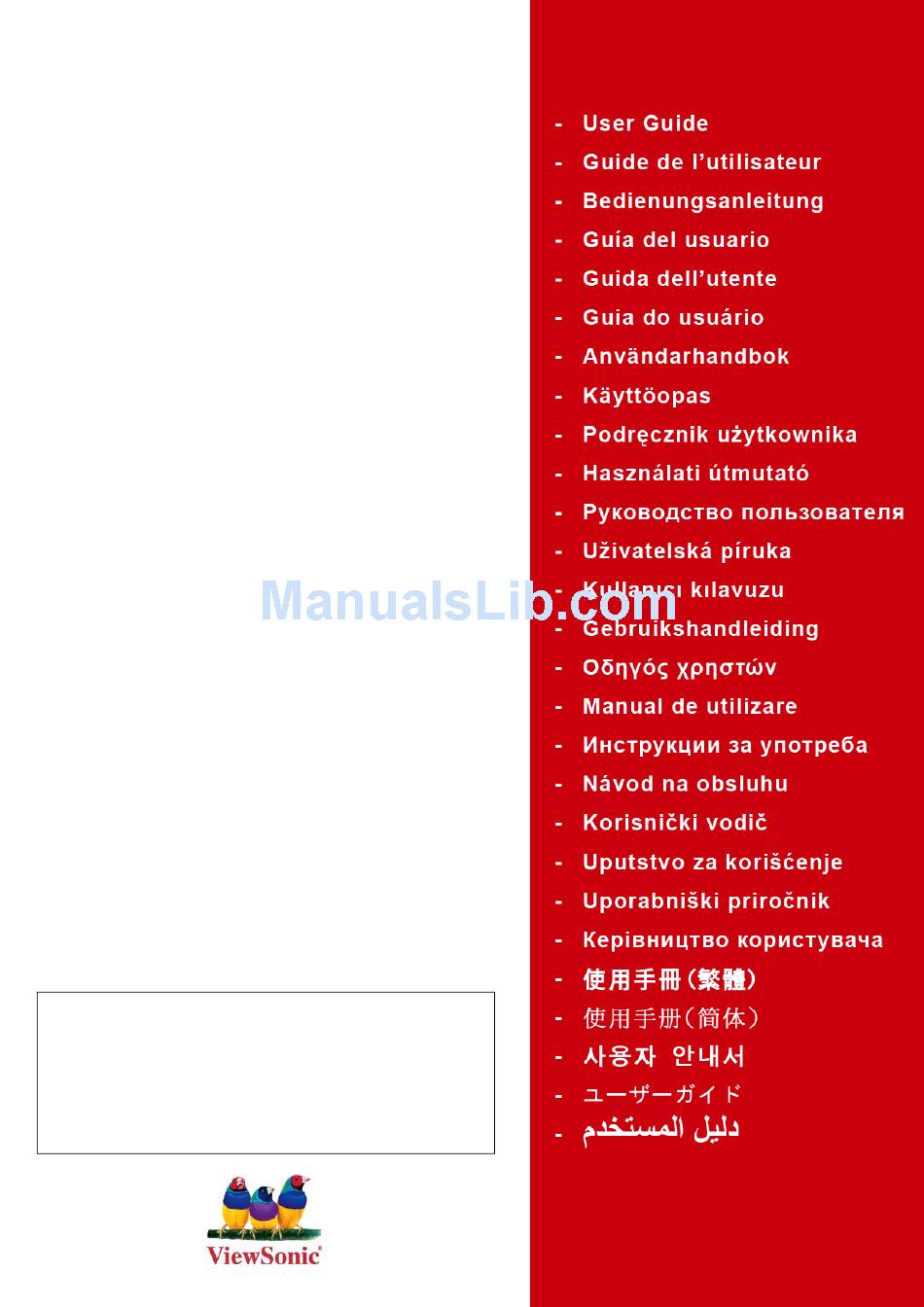

IMPORTANT: Please read this User Guide to obtain important
information on installing and using your product in a safe manner, as
well as registering your product for future service. Warranty information
contained in this User Guide will describe your limited coverage from
ViewSonic Corporation, which is also found on our web site at http://
www.viewsonic.com in English, or in specific languages using the
Regional selection box in the upper right corner of our website.
"Antes de operar su equipo lea cuidadosamente las instrucciones en
este manual"
Model No. : VS12637
Advertisement
Table of Contents
Related Manuals for ViewSonic VP2365WB
Summary of Contents for ViewSonic VP2365WB
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http:// www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right corner of our website.
-
Page 2: Table Of Contents
OSD and Power Lock Settings ... 9 Adjusting the Screen Image ... 10 Main Menu Controls ... 12 Other Information Specifications ... 16 Troubleshooting... 17 Customer Support ... 18 Cleaning the LCD Display ... 19 Limited Warranty ... 20 Mexico Limited Warranty ... 22 ViewSonic VP2365wb... -
Page 3: Tco Information
1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. For more information, please visit www.tcodevelopment.com ViewSonic VP2365wb... -
Page 4: Compliance Information
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. ViewSonic VP2365wb... -
Page 5: Important Safety Instructions
ViewSonic VP2365wb... -
Page 6: Declaration Of Rohs Compliance
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. ViewSonic VP2365wb Proposed Maximum Concentration 0.1% 0.1%... -
Page 7: Copyright Information
VESA is a registered trademark of the Video Electronics Standards Association. DPMS and DDC are trademarks of VESA. Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 8: Getting Started
NOTE: The CD includes the User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both the INF and ICM files. -
Page 9: Quick Installation
NOTE: Windows users may receive a message asking them to install the INF file. This is on the CD. 4. Insert the ViewSonic Wizard CD into the computer’s CD drive. Follow the on-screen instructions. If your computer does not have a CD-ROM drive, please refer to Customer Support page. -
Page 10: Landscape/Portrait Modes
Perfect Suite software included with your LCD display. Perfect Suite software is compatible with most PCI and AGP graphics (video) cards. For information about compatible graphics cards and approved hardware configurations, go to the ViewSonic website, http:// www.viewsonic.com Portrait... -
Page 11: Wall Mounting (Optional)
Wall Mounting (Optional) To obtain a wall-mounting kit, contact ViewSonic instructions that come with the base mounting kit. To convert your LCD display from a desk- mounted to a wall-mounted display, do the following: Step 1. Verify that the power button is turned Off, then disconnect the power cord. -
Page 12: Using The Lcd Display
• Auto Power Off enable: Press [2] and the up arrow automatically when no signal is detected for 3 minutes. • Auto Power Off disable: Press [2] and the up arrow ViewSonic VP2365wb for 10 seconds. If any buttons are again for 10 seconds. -
Page 13: Adjusting The Screen Image
Displays the Main Menu or exits the control screen and saves adjustments. ViewSonic VP2365wb Main Menu with OSD controls Front Control Panel shown below in detail Power light Blue = ON Orange = Power Saving Standby Power... - Page 14 (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.) ViewSonic VP2365wb The line at the bottom of the screen shows the current functions of buttons 1 and 2: Exit or select the Brightness control.
-
Page 15: Main Menu Controls
LCD display to more accurately display colors the way they were originally intended. Enabling the sRGB setting will cause the Contrast and Brightness adjustments to be disabled. 9300K-Adds blue to the screen image for cooler white (used in most office settings with fluorescent lighting). ViewSonic VP2365wb and down buttons. - Page 16 Manual Image Adjust displays the Manual Image Adjust menu. H./V. Position (Horizontal/Vertical Position) moves the screen image left or right and up or down. H. Size (Horizontal Size) adjusts the width of the screen image. ViewSonic VP2365wb website URL. See your graphics card’s user guide for ®...
- Page 17 Aspect ratio selects the image size for 1:1, fill aspect ratio & full screen. ECO Mode provides the lower power consumption by reducing the brightness. Standard: The default brightness setting. Optimize: Decreases the brightness by 25 %. Conserve: Decreases the brightness by 50 %. Setup Menu displays the menu shown below: ViewSonic VP2365wb...
- Page 18 Memory Recall returns the adjustments back to factory settings if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual. Exception: This control does not affect changes made with the Language Select or Power Lock setting. ViewSonic VP2365wb...
-
Page 19: Other Information
Preset Timing Mode (pre-adjusted to VESA Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. Macintosh computers older than G3 require a ViewSonic ViewSonic. ViewSonic VP2365wb 23”... -
Page 20: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic Control buttons do not work • Press only one button at a time. -
Page 21: Customer Support
Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatán. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico Latin America (Peru) www.viewsonic.com/la/ Macau www.hk.viewsonic.com... -
Page 22: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. • ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol- based cleaners. ViewSonic VP2365wb... -
Page 23: Limited Warranty
How long the warranty is effective: ViewSonic LCD displays are warranted for 3 years for all parts including the light source and 3 years for all labor from the date of the first consumer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser. - Page 24 Exclusion of damages: ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for: 1. Damage to other property caused by any defects in the product, damages based upon incon- venience, loss of use of the product, loss of time, loss of profits, loss of business opportu- nity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
-
Page 25: Mexico Limited Warranty
