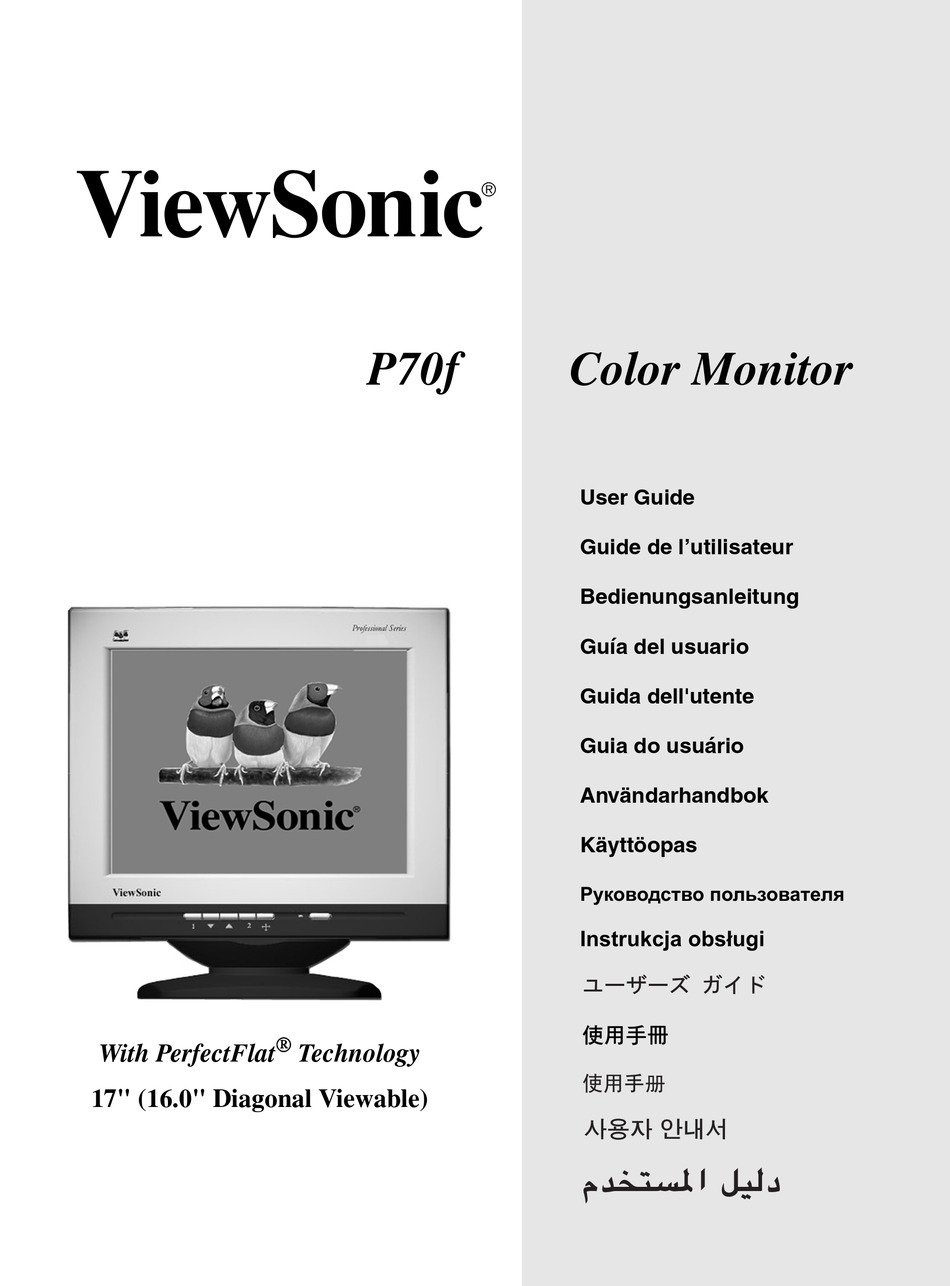

Page 1: Color Monitor
P70f Color Monitor User Guide Guide de l’utilisateur Bedienungsanleitung Guía del usuario Guida dell'utente Guia do usuário Användarhandbok Käyttöopas ,QVWUXNFMDREVáXJL With PerfectFlat Technology 17" (16.0" Diagonal Viewable) -
Page 2: Table Of Contents
OSD Lock Settings ...5 Adjusting the Screen Image ...6 Main Menu Controls ...8 Other Information Specifications ...11 Troubleshooting...12 Customer Support ...13 Cleaning the Monitor ...14 Limited Warranty ...15 Appendix Safety Guidelines ...16 Compliance Information for U.S.A...17 CE Conformity for Europe ...17 ViewSonic P70f... -
Page 3: Product Registration
NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this mate- rial, or the performance or use of this product. -
Page 4: Getting Started
NOTE: Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both files. Precautions • For best viewing conditions sit at least 18”... -
Page 5: Quick Installation
INF file. 4 Install Display Optimization files (INF and ICM files) (1) Insert the ViewSonic Wizard CD-ROM into your computer’s CD-ROM drive. NOTE: If your computer does not have a CD-ROM drive, see “Cutomer Support” on page 13. -
Page 6: Using The Monitor
(example 1024 x 768) and refresh rate (or vertical frequency; example 75 Hz). After setting the timing mode, use the OnView to adjust the screen image. For the best picture quality set your monitor timing mode to: VESA 1024 x 768 @ 85 Hz. To set the Resolution: Right-click on the Windows desktop. -
Page 7: Adjusting The Screen Image
Displays control screen for highlighted control (or pair of controls). Also, toggles between pairs of controls on some control screens. ViewSonic P70f Main Menu With OnView controls Front Control Panel Power On/Off Power Light One Touch Auto Adjust... - Page 8 To display the Main Menu, press button [1]. To select a control you want to adjust, press the arrow buttons on the front control panel of your monitor and scroll through the choices. When the control you want is highlighted, press button [2].
-
Page 9: Main Menu Controls
Zoom Pincushion Pin Balance to the left or right. ViewSonic P70f adjusts the difference between the image adjusts the background black level of the screen (Horizontal Size) adjusts width of the screen image. (Horizontal Position) moves the screen image (Vertical Size) adjusts the height of the screen (Vertical Position) moves the screen image up expands and contracts the entire screen image. - Page 10 There are two ways to degauss the display: automatically by turning the monitor on, or manually by selecting the DEGAUSS control from the menu. To degauss the monitor manually, select DEGAUSS from the menu and press button [2].
- Page 11 Exception: This control does not affect changes made with the User Color control. ® displays information regarding the current ViewMeter input signal coming from the graphics card of the computer. ViewSonic P70f...
-
Page 12: Other Information
Power Saving Modes Macintosh models prior to G3 require a Macintosh adapter. To order a ViewSonic Macintosh adapter, contact Customer Support. You will need to provide the product serial number. NOTE: This product was designed for operation in the magnetic fields of the hemisphere where it was purchased. -
Page 13: Troubleshooting
No power • Make sure power button (or switch) is ON. • Make sure A/C power cord is securely connected to the back of the monitor and to a power outlet. • Plug another electrical device (like a radio) into the power outlet to verify that the outlet is supplying proper voltage. -
Page 14: Customer Support
F: +61 2 9929 8393 viewsonic.com T: 65 273 4018 service.sg@ F: 65 273 1566 viewsonic.com T: 886 2 2246 3456 service.ap@ F: 886 2 8242 3668 viewsonic.com T: 886 2 2246 3456 service.ap@ F: 886 2 8242 3668 viewsonic.com ViewSonic P70f... -
Page 15: Cleaning The Monitor
® cleaners on the monitor screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the monitor. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. ViewSonic... -
Page 16: Limited Warranty
If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components. -
Page 17: Appendix
L or coloured RED. If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. ViewSonic P70f Switzerland ... SEV Britain ... BASE/BS Japan ... Electric Appliance Control Act... -
Page 18: Compliance Information For U.s.a
CE Conformity for Europe The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility, and 73/ 23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety." ViewSonic P70f... - Page 19 NOTES ViewSonic P70f...
- Page 20 ViewSonic Corporation...
