ENGLISH

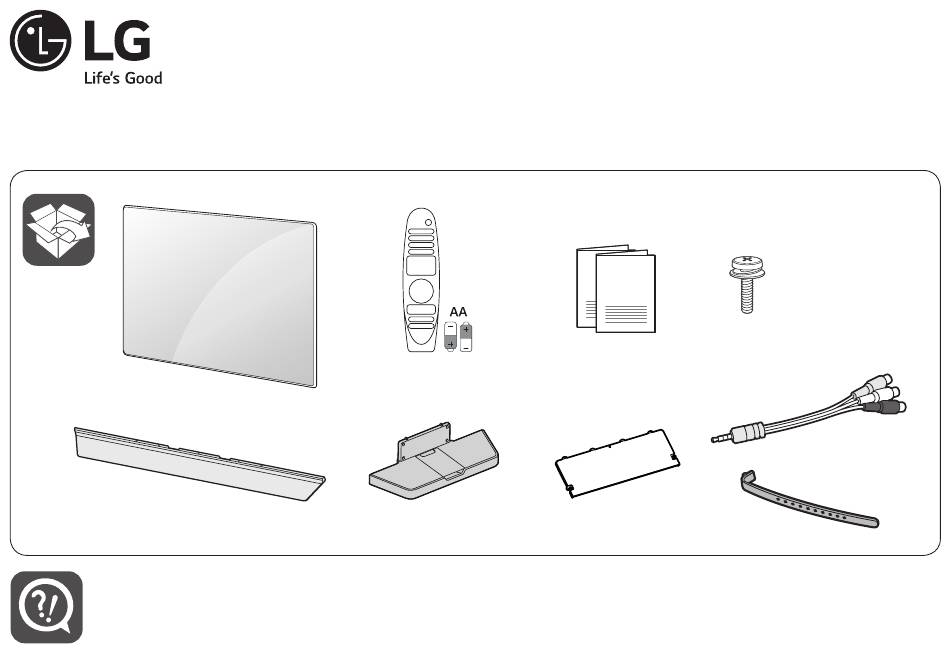

Easy Setup Guide
Please read this manual carefully before operating your set and retain it for future reference.
ESPAÑOL
Guía Rápida de Configuración
Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
FRANÇAIS
Guide de configuration rapide
Avant d'utiliser l'appareil, veuillez lire attentivement ce manuel et le conserver pour pouvoir vous y reporter ultérieurement.
Head
www.lg.com
washer

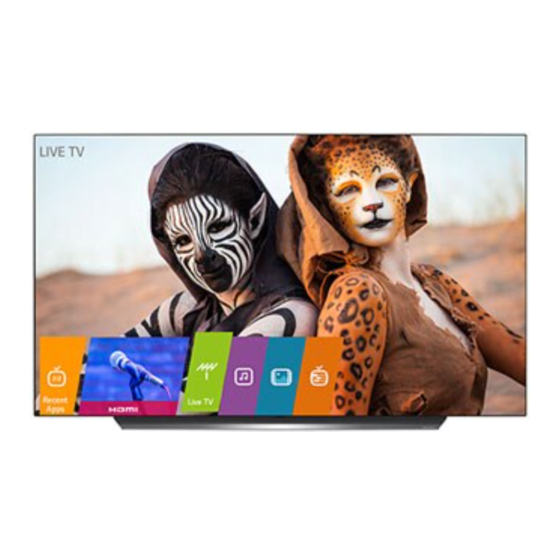

OLED TV
55ET960H0UA
65ET960H0UA
X 7
(M4 x L20)
Printed in Korea
Advertisement
Table of Contents
Related Manuals for LG 55ET960H0UA
Summary of Contents for LG 55ET960H0UA
- Page 1 OLED TV ENGLISH Easy Setup Guide 55ET960H0UA Please read this manual carefully before operating your set and retain it for future reference. 65ET960H0UA ESPAÑOL Guía Rápida de Configuración Lea atentamente este manual antes de poner en marcha el equipo y consérvelo para futuras consultas.
- Page 2 ENGLISH Read Safety and Reference. ESPAÑOL Leer Seguridad y Consultas. FRANÇAIS Lisez Sécurité et références.
- Page 8 1,228 1 228 46.9 46,9 23.0 23,0 18.9 18,9 55ET960H0UA 357 W (48.3) (48,3) (29.0) (29,0) (9.8) (9,8) (27.7) (27,7) (1.8) (1,8) (50.7) (50,7) (41.6) (41,6) 1,449 1 449 46.9 46,9 33.9 33,9 25.2 25,2 65ET960H0UA 476 W (57.0) (57,0) (33.9)
- Page 9 OWNER’S MANUAL Safety and Reference LG OLED TV Please read this manual carefully before operating your set and retain it for future reference. 55ET960H0UA 65ET960H0UA www.lg.com *MFL71402088* Copyright © 2019 LG Electronics Inc. All Rights Reserved. Printed in Korea (2007-REV01)
-
Page 10: Important Safety Instruction
Important Safety Instruction • Read these instructions. • Keep these instructions. • Heed all warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •... - Page 11 Warning! Safety instructions - Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g., on shelves above the unit). - Near flammable objects such as gasoline CAUTION or candles, or expose the TV to direct air RISK OF ELECTRIC SHOCK...
- Page 12 • Grounding (Except for devices which are not • Use only an authorized attachments / accessories grounded.) approved by LG Electronics. Otherwise, this may - TV with a three-prong grounded AC plug must be result in fire, electric shock, malfunction, or product connected to a three-prong grounded AC outlet.
- Page 13 Preparing • Batteries - Store the accessories (battery, etc.) in a safe location out of the reach of children. • When the TV is turned on for the first time after - Do not short circuit, disassemble, or allow the being shipped from the factory, initialization of the batteries to overheat.
-
Page 14: Optional Extras
VESA standard. Standard dimensions for the wall mount kits are described in the following table. • Use at least two people to move a large TV. 55ET960H0UA Model • When transporting the TV by hand, hold the TV as 65ET960H0UA shown in the following illustration. -
Page 15: Mounting On A Table
• When transporting the TV, keep the TV upright; • Do not apply foreign substances (oils, never turn the TV on its side or tilt towards the left lubricants, etc.) to the screw parts when or right. assembling the product. (Doing so may •... -
Page 16: Mounting On A Wall
Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall mount bracket, use a wall mount bracket where the... - Page 17 Connections • Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse. You can connect various external devices to the TV. • For more information of screws and wall For more information on external device’s connection, mount bracket, refer to the Separate refer to the manual provided with each device.
-
Page 18: Other Connections
Other connections External Speakers Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. HDMI • Supported HDMI Audio format : (Depending upon model) DTS (44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz), DTS HD (44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz / 176.4 kHz / 192 kHz), True HD (48 kHz),... -
Page 19: Network Setup
Network setup Method of volume control port (Depending upon model) (Depending upon model) • Cable Spec. Wired network connection Each Up / Down This TV can be connected to a Pro:Centric server pin is pulled to via the port. After making the physical 3.3 V with CPU connection, the TV needs to be set up for network GPIO. -
Page 20: Using The Button
Using the Button You can simply operate the TV functions, using the button. Basic Functions Power On (Press) Power Off (Press and Hold) 1 All running apps will close. Using Magic Remote Control (Depending upon model) (Some buttons and services may not be provided The descriptions in this manual are based on the depending upon models or regions.) buttons on the remote control. -
Page 21: Registering Magic Remote Control
Registering Magic Remote Control (Power) Turns the TV on or off. (Input) Changes the input source. How to register the Magic Remote Control Number button Enters numbers. Also supports characters. To use the Magic Remote, first pair it with your TV. (Dash) Inserts a dash between numbers such as 1 Put batteries into the Magic Remote and turn the 2-1 and 2-2. -
Page 22: Troubleshooting
0.2 m (0.65 ft), the Magic remote control may performance. The customer is responsible to ensure not perform as expected due to frequency the compatibility of their equipment with any LG interference. Electronics software. If needed, please consult with • Do not mix new batteries with old batteries. - Page 23 • Abnormal Display • When cleaning the product, be careful not - If the TV feels cold to the touch, there may be a to allow any liquid or foreign objects to small flicker when it is turned on. This is normal; enter the gap between the upper, left or there is nothing wrong with TV.
- Page 24 Settings To set additional picture options (Q.Settings) ( ) [Picture] [Picture Mode Settings] [Picture Options] To select Picture Mode Adjusts detailed setting for images. • [Noise Reduction] Eliminates noise in the picture. (Q.Settings) ( ) [Picture] [Picture • [MPEG Noise Reduction] Eliminates noise generated Mode Settings] [Picture Mode] while creating digital picture signals.
-
Page 25: Specifications
Specifications Product specifications may be changed without prior notice due to upgrade of product functions. Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the Test Procedures for Television Sets (USA only). The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.). Broadcasting Specifications Television system ATSC, NTSC-M, 64 &... - Page 26 HDMI (PC) supported mode HDMI (DTV) supported mode Horizontal Vertical (Use HDMI IN 1 for PC mode) Resolution Frequency (kHz) Frequency (Hz) Horizontal Vertical 31.46 59.94 Resolution 640 x 480p Frequency (kHz) Frequency (Hz) 31.50 60.00 640 x 350 31.46 70.09 31.47 59.94...
-
Page 27: Supported Photo Formats
AV supported mode (Bit rate) - (Sample freq.) 8 kHz ~ 96 kHz .flac Horizontal Vertical (Support) FLAC Resolution Frequency (kHz) Frequency (Hz) (Channel) Mono, Stereo 15.73 59.94 720 x 480i 15.75 60.00 31.47 59.94 Supported Video Formats 720 x 480p 31.50 60.00 * Maximum: 1920 x 1080 @ 30p (only Motion JPEG 640 x 480 @ 30p) - Page 28 • ULTRA HD Video : 3840 x 2160, 4096 x 2160 Preventing Image Retention • Some HEVC encoded ULTRA HD videos other than the content officially provided by LG Electronics OLED is a self-emissive technology, which brings may not be played.
- Page 29 Recommended Measures for Information on Functions Preventing Image Retention Supporting Image Quality in Relation to Temporary Image • Avoid watching a video displaying an image as Retention listed above for extended periods of time. • Adjust your TV settings as below when turning •...
-
Page 30: Key Codes
KEY CODES * This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) R/C Button R/C Button Wheel (Up) (Q.Settings) R/C Button R/C Button Wheel (Down) (Screen Remote) R/C Button (Dash) R/C Button R/C Button R/C Button (Home) R/C Button... -
Page 31: External Control Device Setup
USB to Serial converter with USB Cable USB Type (TV) (PC) • LG TV supports PL2303 chip-based (Vendor ID : 0 x 0557, Product ID : 0 x 2008) USB to serial converter which is RS-232C IN (CONTROL & SERVICE) not made nor provided by LG. - Page 32 Connector type : D-Sub 9-pin male RS-232C (Serial port) RS-232C configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID For Set ID number, see “Real data mapping (Hexadecimal : Decimal)”. 1 Press (Q.Settings) ( ) to access the main menus.
-
Page 33: Communication Parameters
Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list * (Depending upon model) COMMAND1 COMMAND2... -
Page 34: Transmission / Receiving Protocol
TRANSMISSION / RECEIVING PROTOCOL * (Depending upon model) Transmission (Command1)(Command2)( )([Set ID])( )(Data)(Cr) (Command 1) : First command to control the TV. (j, k, m or x) (Command 2) : Second command to control the TV. ([Set ID]) : You can adjust the set ID to choose desired monitor ID number in option menu. Adjustment range is 1 to 99. - Page 35 1 Power (Command: k a) ► To control power on or off of the set. (c)( )([Set ID])( )(OK/NG)(Data)(x) Transmission * Using the PC input, you select either 16:9 or 4:3 screen aspect ratio. (k)(a)( )([Set ID])( )(Data)(Cr) * In DTV/HDMI/Component mode (high-definition), Data 00 : [Off] Just Scan is available.
- Page 36 5 Volume Control (Command: k f) 9 [Tint] (Command: k j) ► To adjust volume. You can also adjust volume with ► To adjust the screen tint. You can also adjust color the volume buttons on remote control. in the picture settings. Transmission Transmission (k)(f)( )([Set ID])( )(Data)(Cr)
- Page 37 16 [Color Temperature] (Command: x u) ► To adjust color temperature. You can also adjust (m)( )([Set ID])( )(OK/NG)(Data)(x) color temperature in the picture settings. * If you are not using the remote control, use this Transmission mode. When main power is off & on (plug-off and plug-in, after 20 - 30 seconds), external control lock (x)(u)( )([Set ID])( )(Data)(Cr) is released.
- Page 38 18 Tune Command (Command: m a) • Tune Command Examples: * This command may work differently Depending 1 Tune to the Analog antenna (PAL) Channel 10. upon model and signal. [Set ID] = All = 00 * For Europe, Mid-East, Colombia, Asia except South Data 00 &...
- Page 39 • Analog Antenna/Cable • Tune Command Examples: 1 Tune to the Analog cable (NTSC) channel 35. Data 00: Physical Channel Number - Antenna (ATV): 02~45 (Decimal: 2 ~ 69) [Set ID] = All = 00 - Cable (CATV): 01~87 (Decimal: 1~135) Data 00 = Channel Data is 35 = 23 (Data 01 ~ 04): Major/Minor Channel Number Data 01 &...
- Page 40 • Digital Antenna/Satellite 19 Key (Command: m c) Data 00: xx (Don’t care) ► To send IR remote key code. (Data 01)(Data 02): Major Channel Number Transmission Data 01: High byte Channel Data (m)(c)( )([Set ID])( )(Data)(Cr) Data 02: Low byte Channel Data Data : Key code - page 22 - 00 01 ~ 27 0F (Decimal: 1 ~ 9999) (Data 03)(Data 04): Minor/Branch Channel Number...
- Page 41 If not use the remote-controller with data formats recommended, IR output signals will be suppressed automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this matter, here are two methods as below.
-
Page 42: Open Source Software Notice Information
Dolby Atmos, and the double-D symbol are available for download. trademarks of Dolby Laboratories. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. -
Page 43: Fcc Notice
Regulatory FCC Radio Frequency Interference Requirements (for UNII devices) (For USA) FCC Notice High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. (For USA) These radar stations can cause interference with and/ This equipment has been tested and found to or damage this device. -
Page 44: Industry Canada Statement
Industry Canada Statement RSS-247 Requirement (For Canada) (For Canada) [For having wireless function (WLAN, Bluetooth,...)] [For product having the wireless function using 5 GHz frequency bands] This device contains licence-exempt transmitter(s)/ receiver(s) that comply with Innovation, Science and (1) The device for operation in the band 5150–5250 Economic Development Canada’s licence-exempt MHz is only for indoor use to reduce the potential for RSS(s). -
Page 45: Note To Cable/Tv Installer
NOTE TO CABLE/TV INSTALLER Symbols (For USA and Canada) Refers to alternating current(AC). This reminder is provided to call the CATV system Refers to direct current(DC). installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines Refers to class II equipment. - Page 46 Supplier’s Declaration of Conformity Trade Name Responsible Party LG Electronics USA, Inc. Address 111 Sylvan Avenue, North Building, Englewood Cliffs, NJ 07632 E-mail lg.environmental@lge.com LG Customer Information Center The model and serial number of the product are located on the back and on one side of the product.
