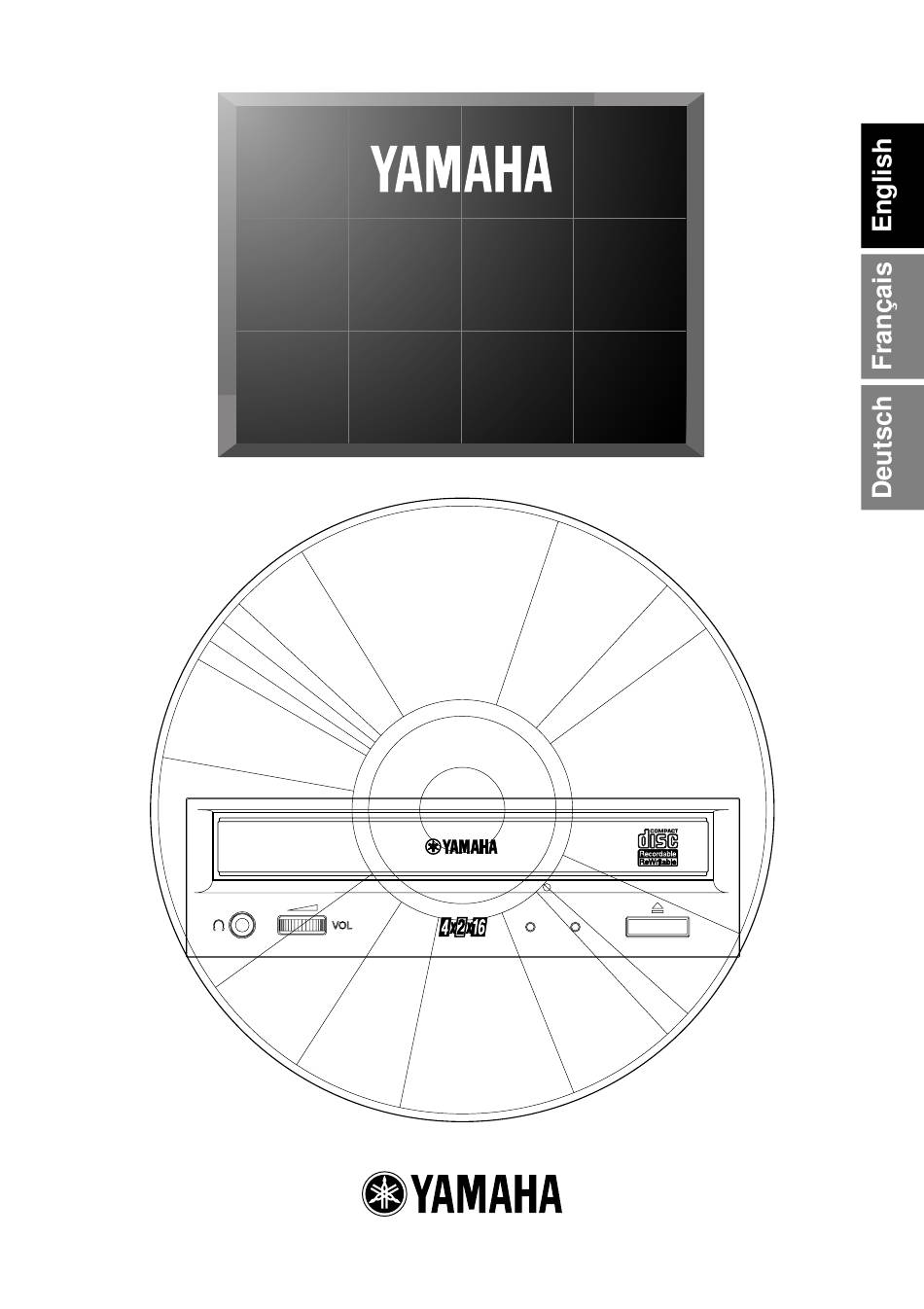

- Page 1 CRW4216E SERIES User Guide Guide de l’utilisateur Bedienungsanleitung READ/ DISC WRITE...
- Page 2 If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Systems Technology, Inc. 100 Century Center Court, San Jose, CA95112, U.S.A.
- Page 3 Laser Diode Properties CAUTION Material : GaAlAs Use of controls or adjustments or performance of Wavelength : 783-789 nm procedures other than those specified herein may Emission Duration : Continuous result in hazardous radiation exposure. Laser Output Power : Less than 44.6 µW* his output is value measured at a distance 200mm from the objective lens surface on the optical pick-up block.
- Page 4 WARNING WARNING WARNING • The temperature where CRW4216E is located should be between 5ºC and 40ºC (41ºF – 104ºF), when used in a fan-cooled system. • Do not disassemble the CRW4216E cover to reduce the risk of electric shock. • Always remove the disc before transporting CRW4216E.
- Page 5 • Do not subject the CRW4216E and computer to impact or shock when in use, as this may impair recording or playback. • Yamaha is not responsible for any data or informa- tion losses resulting from the operation of the CRW4216E.
-
Page 6: Table Of Contents
Chapter 1 - System Configuration ........3 Computer .................3 Software ................3 Tools ................3 Discs ................4 Chapter 2 - Installing the Yamaha CRW4216E Drive ... 5 MASTER/SLAVE settings ..........5 Installing the CRW4216E drive ........7 Chapter 3 - Operation ............12 Front Panel ..............12 Loading a Disc ...............13... -
Page 7: Introduction
Introduction Introduction Thank you for purchasing a Yamaha CRW4216E drive. Please read this manual before using the drive in order to make the best use of the superior CRW4216E functions. After reading, please retain this manual for future reference. CRW4216E Features... -
Page 8: Orange Book Compatible Recording
Introduction Orange Book Compatible Recording Track at Once In this mode, data can be recorded to disc one track at a time. Discs recorded in this mode cannot be played in CD players or CD- ROM drives other than a CD-RW or a CD-R drive until the session is closed. -
Page 9: Chapter 1 - System Configuration
Phillips screwdriver This is used to remove the Phillips Screwdriver cover of your computer, and to install the Yamaha CRW4216E drive. Long nose pliers These are used to insert or remove the jumper pin when setting the MASTER/SLAVE settings of the Yamaha CRW4216E drive. -
Page 10: Discs
On the CRW4216E, you can use conventional CD-RW and CD-R discs that conform to the Recordable Compact Disc Systems Part 2 and 3 (Orange Book). Yamaha recommends the following Yamaha CD-RW and CD-R discs: CD-RW Discs ( φ 120mm, 74 minutes) >... -
Page 11: Chapter 2 - Installing The Yamaha Crw4216E Drive
Chapter 2 - Installing the Yamaha CRW4216E Drive Chapter 2 - Installing the Yamaha CRW4216E Drive MASTER/SLAVE settings Before you install the CRW4216E in your computer, you must make the MASTER/SLAVE setting. This setting is set by inserting a jumper pin in the jumper switch located on the rear panel of the CRW4216E drive. - Page 12 Chapter 2 - Installing the Yamaha CRW4216E Drive Setting the CRW4216E as the MASTER As shown in the diagram at the right, insert the CSEL SLAVE jumper pin into the right edge of the jumper MASTER switch. Note: If only the CRW4216E will be connected to the IDE interface connector, connect the CRW4216E to the end of the connector.
-
Page 13: Installing The Crw4216E Drive
Chapter 2 - Installing the Yamaha CRW4216E Drive Installing the CRW4216E drive The following steps will differ slightly depending on the type of com- puter you are using. For details on removing the cover from your computer, and installing or removing internal devices, refer to the manual for your computer. - Page 14 Chapter 2 - Installing the Yamaha CRW4216E Drive 3. Your hands or body may be holding a charge of static elec- tricity. Touch a metallic portion of the chassis or power supply to release any such charge. 4. Remove the front cover of a vacant half-height drive bay.
- Page 15 Chapter 2 - Installing the Yamaha CRW4216E Drive 6. Connect the IDE interface connector. Connect the 40-pin IDE interface connector to the IDE interface located on the rear panel of the CRW4216E drive. Position the connector so that the colored line is at pin 1 (your lower right).
- Page 16 Chapter 2 - Installing the Yamaha CRW4216E Drive AUDIO cable To the CRW4216E 4-pin connector (large) To the Sound Card (Sound Blaster compatible) 4-pin connector (small) 8. Connect the power supply cable. Connect the +12V and +5V 4-pin power cable to the power supply interface located on the rear panel of the CRW4216E drive.
- Page 17 Chapter 2 - Installing the Yamaha CRW4216E Drive 9. Tighten the four fastening screws securely. V O L O N / D IS C R E A W R IT 10. Attach the cover of your computer. 11. Connect the power cable to an AC outlet, and switch on your computer.
-
Page 18: Chapter 3 - Operation
Chapter 3 - Operation Chapter 3 - Operation Front Panel READ/ DISC WRITE 1 Disc tray The disc is inserted and ejected here. Pressing the eject button will open the tray. 2 Headphone jack This stereo mini jack allows you to connect headphones and listen to audio. -
Page 19: Loading A Disc
Chapter 3 - Operation 6 Eject button This button is used to open or close the tray. 7 Manual Eject hole This is used to manually eject a disc that cannot be ejected in the nor- mal way. It is for emergency use only. Loading a Disc 1. -
Page 20: Ejecting The Disc
Chapter 3 - Operation Ejecting the Disc If the CRW4216E is powered on: Press the eject button to eject the disc. Note: You cannot eject the disc if the ATAPI command prohibits the eject operation while the CRW4216E is reading data. Caution: Be sure to remove the disc after it is completely ejected. -
Page 21: Manual Eject (Emergency Use)
Chapter 3 - Operation Manual Eject (emergency use) Here we explain how to eject the disc when it cannot be ejected in the normal way; for example, the power is shut off inadvertently or the loading mechanism fails. This technique should be used only as a last resort. -
Page 22: Troubleshooting
Troubleshooting Troubleshooting If CRW4216E is not performing as expected, look up the symptoms in the following table, and take the appropriate corrective action. Symptoms Corrective action The power to the CRW4216E is off • Check the DC power cable connection. The CRW4216E is not recognized by •... -
Page 23: Appendix
Appendix Appendix Specifications Interface ATAPI (E-IDE) Data Capacity 650MB (74 minutes disc) 550MB (63 minutes disc) Record/Read Speed Writing (CD-RW): 2X speed Writing (CD-R): Normal speed, 2X speed, 4Xspeed Reading: Maximum 16X speed (CD-DA: 1X speed only) Data Transfer Rate 150 - 2400KB/sec Burst Transfer Rate Maximum 13.3 MB/sec... -
Page 24: Front Panel Indicator Key
Appendix Front Panel Indicator Key on: green flashing: green — off on: orange flashing: orange Status ON/DISC READ/WRITE Reset — — Ready (no disc) — Inserting disc — Ejecting disc — Ready (disc inserted) — Seeking Preparing to write Writing Writing (test mode) Playback... - Page 25 AUSTRIA, EASTERN EUROPE and French: Pour plus de détails sur les produits, RUSSIA veuillez vous adresser à Yamaha ou au distributeur Yamaha Europa GmbH le plus proche figurant dans la liste suivante : Multi Media Division...
