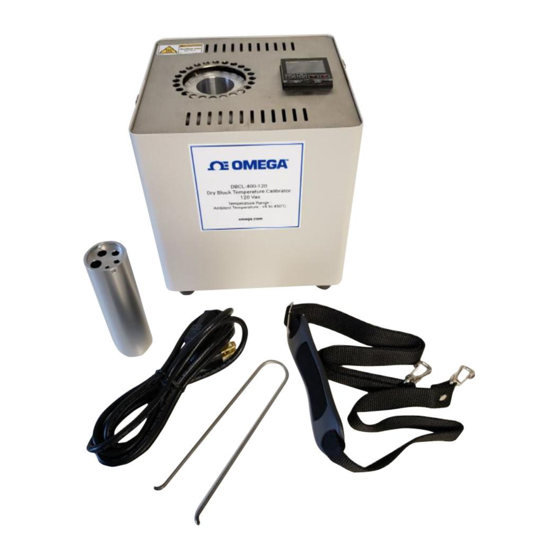

- Page 1 User’sGuide Shop online at omega.com e-mail: info@omega.com For latest product manuals: www.omega.com Above items are included with the DBCL400 Dry Block temperature calibrator. Not shown is the calibration certificate and operator manual Model DBCL400 Dry Block Temperature Calibrator...
-
Page 2: Specification
DBCL400 Dry Block Temperature Calibrator Introduction The DBCL400 calibrator provides a safe, dry, constant temperature source for checking and calibrating a wide range of temperature sensors, systems, indicators and thermometers. It is fast and economical and can be used either on a bench top or as a portable field unit. The weight of the unit is only 11 pounds/5 kilograms. The unit covers the temperature range from 5°C above ambient up to 450°C using a machined aluminum block as the... -
Page 3: Installation
If the equipment is used in a manner not specified by Omega Engineering, the protection provided by the equipment to the operator may be impaired. All Omega Engineering units have been designed to conform to international safety requirements and are fitted with a self-resetting over-temperature cutout. -
Page 4: Operation
P a g e OPERATION Preparation The heater design, temperature sensor and control circuit give good temperature control and uniformity, but make sure that there is a close fit of the probes in the block to allow efficient heat transfer. Contact us about an insert that more closely fits your probe or device being calibrated. Plug the power cable into the socket in the back of the unit. - Page 5 OFTL will display which is the Zero or low end adjustment. Enter a negative value to correct for low readings and vice versa. For example if your reference thermometer is showing that the DBCL400 is 2.0 degrees low then enter a -2.0. Press to access OFTH which is the span or high end correction.
- Page 6 P a g e Accessories The following parts may be obtained directly from Omega Engineering Part Number Description DBCL-UKCABLE UK 240 volt power cable with 13amp UK plug (5 amp fuse) 4164 Euro style 240 volt power cable with R/A Schuko plug...
- Page 7 Product Dry Block Temperature Calibrator Specification Model DBCL400 operating range ambient +5 to 450°C Model DBCL130 operating range -25 to 130°C (20°C ambient) 5. The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:...
- Page 8 Fax: (203) 359-7700 e-mail: info@omega.com For Other Locations Visit omega.com/worldwide The information contained in this document is believed to be correct, but OMEGA accepts no liability for any errors it contains, and reserves the right to alter specifications without notice.
- Page 9 Department will issue an Authorized Return (AR) number immediately upon phone or written request. Upon examination by OMEGA, if the unit is found to be defective, it will be repaired or replaced at no charge. OMEGA’s WARRANTY does not apply to defects resulting from any action of the purchaser, including but not limited to mishandling, improper interfacing, operation outside of design limits, improper repair, or unauthorized modification.
