Philips 220SW8FS1/05 Electronic User's Manual

Philips lcd widescreen monitor 220sw8fs1 22" wide wsxga
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
e-Manual
Philips LCD Monitor Electronic User's Manual
file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/INDEX.HTM2007/12/24 下午 05:24:14

Advertisement

Table of Contents
loading

Related Manuals for Philips 220SW8FS1/05

Summary of Contents for Philips 220SW8FS1/05

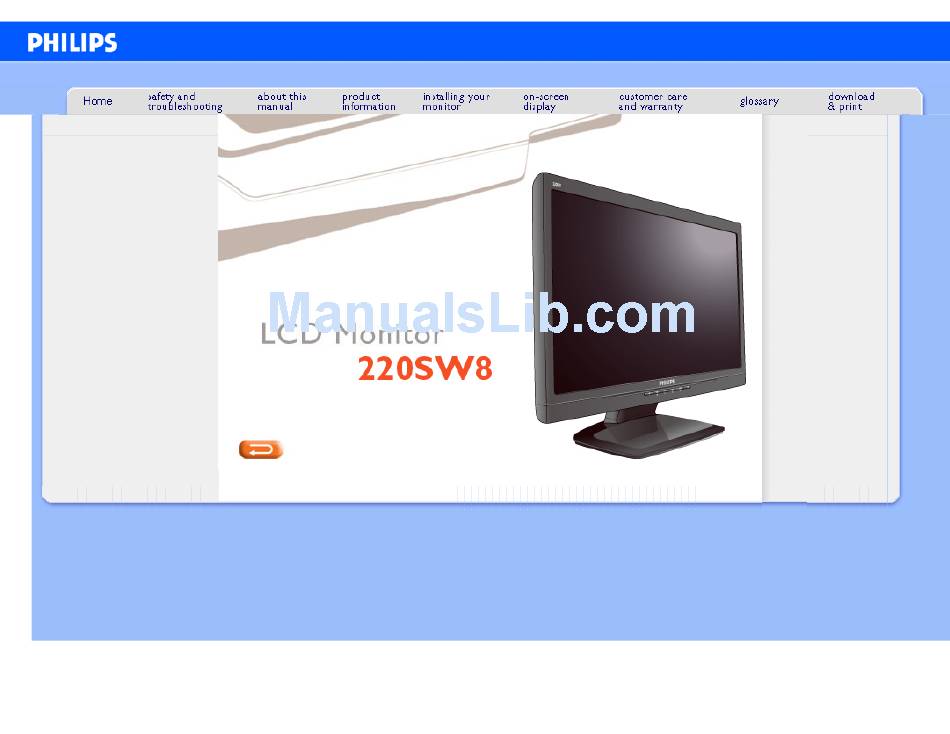

  • Page 1 Philips LCD Monitor Electronic User’s Manual file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/INDEX.HTM2007/12/24 下午 05:24:14...

  • Page 2: Safety And Troubleshooting Information

    DC power cord for normal operation. Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care...
  • Page 3 ● ● ● file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/safety.htm 第 2 頁 / 共 2 2007/12/24 下午 05:26:17 extreme cold. In order to maintain the best performance of your monitor and use it for a longer lifetime, please use the monitor in a location that falls within the following temperature and humidity ranges.

  • Page 4: Faqs (Frequently Asked Questions)

    What are the .inf and .icm files on the CD-ROM? How do I install the drivers (.inf and . icm)? file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/saf_faq.htm 第 1 頁 / 共 8 2007/12/24 下午 05:26:22 Recommended video mode for Philips 22": 1680x1050 @60Hz. Unplug all cables, then connect your PC to the monitor that you used previously.
  • Page 5 Will the LCD monitor accept an interlaced signal under PC models? What does the Refresh Rate mean for LCD? file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/saf_faq.htm 第 2 頁 / 共 8 2007/12/24 下午 05:26:22 Your video card/graphic driver and monitor together determine the available resolutions. You can select the desired resolution under Windows® Control Panel with the "Display properties"...
  • Page 6 How should I clean the LCD surface? Can I change the color setting of my monitor? file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/saf_faq.htm 第 3 頁 / 共 8 2007/12/24 下午 05:26:22 from the top to the bottom of the screen determines flicker, an active matrix display uses an active element (TFT) to control each individual pixel and the refresh rate is therefore not really applicable to LCD technology.
  • Page 7 Yes. Philips LCD monitors have this optional feature. For standard VESA mount holes on the rear cover allows the user to mount the Philips monitor on most of the VESA standard arms or accessories. We recommend to contact your Philips sales representative for more information.
  • Page 8 LCD Panel Technology file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/saf_faq.htm 第 5 頁 / 共 8 2007/12/24 下午 05:26:22 Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs and workstations. You may need a cable adapter to connect the monitor to your Mac system.
  • Page 9 What are the advantages of TFT LCD compared with CRT? Why is vertical frequency of 60Hz optimal for an LCD monitor? file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/saf_faq.htm 第 6 頁 / 共 8 2007/12/24 下午 05:26:22 A Liquid Crystal Display (LCD) is an optical device that is commonly used to display ASCII characters and images on digital items such as watches, calculators, portable game consoles, etc.
  • Page 10 Ergonomics, Ecology and Safety Standards What is the CE mark? file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/saf_faq.htm 第 7 頁 / 共 8 2007/12/24 下午 05:26:22 The TFT LCD panel is an element that controls/displays the inlet of a backlight using the dual-refraction of a liquid crystal. Using the property that the projection of inlet light refracts toward the major axis of the liquid element, it controls the direction of inlet light and displays it.
  • Page 11 European 'Law' that relates to health, safety, environment and consumer protection, much the same as the U.S. National Electrical Code and UL Standards. Yes. Philips LCD monitors conform to the guidelines of MPR-II and TCO 99/03 standards for the control of radiation, electromagnetic waves, energy reduction, electrical safety in the work environment and recyclability.

  • Page 12: Troubleshooting

    Screen says AUTO button not working properly Imaging Problems Display position is incorrect file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/saf_troub.htm 第 1 頁 / 共 3 2007/12/24 下午 05:26:25 Check these items Make sure the power cord is plugged into the power outlet ● and into the back of the monitor.
  • Page 13 An after-image remains after the power has been turned off. Green, red, blue, dark, and white dots remains file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/saf_troub.htm 第 2 頁 / 共 3 2007/12/24 下午 05:26:25 Check that the signal cable is properly connected to the ● graphics board or PC.
  • Page 14 Troubleshooting For further assistance, refer to the representative. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/saf_troub.htm 第 3 頁 / 共 3 2007/12/24 下午 05:26:25 Consumer Information Centers list and contact Philips customer service RETURN TO TOP OF THE PAGE...

  • Page 15: Regulatory Information

    IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/regs/regulat.htm 第 1 頁 / 共 11 2007/12/24 下午 05:26:30 220SW8...
  • Page 16 Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities. From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors.
  • Page 17 Federal laws. For the disposal or recycling information, contact org. CE Declaration of Conformity Philips Consumer Electronics declare under our responsibility that the product is in conformity with the following standards - EN60950-1:2001 (Safety requirement of Information Technology Equipment)
  • Page 18 Use only RF shielded cable that was supplied with the monitor when connecting this monitor to a computer device. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/regs/regulat.htm 第 4 頁 / 共 11 2007/12/24 下午 05:26:30 VESA State LED Indicator Power Consumption...
  • Page 19 Brancher l'équipement sur un autre circuit que celui utilisé par le récepteur. ● Demander l'aide du marchand ou d'un technicien chevronné en radio/télévision. ● file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/regs/regulat.htm 第 5 頁 / 共 11 2007/12/24 下午 05:26:30 RETURN TO TOP OF THE PAGE Trade Name: Philips Philips Consumer Electronics North America P.O.
  • Page 20 (computer, monitor, printer, and so on) should have the same power supply source. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/regs/regulat.htm 第 6 頁 / 共 11 2007/12/24 下午 05:26:30 Toutes modifications n'ayant pas reçu l'approbation des services compétents en matière de conformité est susceptible d'interdire à l'utilisateur l'usage du présent équipement.
  • Page 21 FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/regs/regulat.htm 第 7 頁 / 共 11 2007/12/24 下午 05:26:30 RETURN TO TOP OF THE PAGE...
  • Page 22 Untergrund zu verwenden (schlechte Lesbarkeit und erhöhte Augenbelastung bei zu geringem Zeichenkontrast wären die Folge). Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/regs/regulat.htm 第 8 頁 / 共 11 2007/12/24 下午 05:26:30 RETURN TO TOP OF THE PAGE RETURN TO TOP OF THE PAGE...
  • Page 23 Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
  • Page 24 Electronic Information Products" or commonly referred to as China RoHS. All products including CRT and LCD monitor which are produced and sold for China market have to meet China RoHS request. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/regs/regulat.htm 第 10 頁 / 共 11 2007/12/24 下午 05:26:30 The wires in the mains lead are coloured in accordance with the following code: BLUE - "NEUTRAL"...
  • Page 25 Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.

  • Page 26: Other Related Information

    Use a Cord Set consisting of a minimum 18 AWG cord and grounding type attachment plug rated 15 A, 250 V. The Cord Set should have the appropriate safety approvals for the country in which the equipment will be installed and / or be marked HAR. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/safety/saf_other.htm2007/12/24 下午 05:26:34 RETURN TO TOP OF THE PAGE...

  • Page 27: About This Manual

    • Notational Descriptions About This Guide This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version.
  • Page 28 ©2007 Koninklijke Philips Electronics NV All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/about/about.htm 第 2 頁 / 共 2 2007/12/24 下午 05:26:44 NOTE: This icon indicates important information and tips that help you make better use of your computer system.
  • Page 29 • Smartimage • SmartContrast Your LCD monitor • SmartSaturate • SmartSharpness Congratulations on your purchase and welcome to Philips. To fully benefit from the support that Philips offers, register your product at. www.philips.com/welcome • Lead-free Product • Technical Specifications • Resolution & Preset Modes •...
  • Page 30 SmartImage OSD.There are five modes to be selected: Office Work, Image Viewing, Entertainment, Economy, and Off. There are five modes to be selected: Office Work, Image Viewing, Entertainment, Economy, and Off. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/product.htm 第 2 頁 / 共 10 2007/12/24 下午 05:26:50 launch the SmartImage on screen display;...
  • Page 31 When you active SmartContrast which will analysis the content you are displaying in real time to adjust colors and control file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/product.htm 第 3 頁 / 共 10 2007/12/24 下午 05:26:50 Enhances text and dampens brightness to increase readability and reduce eye strain. This mode...
  • Page 32 Entertainment mode and is turned off for top quality display of office applications and in the Economy mode to reduce power consumptions. Lead-free Product file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/product.htm 第 4 頁 / 共 10 2007/12/24 下午 05:26:50 RETURN TO TOP OF THE PAGE RETURN TO TOP OF THE PAGE...
  • Page 33 Product Information Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment.
  • Page 34 1680 x 1050 at 60 Hz (digital input) B. Recommended Resolution For 220SW8 1680 x 1050 at 60 Hz (digital input) 17 factory preset modes: file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/product.htm 第 6 頁 / 共 10 2007/12/24 下午 05:26:50 75 ohm 2.2K ohm 0.7 Vpp Separate sync...
  • Page 35 The following table shows the power consumption and signaling of this automatic power saving feature: VESA Mode Active Sleep Switch Off file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/product.htm 第 7 頁 / 共 10 2007/12/24 下午 05:26:50 Resolution V. freq (Hz) 720*400 70.087 640*480 59.940...
  • Page 36 No connect DDC Clock +5V Power DDC Data Ground (for +5V) No connect Hot Plug Detect ® artner, PHILIPS ® guidelines for energy efficiency. RETURN TO TOP OF THE PAGE Signal Assignment T.M.D.S. Data0- T.M.D.S. Data0+ T.M.D.S. Data0/5 Shield No connect No connect T.M.D.S.
  • Page 37 Blue video ground Product Views Follow the links to see various views of the monitor and its components. Front View Product Description file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/product.htm 第 9 頁 / 共 10 2007/12/24 下午 05:26:50 Assignment Pin No. DDC + 5 V Logic ground...
  • Page 38 Product Information RETURN TO TOP OF THE PAGE Physical Function Tilt RETURN TO TOP OF THE PAGE file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/product.htm 第 10 頁 / 共 10 2007/12/24 下午 05:26:50...

  • Page 39: Philips Pixel Defect Policy

    TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can • Pin Assignment guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains •...
  • Page 40 Because pixel and sub pixels defects of the same type that are near to one another may be more noticeable, Philips also specifies tolerances for the proximity of pixel defects. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/pixel.htm 第 2 頁 / 共 4 2007/12/24 下午 05:26:56 Bright dot defects appear as pixels or sub pixels that are always lit or 'on'.
  • Page 41 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
  • Page 42 Philips Pixel Defect Policy Note: * 1 or 2 adjacent sub pixel defects = 1 dot defect file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/pixel.htm 第 4 頁 / 共 4 2007/12/24 下午 05:26:57 RETURN TO TOP OF THE PAGE...
  • Page 43 Thus, Philips provide you a compact version of SmartManage, SmartManage Lite. You can use SmartManage Lite to manage your Philips Monitors via LAN. Please. refer to below comparison chart and determine if which one suit for your environment best.
  • Page 44 SmartManage SmartManage Features and Benefits The Philips SmartManage is a working console for IT management to gather monitors assets information, run asset report, control assets security, monitor assets security, and issue instant messages to monitor users. Philips SmartManage includes the following major features: Provides an additional security measure that helps corporate users safeguard their investment.
  • Page 45 SmartManage 2. Installer – Install Shield Legal Choose "I accept" for installation process. ● Cancel prompts user if you want to cancel installation. ● file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/SMART.HTM 第 3 頁 / 共 16 2007/12/24 下午 05:27:04...
  • Page 46 Check the box if you wants to install SmartManage Lite Asset Management services. ● Personal user usually not need to active this function.Read SmartManage section in this manual before you choose SmartManage Lite function file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/SMART.HTM 第 4 頁 / 共 16 2007/12/24 下午 05:27:04...
  • Page 47 Follow the instruction and complete the installation. ● You can launch after installation complete. ● If you want to launch later, you can either click the shortcut on desktop or toolbar. ● file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/SMART.HTM 第 5 頁 / 共 16 2007/12/24 下午 05:27:04...
  • Page 48 SmartManage file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/SMART.HTM 第 6 頁 / 共 16 2007/12/24 下午 05:27:04...
  • Page 49 SmartManage file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/SMART.HTM 第 7 頁 / 共 16 2007/12/24 下午 05:27:04...
  • Page 50 You can go to Plug-in menu to launch wizard later on as well. ● You can adjust more options without wizard by Standard pane. ● Wizard Analog Seguence White Point (Color Temp) file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/SMART.HTM 第 8 頁 / 共 16 2007/12/24 下午 05:27:04 Wizard Degital Seguence Resolution Resolution Focus Contrast...
  • Page 51 Cancel prompts user if you want to cancel installation. ● Tab Heading Adjust Adjust Adjust Adjust Adjust file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/SMART.HTM 第 9 頁 / 共 16 2007/12/24 下午 05:27:04 Sub Menu Display in Analog Brightness Contrast Focus (Clock & Clock Phase) Position Resolution...
  • Page 52 Refer to below table for sub-menu item base on your input. ● Tab Heading Color Color Color Color Color file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/SMART.HTM 第 10 頁 / 共 16 2007/12/24 下午 05:27:04 Sub Menu Display in Analog Display in Digital Black Level White Point Color Calibration Viewing Mode...
  • Page 53 Options Options AutoPivot, Input and Audio function will only available and shown if the product supports those features. Help Menu file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/SMART.HTM 第 11 頁 / 共 16 2007/12/24 下午 05:27:04 Sub Menu Display in Analog Display in Digital Auto Pivot...
  • Page 54 Help Menu will give you some information of Manual, Update, ID, System ID and ● version. If you ask for technical support. It will automatically generate a report for Philips ● supporting to understand your enviorment by click "Tech. Support".
  • Page 55 PIP, Zoning, Asset Management and Theft Deterrence will only available and shown if the product supports those features Theft Deterrence Philips Theft Deterrence minimizes theft or unauthorized relocation of your display. Theft Deterrence does not prevent the display from being stolen, but hinders the operation of the display once it is removed from the “Theft Deterrence enabled”...
  • Page 56 SmartManage Example for on line register Theft Deterrence PIN file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/SMART.HTM 第 14 頁 / 共 16 2007/12/24 下午 05:27:04...
  • Page 57 Install the driver. Remove SmartControl, and re-install it once more. If it is still not working, we are sorry that the graphic adaptor is not supported. Please pay attention to Philips’ web site for any updated SmartControl driver available.
  • Page 58 When Smartlmage is enabled, the sRGB scheme is disabled automatically. To use sRGB, you need to disable Smartlmage with button at the front bezel of your monitor. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/product/SMART.HTM 第 16 頁 / 共 16 2007/12/24 下午 05:27:04 RETURN TO TOP OF THE PAGE...

  • Page 59: Installing Your Lcd Monitor

    Front View Product Description • The Base • Getting Started • Optimizing Performance file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/install/install.htm 第 1 頁 / 共 3 2007/12/24 下午 05:37:58 To switch monitor's power On and Off To access OSD menu To adjust the OSD menu To adjust brightness of the display Input To change the signal input source.
  • Page 60 Rear View Optimizing Performance For best performance, ensure that your display settings are set at 1680x1050, 60Hz. ● file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/install/install.htm 第 2 頁 / 共 3 2007/12/24 下午 05:37:58 RETURN TO TOP OF THE PAGE Kensington anti-thief lock VGA input AC power input...
  • Page 61 Installing Your LCD Monitor file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/install/install.htm 第 3 頁 / 共 3 2007/12/24 下午 05:37:58 Note: You can check the current display settings by pressing the 'OK' button once. The current display mode is shown in OSD main controls called RESOLUTION.

  • Page 62: Connecting To Your Pc

    • Connecting to Your PC • Getting Started • Optimizing Performance • The base Connecting to Your PC file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/install/connect.htm 第 1 頁 / 共 3 2007/12/24 下午 05:38:01 DVI cable (Optional) Power cord (grey: DD 7G , black: DD7B) EDFU pack...
  • Page 63 Connecting to Your PC Connect the power cord to the back of the monitor firmly. (Philips has pre-connected VGA cable for the first installation. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/install/connect.htm 第 2 頁 / 共 3 2007/12/24 下午 05:38:01 *available for selective models *available for selective models...
  • Page 64 Connecting to Your PC Connect to PC file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/install/connect.htm 第 3 頁 / 共 3 2007/12/24 下午 05:38:01 Turn off your computer and unplug its power cable. Connect the monitor signal cable to the video connector on the back of your computer.
  • Page 65 • Connecting to your PC for VESA standard mounting applications ● • Getting Started • Optimizing Performance Remove the 2 screws and then remove the base from the LCD monitor. • Remove the Base file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/install/base.htm 第 1 頁 / 共 2 2007/12/24 下午 05:38:08...
  • Page 66 The Base Note: This monitor accepts a 100mmx100mm VESA-Compliant mounting interface. RETURN TO TOP OF THE PAGE file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/install/base.htm 第 2 頁 / 共 2 2007/12/24 下午 05:38:08...

  • Page 67: Getting Started

    Use the information file ( .inf) for Windows® 95/98/2000/Me/XP/Vista or later • Optimizing Performance The built-in VESA DDC2B feature in Philips Monitors supports Plug & Play requirements for Windows® 95/98/2000/Me/XP/Vista. This information file ( .inf) should be installed in order that your Philips monitor can be enabled from the 'Monitor' dialog box in Windows®...
  • Page 68 Getting Started For Windows® Me For Windows® XP file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/install/gt_start.htm 第 2 頁 / 共 3 2007/12/24 下午 05:38:14 Double click on the 'Display' Icon. Select the 'Settings' tab then click on 'Advanced...'. Select 'Monitor' - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
  • Page 69 If your Windows® 95/98/2000/Me/XP/Vista version is different or you need more detailed installation information, please refer to your Windows® 95/98/2000/Me/XP/Vista user's manual. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/install/gt_start.htm 第 3 頁 / 共 3 2007/12/24 下午 05:38:14 appropriate drive F: (CD-ROM Drive). Click on the 'Open' button, then click the 'OK' button.

  • Page 70: On-Screen Display

    Description of the On Screen Display What is the On-Screen Display? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
  • Page 71 Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/osd/osddesc.htm 第 2 頁 / 共 3 2007/12/24 下午 05:38:33...
  • Page 72 Use 1680x1050@60Hz for best results. Display of the native resolution alert can be switched off from Setup in the OSD (On Screen Display) menu. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/osd/osddesc.htm 第 3 頁 / 共 3 2007/12/24 下午 05:38:33 RETURN TO TOP OF THE PAGE...
  • Page 73 WESTERN EUROPE: • Ireland • Spain EASTERN EUROPE: Turkey LATIN AMERICA: Peru • NORTH AMERICA: PACIFIC: ASIA: Pakistan AFRICA: MIDDLE EAST: file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warranty.htm2007/12/24 下午 05:38:40 Austria • Belgium • Denmark • Italy • Luxembourg • the Netherlands • Norway • United Kingdom Czech Republic •...

  • Page 74: Your Philips F1Rst Choice Warranty

    Philips helpdesk directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site if your monitor turns out to be faulty or defective. Philips aims at a swap within 48 hours of your call being received.
  • Page 75 Note that products that are not originally designed, manufactured, approved and/or authorized for usage within the Philips F1rst Choice countries, do not apply to the Philips F1rst Choice Warranty. In these cases the Philips global warranty terms are valid.
  • Page 76 Your Philips F1rst Choice Warranty file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/war_1st.htm 第 3 頁 / 共 3 2007/12/24 下午 05:38:50...

  • Page 77: F1Rst Choice Contact Information

    Greece Ireland Italy Luxembourg The Netherlands Norway Poland Portugal Spain Sweden Switzerland United Kingdom file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warfirst.htm2007/12/24 下午 05:39:06 Code Telephone number Tariff € 0.07 0810 000206 € 0.06 078 250851 3525 8761 Local call tariff +358 09 2290 1908 Local call tariff €...

  • Page 78: Your Guarantee In Central And Eastern Europe

    Your Guarantee in Central and Eastern Europe Dear Customer, Thank you for purchasing this Philips product, which has been designed and manufactured to the highest quality standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts during a period of 36 months from date of purchase.
  • Page 79 In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting our dealers or Information Centers In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the Website: file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/war_ee.htm 第...

  • Page 80: Consumer Information Centers

    CZECH REPUBLIC General Consumer Information Center 800 142100 Xpectrum Lu.ná 591/4 CZ - 160 00 Praha 6 Tel: 800 100 697 Email:info@xpectrum.cz www.xpectrum.cz file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warcic.htm 第 1 頁 / 共 12 2007/12/24 下午 05:39:49 • Argentina • Australia • Bangladesh •...
  • Page 81 HUNGARY General Consumer Information Center 0680018544 (Local call tariff) Profi Service Center Ltd. 123 Kulso-Vaci Street , H-1044 Budapest ( Europe Center ) Hungary Tel: +36 1 814 8080 m.andras@psc.hu file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warcic.htm 第 2 頁 / 共 12 2007/12/24 下午 05:39:49...
  • Page 82 Belgrade 11000 Tel. +381 11 2070 664 Serbia SLOVAKIA General Consumer Information Center 0800004551 Datalan Servisne Stredisko Puchovska 8 SK - 831 06 Bratislava Tel: +421 2 49207155 Email: servis@datalan.sk file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warcic.htm 第 3 頁 / 共 12 2007/12/24 下午 05:39:49...
  • Page 83 Shevchenko street 32 UA - 49030 Dnepropetrovsk Tel: +380 562320045 www.csp-comel.com Latin America ANTILLES Philips Antillana N.V. Kaminda A.J.E. Kusters 4 Zeelandia, P.O. box 3523-3051 Willemstad, Curacao Phone: (09)-4612799 Fax : (09)-4612772 file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warcic.htm 第 4 頁 / 共 12 2007/12/24 下午 05:39:49...
  • Page 84 CARRERA 15 Nr. 104-33 Bogota, Colombia Phone:(01)-8000 111001 (toll free) Fax : (01)-619-4300/619-4104 MEXICO Consumer Information Centre Norte 45 No.669 Col. Industrial Vallejo C.P.02300, -Mexico, D.F. Phone: (05)-3687788 / 9180050462 Fax : (05)-7284272 file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warcic.htm 第 5 頁 / 共 12 2007/12/24 下午 05:39:49...
  • Page 85 Phone: (598) 619 66 66 Fax: (598) 619 77 77 Customer Desk: Phone: 0004054176 VENEZUELA Industrias Venezolanas Philips S.A. Apartado Postal 1167 Caracas 1010-A Phone: (02) 2377575 Fax : (02) 2376420 Canada file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warcic.htm 第 6 頁 / 共 12 2007/12/24 下午 05:39:49...
  • Page 86 Phone: 0800 477 999 (toll free) Fax : 0800 288 588 Asia BANGLADESH Philips Service Centre 100 Kazi Nazrul Islam Avenue Kawran Bazar C/A Dhaka-1215 Phone: (02)-812909 Fax : (02)-813062 file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warcic.htm 第 7 頁 / 共 12 2007/12/24 下午 05:39:49...
  • Page 87 254-D Dr. A Besant Road, Worli Bombay 400 025 CALCUTTA Customer Relation Centre 7 justice Chandra Madhab Road Calcutta 700 020 MADRAS Customer Relation Centre 3, Haddows Road Madras 600 006 NEW DELHI file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warcic.htm 第 8 頁 / 共 12 2007/12/24 下午 05:39:49...
  • Page 88 After Market Solutions Sdn Bhd, Philips Authorised Service Center, Lot 6, Jalan 225, Section 51A, 46100 Petaling Jaya, Selangor Darul Ehsan, Malaysia. Phone: (603)-7954 9691/7956 3695 Fax: (603)-7954 8504 Customer Careline: 1800-880-180 file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warcic.htm 第 9 頁 / 共 12 2007/12/24 下午 05:39:49...
  • Page 89 Consumer Electronics 48F PBCOM tower 6795 Ayala Avenue cor VA Rufino St. Salcedo Village 1227 Makati City, PHILS Phone: (02)-888 0572, Domestic Toll Free: 1-800-10-PHILIPS or 1-800-10-744 5477 Fax: (02)-888 0571 SINGAPORE Accord Customer Care Solutions Ltd Authorized Philips Service Center...
  • Page 90 Telephone: +27 (0) 11 471 5194 Fax: +27 (0) 11 471 5123 E-mail: customercare.za@philips.com Middle East DUBAI Philips Middle East B.V. Consumer Information Centre P.O.Box 7785 DUBAI Phone: (04)-335 3666 Fax : (04)-335 3999 file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warcic.htm 第 11 頁 / 共 12 2007/12/24 下午 05:39:49...
  • Page 91 Consumer Information Centers file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/warcic.htm 第 12 頁 / 共 12 2007/12/24 下午 05:39:49...

  • Page 92: Your International Guarantee

    In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.
  • Page 93 International Guarantee file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/warranty/war_intl.htm 第 2 頁 / 共 2 2007/12/24 下午 05:39:57...
  • Page 94 Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site within 48 hours of your call being received within the first year of purchase.
  • Page 95 ● Where IS SERVICE AVAILABLE? Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).
  • Page 96 Please contact Philips at: (800) 479-6696 Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers. (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose.
  • Page 97 ● Just a phone call away Philips’ customer help desks are located worldwide. Within the U.S. you can contact Philips customer care Monday-Friday from 8:00 AM-9:00 PM Eastern Time (ET) and on Saturdays from 10:00 AM-5:00 PM ET hrs by using one of the contact phone numbers.
  • Page 98 The width-to-height ratio of the active area of a display. In general, most monitors have an aspect ratio of 4:3. Wide monitors or TVs have an aspect ratio of 16:9 or 16:10. Backlight file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/glossary/glossary.htm 第 1 頁 / 共 10 2007/12/24 下午 05:40:45 G H I R S T U V...
  • Page 99 (degrees Kelvin). Lower Kelvin temperatures such as 2400° K are red; higher temperatures such as 9300° K are blue. Neutral temperature is white, at 6504° K. Philips monitors generally offers 9300° K, 6500° K, and user define. Contrast The luminance variation between light and dark areas in an image.
  • Page 100 The DVI interface enables: Energy Star Computers Program file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/glossary/glossary.htm 第 3 頁 / 共 10 2007/12/24 下午 05:40:45 RETURN TO TOP OF THE PAGE Reduce signal loss and video noise in signal due to less signal conversion.
  • Page 101 Color defined as having hue are know as chromatic colors. White, black, and grays possess no hue. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/glossary/glossary.htm 第 4 頁 / 共 10 2007/12/24 下午 05:40:45 RETURN TO TOP OF THE PAGE = 256 levels. For a color...
  • Page 102 A measure of the brightness or luminous intensity of light, usually expressed in units of Candelas per square meter (cd/m2) or foot Lamberts. 1 fL=3.426 cd/m2. A unit of luminance equal to 1 cd/m2 or 0.292 ftL. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/glossary/glossary.htm 第 5 頁 / 共 10 2007/12/24 下午 05:40:45 RETURN TO TOP OF THE PAGE...
  • Page 103 Microsoft’s already high Vista requirements from each and every monitor that leaves the factory–not just a few review samples. Only Philips goes to these lengths to deliver this exacting level of color accuracy and display quality in every new monitor.
  • Page 104 Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.
  • Page 105 Hubs serve to simplify USB connectivity from the user's perspective providing low cost and complexity. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/glossary/glossary.htm 第 8 頁 / 共 10 2007/12/24 下午 05:40:45 USB automatically determines resources (like driver software and USB eliminates "case anxiety" -- the fear of removing the computer case to install add-on peripherals.
  • Page 106 Universal Serial Bus; for example, a data/FAX modem device. Devices may be physical, electrical, addressable, and logical. Downstream file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/glossary/glossary.htm 第 9 頁 / 共 10 2007/12/24 下午 05:40:45...
  • Page 107 Vertical refresh rate Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/220SW8/glossary/glossary.htm 第 10 頁 / 共 10 2007/12/24 下午 05:40:45 RETURN TO TOP OF THE PAGE RETURN TO TOP OF THE PAGE...

  • Page 108: Download And Print

    3. Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or 'source', choose 'source'). file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/download/download.htm 第 1 頁 / 共 2 2007/12/24 下午 05:40:50 Adobe® Acrobat Reader for Apple Macintosh. 220SW8.pdf...
  • Page 109 Download and Print Printing instructions: To print the manual: With the manual file open, follow your printer's instructions and print the pages you need. file:///P|/P_TranslateFile/C9/2007/12/C9003650-Qisda-Philips-240SW8-CD-instructions/DTP/ENGLISH/download/download.htm 第 2 頁 / 共 2 2007/12/24 下午 05:40:50 RETURN TO TOP OF THE PAGE...
