Philips 190BW9CS/05 Electronic User's Manual

Philips brilliance lcd widescreen monitor 190bw9cs 19" wide wsxga+
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
e-Manual
Philips LCD Monitor Electronic User's Manual
file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/INDEX.HTM [2008/6/11 上午 10:57:57]

Advertisement

Table of Contents
loading

Related Manuals for Philips 190BW9CS/05

Summary of Contents for Philips 190BW9CS/05

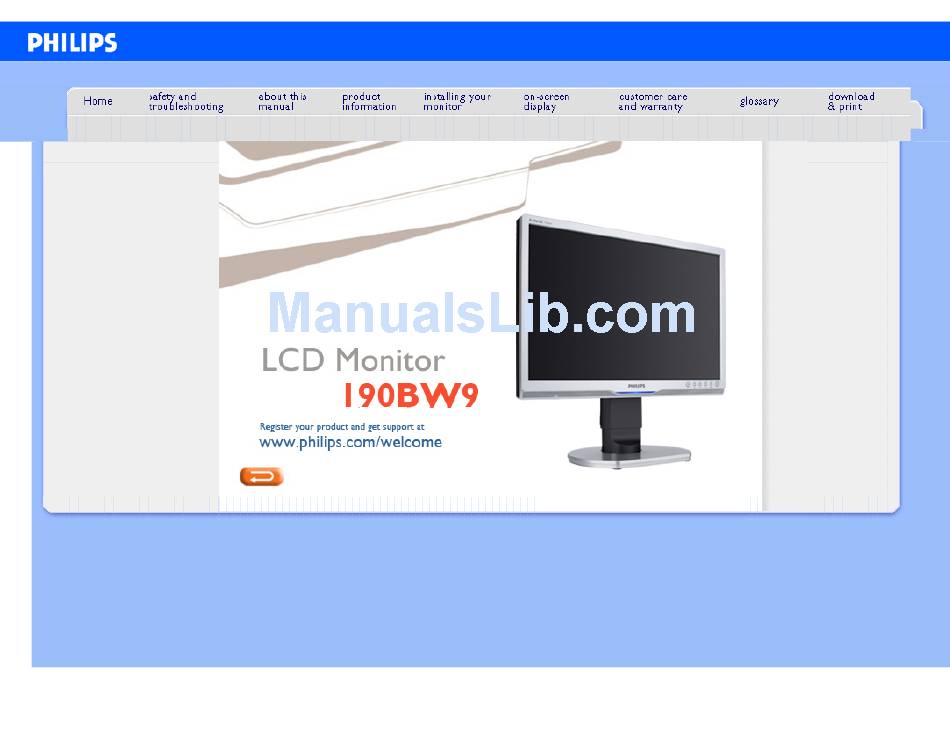

  • Page 1 Philips LCD Monitor Electronic User’s Manual file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/INDEX.HTM [2008/6/11 上午 10:57:57]...

  • Page 2: Safety And Troubleshooting Information

    DC power cord for normal operation. Please use approved power cord provided by Philips all the time. If your power cord is missing, please contact with your local service center. (Please refer to Customer Care...
  • Page 3 ● ● ● file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/safety.htm 第 2 頁 / 共 2 [2008/6/11 上午 10:58:27] Do not store or use the LCD monitor in locations exposed to heat, direct sunlight or extreme cold. In order to maintain the best performance of your monitor and use it for a longer lifetime, please use the monitor in a location that falls within the following temperature and humidity ranges.

  • Page 4: Faqs (Frequently Asked Questions)

    What are the .inf and .icm files on the CD-ROM? How do I install the drivers (.inf and . icm)? file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/saf_faq.htm 第 1 頁 / 共 8 [2008/6/11 上午 10:58:35] Recommended video mode for Philips 19": 1680 x 1050 @60Hz.
  • Page 5 Will the LCD monitor accept an interlaced signal under PC models? What does the Refresh Rate mean for LCD? file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/saf_faq.htm 第 2 頁 / 共 8 [2008/6/11 上午 10:58:35] Your video card/graphic driver and monitor together determine the available resolutions.
  • Page 6 How should I clean the LCD surface? Can I change the color setting of my monitor? file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/saf_faq.htm 第 3 頁 / 共 8 [2008/6/11 上午 10:58:35] from the top to the bottom of the screen determines flicker, an active matrix display uses an active element (TFT) to control each individual pixel and the refresh rate is therefore not really applicable to LCD technology.
  • Page 7 Yes. Philips LCD monitors have this optional feature. For standard VESA mount holes on the rear cover allows the user to mount the Philips monitor on most of the VESA standard arms or accessories. We recommend to contact your Philips sales representative for more information.
  • Page 8 What is a USB hub ? LCD Panel Technology file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/saf_faq.htm 第 5 頁 / 共 8 [2008/6/11 上午 10:58:35] Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs and workstations. You may need a cable adapter to connect the monitor to your Mac system.
  • Page 9 What are the advantages of TFT LCD compared with CRT? Why is vertical frequency of 60Hz optimal for an LCD monitor? file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/saf_faq.htm 第 6 頁 / 共 8 [2008/6/11 上午 10:58:35] A Liquid Crystal Display (LCD) is an optical device that is commonly used to display ASCII characters and images on digital items such as watches, calculators, portable game consoles, etc.
  • Page 10 Ergonomics, Ecology and Safety Standards What is the CE mark? file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/saf_faq.htm 第 7 頁 / 共 8 [2008/6/11 上午 10:58:35] The TFT LCD panel is an element that controls/displays the inlet of a backlight using the dual-refraction of a liquid crystal. Using the property that the projection of inlet light refracts toward the major axis of the liquid element, it controls the direction of inlet light and displays it.
  • Page 11 FAQs (Frequently Asked Questions) Does the LCD monitor conform to general safety standards? file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/saf_faq.htm 第 8 頁 / 共 8 [2008/6/11 上午 10:58:35] product complies with the relevant European Directive. A European Directive is a European 'Law' that relates to health, safety, environment and consumer protection, much the same as the U.S.

  • Page 12: Troubleshooting

    AUTO button not working properly Imaging Problems Display position is incorrect file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/saf_troub.htm 第 1 頁 / 共 3 [2008/6/11 上午 10:58:39] Check these items Make sure the power cord is plugged into the power outlet ●...
  • Page 13 Green, red, blue, dark, and white dots remains Adjust blue "power on" light file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/saf_troub.htm 第 2 頁 / 共 3 [2008/6/11 上午 10:58:39] Check that the signal cable is properly connected to the ● graphics board or PC.
  • Page 14 Troubleshooting For further assistance, refer to the representative. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/saf_troub.htm 第 3 頁 / 共 3 [2008/6/11 上午 10:58:39] Consumer Information Centers list and contact Philips customer service RETURN TO TOP OF THE PAGE...

  • Page 15: Regulatory Information

    IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/regs/regulat.htm 第 1 頁 / 共 11 [2008/6/11 上午 10:58:44] 190BW9...
  • Page 16 Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities. From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors.
  • Page 17 CE Declaration of Conformity Philips Consumer Electronics declare under our responsibility that the product is in conformity with the following standards - EN60950-1:2001 (Safety requirement of Information Technology Equipment)
  • Page 18 To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or excessive moisture. THIS CLASS B DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE- CAUSING EQUIPMENT REGULATIONS. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/regs/regulat.htm 第 4 頁 / 共 11 [2008/6/11 上午 10:58:44] Sleep Blue (blinking) < 0.8 W (typ.) Switch Off <...
  • Page 19 CET APPAREIL NUMERIQUE DE LA CLASSE B RESPECTE TOUTES LES EXIGENCES DU REGLEMENT SUR LE MATERIEL BROUILLEUR DU CANADA. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/regs/regulat.htm 第 5 頁 / 共 11 [2008/6/11 上午 10:58:44] Trade Name: Philips Philips Consumer Electronics North America P.O.
  • Page 20 A protection mark "B" confirms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-89/E-06251. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/regs/regulat.htm 第 6 頁 / 共 11 [2008/6/11 上午 10:58:44] RETURN TO TOP OF THE PAGE...
  • Page 21 SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/regs/regulat.htm 第 7 頁 / 共 11 [2008/6/11 上午 10:58:44] RETURN TO TOP OF THE PAGE...
  • Page 22 Der arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 beträgt 70dB (A) oder weniger. End-of-Life Disposal file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/regs/regulat.htm 第 8 頁 / 共 11 [2008/6/11 上午 10:58:44] RETURN TO TOP OF THE PAGE RETURN TO TOP OF THE PAGE ACHTUNG: BEIM AUFSTELLEN DIESES GERÄTES DARAUF ACHTEN, DAß...
  • Page 23 Please find out about the local regulations on how to dispose of your old monitor from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
  • Page 24 Electronic Information Products" or commonly referred to as China RoHS. All products including CRT and LCD monitor which are produced and sold for China market have to meet China RoHS request. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/regs/regulat.htm 第 10 頁 / 共 11 [2008/6/11 上午 10:58:44] 1. The GREEN AND YELLOW wire must be connected to the terminal in the plug which is marked with the letter "G"...
  • Page 25 Philips is committed to develop, produce and market products that cause no adverse health effects. Philips confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.

  • Page 26: Other Related Information

    15 A, 250 V. The Cord Set should have the appropriate safety approvals for the country in which the equipment will be installed and / or be marked HAR. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/safety/saf_other.htm [2008/6/11 上午 10:58:48] RETURN TO TOP OF THE PAGE...

  • Page 27: About This Manual

    Notational Descriptions About This Guide This electronic user's guide is intended for anyone who uses the Philips LCD Monitor. It describes the LCD monitor's features, setup, operation and other important information. Its contents are identical to the information in our printed version.
  • Page 28 All rights reserved. Reproduction, copying, use, modification, hiring, renting, public performance, transmission and/or broadcasting in whole or in part is prohibited without written consent of Philips Electronics NV file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/about/about.htm 第 2 頁 / 共 2 [2008/6/11 上午 10:58:57] NOTE: This icon indicates important information and tips that help you make better use of your computer system.
  • Page 29 Product Information Smartimage SmartContrast Your LCD monitor SmartSaturate SmartSharpness Congratulations on your purchase and welcome to Philips. To fully benefit from the support that Philips offers, register your product at. Lead-free Product Technical Specifications Resolution & Preset Modes SmartImage Philips Pixel Defect Policy...
  • Page 30 Economy, and Off. There are five modes to be selected: Office Work, Image Viewing, Entertainment, Economy, and Off. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/product.htm 第 2 頁 / 共 12 [2008/6/11 上午 10:59:05] launch the SmartImage on screen display; to toggle between Office Work, Image Viewing, Entertainment, Economy, and Off;...
  • Page 31 How does it work? file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/product.htm 第 3 頁 / 共 12 [2008/6/11 上午 10:59:05] Enhances text and dampens brightness to increase readability and reduce eye strain. This mode This profile combines color saturation, dynamic contrast and sharpness enhancement to display photos...
  • Page 32 Entertainment mode and is turned off for top quality display of office applications and in the Economy mode to reduce power consumptions. Lead-free Product file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/product.htm 第 4 頁 / 共 12 [2008/6/11 上午 10:59:05] RETURN TO TOP OF THE PAGE RETURN TO TOP OF THE PAGE...
  • Page 33 Product Information Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and promotes environmentally sound recovery and disposal of waste from electrical and electronic equipment.Philips complies with the European Community stringent RoHS Directive mandating restrictions on hazardous substances in electrical and electronic equipment.
  • Page 34 B. Recommended Resolution For 190BW9 1680 x 1050 at 60 Hz (digital input) 18 factory preset modes: file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/product.htm 第 6 頁 / 共 12 [2008/6/11 上午 10:59:05] 0.7 Vpp Separate sync Composite sync Sync on green...
  • Page 35 'wake up' automatically. The following table shows the power consumption and signaling of this automatic power saving feature: VESA Mode Active Sleep Switch Off file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/product.htm 第 7 頁 / 共 12 [2008/6/11 上午 10:59:05] Resolution V. freq (Hz) 720*400 70.087 640*480 59.940...
  • Page 36 1.The digital only connector contains 24 signal contacts organized in three rows of eight contacts. Signal pin assignments are listed in the following table: Signal Assignment T.M.D.S. Data2- T.M.D.S. Data2+ T.M.D.S. Data2/4 Shield file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/product.htm 第 8 頁 / 共 12 [2008/6/11 上午 10:59:06] ® ® NERGY compliant. s an...
  • Page 37 Blue video input Sense (GND) Cable detect (GND) Red video ground Green video ground Blue video ground file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/product.htm 第 9 頁 / 共 12 [2008/6/11 上午 10:59:06] No connect No connect No connect No connect +5V Power T.M.D.S.
  • Page 38 Follow the links to see various views of the monitor and its components. Front View Product Description Physical Function Tilt file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/product.htm 第 10 頁 / 共 12 [2008/6/11 上午 10:59:06] RETURN TO TOP OF THE PAGE...
  • Page 39 Product Information Swivel Height adjustment file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/product.htm 第 11 頁 / 共 12 [2008/6/11 上午 10:59:06]...
  • Page 40 Product Information RETURN TO TOP OF THE PAGE file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/product.htm 第 12 頁 / 共 12 [2008/6/11 上午 10:59:06]...

  • Page 41: Philips Pixel Defect Policy

    TFT LCD panels used in flat panel monitors are sometimes unavoidable. No manufacturer can Pin Assignment guarantee that all panels will be free from pixel defects, but Philips guarantees that any monitor with an unacceptable number of defects will be repaired or replaced under warranty. This notice explains Product Views the different types of pixel defects and defines acceptable defect levels for each type.
  • Page 42 Philips also specifies tolerances for the proximity of pixel defects. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/pixel.htm 第 2 頁 / 共 4 [2008/6/11 上午 10:59:11] Bright dot defects appear as pixels or sub pixels that are always lit or 'on'. That is,...
  • Page 43 In order to qualify for repair or replacement due to pixel defects during the warranty period, a TFT LCD panel in a Philips flat panel monitor must have pixel or sub pixel defects exceeding the tolerances listed in the following tables.
  • Page 44 Philips Pixel Defect Policy Note: * 1 or 2 adjacent sub pixel defects = 1 dot defect file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/pixel.htm 第 4 頁 / 共 4 [2008/6/11 上午 10:59:11] RETURN TO TOP OF THE PAGE...
  • Page 45 Thus, Philips provide you a compact version of SmartManage, SmartManage Lite. You can use SmartManage Lite to manage your Philips Monitors via LAN. Please. refer to below comparison chart and determine if which one suit for your environment best.
  • Page 46 SmartManage SmartManage Features and Benefits The Philips SmartManage is a working console for IT management to gather monitors assets information, run asset report, control assets security, monitor assets security, and issue instant messages to monitor users. Philips SmartManage includes the following major features: Provides an additional security measure that helps corporate users safeguard their investment.
  • Page 47 SmartManage 2. Installer – Install Shield Legal Choose "I accept" for installation process. ● Cancel prompts user if you want to cancel installation. ● file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/SMART.HTM 第 3 頁 / 共 16 [2008/6/11 上午 10:59:21]...
  • Page 48 Check the box if you wants to install SmartManage Lite Asset Management services. ● Personal user usually not need to active this function.Read SmartManage section in this manual before you choose SmartManage Lite function file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/SMART.HTM 第 4 頁 / 共 16 [2008/6/11 上午 10:59:21]...
  • Page 49 Follow the instruction and complete the installation. ● You can launch after installation complete. ● If you want to launch later, you can either click the shortcut on desktop or toolbar. ● file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/SMART.HTM 第 5 頁 / 共 16 [2008/6/11 上午 10:59:21]...
  • Page 50 SmartManage file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/SMART.HTM 第 6 頁 / 共 16 [2008/6/11 上午 10:59:21]...
  • Page 51 SmartManage file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/SMART.HTM 第 7 頁 / 共 16 [2008/6/11 上午 10:59:21]...
  • Page 52 ● You can adjust more options without wizard by Standard pane. ● Wizard Analog Seguence White Point (Color Temp) file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/SMART.HTM 第 8 頁 / 共 16 [2008/6/11 上午 10:59:21] Wizard Degital Seguence Resolution Resolution Focus Contrast...
  • Page 53 Cancel prompts user if you want to cancel installation. ● Tab Heading Adjust Adjust Adjust Adjust Adjust file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/SMART.HTM 第 9 頁 / 共 16 [2008/6/11 上午 10:59:21] Sub Menu Display in Analog Brightness Contrast Focus (Clock & Clock Phase) Position Resolution...
  • Page 54 Refer to below table for sub-menu item base on your input. ● Tab Heading Color Color Color Color Color file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/SMART.HTM 第 10 頁 / 共 16 [2008/6/11 上午 10:59:21] Sub Menu Display in Analog Display in Digital Black Level White Point Color Calibration Viewing Mode...
  • Page 55 Options AutoPivot, Input and Audio function will only available and shown if the product supports those features. Help Menu file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/SMART.HTM 第 11 頁 / 共 16 [2008/6/11 上午 10:59:21] Sub Menu Display in Analog Display in Digital...
  • Page 56 Help Menu will give you some information of Manual, Update, ID, System ID and ● version. If you ask for technical support. It will automatically generate a report for Philips ● supporting to understand your enviorment by click "Tech. Support".
  • Page 57 PIP, Zoning, Asset Management and Theft Deterrence will only available and shown if the product supports those features Theft Deterrence Philips Theft Deterrence minimizes theft or unauthorized relocation of your display. Theft Deterrence does not prevent the display from being stolen, but hinders the operation of the display once it is removed from the “Theft Deterrence enabled”...
  • Page 58 SmartManage Example for on line register Theft Deterrence PIN file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/SMART.HTM 第 14 頁 / 共 16 [2008/6/11 上午 10:59:21]...
  • Page 59 Install the driver. Remove SmartControl, and re-install it once more. If it is still not working, we are sorry that the graphic adaptor is not supported. Please pay attention to Philips web site for any updated SmartControl driver available.
  • Page 60 When Smartlmage is enabled, the sRGB scheme is disabled automatically. To use sRGB, you need to disable Smartlmage with the file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/product/SMART.HTM 第 16 頁 / 共 16 [2008/6/11 上午 10:59:21] button at the front bezel of your monitor.

  • Page 61: Installing Your Lcd Monitor

    Front View Product Description The Base Getting Started Optimizing Performance file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/install/install.htm 第 1 頁 / 共 3 [2008/6/11 上午 10:59:27] To switch monitor's power On and Off MENU / OK To access OSD menu To adjust the OSD menu To adjust brightness of the display To adjust the OSD menu and the volume of the display.
  • Page 62 Optimizing Performance For best performance, ensure that your display settings are set at 1680 x 1050, 60Hz. ● file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/install/install.htm 第 2 頁 / 共 3 [2008/6/11 上午 10:59:27] Kensington anti-thief lock VGA input DVI-D input (available for selective models)
  • Page 63 Installing Your LCD Monitor file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/install/install.htm 第 3 頁 / 共 3 [2008/6/11 上午 10:59:27] Note: You can check the current display settings by pressing the 'OK' button once. The current display mode is shown in OSD main controls called RESOLUTION.

  • Page 64: Connecting To Your Pc

    Connecting to Your PC Getting Started Optimizing Performance The base Connecting to Your PC file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/install/connect.htm 第 1 頁 / 共 3 [2008/6/11 上午 10:59:31] DVI cable (Optional) Power cord EDFU pack VGA cable PC audio cable...
  • Page 65 Connecting to Your PC Connect the power cord to the back of the monitor firmly. (Philips has pre-connected VGA cable for the first installation. Connect to PC Turn off your computer and unplug its power cable. Connect the monitor signal cable to the video connector on the back of your computer.
  • Page 66 The USB plug is a pass through connection whether it can support USB 1.1 or USB 2.0 depends on Note: your PC's specification. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/install/connect.htm 第 3 頁 / 共 3 [2008/6/11 上午 10:59:31] RETURN TO TOP OF THE PAGE...
  • Page 67 Firmly push the base stand onto the column until the tabs “click” into place releasing the height adjustable column. Note: When properly installed, the height adjustable neck will immediately extend. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/install/base.htm 第 1 頁 / 共 4 [2008/6/11 上午 10:59:40] RETURN TO TOP OF THE PAGE...
  • Page 68 Place the monitor face on a safe surface, push down on the release button and pull the base stand away from the monitor body. Remove the base Condition: For VESA Standard Mounting Place monitor face down on a smooth surface. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/install/base.htm 第 2 頁 / 共 4 [2008/6/11 上午 10:59:40]...
  • Page 69 The Base Remove the 4 Screws and then remove the base from the LCD monitor. VESA mounting holes. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/install/base.htm 第 3 頁 / 共 4 [2008/6/11 上午 10:59:40] RETURN TO TOP OF THE PAGE...
  • Page 70 The Base file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/install/base.htm 第 4 頁 / 共 4 [2008/6/11 上午 10:59:40]...

  • Page 71: Getting Started

    Use the information file ( .inf) for Windows® 95/98/2000/Me/XP/Vista or later Optimizing Performance The built-in VESA DDC2B feature in Philips Monitors supports Plug & Play requirements for Windows® 95/98/2000/Me/XP/Vista. This information file ( .inf) should be installed in order that your Philips monitor can be enabled from the 'Monitor' dialog box in Windows®...
  • Page 72 For Windows® Me For Windows® XP file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/install/gt_start.htm 第 2 頁 / 共 3 [2008/6/11 上午 10:59:43] Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon.
  • Page 73 Windows® 95/98/2000/Me/XP/Vista user's manual. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/install/gt_start.htm 第 3 頁 / 共 3 [2008/6/11 上午 10:59:43] Click on the 'Have disk...' button, then click on the 'Browse...' button and then select the appropriate drive F: (CD-ROM Drive).

  • Page 74: On-Screen Display

    Description of the On Screen Display What is the On-Screen Display? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on-screen instruction window.
  • Page 75 Below is an overall view of the structure of the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/osd/osddesc.htm 第 2 頁 / 共 3 [2008/6/11 上午 10:59:54] RETURN TO TOP OF THE PAGE...
  • Page 76 1050@60Hz for best results. Display of the native resolution alert can be switched off from Setup in the OSD (On Screen Display) menu. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/osd/osddesc.htm 第 3 頁 / 共 3 [2008/6/11 上午 10:59:54] RETURN TO TOP OF THE PAGE...
  • Page 77 ASIA: Philippines Singapore Taiwan Thailand AFRICA: MIDDLE EAST: file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warranty.htm [2008/6/11 上午 10:59:57] Austria Belgium Denmark France Germany Greece Finland Czech Republic Hungary Poland Russia Slovakia Slovenia Turkey Antilles Argentina Brasil Chile Colombia Mexico Paraguay Peru Canada USA...

  • Page 78: Your Philips F1Rst Choice Warranty

    Philips helpdesk directly to benefit from your Philips F1rst Choice Warranty. This three-year service warranty entitles you to a swap model on-site if your monitor turns out to be faulty or defective. Philips aims at a swap within 48 hours of your call being received.
  • Page 79 Note that products that are not originally designed, manufactured, approved and/or authorized for usage within the Philips F1rst Choice countries, do not apply to the Philips F1rst Choice Warranty. In these cases the Philips global warranty terms are valid.
  • Page 80 Your Philips F1rst Choice Warranty file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/war_1st.htm 第 3 頁 / 共 3 [2008/6/11 上午 11:00:01]...

  • Page 81: F1Rst Choice Contact Information

    Ireland Italy Luxembourg The Netherlands Norway Poland Portugal Spain Sweden Switzerland United Kingdom file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warfirst.htm [2008/6/11 上午 11:00:05] Code Telephone number Tariff 0810 000206 € 0.07 078 250851 € 0.06 3525 8761 Local call tariff +358 09 2290 1908...

  • Page 82: Your Guarantee In Central And Eastern Europe

    Your Guarantee in Central and Eastern Europe Dear Customer, Thank you for purchasing this Philips product, which has been designed and manufactured to the highest quality standards. If, unfortunately, something should go wrong with this product Philips guarantees free of charge labor and replacement parts during a period of 36 months from date of purchase.
  • Page 83 In order to avoid unnecessary inconvenience, we advise you to read the operating instructions carefully before contacting our dealers or Information Centers In case your Philips product is not working correctly or is defective, please contact your Philips dealer or directly the Website: file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/war_ee.htm 第...

  • Page 84: Consumer Information Centers

    CZ - 160 00 Praha 6 Tel: 800 100 697 Email:info@xpectrum.cz www.xpectrum.cz CROATIA Renoprom d.o.o. Mlinska 5, Strmec HR - 41430 Samobor Tel: +385 1 333 0974 file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warcic.htm 第 1 頁 / 共 11 [2008/6/11 上午 11:01:22]...
  • Page 85 H-1044 Budapest ( Europe Center ) Hungary Tel: +36 1 814 8080 m.andras@psc.hu LATVIA ServiceNet LV Jelgavas iela 36 LV - 1055 Riga, Tel: +371 7460399 Email: serviss@servicenet.lv file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warcic.htm 第 2 頁 / 共 11 [2008/6/11 上午 11:01:22]...
  • Page 86 SK - 831 06 Bratislava Tel: +421 2 49207155 Email: servis@datalan.sk SLOVENIA PC HAND Brezovce 10 SI - 1236 Trzin Tel: +386 1 530 08 24 Email: servis@pchand.si file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warcic.htm 第 3 頁 / 共 11 [2008/6/11 上午 11:01:22]...
  • Page 87 Zeelandia, P.O. box 3523-3051 Willemstad, Curacao Phone: (09)-4612799 Fax : (09)-4612772 ARGENTINA Philips Antillana N.V. Vedia 3892 Capital Federal CP: 1430 Buenos Aires Phone/Fax: (011)-4544 2047 file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warcic.htm 第 4 頁 / 共 11 [2008/6/11 上午 11:01:22]...
  • Page 88 Av. Rca. Argentina 1780 c/Alfredo Seiferheld P.O. Box 605 Phone: (595 21) 664 333 Fax: (595 21) 664 336 Customer Desk: Phone: 009 800 54 1 0004 file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warcic.htm 第 5 頁 / 共 11 [2008/6/11 上午 11:01:22]...
  • Page 89 Apartado Postal 1167 Caracas 1010-A Phone: (02) 2377575 Fax : (02) 2376420 Canada CANADA Philips Electronics Ltd. 281 Hillmount Road Markham, Ontario L6C 2S3 Phone: (800) 479-6696 Pacific file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warcic.htm 第 6 頁 / 共 11 [2008/6/11 上午 11:01:22]...
  • Page 90 Dhaka-1215 Phone: (02)-812909 Fax : (02)-813062 CHINA SHANGHAI Rm 1007, Hongyun Building, No. 501 Wuning road, 200063 Shanghai P.R. China Phone: 4008 800 008 Fax: 21-52710058 file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warcic.htm 第 7 頁 / 共 11 [2008/6/11 上午 11:01:22]...
  • Page 91 7 justice Chandra Madhab Road Calcutta 700 020 MADRAS Customer Relation Centre 3, Haddows Road Madras 600 006 NEW DELHI Customer Relation Centre 68, Shivaji Marg New Dehli 110 015 file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warcic.htm 第 8 頁 / 共 11 [2008/6/11 上午 11:01:22]...
  • Page 92 Fax: (603)-7954 8504 Customer Careline: 1800-880-180 PAKISTAN Philips Consumer Service Mubarak manzil, 39, Garden Road, Saddar, Karachi-74400 Tel: (9221) 2737411-16 Fax: (9221) 2721167 E-mail: care@philips.com Website: www.philips.com.pk file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warcic.htm 第 9 頁 / 共 11 [2008/6/11 上午 11:01:22]...
  • Page 93 THAILAND Philips Electronics (Thailand) Ltd. 26-28th floor, Thai Summit Tower 1768 New Petchburi Road Khwaeng Bangkapi, Khet Huaykhwang Bangkok10320 Thailand Tel: (66)2-6528652 E-mail: cic Thai@philips.com Africa file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warcic.htm 第 10 頁 / 共 11 [2008/6/11 上午 11:01:22]...
  • Page 94 Fax: +27 (0) 11 471 5123 E-mail: customercare.za@philips.com Middle East DUBAI Philips Middle East B.V. Consumer Information Centre P.O.Box 7785 DUBAI Phone: (04)-335 3666 Fax : (04)-335 3999 file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/warcic.htm 第 11 頁 / 共 11 [2008/6/11 上午 11:01:22]...

  • Page 95: Your International Guarantee

    In the event you require service whilst in another country a dealer address can be given to you by the Philips Consumer Help Desk in that country, the telephone and fax number of which can be found in the relevant part of this booklet.
  • Page 96 International Guarantee file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/war_intl.htm 第 2 頁 / 共 2 [2008/6/11 上午 11:01:31]...
  • Page 97 WHAT IS EXCLUDED? file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/warranty/war_usa.htm 第 1 頁 / 共 4 [2008/6/11 上午 11:01:35] All Philips monitors are designed and manufactured to high standards and deliver high-quality performance, ease of use and ease of installation. Should you encounter any difficulties while installing or using this product, please contact Philips directly to benefit from your Philips F1rst Choice Warranty.
  • Page 98 ● Where IS SERVICE AVAILABLE? Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics. In countries where Philips Consumer Electronics does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).
  • Page 99 Please contact Philips at: (800) 479-6696 Three years free parts and three years free labor will be provided at Philips Canada depot or any one of its authorized service centers. (In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose.
  • Page 100 ● Just a phone call away Philips customer help desks are located worldwide. Within the U.S. you can contact Philips customer care Monday-Friday from 8:00 AM-9:00 PM Eastern Time (ET) and on Saturdays from 10:00 AM-5:00 PM ET hrs by using one of the contact phone numbers.
  • Page 101 The width-to-height ratio of the active area of a display. In general, most monitors have an aspect ratio of 4:3. Wide monitors or TVs have an aspect ratio of 16:9 or 16:10. Backlight file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/glossary/glossary.htm 第 1 頁 / 共 10 [2008/6/11 上午 11:01:46] G H I R S T U V...
  • Page 102 (degrees Kelvin). Lower Kelvin temperatures such as 2400° K are red; higher temperatures such as 9300° K are blue. Neutral temperature is white, at 6504° K. Philips monitors generally offers 9300° K, 6500° K, and user define. Contrast file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/glossary/glossary.htm 第...
  • Page 103 The DVI interface enables: Energy Star Computers Program file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/glossary/glossary.htm 第 3 頁 / 共 10 [2008/6/11 上午 11:01:46] RETURN TO TOP OF THE PAGE Reduce signal loss and video noise in signal due to less signal conversion.
  • Page 104 Color defined as having hue are know as chromatic colors. White, black, and grays possess no hue. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/glossary/glossary.htm 第 4 頁 / 共 10 [2008/6/11 上午 11:01:46] RETURN TO TOP OF THE PAGE...
  • Page 105 (cd/m2) or foot Lamberts. 1 fL=3.426 cd/m2. A unit of luminance equal to 1 cd/m2 or 0.292 ftL. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/glossary/glossary.htm 第 5 頁 / 共 10 [2008/6/11 上午 11:01:46] RETURN TO TOP OF THE PAGE...
  • Page 106 & phase, position, RGB, white point and - on models with onboard speakers - volume adjustments. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/glossary/glossary.htm 第 6 頁 / 共 10 [2008/6/11 上午 11:01:46]...
  • Page 107 Using a standard unified color space, sRGB will help represent pictures taken by an sRGB compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors are calibrated and you can rely on the correctness of the colors shown on your screen.
  • Page 108 Microsoft’s already high Vista requirements from each and every monitor that leaves the factory–not just a few review samples. Only Philips goes to these lengths to deliver this exacting level of color accuracy and display quality in every new monitor.
  • Page 109 Universal Serial Bus; for example, a data/FAX modem device. Devices may be physical, electrical, addressable, and logical. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/glossary/glossary.htm 第 9 頁 / 共 10 [2008/6/11 上午 11:01:46]...
  • Page 110 Vertical refresh rate Expressed in Hz, it is the number of frames (complete pictures) written to the screen every second. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/190BW9/glossary/glossary.htm 第 10 頁 / 共 10 [2008/6/11 上午 11:01:46] RETURN TO TOP OF THE PAGE...

  • Page 111: Download And Print

    3. Choose where you would like to save the file; click 'Save' (if prompted to save as either 'text' or 'source', choose 'source'). file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/download/download.htm 第 1 頁 / 共 2 [2008/6/11 Adobe® Acrobat Reader for Apple Macintosh.
  • Page 112 Printing instructions: To print the manual: With the manual file open, follow your printer's instructions and print the pages you need. file:///H|/OEM MODELS/Philips 2008/CD MANUAL/190BW9 EDFU/190BW9/lcd/manual/ENGLISH/download/download.htm 第 2 頁 / 共 2 [2008/6/11 RETURN TO TOP OF THE PAGE 上午 11:01:54]...
