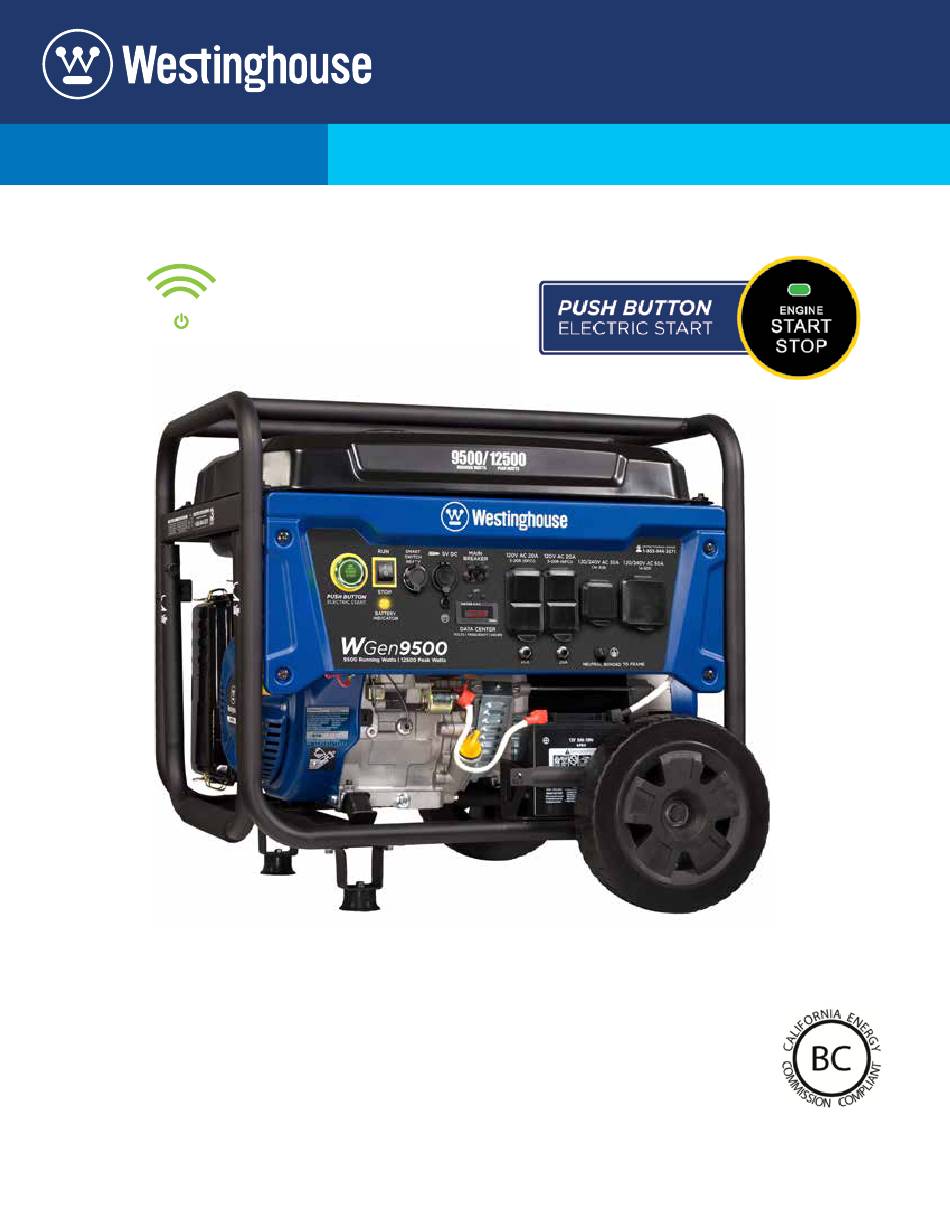

- Page 1 USER MANUAL REMOTE START Gen9500 Portable Generator 9500 Running Watts | 12500 Peak Watts...
-
Page 2: Wgen9500 Technical Specifications
Contact our service team to order altitude kits. FOR YOUR RECORDS: Date of Purchase: Generator Model Number: Purchased from Store/Dealer: Generator Serial Number: HAVE QUESTIONS? Email us at service@wpowereq.com or call 1-855-944-3571 2 | Westinghouse Portable Power... -
Page 3: Product Registration
IMPORTANT: KEEP YOUR PURCHASE RECEIPT TO ENSURE TROUBLE-FREE WARRANTY COVERAGE. PRODUCT REGISTRATION To ensure trouble-free warranty coverage, it is important you register your Westinghouse generator. You can register your generator by either: 1. Filling in the product registration form below and mailing to:... -
Page 4: Table Of Contents
WGen9500 Engine View ..... 34 Using Westinghouse Power Cord ... 16 WGen9500 Engine View Part Numbers . -
Page 5: Safety
NOTE: Indicates a procedure, practice or condition that should be followed in order for the generator to function in the manner intended. Read Manufacturer’s Instructions Read Safety Messages Before Proceeding Wear Personal Protective Equipment (PPE) Westinghouse Portable Power | 5... -
Page 6: General Safety Rules
Never use the generator to power medical support equipment. engine misfires often. Always disconnect tools or Always remove any tools or other service equipment used during appliances from the maintenance from the generator before operating. generator before starting. 6 | Westinghouse Portable Power... -
Page 7: Safety Labels And Decals
MWE Investments LLC Designed in Columbus , Ohio USA Columbus Ohio 43228 Etats-Unis Co n u à columbus , Ohio,tats-Unis Made in China/ Fabriqu é en Chine ON = COLD START OFF = RUN/WARM START Westinghouse Portable Power | 7... - Page 8 SAFETY SAFETY LABELS AND DECALS 8 | Westinghouse Portable Power...
-
Page 9: Unpacking
WHEEL KIT ACCESSORIES BOX Open the Wheel Kit Accessories box and verify the contents against the list right. If any parts are missing, please locate an authorized Westinghouse Generator dealer at service@wpowereq.com or call 1-855-944-3571. Westinghouse Portable Power | 9... -
Page 10: Assembly
4. Repeat previous steps on other wheel. 3. Install the mounting feet to the frame using the M8 flange bolts included. 1 - Mounting Foot 2 - Flange Bolts M8 Figure 1 - Assemble Mounting Feet to Frame 10 | Westinghouse Portable Power... -
Page 11: Installing The Battery
2. Securely tighten the positive (+) battery cable (red and will slowly recharge the battery. boot) to the positive (+) battery post. Make sure boot is over battery post. Westinghouse Portable Power | 11... -
Page 12: Features
Recoil Start: Used to manually start the generator. Battery: Included for electric start models. Oil Fill Plug/Dipstick: Must be removed to add and check oil. Oil Drain Plug: Must be removed to drain engine oil 12 | Westinghouse Portable Power... - Page 13 Muffler and Spark Arrester: Avoid contact until engine is cooled down. Spark arrestor prevents sparks from exiting the muffler. It must be removed for servicing. Alternator Cover: Gain access to alternator wiring. Remote Start Pairing Button: Initiates the remote key fob pairing function. Westinghouse Portable Power | 13...
-
Page 14: Control Panel Features
Voltage Switch to “Run” before starting engine. Frequency in hertz Smart Switch Outlet: Connects the Westinghouse ST Lifetime run hours Switch (sold separately) to the control panel. Run/Maintenance 5V USB Ports: 5V DC that come in 1 amp and 2.1 amps. -
Page 15: Operation
1-855-944-3571 for altitude part kits. could lead to moisture collecting on, in or around the generator. High Altitude Carburetor Kit Part Number: 140548 Dry Surface – Always operate the generator on a dry surface free of any moisture. Westinghouse Portable Power | 15... -
Page 16: Power Cord
Using Extension Cords Westinghouse Portable Power assumes no responsibility for the content within this table. The use of this table is the responsibility of the user only. This table is intended for reference only. The results produced by using this table are not guaranteed to be correct or applicable in all situations as the type and construction of cords are highly variable. -
Page 17: Transfer Switch Connections
Filling the fuel tank with gasoline while TRANSFER SWITCH CONNECTIONS the generator is running can cause The Westinghouse generator is wired with the neutral gasoline to leak and come in contact bonded to ground. If you are connecting your generator... -
Page 18: Engine Fluids And Fuel
DO NOT connect 240V loads to a 120V receptacles. DO NOT gasoline. Avoid prolonged breathing of connect 3-phase loads to the generator. DO NOT connect 50Hz gasoline vapors. loads to the generator. Let engine stabilize and warm up for a few minutes before adding load. 18 | Westinghouse Portable Power... -
Page 19: How To Pair Remote Key Fob
(3) goes out, then let go. 5. Press and hold the REMOTE PAIRING button until the red light on the push button start (3) goes out. The generator is now programmed to start remotely. Westinghouse Portable Power | 19... -
Page 20: Starting The Generator
Figure 9 - Fuel - ON unsuccessful attempt, then the battery may not be adequately charged. You can alternatively start the generator using the recoil start as instructed in Manually Starting a Generator. 7. Plug in electric devices. 20 | Westinghouse Portable Power... -
Page 21: Manual Start
6. Firmly grasp and pull the recoil handle slowly until you feel increased resistance. At this point, apply a rapid pull while pulling up and slightly away from the generator (see Figure 12). Figure 12 - Pull recoil 7. Plug in electric devices. Westinghouse Portable Power | 21... -
Page 22: Maintenance
Use or Every Year Engine Oil Check Level Change Change Cooling Features Check/Clean Air Filter Check Clean* Replace Spark Plug Check/Clean Replace Spark Arrestor Check/Clean *Service more frequently if operating in dry and dusty conditions 22 | Westinghouse Portable Power... -
Page 23: Inspecting And Cleaning The Spark Arrestor
MAINTENANCE TABLE 2: MAINTENANCE SCHEDULE - AUTHORIZED WESTINGHOUSE SERVICE DEALER PERFORMED After First 20 After 50 Hours After 100 Hour After 300 Hours Before Every Hours or First of Use or Every of Use or Every of Use or Every... -
Page 24: Engine Oil Maintenance
5. Remove oil fill plug/dipstick (see Figure 18 below). 8. Continue to add oil until the oil is at the correct level. (see Figure 19). 9. Replace the oil fill plug/dipstick. Figure 18 - Oil Fill Plug/Dipstick 24 | Westinghouse Portable Power... -
Page 25: Changing Engine Oil
6. Rinse in clean water by submerging the air filter of hazardous materials. Consult local authorities or elements in fresh water and applying a slow reclamation facility. squeezing action Westinghouse Portable Power | 25... -
Page 26: Spark Plug Maintenance
Westinghouse Part Number: 180526 Never apply any side load or move the spark plug laterally when removing the spark plug. Applying a side load or moving the spark plug laterally may crack and damage the spark plug boot. 26 | Westinghouse Portable Power... -
Page 27: Checking And Adjusting Valve Lash
0.0035 ± 0.0043 in 0.0043 ± 0.0051 in (0.09 ± 0.11 mm) (0.11 ± 0.13 mm) charger into the charging port on the generator control panel. Plug the charger into a 110/120-volt AC outlet. Bolt Torque 8-12N.m 8-12N.m Westinghouse Portable Power | 27... -
Page 28: Battery Replacement
9. Replace the spark plug (see Spark Plug Maintenance). engine’s cooling fins. 10. Move the generator to a clean, dry place for storage. 28 | Westinghouse Portable Power... -
Page 29: Troubleshooting
10. Drain fuel and replace with fresh fuel. 11. If trying 1-11 above does not solve 11. Take the generator to your nearest the problem, the cause might be the authorized service dealer. generator has a fault. Westinghouse Portable Power | 29... - Page 30 RPM. 3. If trying 1-3 above does not solve 3. Take the generator to your nearest the problem, the cause might be a authorized service dealer. fault in the generator 30 | Westinghouse Portable Power...
-
Page 31: Schematics
WGen9500 SCHEMATIC Westinghouse Portable Power | 31... -
Page 32: Exploded And Engine Views
WGen9500 EXPLODED VIEW Westinghouse Generator Accessories (call to order) 210004 GENERATOR COVER 210003 WGC25 25’ POWER CORD 210052 30A 6 BREAKER TRANSFER SWITCH KIT - MODEL WHMTS30 210075 25’ CORD 30AMP TRANSFER SWITCH 210076 50A 6 BREAKER TRANSFER SWITCH KIT - MODEL... -
Page 33: Wgen9500 Exploded View Part Numbers
EXHAUST PIPE GASKET 230514 FUEL GAGE 110502 SPRING WASHER M8 230523 1.1L Oil Bottle 110500 MUFFLER COMP 130172 Remote Key Fob 150555 FUEL TANK ASSEMBLY 27.1 230514 FUEL GAUGE 120541 BOLT M6X25 Westinghouse Portable Power | 33 150501 WASHER FUEL TANK... -
Page 34: Wgen9500 Engine View
OIL SEAL 180411 SEAL, GOVERNOR ARM SHAFT 180410 SHAFT, GOVERNOR ARM 190409 WASHER, GOVERNOR ARM SHAFT 190408 PIN, LOCK 180507 BOLT DRAIN PLUG 180508 WASHER, DRAIN PLUG 180586 SWITCH ASSEMBLY, OIL LEVEL 130536 BOLT M6X16 34 | Westinghouse Portable Power... -
Page 35: Wgen9500 Engine View Part Numbers
BOLT M8X40 190217 STEPPER MOTOR 180742 PIN DOWEL 140548 HIGH ALTITUDE CARBURETOR ASSY (SOLD SEPARATE) 180809 GASKET, CYLINDER HEAD m07500 MAINTENANCE KIT (SOLD SEPARATE) 180523 BOLT M10X80 170040 STARTING SOLENOID 180526 SPARK PLUG 300504 SPARK ARRESTOR Westinghouse Portable Power | 35... -
Page 36: Generator Specifications
Fuel Type 10% Ethanol or less Carton Height in. (mm) 24 in (600mm) Fuel Shut Off Manual Dry Unit Weight lb. (kg) 216 lb. (98kg) Shipping Weight Ib. (kg) 227 lb. (103kg) 853544008199 GTIN 00853544008199 36 | Westinghouse Portable Power... - Page 37 Service Hotline: (855) 944-3571 777 Manor Park Drive Columbus, OH 43228 & © 2019 Westinghouse Electric Corporation © 2019 MWE Investments, LLC. All Rights Reserved. Version 10.25.18KD Westinghouse Portable Power | 37...
