Summary of Contents for LG JW-Q24WUXA
- Page 1 OWNER'S MANUAL CONDITIONER Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. TYPE : WINDOW (INVERTER) English www.lg.com MFL70385010 Rev.01_013119 Copyright © 2018 LG Electronics Inc. All Rights Reserved.
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS 3 SAFETY INSTRUCTIONS 16 MAINTENANCE IMPORTANT SAFETY INSTRUCTIONS Air Filter 8 PRODUCT OVERVIEW 17 TROUBLESHOOTING Exterior Parts Before Calling for Service Interior Parts Normal Sounds You May Hear 9 INSTALLATION Circuit Breaker Installation Installation Overview 10 How to Install the Unit 10 Preparation of the Cabinet 10 Drainage (Optional) -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. This is the safety alert symbol. - Page 4 ● Do not tamper with controls. ● If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact an LG Electronics Customer Information Center. straight out from the outlet.
- Page 5 Children should be supervised to ensure that they do not play with the appliance. ● The interior of the product must only be cleaned by a LG Electronics Customer Information Center or a dealer.
- Page 6 SAFETY INSTRUCTIONS CAUTION To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: INSTALLATION ● Take care when installing the product that exhaust or condensation does not damage nearby property.
- Page 7 SAFETY INSTRUCTIONS REFRIGERANT (FOR R32 ONLY) WARNING ● Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. ● The appliance shall be stored in a room without continuously operating open flames (for example an operating gas appliance) and ignition sources (for example an operating electric heater).
-
Page 8: Product Overview

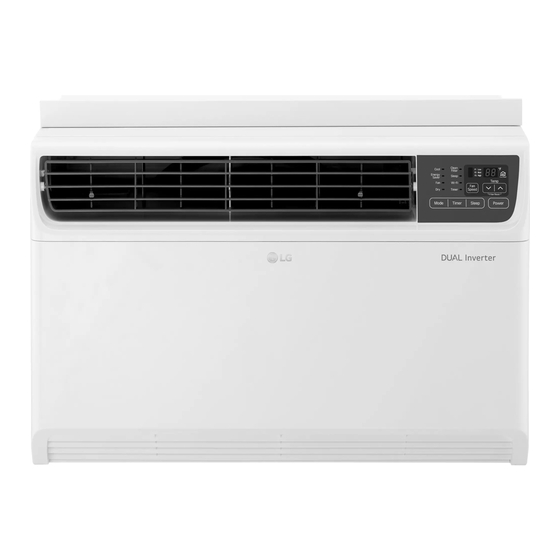

PRODUCT OVERVIEW PRODUCT OVERVIEW Exterior Parts Interior Parts Control Panel Evaporator Remote Controller Air Guide Air Filter Control Box Brace Compressor Air Inlet Condenser Front Grille Base Pan Cabinet Power Cord Air Outlet... -
Page 9: Installation
INSTALLATION INSTALLATION Circuit Breaker Installation Read thoroughly and follow all directions provided. A circuit breaker must be installed between the power source and the unit if the plug is not used (see illustration below). Main Power source Circuit Breaker Use a circuit breaker or time delay fuse. -
Page 10: How To Install The Unit
INSTALLATION How to Install the Unit Slide the unit from the cabinet by gripping the base pan handle and pulling forward Measure the space for installation to assure while bracing the cabinet. a good fit. The air conditioner must be installed firmly into place to prevent vibration and noise. -
Page 11: Installation Of The Cabinet
INSTALLATION Installation of the Cabinet Space for Outside Air Flow Prepare the hole in the wall so that the bottom of the cabinet is well supported, the top has minimum clearace and the air inlet louveres have clearance as shown. Holes from the outside through AIR IN to the cavity should be sealed. -
Page 12: Installations Of The Unit Into The Cabinet
INSTALLATION Installations of the unit into Connect the wire harness from the front grille assembly to the air conditioner. the Cabinet Slide the air conditioner into the case. Reinstall the 2 screws removed earlier on each side of the case. Screw Screw Attach the front grille assembly to the... -
Page 13: Operation
OPERATION OPERATION Control Panel and Remote Control Remote Control Power Operation Mode Press to turn the air conditioner ON or OFF. Press the Mode button to cycle between 4 types of air conditioner operation: Cool / Sleep Mode Energy Saver / Fan / Dry. This mode keeps operating noise to a Cool - This mode is ideal on hot days to minimum and turns the air conditioner off... -
Page 14: Wireless Remote Control
OPERATION Wireless Remote Control Clean Filter The Clean Filter LED lights up to notify you Inserting Batteries Temp If the display screen of the remote control begins together on the control panel to turn off the to fade, replace the batteries. Insert AAA (1.5 V) Clean Filter light. -
Page 15: Ventilation
OPERATION Ventilation Direction Push the ventilation lever in to the closed position to maintain the best cooling performance. Pull up or down. the ventilation lever out to open the vent and draw fresh air into the room. Close Open NOTE ●... -
Page 16: Maintenance
● For repair and maintenance, contact a LG Electronics Customer Information Center. See the warranty card for details. . Have your model number and serial number available. -
Page 17: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Before Calling for Service The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service. Normal Sounds You May Hear High Pitched Chatter Sound of Rushing Air... - Page 18 TROUBLESHOOTING Problem Possible Cause Solutions Make sure the air conditioner plug The air conditioner is unplugged. is pushed completely into the outlet. Check the house fuse/circuit The fuse is blown/circuit breaker breaker box and replace the fuse or is tripped. Air conditioner reset the breaker.
- Page 19 TROUBLESHOOTING Problem Possible Cause Solutions For proper water disposal, make Water drips The air conditioner is not tilted to sure the air conditioner slants indoors. the outside. slightly from the cabinet front to the rear. This is normal for a short period in Water collects in Moisture removed from air and areas with little humidity;...
