WARNING: Always stop the engine before
you do any work on the cutting attachment.
The cutting attachment continues to rotate
even after the throttle has been released.
Ensure that the cutting attachment has
stopped completely and disconnect the
spark plug before you start to work on it.
WARNING: A faulty cutting attachment may
increase the risk of accidents.
Introduction
WARNING: Before you assemble the
product, you must read and understand the
safety chapter.
WARNING: Remove the spark plug cable
from the spark plug before you assemble the
product.

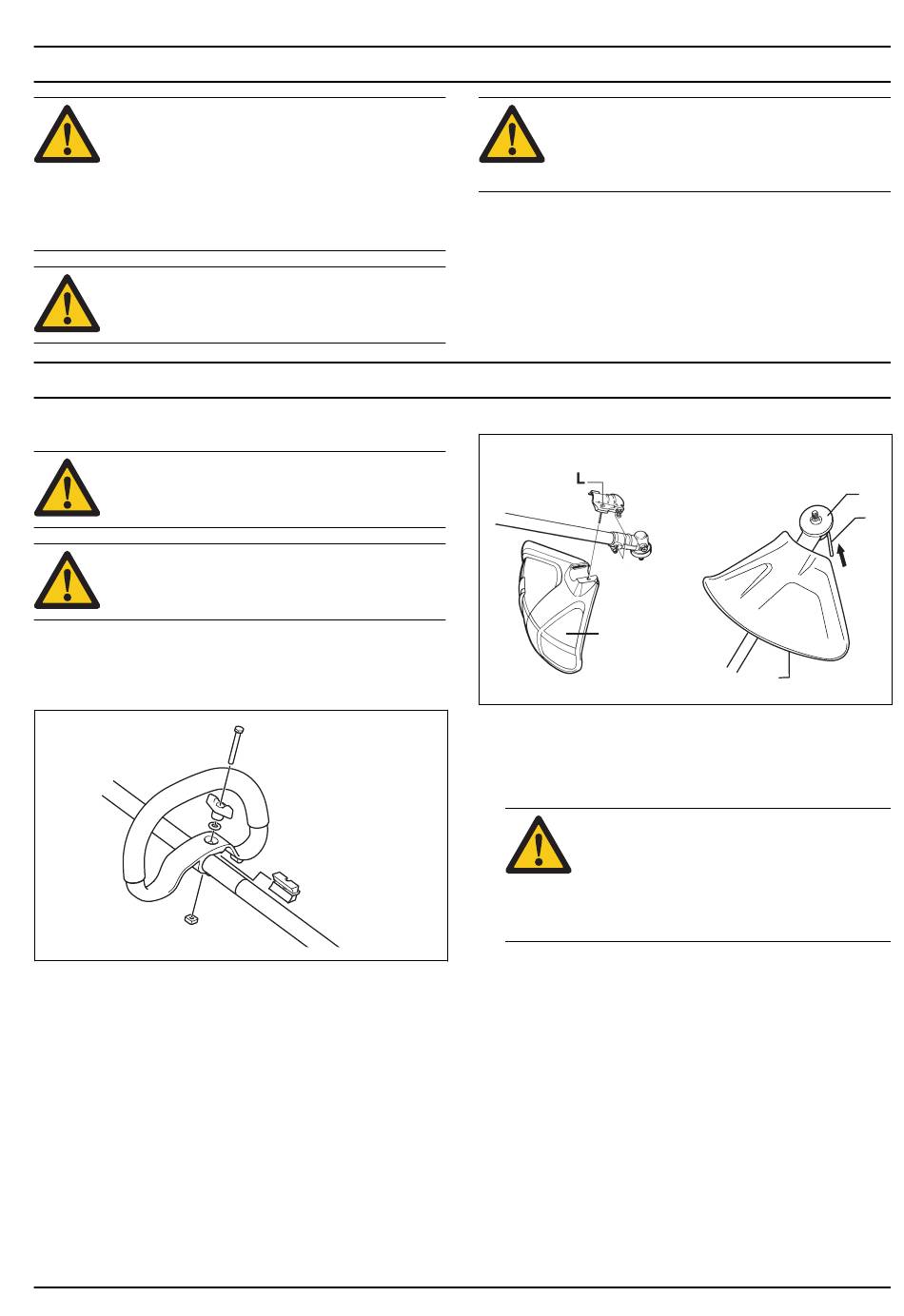

To assemble the loop handle
1. Attach the loop handle onto the shaft between the
arrows.
2. Move the spacer into the slot of the loop handle.
3. Attach the nut, the knob and the screw, do not make
it to tight.
4. Adjust the product to a comfortable position.
5. Tighten the bolt.
To assemble the cutting attachment guard and
trimmer head
1. Attach the correct cutting attachment guard (A) for
the trimmer head (See,
2. Put the cutting attachment guard onto the fitting on
the shaft.
1003 - 001 - 07.01.2019
Safety instructions for maintenance
Assembly
Accessories on page 19 ).
WARNING: Make sure that the trimmer cord
is wound tightly and evenly around the
drum, otherwise the product will generate
harmful vibration.
•
Only use cutting attachments with the guards we
Accessories on page 19 .
recommend. See,
3. Secure with the bolt(L).
A
4. Install the drive disc (B) on the output shaft.
5. Turn the output shaft until one of the holes in the
drive disc aligns with the related hole in the gear
housing.
WARNING: Make sure that the higher
section of the drive disc installs correctly
in the center hole of the cutting
attachment. If the cutting attachment is
installed incorrectly, it can result in
serious injury.
6. Put the locking pin (C) in the hole to lock the shaft.
B
C
A
9
