Summary of Contents for Speed Queen AWNE92

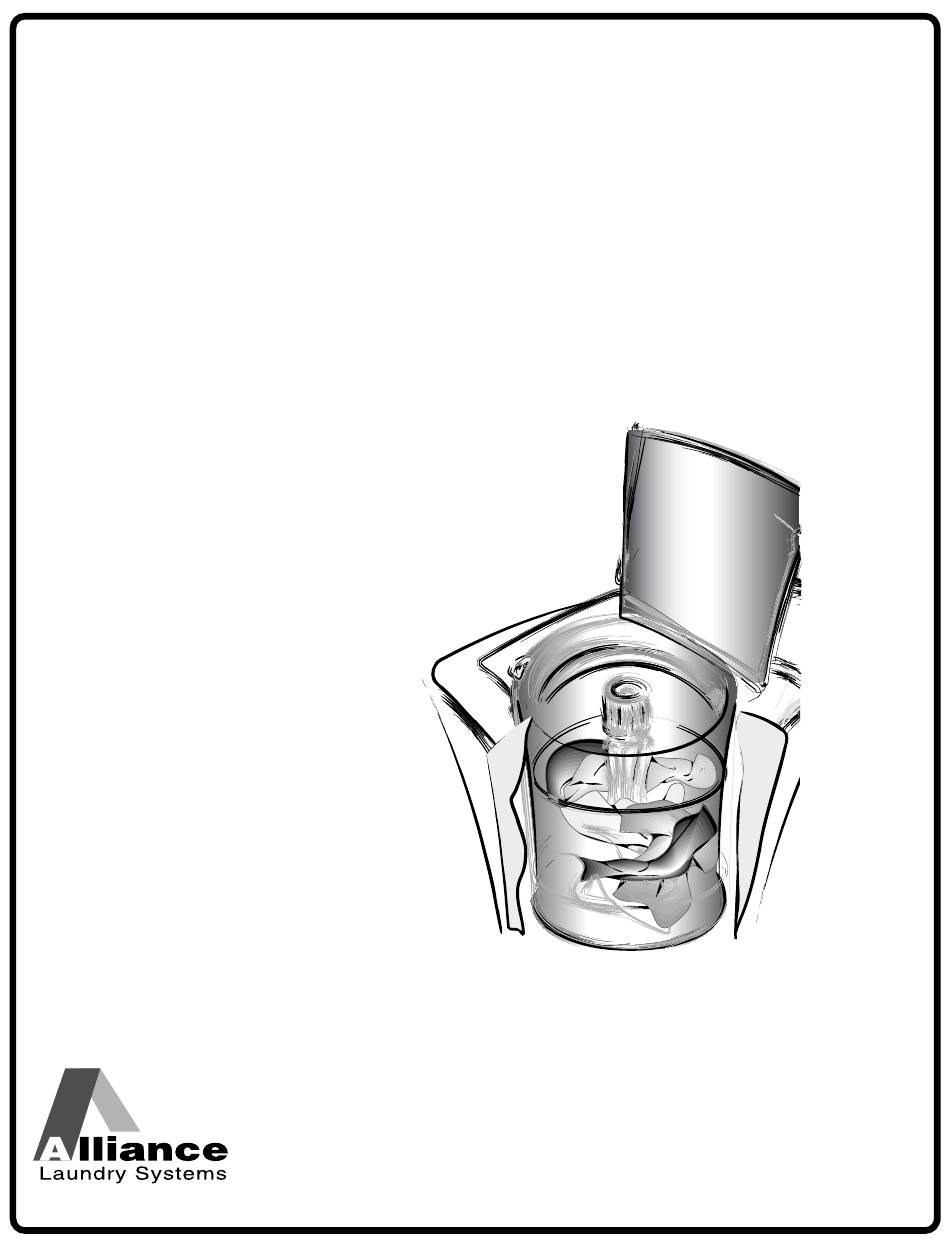

- Page 1 User's Guide for Topload Washers TLW22C_SVG Original Instructions Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 202956R4 February 2016 www.speedqueen.com...
- Page 3 WARNING Failure to install, maintain, and/or operate this ma- chine according to the manufacturer's instructions may result in conditions which can produce bodily in- jury and/or property damage. W030 WARNING For your safety and to reduce the risk of fire or an ex- plosion, do not store or use gasoline or other flamma- ble vapors and liquids in the vicinity of this or any oth- er appliance.
- Page 4 Product Registration Product Registration New owners of Alliance Laundry Systems equipment are encour- aged to register their appliance to insure proper limited warranty coverage. Register online at http://www.speedqueen.com/home/en- us/support/product-registration.aspx or contact your dealer to register your appliance. All information will be kept confidential and will not be distributed to other parties.
-
Page 5: Table Of Contents
Table of Contents Safety Information................6 Explanation of Safety Messages..............6 Important Safety Instructions..............6 Operation..................8 Before Washing..................8 Loading the Washer.................. 8 Control Panel................... 11 Digital Display..................11 Cycles....................11 Selections.................... 12 Options....................12 Status....................12 To Wash Clothes..................13 Pausing the Cycle................14 Manual Soaking..................14 Cycle Operation................15 Optional Features.................. -
Page 6: Safety Information
Safety Information Safety Information Explanation of Safety Messages Important Safety Instructions Precautionary statements (“DANGER,” “WARNING,” and “CAU- Save These Instructions TION”), followed by specific instructions, are found in this manual and on machine decals. These precautions are intended for the per- WARNING sonal safety of the operator, user, servicer, and those maintaining the machine. - Page 7 Safety Information • Children less than three years should be kept away unless con- Always contact your dealer, distributor, service agent or the manu- tinuously supervised. facturer about any problems or conditions you do not understand. • Do not reach into the washer if the washtub or agitator, if appli- cable, is moving.
-
Page 8: Operation
Operation Operation Before Washing Prepare Wash Load Empty Pockets and Cuffs Make sure all pockets are empty and turn them inside out. One bob- by pin, metal or plastic toy, nail or sharp object in a load can catch laundry, cause tears and plug the pump. Facial tissue left in a pock- TLW1991N_SVG et will produce extreme “lint”. - Page 9 Operation • Drop items loosely into the washtub. The bulk of the clothes NOTE: Starting January 2009, the Department of Ener- gy (DOE) mandated new efficiency standards which re- rather than the weight will determine load size. Do not pack sulted in reduced water levels in the topload washer.
- Page 10 Operation Wash Temperature Guide Water Tem- perature Comments • Sturdy whites • Best cleaning for and colorfast items soiled with items oily or greasy stains, grass, or • Work clothes ink. • Soiled items • Diapers WARM • Light and mod- •...
-
Page 11: Control Panel
Control Panel Control Panel Preset Cycles Power Start Perm Heavy Normal Whites Delicate Duty Press Quick Rinse Favorite Bulky Spin Wash & Spin Cancel Pause Pre- Temp Soak Wash Cold Cool Warm Wash Load Third Second Size Soak Rinse Rinse Small Medium Large... -
Page 12: Selections
Control Panel Options 1. Press the Favorite keypad. The control will display the cycle and modifier settings for the first Favorite cycle. The 2-digit display will switch between F1 and the cycle time for the selected cycle. The following options can be used to modify the currently chosen 2. -
Page 13: To Wash Clothes
Control Panel Wash The Wash status light is lit during the wash portion of the cycle including Pre-Wash and Soak, if selected. Rinse The Rinse status light is lit during the rinse portions of the cycle including Second Rinse and Third Rinse, if selec- TLW1995N_SVG ted. -
Page 14: Pausing The Cycle
Control Panel NOTE: You will not be able to press the Start/ Pause button to start a cycle until five seconds after turning on the washer. A status light will flash during this warm-up period. 6. Select the cycle according to the type of fabric being washed. If the selected cycle is not the correct cycle for the fabric being washed, you may change the cycle selection at any time until the first wash fill is complete. -
Page 15: Cycle Operation
Cycle Operation Cycle Operation The cycles of your washer include several different stages. Refer to Cycle stages that are Options must be selected on the keypad to the tables below for what can be expected during the cycles that be included in the cycle. you select. - Page 16 Cycle Operation All Other Wash Cycles Cycle Stage Activity Time (minutes) Speed Comments Soak Fill/Agitate/Soak/Spin 37:00 Agitate = Low Option Spin = Low (Perm Press); High (all others) Pre-Wash Fill/Agitate/Spin 13:10 Agitate = Low (Bulky); Option High (all others) Spin = Low (Perm Press);...
-
Page 17: Optional Features
Cycle Operation Rinse & Spin and Spin Cycles Cycle Stage Activity Time (minutes) Speed Comments Soak Fill/Agitate/Soak/Spin 37:00 High Option Pre-Wash Fill/Agitate/Spin 13:10 High Option Rinse Fill/Agitate/Spin 10:10 High Not active in Spin Cycle Second Rinse Fill/Agitate/Spin 10:10 High Option Third Rinse Fill/Agitate/Spin 20:20... - Page 18 Cycle Operation TLW2001N_SVG 1. Dispenser Housing 2. Dispenser Cup 3. Agitator Use Tips • Fabric softener spilled onto garments may cause staining. To remove, dampen stain and rub with bar soap. Wash as usual. • Liquid fabric softeners will be dispensed during the first rinse and should not be combined with bleach, bluing, starch, deter- gents, soaps or packaged water conditioners.
-
Page 19: Clothing Care
Clothing Care Clothing Care Clothing Concerns To keep clothes looking white or bright, use good washing practices minerals on them. If you notice that your clothes are not as bright at all times to prevent a gradual build-up of soil or water hardness as they should be, take corrective measures immediately. - Page 20 Clothing Care Problem Cause Solution Excessive Lint Improper Sorting Fabrics that shed lint cannot be washed with fabrics that receive lint. Insufficient Detergent/Non-phosphate De- Use enough detergent so lint remains sus- tergent pended in water and flushed out. Do not oversuds the water.
-
Page 21: Maintenance
Maintenance Maintenance Cold Weather Care Vacations and Extended Non-Use If the unit is delivered on a cold day (below freezing), or is stored in IMPORTANT: To avoid possible property damage due to flooding, turn off the water supply to the washer whenev- an unheated room or area during the cold months, do not attempt er there will be an extended period of non-use. -
Page 22: Motor Overload Protector
Maintenance Shipping Plug The plastic shipping plug should be saved and reinstalled any time the washer is moved. The plug fits into two openings: The base open- ing and the shipping plug opening on the bottom of the movable piv- ot dome. -
Page 23: Troubleshooting
Troubleshooting Troubleshooting Try these troubleshooting tips before making a service call. They may save you time and money. Washer Symptom Possible Cause/Solution Won't Fill • Make sure power cord is plugged all the way into the electrical outlet. • Make sure hot and cold water faucets are turned on. •... - Page 24 Troubleshooting Washer Symptom Possible Cause/Solution Won't Spin • Make sure lid is closed. • Press Start/Pause button to start washer. • Make sure power cord is plugged all the way into the electrical outlet. • Check the laundry room fuse or circuit breaker. •...
- Page 25 Troubleshooting Washer Symptom Possible Cause/Solution Wrong Water Temperature • Make sure that the controls are properly set. • Check fill hoses. Make sure hot faucet hose is connected to hot mixing valve (indicated with “H” on the valve bracket) and cold faucet is connected to cold mixing valve (indicated with “C”...
-
Page 26: Contact Information
Service Center. To find the nearest service center, visit us online at www.speedqueen.com. If you are unable to locate an authorized service center or are unsa- tisfied with the service performed on your unit, contact: Speed Queen Shepard Street P.O. Box 990 Ripon, Wisconsin 54971-0990 www.speedqueen.com...
