Summary of Contents for Toshiba 55U5766DB

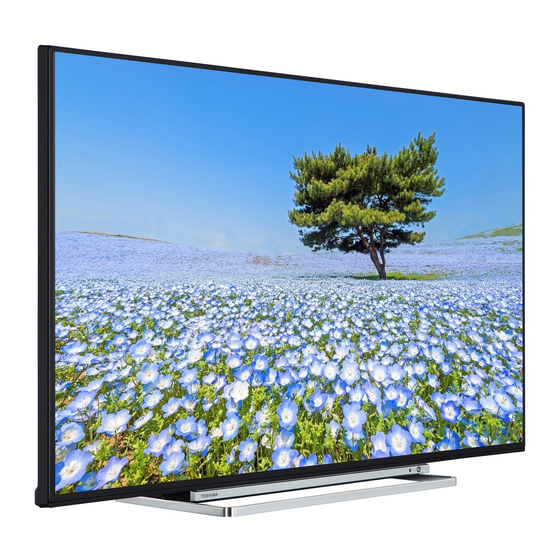

- Page 1 OPERATING INSTRUCTIONS 55U5766DB COLOUR TELEVISION WITH REMOTE CONTROL...
-
Page 2: Table Of Contents
Contents Safety Information ..........2 Mains Supply ............2 Markings on the Product.........2 Environmental Information........4 Features ..............6 Accessories Included..........6 Standby Notifications ..........6 TV Control & Operation ..........6 Inserting the Batteries into the Remote ....7 Connect Power ............7 Antenna Connection ..........7 Notification ..............7 Specification ............8 Remote Control ............9 Connections............10... -
Page 3: Safety Information
• Do not place any heat sources such as electric Safety Information heaters, radiators, etc. near the TV set. • Do not place the TV on the floor and inclined CAUTION surfaces. • To avoid danger of suffocation, keep plastic bags RISK OF ELECTRIC SHOCK out of the reach of the babies, children and domestic DO NOT OPEN... - Page 4 Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions. WALL MOUNTING WARNINGS Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable • Read the instructions before mounting your TV coin or button cell batteries. on the wall. Class 1 Laser Product: •...
-
Page 5: Environmental Information
Environmental Information This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps: If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. If you like to set the Backlight to a fixed value set as Custom and adjust the Backlight (located under the Energy Saving setting) manually using Left or Right buttons on the remote. - Page 6 Restriction of Chemicals), entered into force on 1 June 2007, with phased deadlines to 2018. Toshiba will meet all REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation.
-
Page 7: Features
Features Standby Notifications • TV supports Ultra HD (Ultra High Definition - also If the TV does not receive any input signal (e.g. from known as 4K) which provides resolution of 3840 x aerial or HDMI source) for 3 minutes, it will go 2160 (4K:2K). -
Page 8: Inserting The Batteries Into The Remote
Input Selection Notification Once you have connected external systems to your TRADEMARK ACKNOWLEDGMENT TV, you can switch to different input sources. Press the The terms HDMI and High-Definition Multimedia Source button on your remote control consecutively Interface, and the HDMI Logo are trademarks or to select the different sources. -
Page 9: Specification
Wireless LAN Transmitter Specifications This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited Max Output Frequency Ranges without the appropriate license(s) from Microsoft. Power Content owners use Microsoft PlayReady™ content 2400 - 2483,5 MHz (CH1-CH13) <... -
Page 10: Remote Control
Remote Control Standby: Switches On / Off the TV Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen. Quick Menu: Displays a list of menus for quick access Mute: Completely turns off the volume of the TV Volume +/- Menu: Displays TV menu Navigation buttons: Helps navigate menus, content... -
Page 11: Connections
Connections Connector Type Cables Device See the illustrations on the left side. To enable PC/YPbPr audio, Scart you will need to use the back Connection audio inputs (back) with a YPbPr/PC audio cable for YPBPR audio connection. If an external device is connected via the SCART YPbPr Video socket, the TV may automatically... -
Page 12: Switching On/Off
Direct, Single Satellite Cable or DiSEqC switch by Switching On/Off using “ ” or “ ” buttons. To Switch the TV On • Direct: If you have a single receiver and a direct Connect the power cord to a power source such as a satellite dish, select this antenna type. -
Page 13: Using Satcodx Feature
After the initial settings are completed TV will start so may cause physical damage to the USB player to search for available broadcasts of the selected and the USB device itself. Do not pull out your drive broadcast types. while playing a file. After all the available stations are stored, scan results You can use USB hubs with your TV’s USB inputs. -
Page 14: Timeshift Recording
Some stream packets may not be recorded because Recording Configuration of signal problems, as a result sometimes videos may Select the Recording Settings item in the Media freeze during playback. Browser>Settings menu to configure the recording Record, Play, Pause, Display (for playlist dialogue) keys settings. -
Page 15: Followme Tv (If Available)
System Audio Control (*) Images must have an aspect ratio between 4:3 to 16:9 and they must be in .jpeg, .jpg or .jpe file formats. The image Allows an Audio Amplifier/Receiver to be used with cannot be set as boot logo, which’s resolution doesn’t appear the TV. -
Page 16: Tv Menu Contents
TV Menu Contents System - Picture Menu Contents You can change the picture mode to suit your preference or requirements. Picture mode can Mode be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural. Contrast Adjusts the light and dark values on the screen. Brightness Adjusts the brightness values on the screen. - Page 17 System - Sound Menu Contents Volume Adjusts the volume level. Equalizer Selects the equalizer mode. Custom settings can be made only when in User mode. Balance Adjusts whether the sound comes from the left or right speaker. Sets headphone volume. Headphone Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
- Page 18 System - Settings Menu Contents Conditional Access Controls conditional access modules when available. Language You may set a different language depending on the broadcaster and the country. Enter correct password to change parental settings. You can easily adjust Menu Lock, Maturity Lock, Child Lock or Guidance in this menu. You can also set a new PIN or change the Default CICAM PIN using the related options.
- Page 19 Audio Video Sharing feature allows you to share files stored on your smartphone or tablet Audio Video pc. If you have a compatible smartphone or tablet pc and the appropriate software is installed, Sharing you can share/play photos on your TV. See instructions of your sharing software for more information.
- Page 20 Installation Menu Contents Automatic Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. channel scan Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Satellite: Searches and stores satellite stations. (Retune) Manual This feature can be used for direct broadcast entry.
-
Page 21: General Tv Operation
TV. You can change the default PIN of the CI CAM General TV Operation using this option. Using the Channel List Note: Default PIN can be set to 0000 or 1234. If you have The TV sorts all stored stations in the Channel List. defined the PIN(is requested depending on the country You can edit this channel list, set favourites or set selection) during the First Time Installation use the PIN that... -
Page 22: Teletext Services
Integrated Catch-Up Services Rec./Stop (Record button): The TV will start to record the selected programme. You can press again You can enjoy Freeview Play catch-up TV services to stop the recording. that work directly through the electronic programme IMPORTANT: Connect a USB disk to your TV while the TV guide(EPG). -
Page 23: Troubleshooting & Tips
3 AM search and upgrade mode check the storage device is correctly formatted and there is sufficient space. Your TV will search for new upgrades at 3:00 o’clock if USB is too slow Automatic scanning option in the Upgrade options menu is set to Enabled and if the TV is connected If a “USB storage device writing speed too slow to to an aerial signal or to Internet. -
Page 24: Pc Input Typical Display Modes
PC Input Typical Display Modes AV and HDMI Signal Compatibility The following table is an illustration of some of the Source Supported Signals Available typical video display modes. Your TV may not support all resolutions. SECAM Index Resolution Frequency NTSC4.43 (SCART) NTSC3.58 640x350... -
Page 25: Supported Video File Formats For Usb Mode
Supported Video File Formats for USB Mode Video Codec Resolution Bit Rate Container MPEG program stream (.DAT, .VOB, .MPG, .MPEG), MPEG MPEG1/2 transport stream (.ts, .trp, .tp), MP4 (.mp4, .mov), 3GPP (.3gpp, .3gp), AVI (.avi), MKV (.mkv), ASF (.asf) MPEG program stream (.MPG, .MPEG), MP4 (.mp4, .mov), 1080Px2@30fps, MPEG4 40Mbps... -
Page 26: Supported Audio File Formats For Usb Mode
Supported Audio File Formats for USB Mode Audio Codec Sample rate Bit Rate Container MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), 32Kbps ~ MPEG1/2 Layer1 16KHz ~ 48KHz MPEG transport stream (.ts, .trp, .tp), MPEG program stream 448Kbps (.DAT, .VOB, .MPG, .MPEG), WAV (.wav) MP3 (.mp3), AVI (.avi), ASF (.asf), Matroska (.mkv, .mka), 8Kbps ~... -
Page 27: Supported Subtitle File Formats For Usb Mode
Supported Subtitle File Formats for USB Mode Internal Subtitles Extension Container Subtitle Code dat, mpg, mpeg, vob MPG, MPEG DVD Subtitle ts, trp, tp DVB Subtitle DVD Subtitle UTF-8 Plain Text UTF-8 Plain Text VobSub DVD Subtitle AVI (1.0, 2.0), XSUB DMF0,1, 2 XSUB+... -
Page 28: Supported Dvi Resolutions
Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information. 56Hz 60Hz 66Hz 70Hz 72Hz 75Hz 640x480 þ þ 800x600 þ þ... -
Page 29: Connectivity
Configuring Wired Device Settings Connectivity Network Type Wired Connectivity The Network Type can be selected as Wired Device, Wireless Device or Disabled, in accordance with the To Connect to a Wired Network active connection to the TV set. Select this as Wired •... - Page 30 Connecting to your mobile device via WiFi • The transmission speed differs depending on the distance and number of obstructions between the • If your mobile device has WiFi feature, you can connect transmission products, the configuration of these it to your TV via a router, in order to access the content products, the radio wave conditions, the line traffic in your device.
- Page 31 Connectivity Troubleshooting Using Audio Video Sharing Network Service Wireless Network Not Available Audio Video Sharing feature uses a standard that eases the viewing process of digital electronics and makes • Ensure that any firewalls of your network allow the them more convenient to use on a home network. TV wireless connection.
-
Page 32: Nero Mediahome Installation
can view this content without interruption depends Nero MediaHome Installation on the connection speed provided by your internet To install Nero MediaHome, please proceed as service provider. follows: Press the Internet button on your remote control Note: The Audio Video Sharing feature cannot be used if to open internet portal page. -
Page 33: Freeview Play Platform
To add a desired website to the Speed Dial list for Freeview Play Platform quick access, move the cursor to the top of the page Freeview Play platform provides catch-up TV and or press the Back/Return button. The browser bar On Demand services. - Page 34 ports if your TV doesn’t have internal wifi feature. To Auto-lock (Only in IOS): The screen of the device be able to use internet based features, your modem/ automatically turns off after a certain amount of router must be connected to the internet. time.
- Page 35 TV technology on our website. To access the Portal Launcher( ) widget tap on www.toshiba-tv.com the Up-arrow on the bottom left side of the screen. You can access the portal page by tapping on the You can review your TV user manual online or Portal Launcher widget.
- Page 36 Product Fiche Commercial Brand: TOSHIBA Model No. 55U5766DB Energy efficiency class Visible screen size 55 inches 140 cm (diagonal,approx.) (inch/cm) On mode average power 86.0 W consumption (Watt) Annual energy consumption 125.0 kWh (kWh/annum) Standby power consumption 0.50 W (Watt)
