Summary of Contents for Multitech Dragonfly MTQ-LNA7

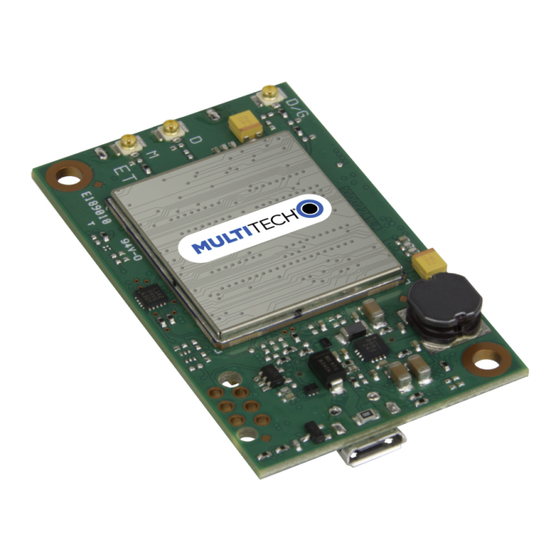

- Page 1 Dragonfly MTQ-LNA7 Device Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................6 Overview ..................................6 Documentation ................................6 Product Build Options ..............................6 MTQ-LNA7-B02 Mechanical Drawing ........................... 7 Descriptions of LEDs..............................8 Chapter 2 – Hardware and Specifications......................... 9 MTQ-LNA7-B02 Specifications ............................9 40-Pin Connector Definitions ............................ - Page 4 CONTENTS Chapter 5 – Safety Information ..........................22 Handling Precautions ..............................22 Radio Frequency (RF) Safety ............................22 Sécurité relative aux appareils à radiofréquence (RF)....................22 General Safety................................23 Interference with Pacemakers and Other Medical Devices ..................23 Potential interference ............................... 23 Precautions for pacemaker wearers ........................
- Page 5 CONTENTS Device is not detected ("No Device") ........................40 MultiConnect Cell USB Modem is not detected ....................... 40 Connection Manager is not working, and a device connected to the computer is not detected......40 Connection Manager displays "Device Error" status for a serial device ..............40 Index..................................
-
Page 6: Chapter 1 - Product Overview
The Dragonfly™ (MTQ) embedded cellular modem is fully certified and MNO approved. These ready-to-integrate modules offer an onboard cellular radio in a compact design. Documentation The following documentation is available on the appropriate product page at www.multitech.com. Document Description Part Number Device Guide This document. -
Page 7: Mtq-Lna7-B02 Mechanical Drawing
PRODUCT OVERVIEW MTQ-LNA7-B02 Mechanical Drawing Dragonfly MTQ-LNA7 Device Guide... -
Page 8: Descriptions Of Leds
PRODUCT OVERVIEW Descriptions of LEDs The Link Status LED is located on the SIM side of the device to the right of the Micro USB Connector in the lower right corner. LED Indicators Link Status OFF —No power to the cellular radio Slow Blink (200 ms High/1800 ms Low) —... -
Page 9: Chapter 2 - Hardware And Specifications
HARDWARE AND SPECIFICATIONS Chapter 2 – Hardware and Specifications MTQ-LNA7-B02 Specifications Category Description General Standards LTE FDD Cat 4, 3GPP release 11 compliant WCDMA/GSM fallback USB Interface is CDC-ACM compliant SMS is Text and PDU mode, Point-to-Point MO and MT, SMS cell broadcast, and SMS storage: ME by default Frequency Bands (in 4G: FDD 1900 (B2), 1700 (B4), 850 (B5), 700 (B12, B13) -
Page 10: 40-Pin Connector Definitions
HARDWARE AND SPECIFICATIONS Category Description Operating Voltage 3.3 - 5 V +/- 5% Input Current See Power Draw Certifications and Compliance EMC and Radio FCC Part 15 Class B Compliance FCC Part 22H FCC Part 24E FCC Part 27 Safety Compliance UL 60950-1 2nd Edition cUL 60950-1 2nd Edition Am. - Page 11 HARDWARE AND SPECIFICATIONS Signal Name Logic Level Voltage In/Out Description Voltage RADIO_RXD 0 - 3V 3.3V RADIO_DCD 0 - 3V 3.3V Data carrier detect RADIO_RI 0 - 3V 3.3V Ring indicator RADIO_CTS 0 - 3V 3.3V Clear to send (flow control) Ground RADIO_VDD 0-1.8V...
-
Page 12: 40-Pin Connector
HARDWARE AND SPECIFICATIONS Signal Name Logic Level Voltage In/Out Description Voltage A hyphen (-) indicates a range of acceptable logic levels. USB D+D-: 5V tolerant inputs / 3V drive-level output 40-Pin Connector Manufacturer: Hirose Electric Co LTD Description: .5MM 40 PN B>B RECEPTACLE Model Number: DF17(4.0)-40DP-0.5V(57) Use with:... -
Page 13: Input/Output Current Ratings
HARDWARE AND SPECIFICATIONS Parameter Conditions Minimum Volts Maximum Volts Output low level voltage for an I/O pin =+20 mA Output high level voltage for an I/O pin -1.3 Output low level voltage for an I/O pin =+6 mA Output high level voltage for an I/O pin -0.4 Output low level voltage for an I/O pin =+4 mA... - Page 14 HARDWARE AND SPECIFICATIONS Tx Pulse: The average peak current during a GSM850 transmission burst period or HSDPA/LTE connection. The transmission burst duration for GSM850 can vary, depending on what transmission scheme is being deployed (GPRS Class 8, Class 10, GSM, etc.). Inrush Charge: The total inrush charge at power on.
-
Page 15: Chapter 3 - Getting Started
If possible, use a USB port that connects directly to the motherboard rather than a USB port with added cabling inside the computer chassis. Use USB 3.0 ports if available. These ports are typically rated for more current. You can order the USB cable through MultiTech. The part number is CA-USB-A-MICRO-B-3. Dragonfly MTQ-LNA7 Device Guide... -
Page 16: Communications Flow
USB connector on the device. There is no connection to pins 6 and 7 on the developer board. Establish serial communication using Multitech developer board MTUDK2. See the Universal Developer Kit 2.0 Developer Guide (PN S000610) for more information. -
Page 17: Device Reset (Pin 35)
GETTING STARTED Device Reset (Pin 35) Minimum pulse is 50 ms. - If the reset line is held low for >50ms the radio is turned off. - When the reset line is released, the radio is turned on. Low Power Options See Powering Down the Device for the lowest power consumption. -
Page 18: Chapter 4 - Antennas
Chapter 4 – Antennas External Antenna Option Antenna Devices were approved with the following antenna: Manufacturer: Wieson Description: LTE Antenna with SMA-Male Connector Model Number GY115IE002-001 MultiTech ordering information: Model Quantity ANLTE4-1HRA ANLTE4-2HRA ANLTE4-10HRA ANLTE4-50HRA Antenna Specifications Category Description Frequency Range 0.698 - 0.96 GHz... -
Page 19: Sma To U.fl Cables
ANTENNAS SMA to U.FL Cables The developer kit includes three 4.5" SMA to U.FL cables which are preinstalled on the developer board. Consult the mechanical drawings for your device to determine which antenna to connect to which U.FL connector on the device. -
Page 20: Antenna Diversity
ANTENNAS Antenna Diversity Antenna diversity uses two receive antennas to improve the downlink connection (cell tower to mobile). It has no effect on the uplink (mobile to cell tower). Antenna diversity is useful in environments where the signal arrives at the device after bouncing off or around buildings or other objects. -
Page 21: Selecting Antennas
ANTENNAS Selecting Antennas Select an antenna based on your product and application. Typically, both antennas are the same because either can be the main receive antenna. However, if the antenna connectors are too close together, use a similar antenna on a short cable for the second receive only antenna. Antenna Approvals and Safety Considerations Note the following: The carriers conduct antenna diversity tests. -
Page 22: Chapter 5 - Safety Information
SAFETY INFORMATION Chapter 5 – Safety Information Handling Precautions To avoid damage due to the accumulation of static charge use proper precautions, such as an ESD strap, when handling any cellular device to avoid exposure to electronic discharge during handling and mounting the device. Radio Frequency (RF) Safety Due to the possibility of radio frequency (RF) interference, it is important that you follow any special regulations regarding the use of radio equipment. -
Page 23: General Safety
SAFETY INFORMATION General Safety The device is designed for and intended to be used in fixed and mobile applications. Fixed means the device is physically secured at one location and cannot be easily moved to another location. Mobile means the device is used in other than fixed locations. -
Page 24: Device Maintenance
Do not place the device alongside computer discs, credit or travel cards, or other magnetic media. The information contained on discs or cards may be affected by the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with MultiTech's accessory specifications may invalidate the warranty. -
Page 25: Chapter 6 - Labels
This device is an industry and/or carrier approved modem. In most cases, when integrated and used with an antenna system that was part of the MultiTech modem certification, additional approvals or certifications are not required for the device that you develop as long as the following requirement is met: Model Identification: The MultiTech model identification allows the carrier to verify the modem as one of its approved models. -
Page 26: Chapter 7 - Regulatory Information
REGULATORY INFORMATION Chapter 7 – Regulatory Information 47 CFR Part 15 Regulation Class B Devices This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 27: Industry Canada Class B Notice
REGULATORY INFORMATION FCC Rule Parts Frequency Range Output Watts Frequency Tolerance Emission Designator (MHz) 1850.7 - 1909.3 0.226 0.0024 PM 17M9W7D 1850.7 - 1909.3 0.248 0.00193 PM 9M05G7D 1850.7 - 1909.3 0.229 0.0024 PM 9M02W7D 1712.4 - 1752.6 0.227 0.0015 PM 4M13F9W 1710.7 - 1754.3 0.251... -
Page 28: Canadian Limitations
REGULATORY INFORMATION This device complies with Industry Canada license-exempt RSS standard(s). The operation is permitted for the following two conditions: the device may not cause interference, and this device must accept any interference, including interference that may cause undesired operation of the device. -
Page 29: Industry Canada
REGULATORY INFORMATION Industry Canada Certification Number/No. de Certification 10224A-2018EG95NA Type of Radio Equipment/Genre de Matériel Modular Approval Advanced Wireless Services Equipment/Matériel des services sans fil évolués (1710-1780 MHz and 2110-2180 MHz) Cellular Mobile GSM/ Téléphone cellulaire mobile GSM (824-849 MHZ) Cellular Mobile New Technologies/Téléphone cellulaire mobile - Nouvelles technologies (824-849 MHz) PCS Mobile/Téléphone mobile SCP (1850-1910 MHz) - Page 30 REGULATORY INFORMATION From RF Power (W) RF Power Occupied Bandwidth Emmission Frequency/De Frequency/Á Minimum (kHz) Designation / Fréquences (MHz) Fréquences Maximum Designation (MHz) D’émission 824.7 848.3 0.249 0.249 2670 1710.7 1754.3 0.251 0.251 17900 1710.7 1754.3 0.255 0.255 2740 Certification of equipment means only that the equipment has met the requirements of the above noted specification.
-
Page 31: Chapter 8 - Environmental Notices
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 32: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS 3). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 33: Chapter 9 - Using Connection Manager
Click Connection Manager. Open or unzip the Connection Manager file and run the installer (.msi file). In the MultiTech Connection Manager Setup Wizard, read the end-user license agreement and check I accept the terms in the License Agreement. Click Next to have the installer automatically disable the native WWAN AutoConfig service in Windows. -
Page 34: Setting Up A Serial Device In Windows Device Manager
To specify a folder for Connection Manager, use the default folder or click Change to browse to the folder you want to use. Click Install. A separate wizard opens for installing Telit drivers. Some MultiTech devices use embedded modules from Telit Wireless Solutions to provide cellular connectivity; these devices require Telit drivers. Select Complete setup type. - Page 35 USING CONNECTION MANAGER In the Add Hardware Wizard: Click Next. Select Install the hardware that I manually select from a list, then click Next. Select Modems, then click Next. Check Don't detect my modem; I will select it from a list, then click Next. Select Standard Modem Types, then select Standard 33600 bps Modem on the right.
-
Page 36: Connecting A Device
USING CONNECTION MANAGER Connecting a Device Before You Begin Make sure that your device is connected to the computer where Connection Manager is installed. Set up the device in Device Manager. Refer to Setting Up a Serial Device in Windows Device Manager. -
Page 37: Uninstalling Connection Manager
The steps above describe how to uninstall Connection Manager using Control Panel. You can also uninstall the application by using the installer file (.msi). Double-click the file, in the MultiTech Connection Manager Setup Wizard, click Next, and then select Remove on the next two pages. -
Page 38: Connection Manager User Interface
USING CONNECTION MANAGER Connection Manager User Interface Connection Manager consists of the following tabs: Main Settings Connection Details Terminal Charts Main tab The Main tab displays the following: Status of device connection: Searching, Connecting, Connected, Disconnecting, or Disconnected The action button, which changes according to the current device connection status: Detect, Connect, or Disconnect Signal strength bars and percentage indicator (only when connection to the carrier's network is established) Note:... -
Page 39: Settings Tab
USING CONNECTION MANAGER Connection statistics: download and upload speeds, amount of traffic sent and received (only when connection to the carrier's network is established) The keep-alive check status and when the last ping response was received if Enable keep-alive check is checked on the Connection tab. -
Page 40: Troubleshooting
USING CONNECTION MANAGER Troubleshooting Serial COM port is not available in the Serial Modem Settings Close Connection Manager and reopen it. Device is not detected ("No Device") After following the steps to activate your device, the Main tab still indicates "No Device." Try the following steps: Click the Settings tab and make sure that the appropriate modem type is selected: USB or Serial. - Page 41 INDEX Index absolute maximum rating ..........12 electrical characteristics..........12 activation...............33 antenna .................18 connecting ...............19 diversity..............20 FCC Notice AT#SHDN ...............16 Class B ..............26 build options ..............6 hazardous substances ...........32 cable................19 Industrie Canada ............28 certification Industry Canada ............28 29 Industry Canada ............29 Class B ..............27 Class B ................26 interférence des radiofréquences.........22 Industry Canada ............27...
- Page 42 INDEX safety troubleshooting modem..............23 Connection Manager ..........40 RF interference ............22 vehicle..............23 shutdown ..............16 SIM card, installing............15 U.FL ................19 sleep mode..............17 user responsibility............24 SMA to U.FL..............19 SMA to U.FL cable ............19 specifications..............9 static................22 vehicle safety ..............23 sécurité interférences RF............22 Dragonfly MTQ-LNA7 Device Guide...
