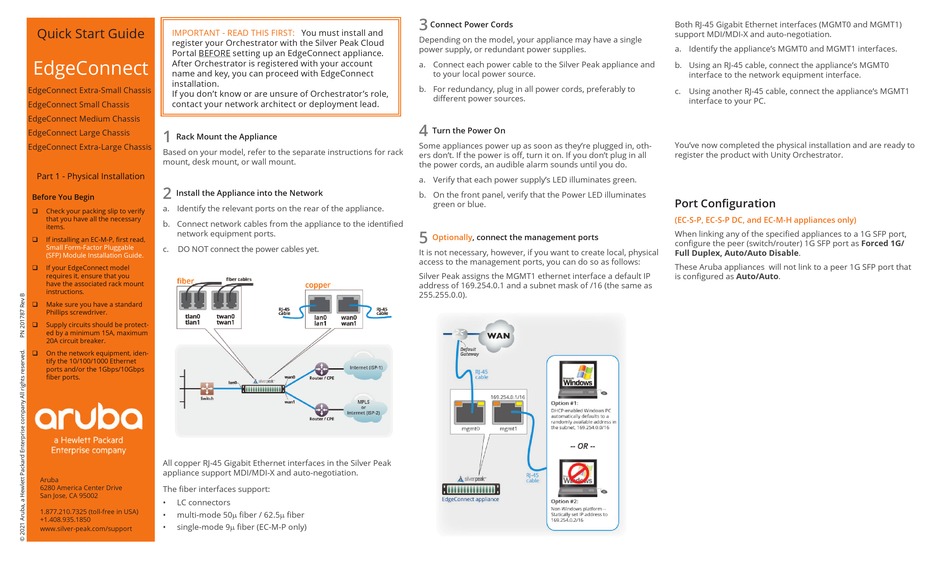

Quick Start Guide
IMPORTANT - READ THIS FIRST:
register your Orchestrator with the Silver Peak Cloud
Portal BEFORE setting up an EdgeConnect appliance.
EdgeConnect
After Orchestrator is registered with your account
name and key, you can proceed with EdgeConnect
installation.

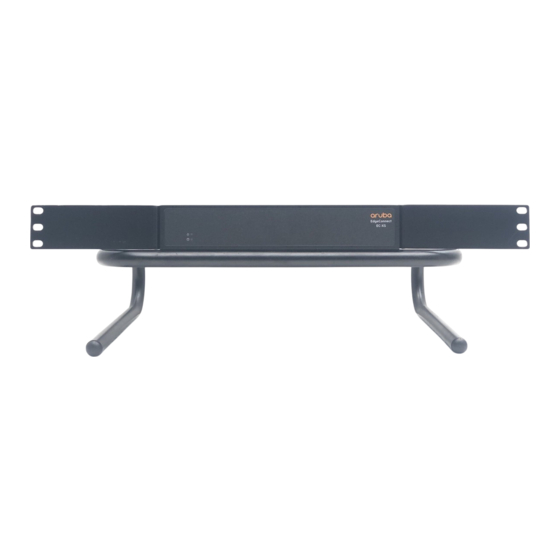

EdgeConnect Extra-Small Chassis
If you don't know or are unsure of Orchestrator's role,
contact your network architect or deployment lead.
EdgeConnect Small Chassis
EdgeConnect Medium Chassis
1
EdgeConnect Large Chassis
Rack Mount the Appliance
EdgeConnect Extra-Large Chassis
Based on your model, refer to the separate instructions for rack
mount, desk mount, or wall mount.
Part 1 - Physical Installation
2
Install the Appliance into the Network
Before You Begin
a. Identify the relevant ports on the rear of the appliance.
Check your packing slip to verify

that you have all the necessary
b. Connect network cables from the appliance to the identifi ed
items.
network equipment ports.
If installing an EC-M-P, fi rst read,

Small Form-Factor Pluggable
c. DO NOT connect the power cables yet.
(SFP) Module Installation Guide.
If your EdgeConnect model

requires it, ensure that you
have the associated rack mount
instructions.
Make sure you have a standard

Phillips screwdriver.
Supply circuits should be protect-

ed by a minimum 15A, maximum
20A circuit breaker.
On the network equipment, iden-

tify the 10/100/1000 Ethernet
ports and/or the 1Gbps/10Gbps
fi ber ports.
All copper RJ-45 Gigabit Ethernet interfaces in the Silver Peak
appliance support MDI/MDI-X and auto-negotiation.
Aruba
6280 America Center Drive The fi ber interfaces support:
San Jose, CA 95002
• LC connectors
1.877.210.7325 (toll-free in USA)
• multi-mode 50 fi ber / 62.5 fi ber
+1.408.935.1850
• single-mode 9 fi ber (EC-M-P only)
www.silver-peak.com/support
3
Connect Power Cords
You must install and
Depending on the model, your appliance may have a single
power supply, or redundant power supplies.
a. Connect each power cable to the Silver Peak appliance and
to your local power source.
b. For redundancy, plug in all power cords, preferably to
diff erent power sources.
4
Turn the Power On
Some appliances power up as soon as they're plugged in, oth-
ers don't. If the power is off , turn it on. If you don't plug in all
the power cords, an audible alarm sounds until you do.
a. Verify that each power supply's LED illuminates green.
b. On the front panel, verify that the Power LED illuminates
green or blue.
5
Optionally, connect the management ports
It is not necessary, however, if you want to create local, physical
access to the management ports, you can do so as follows:
Silver Peak assigns the MGMT1 ethernet interface a default IP
address of 169.254.0.1 and a subnet mask of /16 (the same as
255.255.0.0).
Both RJ-45 Gigabit Ethernet interfaces (MGMT0 and MGMT1)
support MDI/MDI-X and auto-negotiation.
a. Identify the appliance's MGMT0 and MGMT1 interfaces.
b. Using an RJ-45 cable, connect the appliance's MGMT0
interface to the network equipment interface.
c. Using another RJ-45 cable, connect the appliance's MGMT1
interface to your PC.
You've now completed the physical installation and are ready to
register the product with Unity Orchestrator.
Port Confi guration
(EC-S-P, EC-S-P DC, and EC-M-H appliances only)
When linking any of the specifi ed appliances to a 1G SFP port,
confi gure the peer (switch/router) 1G SFP port as Forced 1G/
Full Duplex, Auto/Auto Disable.
These Aruba appliances will not link to a peer 1G SFP port that
is confi gured as Auto/Auto.
