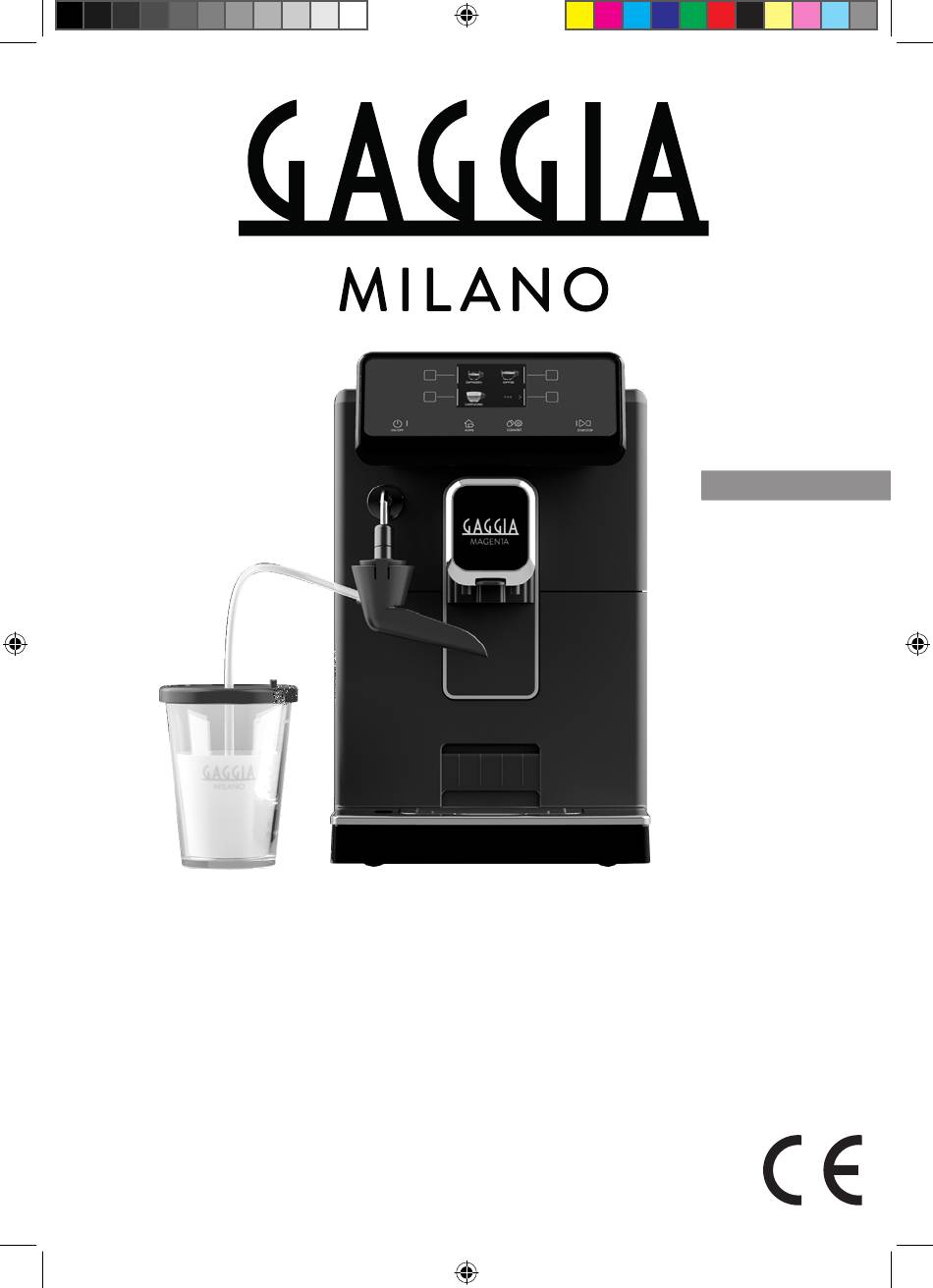

- Page 1 ENGLISH GAGGIA MAGENTA MILK RI8701 (SUP 051P) Brugermanual Operating instructions 4219-465-02541 MAN. GAG. MAGENTA Milk EN-NL-PL Rev 02.indd 1 09/09/2020 16:47:25...
- Page 2 4219-465-02541 MAN. GAG. MAGENTA Milk EN-NL-PL Rev 02.indd 2 09/09/2020 16:47:28...
- Page 3 Generel beskrivelse (Fig.2) Kontrolpanel Drypbakke Justerbar kaffeudløb Drypbakke gitter Låg til vandtank Espresso bakke Låg til bønnebeholder Håndtag til Capp in Cup System Beholder til malet kaffe Damprør Stik til strømforsyning Mælkekaraffel i glas Plads til espresso bakke Låg til mælkekaraffel Indikator for fuldt drypbakke Udtag til Capp in Cup System Vandtank...
- Page 4 Første installation Confermi di voler cambiare la lingua in Italiano? In the next steps we will set the correct water hardness level 1 min. 1 sec. CAPPinCUP System 4219-465-02541 MAN. GAG. MAGENTA Milk EN-NL-PL Rev 02.indd 4 09/09/2020 16:47:38...
- Page 5 Kontrolpanel og display Control panel overview (Fig. 1) 1/2 Multifunktionsknapper Vælg funktionen vist på displayet For at tænde eller slukke maskinen ved at holde knappen inde i et par knap Tænd/sluk sekunder. ON/OFF knap For at åbne drikkemenuen. Hjem HJEM For at åbne rengørings- og indstillingsmenuen.
-
Page 6: Første Installation
Første installation Inden maskinen tages i brug, er det vigtigt at føø l ge et par enkle trin, der er tydeligt beskrevet påå de forklarende tegninger, du fandt i hurtigguiden i 15 cm begyndelsen af denne brugsanvisning. Bemærk: For endnu lækrere kaffe anbefaler vi, at du i første omgang tilbereder 5 15 cm kopper kaffe, så... - Page 7 Måling af vandets hårdhed Du skal indstille vandets hårdhed, når du installerer din maskine. Tag den medfølgende strip til at måle vandhårdhed, og følg trinene, der vises på displayet under installationsfasen. Hvis du vil ændre vandets hårdhed senere, skal du trykke på...
- Page 8 Installering af INTENZA+ vandfilter Nedsænk INTENZA+ vandfilteret i koldt vand, lodret og med åbningen opad. Tryk forsigtigt på begge sider af filteret for at lade luftbobler komme ud. Fjern INTENZA+ vandfilteret fra vandet. Indstil maskinen i henhold til den registrerede vandhårdhed - se kapitlet "Måling af vandets hårdhed".
- Page 9 øverste lag af Kaffe 40 ml kompakt, naturlig "crema". Det er resultatet af processen med ekstraktion af varmt vand, der blev opfundet af Achille Gaggia i 1938. Espresso lungo Den lange espresso er en espresso med en længere ekstraktionstid. Det er mere fortyndet, med en anden aromatisk intensitet og et højere koffeinindhold.
-
Page 10: Coffee Brewing
Espresso tray This machine was designed to guarantee flawless results, from a traditional espresso to a number of different beverages. If you want to enjoy an Italian espresso with a delicious layer of its natural “crema” on top and as tradition dictates, we suggest your using of the "Espresso Tray"... - Page 11 Finally, press the START/STOP button to start brewing. START/STOP Note: you can interrupt the brewing at any time by pressing the START/STOP button. START/STOP If you wish to customise the settings of a specific beverage, please refer to the “Beverage customisation” chapter. Brewing coffee using pre-ground coffee Use the measuring scoop provided to insert the correct dose in the pre-ground coffee compartment.
- Page 12 Preparation of coffee-based beverages and frothed milk How to assemble the Capp in Cup system Note: Before preparing any milk-based beverage, make sure that the Capp in Cup system is fitted properly on the machine. Fit the spout on the main body of the Capp in Cup system. Insert the Capp in Cup system into the rubber grip on the steam tube until it locks into place.
-
Page 13: Dispensing Hot Water
3 Place a cup or a glass under the Coffee dispensing spout and the Capp in Cup system. 4 Press the HOME button and choose the desired beverage from the menu. HOME Press the button corresponding to the desired beverage. Press the START/STOP button to start dispensing the selected bever- age. - Page 14 Press the "HOT WATER" button Finally, press the START/STOP button to commence dispensing. START/STOP ESPRESSO LUNGO AMERICANO Note: you can interrupt dispensing at any time by pressing the START/STOP ACQUA CALDA button. START/STOP If you wish to customise the settings of a specific beverage, please refer to the “Beverage Customisation”...
- Page 15 To change the intensity of the aroma or select the pre-ground, press the “ “ button. You can choose among 5 different degrees of intensity. Every time you press the “ ” button, the aroma strength changes by one degree. The display shows the selected intensity or the selection of the pre-ground.
-
Page 16: Cleaning And Maintenance
While the machine is grinding coffee, press the grind settings adjustment knob in the bean container and turn it one notch at a time, to the left or right. You can select from 5 different grinding settings. The smaller the notch, the stronger and richer the coffee. - Page 17 Depending on usage See the “Cleaning and lubricating the brew group” chapter. Monthly Clean the brew group with the Gaggia coffee oil remover to remove any oily coffee residue Drip tray full When the red mark appears from Empty the drip tray and clean it under running the drip tray grid.
- Page 18 Cleaning the Capp in Cup system Capp in Cup system Cleaning Programmes The machine allows two cleaning programmes for the Capp in Cup system: quick and deep clean. Both programmes can be selected with the CLEAN/SET button. Press the “CLEANING” button upon selection. clean/setting Quick clean is also recommended after dispensing a milk-based beverage.
-
Page 19: Cleaning The Brew Group
Cleaning the brew group Warning: do not wash the brew group in the dishwasher and do not use dishwashing detergents, since they may cause the malfunctioning of the brew group and alter the coffee flavour. Removing the brew group Turn off the machine and disconnect the power cord. Remove the drip tray and the coffee pucks container. - Page 20 Reinserting the brew group Before placing the brew group back into the machine, make sure that the two yellow reference marks on the side match. If this is not the case, perform the following step: Make sure that the lever is in contact with the base of the brew group. Make sure that the yellow locking hook of the brew group is in the right position.
-
Page 21: Lubricating The Brew Group
Cleaning the brew group with cleaning tablets for the removal of oily coffee residues Warning: use only Gaggia cleaning tablets to remove oily coffee residues. Place a container under the coffee dispensing spout. Press the CLEAN/SET button and select the "CLEAN " button shown on the display. - Page 22 Descaling procedure Descaling needs to be carried out when the machine requires it. Use only Gaggia descaling solution designed to guarantee the machine’s excellent performance. The use of different products could damage the machine and leave residue in the water. Failure to descale the machine will void the warranty.
- Page 23 Pour the entire bottle of Gaggia descaling solution into the water tank and fill the tank with water up to the CALC CLEAN level. Reinsert it into the machine. Place a large recipient (1.5l) under the steam tube and the coffee dispensing spout.
-
Page 24: Other Settings
Other settings By pressing the CLEAN/SET button and selecting “SETTINGS” on the display, you can reset or modify some of the machine parameters including: clean/setting Language. Water filter. Stand-by Time. Units. Water hardness. Beverage counter. Button sound Factory settings. Language When the language setting icon is selected, the list of available languages will be displayed. - Page 25 Units By selecting “UNITS”: SETTING UNITS WATER HARDNESS you can set the unit of measurement in "ml" or "oz". BEVERAGE COUNTER BUTTON SOUND Water hardness With “WATER HARDNESS” selected, follow the instructions on the display and those described under the “Measuring water hardness” chapter. Beverage counter It is possible to display the number of cups of each beverage that have been dispensed since the first operation of the machine.
-
Page 26: Error Code Key
The contact info is listed on www.gaggia.com and www.gaggia.it. Error code Problem... -
Page 27: Troubleshooting
This chapter outlines the most common problems you may encounter while using the machine. If you are unable to solve the problem using the information provided below, visit the FAQ sections on www.gaggia.com or www.gaggia.it or contact the either the Customer Service Centre or the local distributors in your country. - Page 28 Problem Cause Solution The brew group cannot The brew group is not in the correct The brew group has not been positioned be inserted. position. correctly before being placed back. Ensure that the lever is in contact with the base of the brew group and that the hook of the brew group is in its correct position.
- Page 29 Problem Cause Solution The milk does not froth. The Capp in Cup system is dirty Clean the Capp in Cup system as indicated or not correctly inserted. Or, the in the chapter “Capp in Cup System Deep system has not been correctly Cleaning Under Running Water”, then place it installed in all its components.
-
Page 30: Technical Specifications
GAGGIA accessories Coffee and accessories are available through authorised centres (Italy), or distributors in your country. Descaling product INTENZA+ water filter Coffee oil remover Milk circuit cleaner (Philips) Coffee range available in beans and powder: 100% Arabica / Intense / Decaffeinated... - Page 31 GAGGIA S.p.A. reserves the right to make any necessary modification. GAGGIA S.p.a. behoudt zich het recht voor om alle wijzigingen die zij noodzakelijk acht aan te brengen. GAGGIA S.p.a. zastrzega sobie prawo do wprowadzania dowolnych zmian. GAGGIA S.p.A. Sede Amministrativa/Administrative Office...
