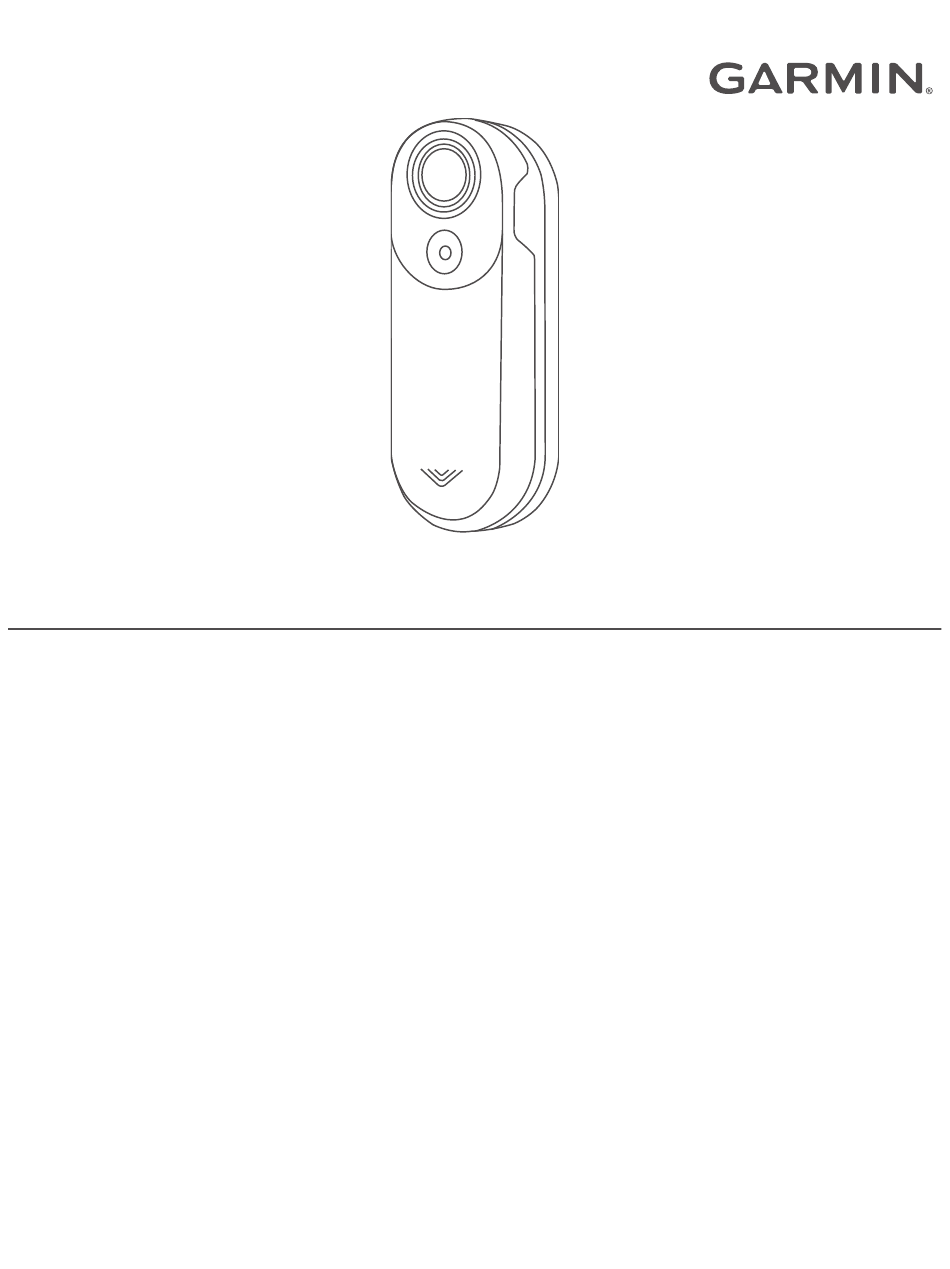

- Page 1 VARIA RCT716 ™ Owner’s Manual...
- Page 2 © 2022 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com...
-
Page 3: Table Of Contents
Installing the Tail Light Mount....3 Device Information......14 Device Overview........4 Charging the Device......14 Varia RCT716 Device Status LED... 5 Tips for Charging the Device.... 14 Varia RCT716 Camera Status LED..5 Connecting the Device to Your Tail Light Modes and Intensity....5 Computer.......... -
Page 5: Introduction
13). Tips for Installing the Device The Varia RCT716 device includes a tail light and micro radar that can detect approaching vehicles up to 140 meters away. • Select a secure location to mount the device where it does not interfere with the safe operation of your bike. - Page 6 • Install the device correctly. The device faces backward and is perpendicular to the road. • Make sure there are no obstructions in front of the light. • Go for a test ride during the day in a safe environment. Introduction...
-
Page 7: Installing The Tail Light Mount
Installing the Tail Light Mount 1 Select a rubber pad based on your seat post shape, and place the rubber pad on the back of the tail light mount. 2 Place the tail light mount on the seat post. 3 Attach the tail light mount securely using one band 4 Align the tabs on the back of the device with the tail light mount notches 5 Press the locking lever down until it locks into place. -
Page 8: Device Overview
Hold for 2 seconds to turn the device off. Changes color based on the battery level, pairing status, device modes, and charging status (Varia RCT716 Device Status LED, page Device status LED Changes color based on the camera status (Varia RCT716 Camera Status LED, page Camera status LED Hold for 1 second to save a video or take a picture. -
Page 9: Varia Rct716 Device Status Led
Flashing blue The device is in Wi‑Fi sharing mode. ® Tail Light Modes and Intensity You can switch the Varia RCT716 tail light modes by pressing the device button (Device Overview, page Radar Behavior when Vehicle Mode Light Intensity Approaches... -
Page 10: The Varia Rct716 And The Varia App
The Varia RCT716 and the Varia App The Varia app connects to your Varia RCT716 device using Bluetooth technology. The app displays radar ® information, settings, videos, and photos. Select to take a photo. Displays radar information (Viewing Radar on the Varia App, page Displays a colored banner indicating the threat level posed by approaching vehicles. -
Page 11: Pairing The Varia Radar Device With Your Phone
Pairing the Varia Radar Device with Your Phone The first time you connect the Varia RCT716 device to the Varia app on your phone, you must pair both devices. After the initial pairing, the Varia app automatically connects to the Varia RCT716 when you open the app and the radar device is active and within range. -
Page 12: Video Recording
It is your responsibility to know and follow all laws, regulations, and any other restrictions in jurisdictions where you plan to use this device. The Varia RCT716 records video to the memory card (Replacing the Memory Card, page 16). -
Page 13: Deleting A Video Or Photo On The Varia App
• Press the camera button on the device (Device Overview, page • Select on the Varia app (The Varia RCT716 and the Varia App, page NOTE: This option is available only during Continuous mode (Changing Your Recording Mode, page 10). -
Page 14: Customizing The Varia App Alert Settings
Pairing the Varia Radar Device with Your Edge 1030 The first time you connect the Varia RCT716 device to your Edge device, you must pair both devices. After the initial pairing, the Edge device automatically connects to the radar device when you start your activity and the radar device is active and within range. -
Page 15: Viewing Radar On Your Edge Device
The alert tone for approaching vehicles has a unique sound. The device beeps one time when the first vehicle is detected. After the threat is cleared, the device beeps again when another vehicle is detected. The Varia RCT716 and Your Edge 1030 Series... -
Page 16: Viewing Widgets
13). Testing the Light Network 1 From the Sensors menu, select Lights > Network Options > Test Lights. 2 Select a light to test. The light blinks when it is connected. The Varia RCT716 and Your Edge 1030 Series... -
Page 17: Light Network Settings
3 From the Sensors menu, select Add Sensor > Search All. 4 While the Varia RCT716 device is turned off, hold the device button for 2 seconds to enter pairing mode. The status LED flashes purple, and the tail light turns on. The device is in pairing mode for 5 minutes or until you press the device button. -
Page 18: Device Information
• Connect the charger securely to the device. You can charge the device by plugging the USB cable in to a Garmin approved AC adapter with a standard wall outlet or a USB port on your computer. Charging a fully depleted battery takes about 5 hours using a computer and 3 hours using an AC power source. -
Page 19: Connecting The Device To Your Computer
Connecting the Device to Your Computer You can connect the device to your computer to install software updates or transfer videos and photos to your computer. 1 Pull up the weather cap from the USB port 2 Plug the small end of the USB cable into the USB port on the device. 3 Plug the large end of the USB cable into a USB port on your computer. -
Page 20: Replacing The Memory Card
Replacing the Memory Card You can replace the memory card to increase the storage capacity or to replace a card that has reached the end of its useful life. The device requires an 8 to 128 GB microSD memory card with a speed rating of Class 10 or ®... -
Page 21: Device Care
5 Close and latch the card holder 6 Close and latch the cover. Device Care NOTICE Do not store the device where prolonged exposure to extreme temperatures can occur, because it can cause permanent damage. Avoid chemical cleaners, solvents, sunscreen, and insect repellents that can damage plastic components and finishes. -
Page 22: Radar Detection
The device LED flashes blue and green to indicate the device is updating. When the update is complete, the tail light turns on and the LED flashes green 20 times. The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. Troubleshooting... -
Page 23: Device Status Led For Software Updates
Radar detection does not work indoors The Varia RCT716 device is tuned to detect vehicles in an outdoor setting. If you turn on the device indoors, a saturation alert can occur. When you take the device outdoors, the device resumes normal operation. -
Page 24: The Status Led Turns Red While Charging
The radar device disconnects from the Edge device WARNING If the radar device is not connected or sending radar data, Garmin recommends that you stop riding and check the devices in a safe location. Failure to do so could result in serious injury or death. - Page 26 May 2022 GUID-7C84A5AA-BA2C-46D1-B080-30B93E889B19 v1...
