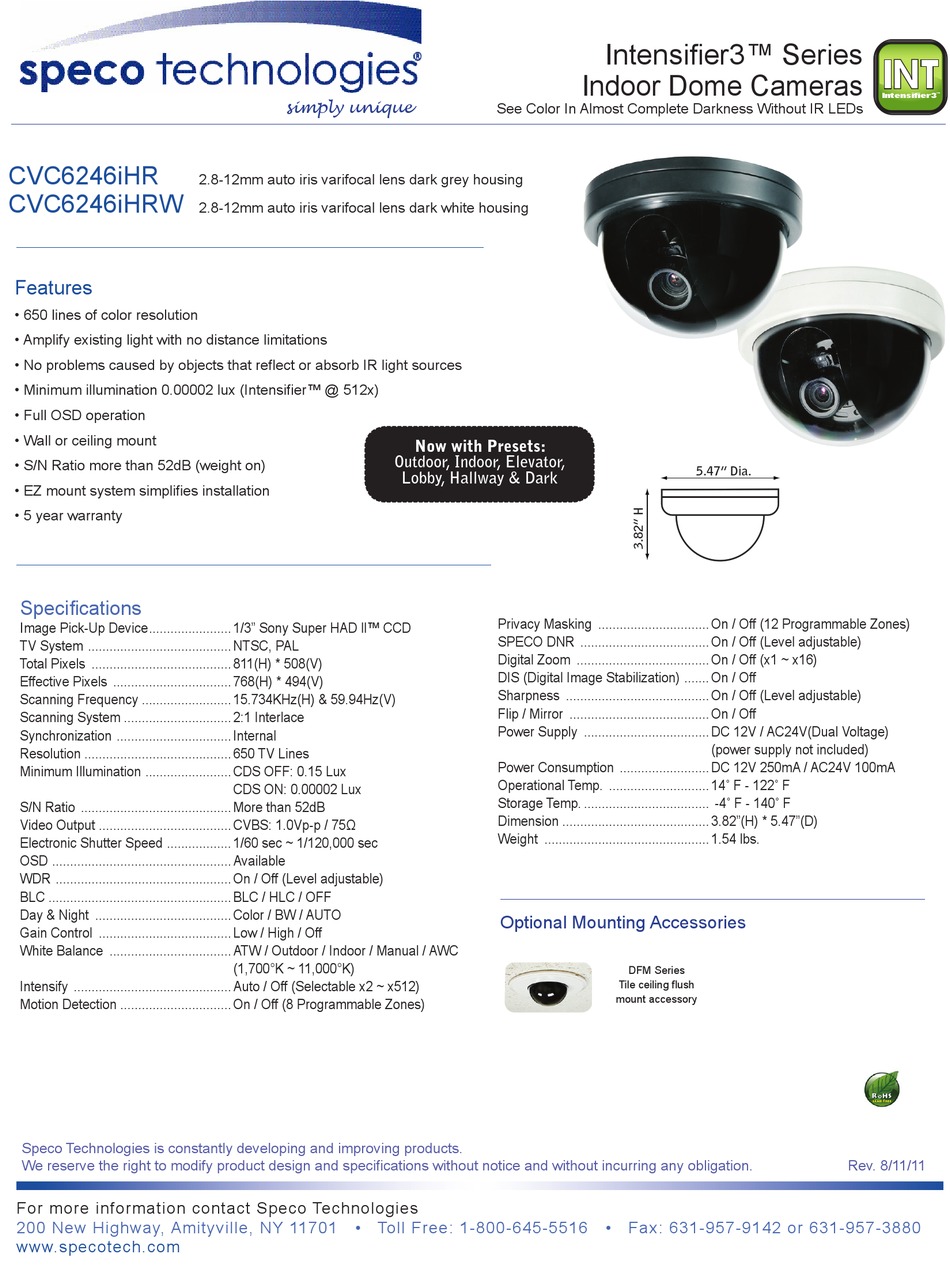

CVC6246iHR
CVC6246iHRW
Features
• 650 lines of color resolution
• Amplify existing light with no distance limitations
• No problems caused by objects that reflect or absorb IR light sources
• Minimum illumination 0.00002 lux (Intensifier™ @ 512x)
• Full OSD operation
• Wall or ceiling mount
• S/N Ratio more than 52dB (weight on)
• EZ mount system simplifies installation
• 5 year warranty
Specifications
Image Pick-Up Device ....................... 1/3" Sony Super HAD ll™ CCD
TV System ........................................ NTSC, PAL
Total Pixels ....................................... 811(H) * 508(V)
Effective Pixels ................................. 768(H) * 494(V)
Scanning Frequency ......................... 15.734KHz(H) & 59.94Hz(V)
Scanning System .............................. 2:1 Interlace
Synchronization ................................ Internal
Resolution ......................................... 650 TV Lines
Minimum Illumination ........................ CDS OFF: 0.15 Lux
S/N Ratio .......................................... More than 52dB
Video Output ..................................... CVBS: 1.0Vp-p / 75Ω
Electronic Shutter Speed .................. 1/60 sec ~ 1/120,000 sec
OSD .................................................. Available
WDR ................................................. On / Off (Level adjustable)
BLC ................................................... BLC / HLC / OFF
Day & Night ...................................... Color / BW / AUTO
Gain Control ..................................... Low / High / Off
White Balance .................................. ATW / Outdoor / Indoor / Manual / AWC
Intensify ............................................ Auto / Off (Selectable x2 ~ x512)
Motion Detection ............................... On / Off (8 Programmable Zones)
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
For more information contact Speco Technologies
200 New Highway, Amityville, NY 11701
www.specotech.com
simply unique
2.8-12mm auto iris varifocal lens dark grey housing
2.8-12mm auto iris varifocal lens dark white housing
CDS ON: 0.00002 Lux
(1,700°K ~ 11,000°K)
•
Toll Free: 1-800-645-5516
See Color In Almost Complete Darkness Without IR LEDs
Now with Presets:
Outdoor, Indoor, Elevator,
Lobby, Hallway & Dark
Privacy Masking ............................... On / Off (12 Programmable Zones)
SPECO DNR .................................... On / Off (Level adjustable)
Digital Zoom ..................................... On / Off (x1 ~ x16)
DIS (Digital Image Stabilization) ....... On / Off
Sharpness ........................................ On / Off (Level adjustable)
Flip / Mirror ....................................... On / Off
Power Supply ................................... DC 12V / AC24V(Dual Voltage)
Power Consumption ......................... DC 12V 250mA / AC24V 100mA
Operational Temp. ............................ 14˚ F - 122˚ F
Storage Temp. ................................... -4˚ F - 140˚ F
Dimension ......................................... 3.82"(H) * 5.47"(D)
Weight .............................................. 1.54 lbs.
Optional Mounting Accessories
Intensifier3™ Series
Indoor Dome Cameras
5.47" Dia.
(power supply not included)
DFM Series
Tile ceiling flush
mount accessory
•
Fax: 631-957-9142 or 631-957-3880
INT
Intensifier3
™
Rev. 8/11/11
