Soft Side Bagger
ProLine Commercial Walk-Behind Mower
Model No. 139-7860
Safety

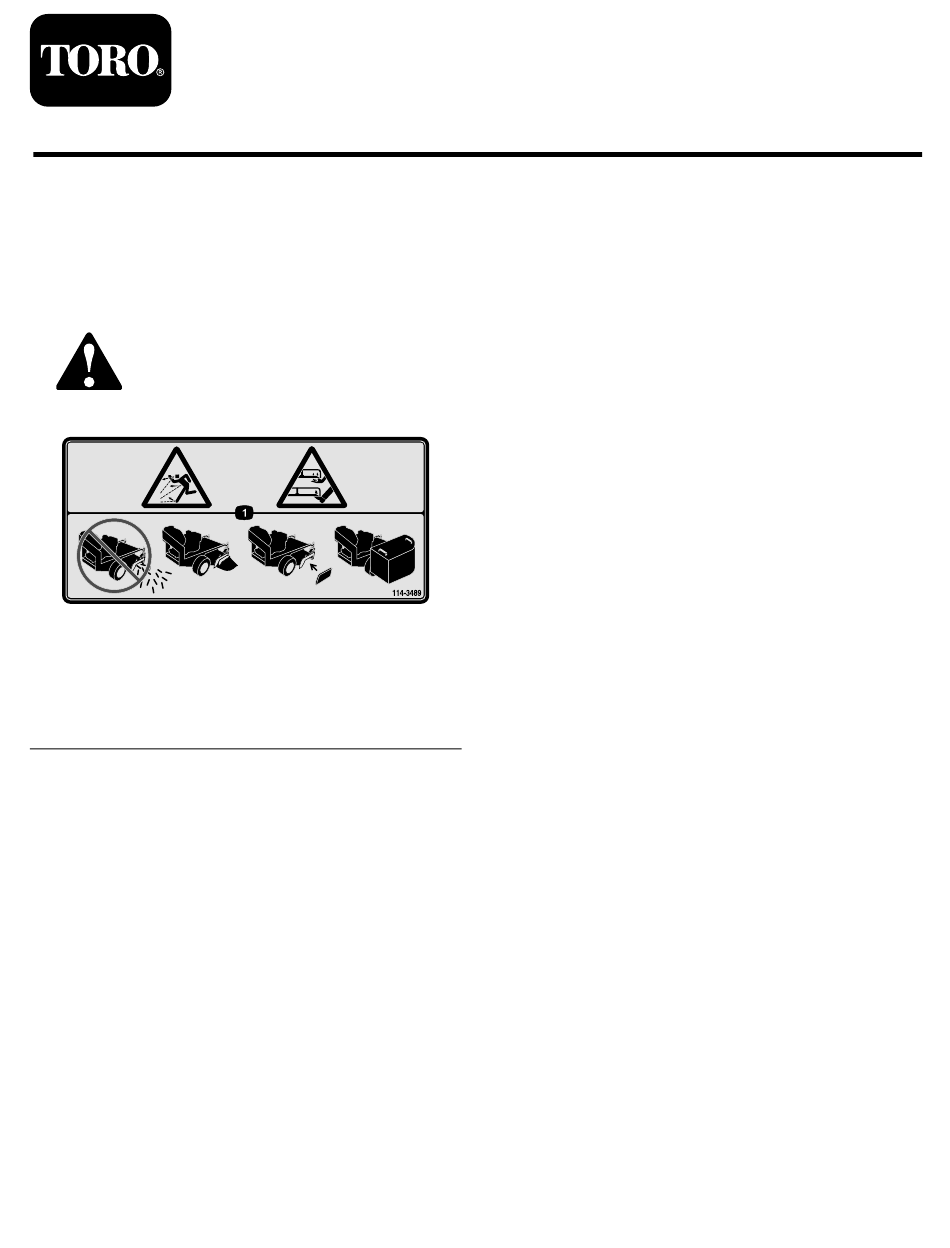

Safety and Instructional Decals
Safety decals and instructions are easily visible to the operator and are located near any area
of potential danger. Replace any decal that is damaged or missing.
1. Thrown object hazard; cutting/dismemberment hazard—do
not operate the machine with the discharge opening
uncovered; always operate the machine with the rear
discharge deflector, discharge cover, or grass collector
installed.
© 2020—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
114-3489
Register at www.Toro.com.
decal114-3489
Form No. 3438-297 Rev B
Installation Instructions
Original Instructions (EN)
All Rights Reserved *3438-297* B
Printed in the USA
Advertisement
Table of Contents
Related Manuals for Toro ProLine 139-7860
Summary of Contents for Toro ProLine 139-7860
- Page 1 © 2020—The Toro® Company Register at www.Toro.com. Original Instructions (EN) All Rights Reserved *3438-297* B 8111 Lyndale Avenue South...
-
Page 2: Installation
Installation Note: Determine the left and right sides of the machine from the normal operating position. Preparing the Machine g314767 No Parts Required Figure 1 1. Back plate 3. Support Procedure 2. Locknuts (1/4 inch) 4. Bolts (1/4 x 5/8 inch) Park the machine on a level surface. - Page 3 Assembling the Bag and Frame Parts needed for this procedure: Bag and pan Catcher frame g314783 Handle Figure 3 Bolt (1/4 x 1 inch) 1. Locknut (3/8 inch) 3. Bolt (3/8 x 3/4 inch) Locknut (1/4 inch) 2. Clamp Washer (1/4 inch) Install the latches to both sides of the back plate using 4 phillips-head screws, 4 lock washers, Procedure...
-
Page 4: Installing The Baffle
g315748 Figure 7 1. Rounded-edge-discharge 2. Square-edge-discharge baffle baffle Remove the 2 bolts and 2 nuts securing the existing discharge baffle to the deck and remove the discharge baffle (Figure g002159 Note: Retain the baffle and corresponding Figure 6 hardware for converting back to side discharge. 1. - Page 5 For 36-inch and 60-inch decks: Install the For 48-inch and 54-inch decks: Install the square-edge-discharge baffle with appropriate rounded-edge-discharge baffle and bagger hardware as shown in Figure guard with appropriate hardware as shown in Figure g314841 Figure 9 1. For 36-inch decks: Bolt 4.
- Page 6 WARNING An uncovered discharge opening could allow the machine to throw objects at you or bystanders and result in serious Removing the Deflector injury. Also, contact with the blade could occur. No Parts Required Never operate the machine unless you install a mulch plate, discharge deflector, or grass collection system.
-
Page 7: Product Overview
Product Overview Note: Do not remove or install the clamp to remove or install the back plate when using the bagger on a machine of the same size. Lift the back plate off of the machine. Insert the lower pins of the bagger frame into the holes on the back plate (Figure 13). -
Page 8: Operation
Operation Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position. General Safety Lift the latches and remove and empty the grass bag. • Become familiar with all operating and safety instructions in the Operator's Manual for your Use a stick or similar object, not your hands machine before using this attachment. -
Page 9: Maintenance
Maintenance Inspecting the Bagger Service Interval: After the first 10 hours Before storage Inspect all the fasteners and latches; replace any that are missing or damaged. Inspect the bag for damage and replace any damaged parts. Tighten all hardware. WARNING You or bystanders could be severely injured by flying debris or thrown objects that may pass through torn, worn, or... - Page 10 Notes:...
- Page 11 Notes:...
