Panasonic KX-TCD505HKM Service Manual

Telephone equipment digital cordless phone
Hide thumbs Also See for KX-TCD505HKM:
Table of Contents

Advertisement

Quick Links

Download this manual

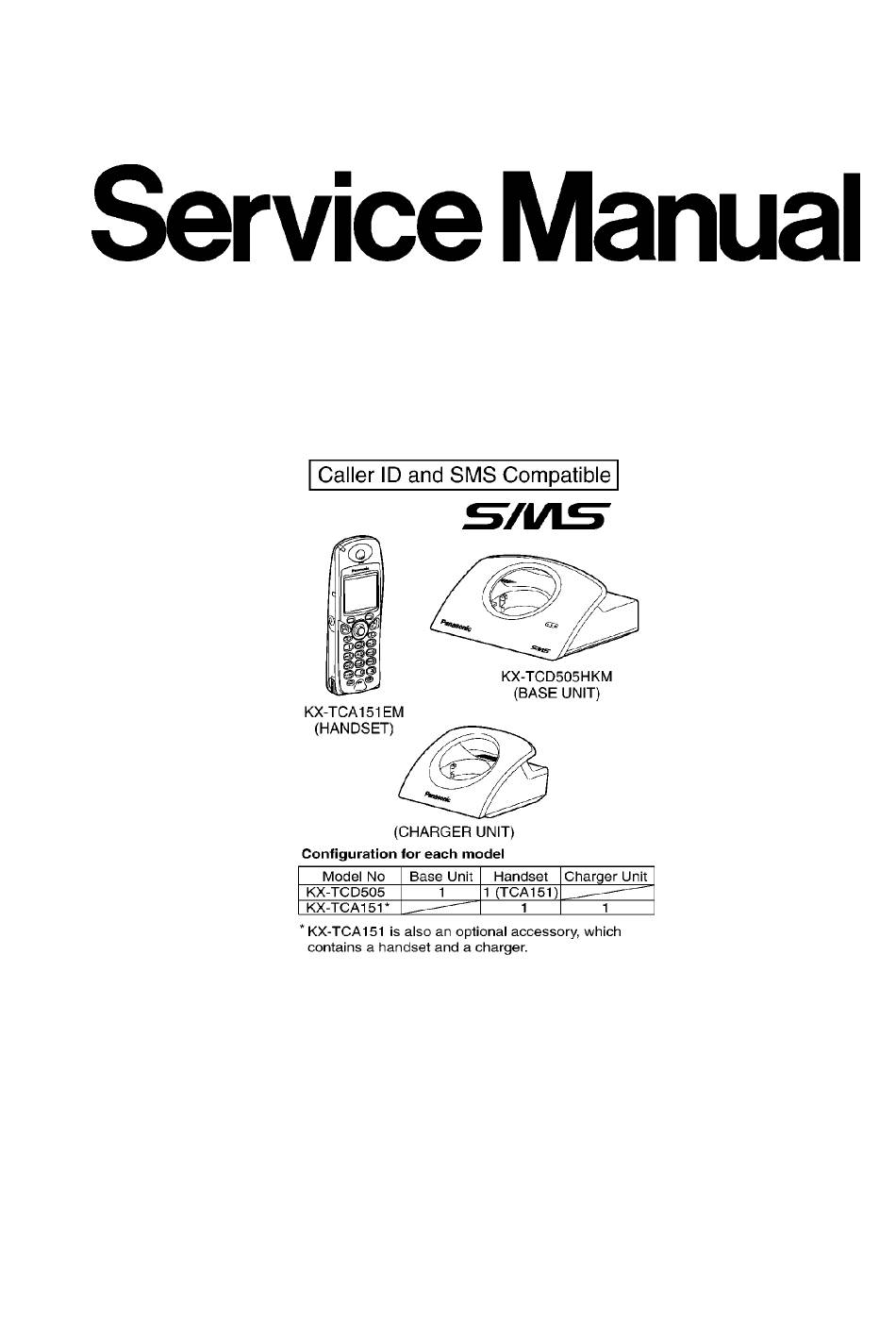

ORDER NO. KM40310260C3
Telephone Equipment
KX-TCD505HKM / KX-TCA151EM
Digital Cordless Phone
Metallic Grey Version
(for Hong Kong)
SPECIFICATIONS
1

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-TCD505HKM

Summary of Contents for Panasonic KX-TCD505HKM

  • Page 1 ORDER NO. KM40310260C3 Telephone Equipment KX-TCD505HKM / KX-TCA151EM Digital Cordless Phone Metallic Grey Version (for Hong Kong) SPECIFICATIONS...

  • Page 2: About Lead Free Solder (Pbf: Pb Free)

    2003 Panasonic Communications Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. 1. ABOUT LEAD FREE SOLDER (PbF: Pb free) Note: In the information below, Pb, the symbol for lead in the periodic table of elements, will refer to standard solder or solder that contains lead.

  • Page 3: Suggested Pbf Solder

    case of using high temperature soldering iron, please be careful not to heat too long. - PbF solder will tend to splash if it is heated much higher than its melting point, approximately 1100°F (600°C). - If you must use Pb solder on a PCB manufactured using PbF solder, remove as much of the original PbF solder as possible and be sure that any remaining is melted prior to applying the Pb solder.

  • Page 4: For Service Technicians

    (Component View) (Flow Solder Side View) Note: The location of the “PbF“ mark is subject to change without notice. 1.2.2. Handset PCB (Component View) (Flow Solder Side View) Note: The location of the “PbF“ mark is subject to change without notice. 1.2.3.

  • Page 5: Battery Charge

    - When you replace the batteries, part should be removed first. 4.2. Battery Charge At the time of shipment, the batteries are not charged. To charge, place the handset on the base unit. Please charge the batteries for about 7 hours before initial use. During charging, the charge LED will light as shown below.

  • Page 6: Battery Information

    ) indication: If Antenna Pict is indicated, charge time is about 7 hours. However, if Antenna Pict is flashing, charge time becomes long. 4.3. Battery Information After your Panasonic battery is fully charged: Ni-MH Batteries (typical 700 mAh) Operation Operating Time While in use (TALK) 10 hrs approx.
  • Page 7 recommended that the handset not be recharged until the battery icon flashes 4.4. Replacing the Batteries If the icon flashes after a few telephone calls even when the handset batteries have been fully charged, both batteries must be replaced. - Charge new batteries for approximately 7 hours before initial use. (The telephone line cord must not be connected to the telephone socket at this time).

  • Page 8: Location Of Controls

    Please use Panasonic AAA type rechargeable batteries. Note for Service: - When Ni-Cd batteies are fitted with the setting in icon might disappear and stop charging even if the handset is on the cradle for avoiding overcharge. 5. LOCATION OF CONTROLS 5.1.
  • Page 10 6. SETTINGS Location: - For maximum distance and noise-free operation, place your base unit: - Away from electrical appliances such as TVs, radios, personal computers or other phones. - In a convenient, high, and central location. 6.1. Connection 6.1.1. Base Unit Plug in the AC adaptor and the telephone line cord in order 1, 2, 3, 4.
  • Page 11 - Never install telephone wiring during a lightning storm. - USE ONLY WITH Panasonic AC ADAPTOR PQLV19EZ. - The unit will not work during a power failure. we recommend you connect a standard telephone on the same line for power protection.
  • Page 12 6.1.3. Optional Headset Plugging an optional headset into the handset allows hands-free phone conversations. Please use only the Panasonic KX-TCA89EX headset. While using the headset, speakerphone is not available. To switch to speakerphone, disconnect the headset. Connecting the optional headset to the handset Open the headset jack cover, and connect the optional headset to the headset jack as shown.

  • Page 13: Settings Menu Chart

    6.3. Settings Menu Chart 6.3.1. Base Unit 6.3.2. Handset...
  • Page 14 6.4. PIN Code 6.4.1. Base Unit...

  • Page 15: Base Unit Pin

    - To exit the operation, press any time. For Service Hint: * : If the current 4-digit Base Unit PIN is forgotten, follow the procedures below. 1. If Base Unit and Handset are not linked with, first, follow the steps Handset Registration to a Base Unit 2.
  • Page 16 - To exit the operation, press any time. Base Unit Initial Settings Function Initial Setting Remarks (selectable options) Dial Mode Tone Tone / Pulse Type 1 (700 ms) / Type 2 (400 Recall Time Type 2 (400 ms) ms) / Type 3 (80 ms) Pause Time Short (3 seconds) 3 seconds / 5 seconds...
  • Page 17 - To exit the operation, press any time. Note for service: As for PIN code, refer to PIN Code Handset Initial Settings Function Initial Setting Remarks (selectable options) Memo Alarm Mode OFF / Once / Daily Alarm Time Delete Handset Ringer Volume 1 to 6 Handset External Ringer Pattern 1 to 15...

  • Page 18: Recall Feature

    Handset Receiver Volume Medium Low / Medium / High Walkie-Talkie Setting Group Common / Group SMS Text Input Mode LetterWise Letter Wise / Normal / Greek / Extended / Numeric English LetterWise Language Phonebook List Remain Green / Orange / Red LED Colour of Private Category Green Ni-MH / Ni-Cd...

  • Page 19: Call Restriction

    - Entering a pause prevents misdialling when you redial or dial a stored number. - Pressing RIGHT SOFT KEY (Pause) more than once increases the length of the pause between numbers. 6.9. Call Restriction You can restrict selected handset(s) from dialling selected phone numbers. You can assign up to 6 call restriction numbers (up to 8 digits).

  • Page 20: Selecting The Display Language

    6.10. Call BAR On/Off (Call Prohibition On/Off) When this feature is set to ON, outgoing calls cannot be made. Intercom calls and calls to numbers assigned as emergency numbers can be made. - To exit the operation, press any time. - While the Call Bar mode is turned on, “...
  • Page 21 - To exit the operation, press any time. 6.12. Selecting the Dialling Mode (Tone/Pulse) You can change the dialling mode to tone or pulse depending upon your network service. If you have a touch tone service, select “Tone“. If you have rotary or pulse service, select “Pulse“. 6.13.

  • Page 22: Setting The Ringer Volume

    6.14. Setting the Ringer Volume The choices are 6 levels and off. If you set the volume to OFF, is displayed, however, still the volume of a paging and intercom call are level 1. - The factory preset is 6. Note for service: As for PIN code, refer to PIN Code...

  • Page 23: Main Menu Display

    7.2. Main Menu Display For Service Hint: icon will be displayed if the unit took a signal from Telephone Company as a Voice Message signal. In that case, press the left button of the Navigator Key for a while.

  • Page 24: Caller Id Service

    7.3. Caller ID Service Caller ID is a service of your Network provider and will only operate if you have subscribed to this service. After subscribing to Caller ID, this phone will display the caller information. If your unit is connected to a PBX or a telephone line that does not support this service, you will not be able to use it.

  • Page 26: Setting The Date And Time

    Cross Reference: Power ON/OFF Call BAR On/Off (Call Prohibition On/Off) Key Lock PIN Code Reading/Displaying Messages Changing the SMS Service Centre Numbers Note: *1, *2: It will take time for both Base Unit and Handset to be linked with. 8. OPERATIONS 8.1.
  • Page 27 8.3. Redialling...
  • Page 28 8.4. Phonebook You can store up to 200 caller information in the phonebook. If you subscribed to Caller ID and you received a call from the same phone number you stored with name in the phonebook, the display will show the caller’s name. Private Category Feature You can categorise caller information in the phonebook.
  • Page 29 - To exit the operation, press any time. 8.4.2. Entering Names/Characters...
  • Page 30 Cross Reference: Phonebook Character Table 8.4.3. Phonebook Character Table...
  • Page 31 8.4.4. Storing the Number in the Phonebook...
  • Page 32 8.4.5. Hot Key (: Speed Dial)
  • Page 33 8.4.6. Phonebook Copy You can copy phonebook information between handsets registered to the same base unit. The phonebook copy must be performed while in intercom mode. To exit the operation, press any time.
  • Page 34 8.5. Handset Registration to a Base Unit...
  • Page 35 Note for Service: At step 7, enter . Finally Handset will be linked to Base Unit.

  • Page 36: Base Unit Selection

    8.6. Base Unit Selection...

  • Page 37: Sms Feature (Text Message)

    Note for service: As for PIN code, refer to PIN Code 9. SMS Feature (Text Message) You can send and receive text messages between other fixed and mobile phones that also support a compatible SMS feature and network. However, Chinese text messages are not available. - Message with pure Chinese text message, picture message, picture with text message, logo and ringtone are not supported.

  • Page 38: Text Entry

    To exit the operation, press at any time. 9.2. Text Entry...
  • Page 39 Cross Reference: SMS Character Table...

  • Page 40: Sms Character Table

    9.3. SMS Character Table...
  • Page 41 9.4. Reading/Displaying Messages 9.4.1. In the Outgoing List...
  • Page 42 9.4.2. In the Incoming List...
  • Page 44 9.5. Receiving a Text Message 9.6. Changing the SMS Service Centre Numbers 9.7. Turning the SMS Feature On/Off...
  • Page 45 Note for Service: As for PIN code, refer to PIN Code 10. DISASSEMBLY INSTRUCTIONS 10.1. Base Unit Shown in Fig.- To Remove Remove Lower Cabinet Screws (2.6 × 12)..(A) × 2 Main P.C. Board Main P.C. Board 10.2. Handset...

  • Page 46: Charger Unit

    Shown in Fig.- To Remove Remove Rear Cabinet Screws (2 × 10)..(B) × 2 Follow the procedure. Main P.C. Board Screw (2 × 8)....(C) × 1 Screws (2 × 8).....(D) × 2 Main P.C. Board 10.3. Charger Unit...

  • Page 47: Troubleshooting Guide

    Shown in Fig.- To Remove Remove Lower Cabinet Screws (2.6 × 14)..(E) × 2 Main P.C. Board Main P.C. Board 11. ASSEMBLY INSTRUCTIONS 11.1. Warning When Constructing the Base Unit 12. TROUBLESHOOTING GUIDE Flow Chart...

  • Page 48: Check Power

    Cross Reference: Check Power Bell Reception Check Battery Charge Check Link Check Handset Transmission Check Handset Reception SIGNAL ROUTE 12.1. Check Power 12.1.1. Base Unit Is the AC Adaptor inserted into AC outlet? (Check AC Adaptor’s specification.)

  • Page 49: Check Battery Charge

    Cross Reference Power Supply Circuit Note: BBIC is IC2. 12.1.2. Handset Cross Reference Power Supply Circuit/Reset Circuit Note: BBIC is IC1. 12.2. Check Battery Charge 12.2.1. Base Unit Cross Reference: Charge Circuit 12.2.2. Handset...

  • Page 50: Check Link

    Cross Reference: Check Power Charge Circuit Note: BBIC is IC1. 12.2.3. Charger Unit Cross Reference: Charge Circuit 12.3. Check Link 12.3.1. Base Unit...
  • Page 52 Cross Reference: Power Supply Circuit/Reset Circuit Adjustment (Base Unit) 12.3.2. Handset...

  • Page 53: Check Handset Transmission

    Cross Reference Power Supply Circuit/Reset Circuit Adjustment (Handset) 12.4. Check Handset Transmission Cross Reference: SIGNAL ROUTE 12.5. Check Handset Reception Cross Reference: HOW TO CHECK THE HANDSET RECEIVER SIGNAL ROUTE 12.6. Check Caller ID Cross Reference:...
  • Page 54 SIGNAL ROUTE 12.7. Bell Reception 12.7.1. Base Unit Note: BBIC is IC2. 12.7.2. Handset Cross Reference: Telephone Line Interface Check Link HOW TO CHECK THE HANDSET SPEAKER Note: BBIC is IC1. 13. CHECK PROCEDURE (BASE UNIT) 13.1. Preparation 13.1.1. Equipment Required - DECT tester: Rohde &...
  • Page 55 - DC power: it must be able to output at least 1A current under 9V. - Digital multi-meter (DMM): it must be able to measure voltage and current. - Oscilloscope 13.1.2. JIG and PC - EEPROM serial JIG JIG Cable: PQZZ1CD505E - PC which runs in DOS mode - Batch file for setting: PQZZTCD505HK 13.2.

  • Page 56: Check Procedure (Handset)

    Command name Function Example rdeeprom Read the data of EEPROM Type “rdeeprom 00 00 FF”, and the data from address “00 00” to “FF” is read out. readid Read ID (RFPI) Type “readid”, and the registered ID is read out. writeid Write ID (RFPI) Type “writeid 00 18 E0 0E 98”, and the ID...
  • Page 57 14.2.2. PC Setting 1. Open a window of MS-DOS mode from the start-up menu. 2. Change a directory. 3. Type “SET_COM 1” from the keyboard (when COM port 1 is used for the connection). 4. Type “doskey”. Note: See the table below for frequently used commands. Command name Function Example...
  • Page 58 Symptom Remedy* The base unit does not respond to a call from handset. Make adjustments in item (A)~(G )~(O) The base unit does not transmit or the transmit frequency is off. Make adjustments in item (A)~(F )~(L), (N) The transmit frequency is off. Make adjustments in item (A)~(F )~(L), (N) The transmit power output is low, and the operating distance between...
  • Page 59 Items Adjustment Procedure* Check Point Replace Parts 1. BBIC Confirmation (Execute the command "getchk"). BBIC IC2, X1, 2. Confirm the returned checksum value. Confirmation C43, IC4, Connection of checksum value and program number is shown below. C63, C34, C37, C39, C44, C128, C48, C120, C45, C30, C129,...
  • Page 60 Items Adjustment Procedure* Check Point Replace Parts (I)* Transmitted Remove the Antenna before starting step from 1 to 7. IC2, IC4, 1. Configure the DECT tester (CMD60) as follows; Power C63, <Setting> Confirmation C84, C71, C73, -Test mode: FP -Traffic Carrier: 5 C104, C62, -Traffic Slot: 4 C59,...
  • Page 61 Items Adjustment Procedure* Check Point Replace Parts (K) Frequency Offset Follow steps 1 to 6 of (I) above. IC2, IC4, Confirmation C63, 7.Confirm that the frequency offset is < ± 50kHz. C84, C71, C73, C104, C62, C59, C64, C100, C58, C57, C105, C54, C55, C82,...
  • Page 62 Items Adjustment Procedure* Check Point Replace Parts Sensitivity Follow steps 1 to 6 of (I) above. IC2, IC4, Receiver C63, 7.Set DECT tester power to -88dBm. Confirmation C84, C71, 8.Confirm that the BER is < 1000ppm. C73, C104, C62, C59, C64, C100, C58, C57, C105,...
  • Page 63 Items Adjustment Procedure* Check Point Replace Parts RSSI Level Follow steps 1 to 6 of (I) above. IC2, IC4, Confirmation C63, 7.Execute the command "readrssi". C84, C71, 8. Confirm:11<returned value< 25(hex) C73, C104, C62, C59, C64, C100, C58, C57, C105, C54, C55, C82, C72,...

  • Page 64: Adjustment Standard (Base Unit)

    Items Adjustment Procedure* Check Point Replace Parts (R) Charging Check D6, R4, 1. Connect Charge Contact 12 /2W register between charge+ and charge-. 2. Measure and confirm voltage across the regigster is 2.85V ± 0.2V. C107, D1, CN2, C119, C2 Note: After the measuring, sock up the solder of TP.

  • Page 65: Adjustment (Handset)

    15.4.1. Flow Solder Side View Note: (A) is refered to ADJUSTMENTS (BASE UNIT AND CHARGER UNIT) 16. ADJUSTMENTS (HANDSET) If your unit have below symptoms, adjust or confirm each item using remedy column from the table. Symptom Remedy* The movement of Battery Low indicator is wrong. Make adjustments in item (A)~(D), (G The handset does not respond to a call from base unit.
  • Page 66 Items Adjustment Procedure* Check Point Replace Parts 1. Confirm that the voltage between test point “TP12” and GND is 1.8V ± 0.02V. 1.8V Supply TP12 IC1, Q2, 2. Adjust the 1.8V voltage of TP12 executing command “bandgap XX“ (XX is the Confirmation C40, value).
  • Page 67 Items Adjustment Procedure* Check Point Replace Parts 1. Apply 2.40V between BATT(+) and BATT(-). Battery low IC1, F1, 2. Confirm that there is no flashing of Battery Icon. Confirmation C74, C2 3. Apply 2.20V between BATT(+) and BATT(-). C3, R81, 4.
  • Page 68 Items Adjustment Procedure* Check Point Replace Parts (L) Frequency Offset Follow steps 1 to 3 of (J) above. IC1, IC3, Confirmation 4.Confirm that the frequency Offset is < ± 50kHz. C54, C60, C61, C62, C63, C64, C65, C66, C67, C69, C81, C82, C56, R58, R55, R76...
  • Page 69 Items Adjustment Procedure* Check Point Replace Parts Timing Follow steps 1 to 3 of (J) above. IC1, IC3, Confirmation 4.Confirm that the Timing accuracy is < ± 0.5ppm. C54, C60, C61, C62, C63, C64, C65, C66, C67, C69, C81, C82, C56, R58, R55, R76 RSSI Level...
  • Page 70 Items Adjustment Procedure* Check Point Replace Parts 1. Link to BASE which is connected to Line Simulator. (R) Audio Check and IC1, IC2, 2. Set line voltage to 48V and line current to 40mA. confirmation C68, 3. Input -45dBm/1KHz to MIC and measure Line output level. C37, C90, 4.

  • Page 71: Adjustment Standard (Handset)

    Items Adjustment Procedure* Check Point Replace Parts 1. Link to BASE which is connected to Line Simulator. Headset Audio IC1, IC2, 2. Set line voltage to 48V and line current to 40mA. check and CN4, 3. Input -45dBm/1kHz across Mic terminals on headset cable. confirmation R50, R71, 4.

  • Page 72: How To Check The Handset Speaker

    Item Value Refer to -. * Remarks TX Power 20 dBm ~ 25 dBm Adjustment (Base Unit) Modulation 360 kHz/div ~ 380 kHz/div Data type: Fig31 Adjustment (Base Unit) Frequency Offset -50 kHz ~ +50 kHz Adjustment (Base Unit) Frequency Drift <...

  • Page 73: How To Check The Handset Receiver

    19. HOW TO CHECK THE HANDSET RECEIVER 1. Prepare the digital voltmeter, and set the selector knob to ohm...
  • Page 74 meter. 2. Put the probes at the receiver terminals as shown below.

  • Page 75: Frequency Table (Mhz)

    20. FREQUENCY TABLE (MHz) BASE UNIT HANDSET Receive Frequency Channel No Transmit Frequency Transmit Frequency Receive Frequency 1897.344 1897.344 1897.344 1897.344 1895.616 1895.616 1895.616 1895.616 1893.888 1893.888 1893.888 1893.888 1892.160 1892.160 1892.160 1892.160 1890.432 1890.432 1890.432 1890.432 1888.704 1888.704 1888.704 1888.704 1886.976 1886.976...
  • Page 76 - RF Module: IC4 - PLL Oscillator - Detector - Compress/Expander - First/Second Mixer - Amplifier for transmission and reception - FLASH MEMORY IC7 - Program D/L (DownLoad) Area - EEPROM: IC3 - Temporary operating parameters (for RF, etc.) Refer to EEPROM LAYOUT (BASE UNIT) - Additionally, - Power Supply Circuit (+4.0V, +3V, +1.8V output)

  • Page 77: Telephone Line Interface

    22.3. Telephone Line Interface <Function> - Bell signal detection - Clip signal detection - ON/OFF hook circuit - Audio circuits Bell & Clip (: Calling Line Identification Presentation: Caller ID) signal detection: In the standby mode, Q4 is open to cut the DC loop current and decrease the ring load. When ring voltage appears at the TP21 (A) and TP19 (B) leads (when the telephone rings), the signal is transferred as follows;...

  • Page 78: Pulse Dialing

    22.4. Transmitter/Receiver Base Unit and Handset mainly consist of RF Module and DECT BBIC. Base Unit and Handset transmit/receive voice signal and data signal through the antenna on carrier frequency. Signal Pass: *Refer to SIGNAL ROUTE 22.4.1. Transmitter Block The voice signal input from the TEL LINE interface goes to RF Module (IC4) through DECT BBIC (IC2) as shown in BLOCK DIAGRAM (BASE UNIT) The voice signal passes through the analog part of IC2 where it is amplified and converted to a...
  • Page 79 24.1. Outline Handset consists of the following ICs as shown in BLOCK DIAGRAM (HANDSET) - DECT BBIC (Base Band IC): IC1 - All data signals (forming/analyzing ACK or CMD signal) - All interfaces (ex: Key, Detector Circuit, Charge, DC/DC Converter, EEPROM, LCD) - RF Module: IC3 - PLL Oscillator...

  • Page 80: Circuit Operation (Charger Unit)

    Circuit Operation: "Battery Low" and "Power Down" are detected by BBIC which check the voltage from battery. The detected voltage is as follows; - Battery Low Battery voltage: V(Batt) 2.3V ± 50mV The BBIC detects this level and " " starts flashing. - Power Down Battery voltage: V(Batt) 2.2V ±...

  • Page 81: Cpu Data (Base Unit)

    27. CPU DATA (BASE UNIT) 27.1. IC2 (BBIC)
  • Page 82 Description Connection at Normal mode at Reset mode VDDIO AD10 AD11 AD10 AD12 AD11 AD13 AD12 AD14 AD13 P3_7/PD7 O-Hi-Z P3_1/PD1 O-Hi-Z P3_5/PD5 ANT1 O-Hi-Z P3_4/PD4 ANT2 O-Hi-Z P3_3/PD3 PAON O-Hi-Z P3_2/PD2 RXDSG O-Hi-Z RFCLK VDDRF VSSRF Xtal1 RSSI RSSI <- CMPREF OPEN...
  • Page 83 Description Connection at Normal mode at Reset mode MI/READY I-PU SCLK UTX/P0_0 URX/P0_1 JTIO/P0_2 JTAG PCM_FSC1/P0_3 D,I/O I-PU PCM_FSC0/P0_4 D,I/O I-PU PCM_CLK/P0_5 D,I/O I-PU PCM_DOUT/P0_6 D,I/O I-PU PCM_DINP/P0_7 D,I/O I-PU VDDIO INT0n/P1_0 INTOn I-PU INT1n/P1_1 I-PU INT2n/P1_2/ACS1 I-PU ACS0 ACS0 INT3n/P1_3/ACS2 I-PU INT4n/P1_4...
  • Page 84 DAB5 D,I/O DAB5...
  • Page 85 Description Connection at Normal mode at Reset mode DAB13 D,I/O DAB13 DAB6 D,I/O DAB6 DAB14 D,I/O DAB14 DAB7 D,I/O DAB7 DAB15 D,I/O DAB15 P2_7/DC_CTRL OPEN O (fixed 100k pull down) DC_I OPEN P1_6/PON/INT6n P1_7/CHARGE/ I (fixed 160k pull INT7n down) P2_6/stop_charge OPEN VBAT3/RINGING...

  • Page 86: Cpu Data (Handset)

    28. CPU DATA (HANDSET) 28.1. IC1 (BBIC)
  • Page 87 Description Connection at Normal mode at Reset mode P3_7/PD7 LCD_A0 P3_1/PD1 RXDSG P3_5/PD5 SPAMP CD P3_4/PD4 D,I/O MIDI ERQ P3_3/PD3 PAON P3_2/PD2 PSEL RFCLK SYRI VDDRF VSSRF Xtal1 RSSI RSSI RXDA CMPREF OPEN TXDA SYEN SYDA SYCL DAC/ADC2 JACK DETECTION P3_6/PD6 D,I/O MIDI_SRQ...
  • Page 88 Description Connection at Normal mode at Reset mode VDDE/INT5n/P1_5 COL0 SCL2/P3_0 SDA2 D,I/O P2_0/PWM0 PWM0 P2_1/PWM1 P2_2/ADC0 EX_RESET P2_3/ADC1 MIDI-CS P2_4/SCL1 LCD-SCLK MIDI_SCLK P2_5/SDA1 LCD-SCLK MIDI_SCLK P2_7/DC_CTRL DC_CTRL DC_I P1_6/PON/INT6n P1_7/CHARGE/ CHARGE INT7n P2_6/stop_charge STOP-CHARGE VBAT3/RINGING VBAT3 DC_stab DC_Sense AVS_sense ADC3 LDO1_sense LDO1_CTRL...
  • Page 89 Description Connection at Normal mode at Reset mode RSTN VDDIO Note: JACK DETECTION; Detect if a Headset is inserted into the JACK or not. Without a Headset, 1.5V is measured at pin 23, while with a Headset, 0V is measured at pin 23. 29.
  • Page 90 29.3.1. General Setup1 Address Initial Name Description Default value Type EEP_EepromType EEPROM type 0x00 0x00:32kbit type TCD500/510 0x55:64kbit type TCD530/540 0xAA:128kbit type TCD505/515/535/545 other:32kbit type EEP_ModelInfo Model information 0x00 Bit0:TAM 1:Enable 0:Disable Bit1:Base Phonebook 1...1:Enable, 0:Disable Bit2:Audible Call...1:Enable, 0:Disable Bit3:SP-PHONE...1:Enable, 0:Disable Bit4-7:Not used TCD500/505: 0x00 TCD510/515: 0x07...
  • Page 91 Address Initial Name Description Default value Type EEP_Rfpi Base ID 0xFF, 0xFF, 0xFF, 0xFF, written data by adjustment checker or ID 0xFF writer RFPI (5Byte) EEP_FreqTrim_L Setting value of FREQ_TRM_RE 0x75 EEP_BandGap Setting value of BandGap REG 0x08 EEP_Rc0 BMC internal Register 0 0x12 EEP_RxAtteCrcErrorRsc Attenuation parameter Crc Error Rsc 0x03...
  • Page 92 Address Initial Name Description Default value Type EEP_Ps2_DectPsNo DECT PS No. 0xFF 00-3F:PS No. / FF:Invalid EEP_Ps2_PsType PS Type 0xFF 00:KME's PS (Group Page ) / 01:KME's PS (Group Page/Message Waiting) 02:TD-7500 or TD-7590 / FF:Another Maker's EEP_Ps2_Ipui PS ID 0x00, 0x00, 0x00, 0x00, IPUI (14Byte)
  • Page 93 Address Initial Name Description Default value Type EEP_Ps4_Ipui PS ID 0x00, 0x00, 0x00, 0x00, IPUI (14Byte) 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00 0x00, 0x00 EEP_Ps5_InUseFlag IN-Use Flag 0x00 00:Invalid / 01:Valid EEP_Ps5_DectPsNo DECT PS No. 0xFF 00-3F:PS No. / FF:Invalid EEP_Ps5_PsType PS Type 0xFF...
  • Page 94 Address Initial Name Description Default value Type EEP_ClipDetectConfig CLIP detect configuration 0x73 Bit0-2:Mode...0:Learn mode, 1:DTMF only, 2 :FSK only, 3:FSK/DTMF both, 4:Russian CLIP only Bit3:Unused3 Bit4:Onhook...1=enable, 0=disable Bit5:Offhook...1=enable, 0=disable Bit6:MsgWaiting...1=enable, 0=disable Bit7:Unused7 EEP_ClipRingConfig Ring configuration 0x00 Bit0:Rpas...1=enable, 0=disable Bit1:RpasAlert...1=enable, 0=disable Bit2:Rpas2LongAlert...1=enable, 0=disable Bit3:Suppress1stRing...1=enable, 0=disable Bit4:Check1stRing...1=enable, 0=disable...
  • Page 95 Address Initial Name Description Default value Type EEP_ClipPhaseConfig CLIP phase set configuration 0x04 Bit0:ForwardNumber...1=enable, 0=disable Bit1:CallingNumber...1=enable, 0=disable Bit2:Dutch...1=enable, 0=disable Bit3:Canadian...1=enable, 0=disable Bit4:KpnVmwi...1=enable, 0=disable Bit5:PriorityCheck...1=enable, 0=disable Bit6-7:AddZero...0:no add zero, 1:add zero absolutely 2:Check Number’s top is zero. If it is zero, add zero. EEP_ClipPhaseConfig2 CLIP phase set configuration 0x01...
  • Page 96 Address Initial Name Description Default value Type EEP_ImpRemChszTimeout Impedance Remove timeout (Channel 0x2D Seizure) Unit : 10ms, Default : 450ms [Standard : 420-570ms] EEP_ImpRemContTimeout Impedance Remove timeout 0x0A Unit : 100ms, Default : 1s EEP_CasMinDuration CAS minimum duration 0x06 Unit : 10ms, Default : 60ms EEP_CasMaxDuration CAS maximum duration 0x0D...
  • Page 97 Address Initial Name Description Default value Type EEP_VmwiRingInterdigitMax Bell Ring Interdigit maximum (for KPN 0x32 VoiceMail) Unit : 100ms, Default: 5000ms EEP_RuDtmfDurationMin RU_DTMF minimum duration 0x01 Unit : 10ms, Default : 10ms EEP_RuDtmfDurationMax RU_DTMF maximaum duration 0x07 Unit : 10ms, Default : 70ms EEP_RuDtmfDurationOff RU_DTMF Off duration 0x05...

  • Page 98: Eeprom Contents

    30. EEPROM LAYOUT (HANDSET) 30.1. Scope The purpose of this section is to describe “layout of the EEPROM (IC10) KX-TCA150 Handset”. The EEPROM contains hardware, software, and user specific parameters. Some parameters are set during production of the handset e.g. crystal oscillator adjustment at 0057, some are set by the user when configuring the handset e.g.
  • Page 99 Name Description Default AddressInitial value Type EEP_Ipei International Portable Part Equipment 0x00, 0x00, Identities. 0x00, 0x00, 0x00 A concatenation of an EMC and a unique 20 bit Serial Number. EEP_FreqTrim_L Setting value of FREQ_TRIM_REG 0x75 EEP_BandGap Setting value of BandGap REG 0x08 EEP_LowQualityLevel Signal quality level at which handover is...
  • Page 100 Address Initial Name Description Default value Type EEP_FactoryLanguage Selected Language for LCD 0x01 Setting GERAM:0 ENGLISH:1 SPANISH:2 NORWEGIAN FRENCH:4 ITALIAN:5 DENISH:6 DUTCH:7 SWEDISH:8 FINNISH:9 GREEK:10 TURKISH:11 HUNGARIAN:12 PORTUGUESE:13 RUSSIAN:14 POLISH:15 SLOVAKIAN:16 CZECH:17 CROATIAN:18 CATALAN:19 EEP_Available_Language Select Available Language 0xFF, 0xBF, 0xFF 0:Disable 1:Enable 1EEF...

  • Page 101: How To Replace Flat Package Ic

    30.3.3. MMI1 Setting Address Initial Name Description Default value Type EEP_DspSdt2Level DSP Parameter SideTone2 0xFF, 0x7F, 0x00, 0x18 Main:SideTone2 Main route level MictoRcv:SideTone2 MIc to Receiver level EEP_DspToneLevel DSP Parameter ToneLevel 0xFF, 0x7F, 0xFF, 0x7F Talk:Tone Level in Talk mode Spp:Tone Level in Spp mode EEP_DspRxMuteLevel DSP Parameter RxMute Level...
  • Page 102 - PbF (: Pb free) Solder - Soldering Iron Tip Temperature of 700°F ± 20°F (370°C ± 10°C) Note: We recommend a 30 to 40 Watt soldering iron. An expert may be able to use a 60 to 80 Watt iron where someone with less experience could overheat and damage the PCB foil.

  • Page 103: Cabinet And Electrical Parts Location

    31.3. Modification Procedure of Bridge 1. Add a small amount of solder to the bridged pins. 2. With a hot iron, use a sweeping motion along the flat part of the pin to draw the solder from between the adjacent pads. 32.
  • Page 105 33. CABINET AND ELECTRICAL PARTS LOCATION (HANDSET) 34. CABINET AND ELECTRICAL PARTS LOCATION (CHARGER UNIT)

  • Page 106: Accessories And Packing Materials

    35. ACCESSORIES AND PACKING MATERIALS...
  • Page 107 35.1. KX-TCD505HKM 35.2. KX-TCA151EM...

  • Page 108: Terminal Guide Of The Ics, Transistors And Diodes

    36. TERMINAL GUIDE OF THE ICs, TRANSISTORS AND DIODES 36.1. Base Unit...

  • Page 109: Charger Unit

    36.2. Handset 36.3. Charger Unit 37. REPLACEMENT PARTS LIST 1. RTL (Retention Time Limited) Note: The marking (RTL) indicates that the Retention Time is limited for this item. After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time.
  • Page 110 this period, the assembly will no longer be available. 2. Important safety notice Components identified by the mark indicates special characteristics important for safety. When replacing any of these components, only use specified manufacture’s parts. 3. The S mark means the part is one of some identical parts. For that reason, it may be different from the installed part.
  • Page 111 Ref. No. Part No. Part Name & Description Remarks PQGB10019Z1 BADGE, PANASONIC PQGG10160Y1 GRILLE PC-HB PQKM10586X5 CABINET BODY ABS-HB PQJT10203Z TERMINAL PQKE10356Z1 GUIDE, CHARGE TERMINAL CASE POM-HB PQMC10479Z MAGNETIC SHIELD, CPPER FOIL SHEET PQSA10131Z ANTENNA, MAIN PQSA10132Z ANTENNA, SUB PQYF10560Z4...
  • Page 112 Ref. No. Part No. Part Name & Description Remarks PQJJ1TB26Z JACK PQJJ1B4Y JACK (RESISTORS) ERJ1WYJ220 ERJ1WYJ220 ERJ3GEYJ101 ERJ3GEYJ221 ERJ3GEYJ473 ERJ3GEYJ562 5.6K ERJ3GEYF563 ERJ3GEYF243 ERJ3GEYJ153 ERJ3GEYJ223 ERJ3GEYJ223 ERJ3GEYJ562 5.6K ERJ3GEYJ104 100K ERJ3GEYJ101 ERJ3GEYJ562 5.6K ERJ3GEYJ103 ERJ3GEYJ562 5.6K ERJ3GEYJ222 2.2K ERJ3GEYJ101 ERJ3GEYJ101 PQ4R18XJ000 ERJ3GEYJ104 100K...
  • Page 113 Ref. No. Part No. Part Name & Description Remarks ERJ3GEYJ103 ERJ3GEYJ103 ERJ3GEYJ103 ERJ3GEYJ181 ERJ3GEYJ181 R100 ERJ3GEYJ103 R101 ERJ3GEYJ103 R105 ERJ3GEYJ103 R106 ERJ3GEYJ273 R107 ERJ3GEYJ273 R108 ERJ3GEYJ103 R111 ERJ3GEYJ103 R112 ERJ3GEY0R00 R113 ERJ3GEYJ223 R114 ERJ3GEYJ562 5.6K (CAPACITORS) ECUV1H100DCV 10P ECEA1CK101 ECEA0JU331 ECEA1CKA100 ECUV1H040CCV 4P ECEA1CKA100...
  • Page 114 Ref. No. Part No. Part Name & Description Remarks ECUV1H100DCV 10P ECUV1H100DCV 10P ECUV1H030CCV 3P ECUV1H101JCV 100P ECUV1H030CCV 3P ECUV1H330JCV ECUV1H010CCV 1P ECUV1C104KBV 0.1 ECUV1C105ZFV ECUV1C105ZFV ECUV1H020CCV 2P ECUV1H562KBV 0.0056 ECUV1A475KB ECUV1H103KBV 0.01 ECUV1H020CCV 2P ECUV1H020CCV 2P C100 ECUV1H100DCV 10P C101 ECUV1H682KBV 0.0068 C102...
  • Page 115 Ref. No. Part No. Part Name & Description Remarks PQGG10159Z1 GRILLE, LCD ABS-HB PQGP10230Z1 PANEL, KEY ABS-HB PQGP10231Z PANEL, LCD PC-HB PQHS10567Z TAPE, DOUBLE SIDE (LCD) PQHS10568Z TAPE, DOUBLE SIDE (KEY) PQKM10595Z1 CABINET BODY ABS-HB PQGP10232Z OPTIC CONDUCTIVE PARTS, LED LENS ABS-HB PQHE10141Z SPACER, LCD SPONGE...
  • Page 116 Ref. No. Part No. Part Name & Description Remarks PCB100 PQWP1D505HKR MAIN P.C.BOARD ASS'Y (RTL) (for KX-TCD505HKM) PCB100 PQWP1D151ER MAIN P.C.BOARD ASS'Y (RTL) (for KX-TCA151EM) (ICS) C1CB00001598 C1BB00000265 C1BB00000783 C0JBAB000371 IC10 PQWI1D505HKR IC (for KX-TCD505HKM) (*2) IC10 PQWI1D151ER IC (for KX-TCA151EM) (*2)
  • Page 117 Ref. No. Part No. Part Name & Description Remarks ERJ3GEYJ562 5.6K ERJ3GEYF203 ERJ3GEYF103 ERJ3GEYJ393 ERJ3GEYJ330 ERJ3GEYJ100 ERJ3GEYJ470 ERJ3GEYJ121 ERJ3GEYJ102 ERJ3GEYJ102 ERJ3GEYJ474 470K ERJ3GEYJ331 ERJ3GEYJ101 ERJ3GEYJ222 2.2K ERJ3GEYJ184 180K ERJ3GEYJ273 ERJ3GEYJ683 ERJ3GEYJ330 ERJ3GEYJ330 ERJ3GEYJ103 ERJ3GEYJ223 ERJ6RQJR22 0.22 ERJ3GEYJ562 5.6K ERJ3GEYJ562 5.6K ERJ3GEYJ330 ERJ3GEYJ101 ERJ3GEYJ105...
  • Page 118 Ref. No. Part No. Part Name & Description Remarks ECUV1H100DCV ECUV1A224KBV 0.22 ECUV1C683KBV 0.068 ECUV1C104KBV ECUV1A105KBV ECUV1C104KBV ECUV1C104KBV ECUV1C105ZFV ECUV1C104KBV ECUV1H100DCV ECUV1H102KBV 0.001 ECUV1C104KBV ECUV1C104KBV ECUV1C104KBV ECUV1C104KBV ECUV1C104KBV ECUV1C104KBV ECUV1A105KBV ECUV1A105KBV ECUV1A105KBV ECUV1A105KBV ECUV1C474KBV 0.47 ECUV1C474KBV 0.47 ECUV1C474KBV 0.47 ECUV1C474KBV 0.47 ECUV1C474KBV 0.47...
  • Page 119 Ref. No. Part No. Part Name & Description Remarks ECUV1C104KBV ECUV1C104KBV ECUV1C104KBV ECUV1H100DCV ECUV1H100DCV PQCUV1A225ZF ECUV1H020CCV ECUV1H020CCV ECUV1C105ZFV ECUV1H100DCV ECUV1H100DCV ECUV1H100DCV ECUV1H100DCV ECUV1H100DCV ECUV1H101JCV 100P ECUV1H101JCV 100P C100 ECUV1A105ZFV C101 ECUV1C104KBV (OTHERS) L0CBAB000052 MICROPHONE J3FKK0000003 RF UNIT K2HD103D0001 JACK K0C115A00003 SEESAW SWITCH 37.3.

  • Page 120: Fixtures And Tools

    37.4.1. KX-TCD505HKM Ref. No. Part No. Part Name & Description Remarks PQLV19EZ AC ADAPTOR PQJA87S CORD, TELEPHONE PQKE10355Z1 HANGER, BELT CLIP PC+ABS-HB PQQX13977Z INSTRUCTION BOOK PQQW13197Z QUICK GUIDE PQQW13241Z INSTRUCTION BOOK, SMS GUIDE PQQW12846W LEAFLET, RECHARGE PQPP10100Z PROTECTION COVER (for Base Unit)

  • Page 121: Circuit Board (Handset)

    2. This schematic diagram may be modified at any time with the development of new technology. 38.2. Handset (SCHEMATIC DIAGRAM (HANDSET)) Notes: 1. DC voltage measurements are taken with an oscilloscope or a tester with a ground. 2. The schematic diagrams and circuit board may be modified at any time with the development of new technology.
  • Page 122 Marked...
  • Page 123 DC_IN TP11 JTAG CHARGE TP17 TP15 TP29 TP22 TP24 TP20 TP21 TP19 TP14 TP12 Marked...
  • Page 124 IC10 Marked...
  • Page 125 Marked TALK LED9 SOFT_A CLEAR MAIL...
  • Page 126 Marked Marked (Component View) (Flow Solder Side View)
  • Page 127 CHG terminal is properly fit in the cabinet. CHG terminal comes out of rib by pulling black lead wire when opening the cabinet and turning the PCB over. The terminal cannot have enough elastic force, cannot have good contact with handset, and it will result in charge problem.
  • Page 128 AF Volt Meter Tel Simulator DECT tester CMD60 (I) (J) (K) (L) ANTENNA (M) (N) (O) (P) AF Generator ANT1 TP16 TP49 C119 TP48 C101 R112 R113 ANT2 C102 C131 R114 C110 R101 R100 TP47 TP18 TP44 TP41 C129 TP31 R105 TP43 C115...
  • Page 129 DTMF tester Digital Digital DC_6V Volt Meter Volt Meter TP21 TP19 Simulator TP14 TP9 TP5 TP5 TP22 Digital Volt Meter Frequency Counter TP17 12ohm TP11 TP15 Digital Digital Volt Meter Volt Meter (C) (D) (E) (F) (G) (H) (I) (J)
  • Page 130 12Ω/2W Digital Volt Meter DC Power Supply 6V...
  • Page 131 OSCILLO SCOPE AF VOLT LOOP OSCILLO METER SIMULATOR SCOPE AF VOLT DUMMY METER BASE DIGITAL DECT TESTER VOLT METER CMD60 8Ω TP10 TP15 (J) (K) (L) (M) (N) (O) (P) (Q) (E) (F) DC POWER SUPPLY TP15 J3 CHARGE+ IC10 C101 MIC- MIC+...
  • Page 132 SYEN Module HOOK Controller) RF Module Bell/Caller ID Interface Bell Limit CHARGE XTAL Flash A00-A17 Register CONTACT Memory CE, OE, WR 10.368 BBIC DQ0~DQ15 VUNREG 4.0V to AC Adaptor Reg. EEPROM 4.0V Reg. 1.8V Reg. KX-TCD505HKM BLOCK DIAGRAM (BASE UNIT)
  • Page 133 AMPLIFIER SPEAKER Speech Burst RXDA Decoding Decoding RECEIVER TXDA Speech Burst Encoding Encoding Module RSSI ADPCM SYRI Codec Interface Headset Analog SYEN Filter SP_AMP Control Front JACK CHARGE XTAL CHARGE CHARGE CIRCUIT CHARGE 10.368 CONTACTS Q4, Q5, Q9 CHARGE DETECT CHARGE BATTERY ON SWITCH...
  • Page 134 Line Voltage 48V DC (When ON-Hook) 10V DC (When OFF-Hook) 10V DC (When OFF-Hook) 0V DC (When ON-Hook) TP20 TP21 (21-25) TEL_JACK TP24 (21-25) 100K TP19 (21-25) (21-25) 2.2K N.M. N.M. (21-25) R106 C101 OPTION4 N.M. 6800p K0.022 RLY1 RX_AF (When ON-Hook) N.M.
  • Page 135 124 AD3 RFCLK P3[6]/PD6 125 AD4 DAC/ADC2 4.7u 126 AD5 127 AD6 TP17 128 AD7 (21) TP42 RX-DATA PAON TP41 0.1u 0.1u 10.368MHz burst (22) (23) N.M. : No Components 840mV p-p 10.368MHz (24) 10.368MHz KX-TCD505HKM: SCHEMATIC DIAGRAM (BASE UNIT)
  • Page 136 124 AD3 RFCLK P3[6]/PD6 125 AD4 DAC/ADC2 4.7u 126 AD5 127 AD6 TP17 128 AD7 (21) TP42 RX-DATA PAON TP41 0.1u 0.1u 10.368MHz burst (22) (23) N.M. : No Components 840mV p-p 10.368MHz (24) 10.368MHz KX-TCD505HKM: SCHEMATIC DIAGRAM (BASE UNIT)
  • Page 137 115KHz TP10 TP11 TP12 +1.8V Charge Current 4.0V DC 2.7V DC 1.8V DC +2.7V 47uH BATTERY+ BATTERY- R57 68 N.M. RX-AF (Speaker phone) TP16 CHARGE+ RX-AF (Handset) 10uH POWER CHARGE- 330R 10uH 100R TX-AF Beep signal (When ON Charge) 470K 2.8V 1sec cycle +1.8V...
  • Page 138 SP_TEST2 0.047u 3.9V 2.2u 100n Speaker 21-25 100n 180K SP_TEST1 100n +2.7V 470P Receiver HEADSET JACK REV_TEST2 N.M. REV_TEST1 N.M. N.M. (2125) 2.2K C10 100n 2.7V 100n 100R 0V (without Headset) 1V (with Headset) +2.7V MIDI signal 37 VIB DGND 38 DrvGND D2/SCLK PANEL...
  • Page 139 SP_TEST2 0.047u 3.9V 2.2u 100n Speaker 21-25 100n 180K SP_TEST1 100n +2.7V 470P Receiver HEADSET JACK REV_TEST2 N.M. REV_TEST1 N.M. N.M. (2125) 2.2K C10 100n 2.7V 100n 100R 0V (without Headset) 1V (with Headset) +2.7V MIDI signal 37 VIB DGND 38 DrvGND D2/SCLK PANEL...
  • Page 140 DC_PLUG Charge_plus Charge_minus pinL SCHEMATIC DIAGRAM (CHARGER UNIT)
  • Page 141 R105 TP43 C115 TP45 TP42 C130 TP40 TP46 C123 C126 C111 C37 R40 C113 TP26 C108 C109 C112 Q3 Collector RESET BBIC:21 Bell Buzzer (1.8 V) (BBIC: 120) (10.368MHz) (BBIC: 79) (Bell Buzzer) KX-TCD505HKM CIRCUIT BOARD (BASE UNIT) Component View...
  • Page 142 TP17 (10.368MHz) DC_IN TP11 JTAG CHARGE TP17 TP15 TP29 TP22 TP24 TP20 TP21 TP19 TP14 TP12 TP22 TP14 TP15 (3.0V) (4.0V) (1.8V) KX-TCD505HKM CIRCUIT BOARD (BASE UNIT) Flow Solder Side View...
  • Page 143 TP10 BATTERY (+) "BATT" (BBIC) (+4V) (SP_amp_IC) SP_TEST2 (+) TP15 IC10 C101 SP_TEST2 SP_TEST1 REV_TEST2 REV_TEST1 BATTERY (-) BBIC: 12 TP12 TP11 SP_TEST1 (-) (10.368 MHz) (+1.8V) (+2.75V) (RF clock) (RF module) KX-TCA151EM CIRCUIT BOARD (HANDSET) Component View...
  • Page 144 IC4: 29 (6 MHz) LED10 TALK LED9 LED8 R51 R77 SOFT_A C100 CLEAR MAIL (MIDI-IC) (MIDI-IC) KX-TCA151EM CIRCUIT BOARD (HANDSET) Flow Solder Side View...
  • Page 145 CIRCUIT BOARD (CHARGER UNIT) Component View...
  • Page 146 CIRCUIT BOARD (CHARGER UNIT) Flow Solder Side View...

This manual is also suitable for:
