Sony CDX-GT260MP Specifications

Sony car stereo receiver specifications.

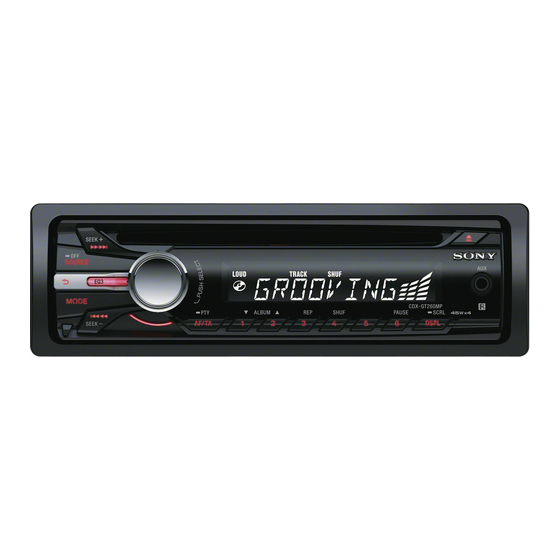

CDX-GT260MP
Enjoy listening to MP3/WMA files on CD or directly from your iPod® or Walkman®
player plugged in to the front aux input of your Sony® CDX-GT260MP car stereo
receiver. Plus, experience great sound quality from the built-in equalizer and
powerful 52x4 watt high power amplifier.
Bullets
Detach face with LCD display and front aux input
MP3/WMA music file playback
EQ3 Stage 2 and 52 watt x 4 high power amplifier
2 Volt rear/sub selectable preamp outputs with HPF/LPF
Radio Data System (RDS)
Convenient wireless remote (RM-X201)
Red key illumination
Features
Detach face with front aux input
The easy-to-read single line LCD display shows clock, station ID and track data when playing back your digital
MP3/WMA files from the internal CD drive. Front auxiliary input lets you connect almost any portable audio
device to your car's sound system.
MP3/WMA music playback
Play CDs, CD-Rs, and CD-RWs, including discs loaded with digital MP3s and WMA files.
Internal high power and EQ
The CDX-GT260MP delivers 52 watts of peak power to all four speakers for powerful output (208 watts total
power). The 3 band EQ3 allows users to customize the sound centered at 60 Hz, 1000 Hz and 10 kHz frequencies.
RCA outputs for external amplifiers
When you're ready to expand your sound system, the CDX-GT260MP offers selectable rear or subwoofer pre-amp
RCA outputs for external amplifiers. Set the built in electronic HPF/LPF crossovers to improve sound quality and
reduce system distortion.
Radio Data System
Radio Data System (RDS) feature displays radio broadcast information such as artist and track information when
listening to compatible AM/FM stations. RDS also allows expanded channel playback with compatible radio
station broadcasts.
Wireless card remote
Control your receiver while keeping your eyes on the road with the included wireless card remote (RM-X201).
Key illumination
Red key illumination helps you locate buttons quickly during evening playback.
Specifications
Amplifier Section
Max power output
Power Ad Hoc
Speaker Impedance
AMP & General Feature
Aux-In
52 watts x 4 at 4 ohms
CEA2006 Standard Power: 17 Watts RMS per channel into 4 Ohms, 4 channels driven from 20 Hz to 20
kHz with less than 1% THD+N.
4-8 Ohms
Yes (Front)
CDX-GT40U CD Receiver with USB input

Summary of Contents

  • Page 1

    Internal high power and EQ The CDX-GT260MP delivers 52 watts of peak power to all four speakers for powerful output (208 watts total power). The 3 band EQ3 allows users to customize the sound centered at 60 Hz, 1000 Hz and 10 kHz frequencies.

  • Page 2

    High Pass Filter Loudness Low Pass Filter Output Power (4ohm, 1kHz,16V)(W) Pre Out Rear/Sub initial Audio Band Equalizer Format(s) Supported Preout Impedance Preout Voltage S/N Ratio Signal-to-Noise Ratio (dB) Station Preset(s) Tuner Frequency Range Tuner Type Wow and Flutter AUX in Feature Level Adjustment Convenience Tilt Range...

  • Page 3

    Dimensions (WxHxD) (mm) Maximum output power (4ohm, 1kHz, 16V)(W) Mounting dimensions (WxHxD)(mm) Preout impedance (ohms) Preout output level (V) Weight (kg) Inputs and Outputs 12V Trigger Output(s) Antenna Terminal(s) Audio In Infrared Port RCA Audio Output(s) Remote Jack Other Features Card Remote ( ): Option CD lock mode Clock...

  • Page 4

    Supplied Accessories © 2011 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony and the Sony logo are trademarks of Sony. iPod is a trademark of Apple Inc. Features and specifications are subject to change without notice. Updated: September 8, 2011...
