Left Fan; Removing The Left Fan - Dell Precision 5470 Service Manual

Steps
1. Place the battery onto its slot in the palm-rest and keyboard assembly.
2. Replace the five (M2x4) screws that secure the battery to the palm-rest and keyboard assembly.
3. Route the WLAN antennas using the routing guides on the battery.
Next steps
1. Install the base cover.
2. Follow the procedure in

Left fan

Removing the left fan

Prerequisites
1. Follow the procedure in
2. Remove the base cover.
About this task

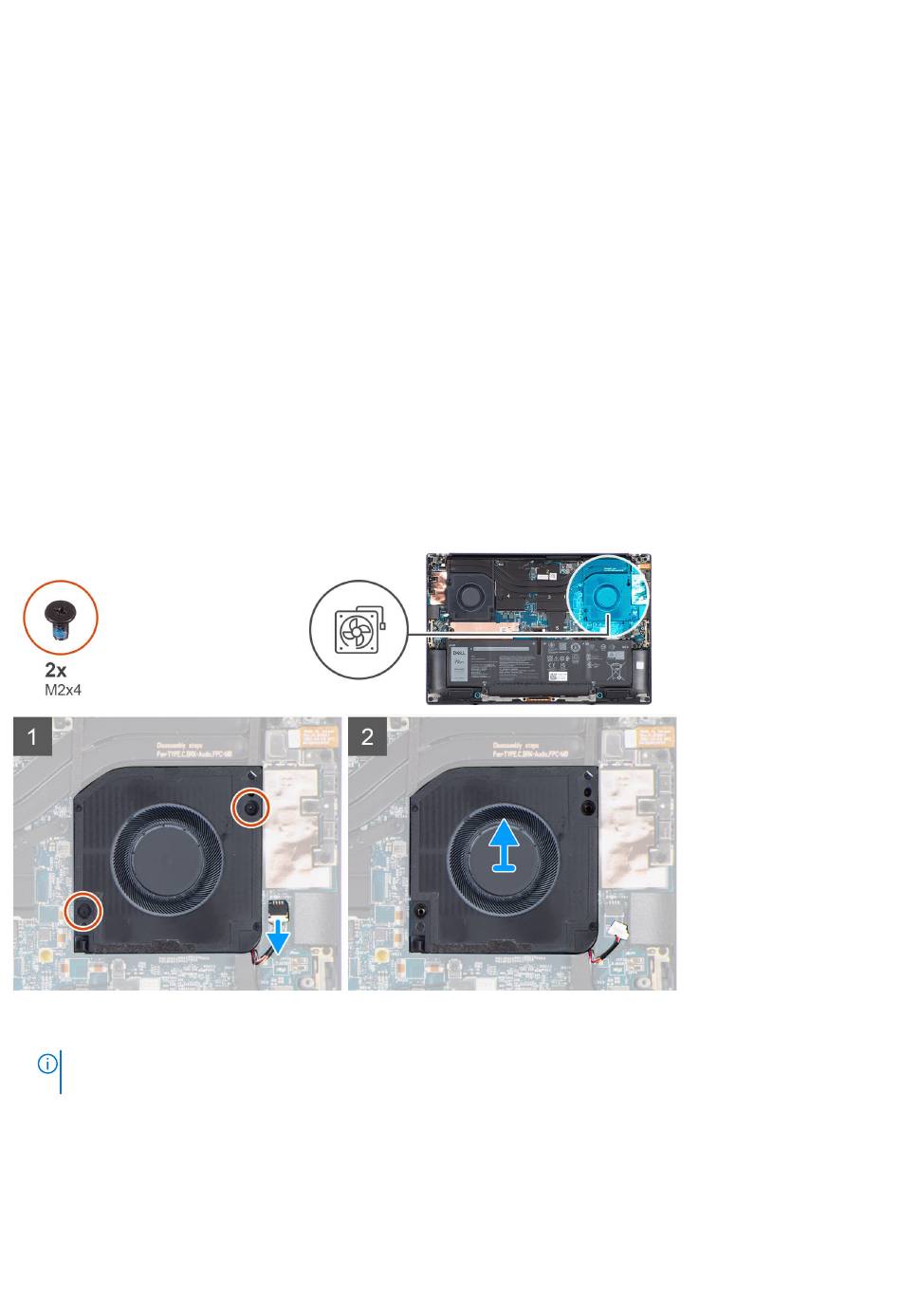

The following images indicate the location of the left fan and provide a visual representation of the removal procedure.
Steps
1.
NOTE: Before disconnecting the fan cables from the system board, carefully peel off the (1) tweeter speaker from its
compartment next to the (2) connector to create more space for the disconnection.
After working inside your
Before working inside your
computer.
computer.
